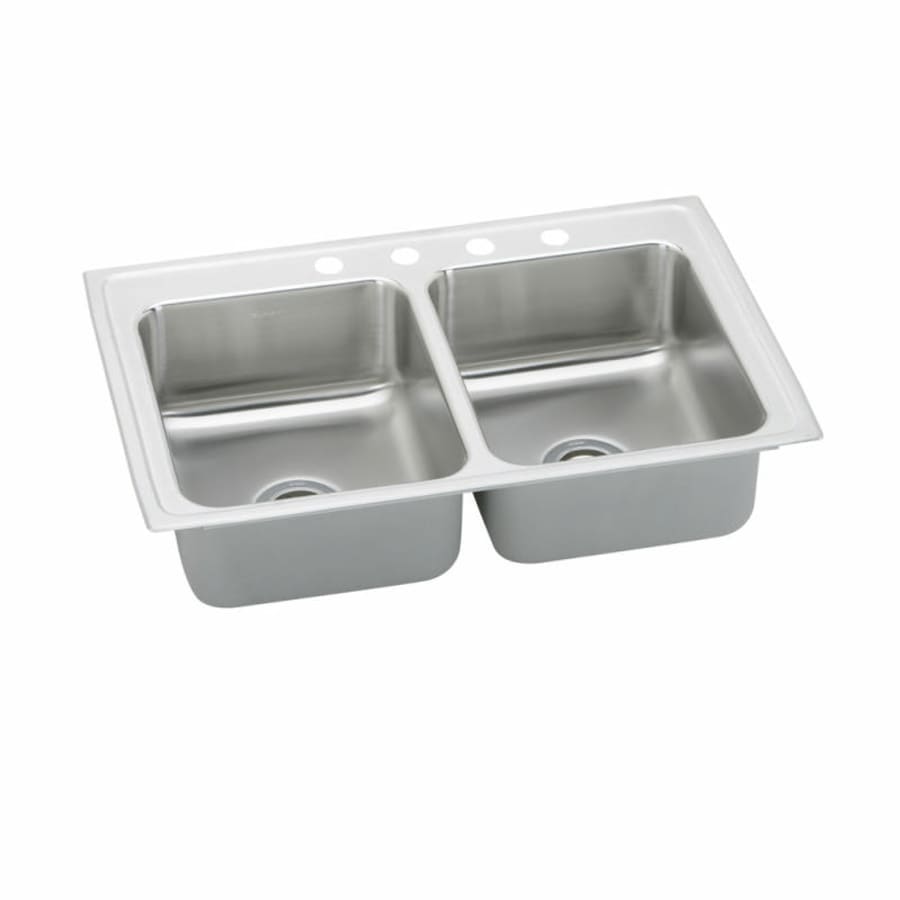

Elkay PSR3322 Features:
Constructed of 20-gauge T-304 grade stainless steel
Double basin sink with a 50/50 split increases versatility
Designed for drop in installations
Basins are undercoated and padded to prevent dish clatter and cabinet condensation
Center drain location provides optimal drainage capability
Covered under Elkay’s limited lifetime residential warranty
Product Technologies / Benefits:
SoundGuard®: Elkay uses a non-toxic latex based material to undercoat sink bottoms and sides over sound pads which help absorb sound, maintain water temperature, reduce vibration and prevent condensation. The quietest stainless steel sink in the industry.

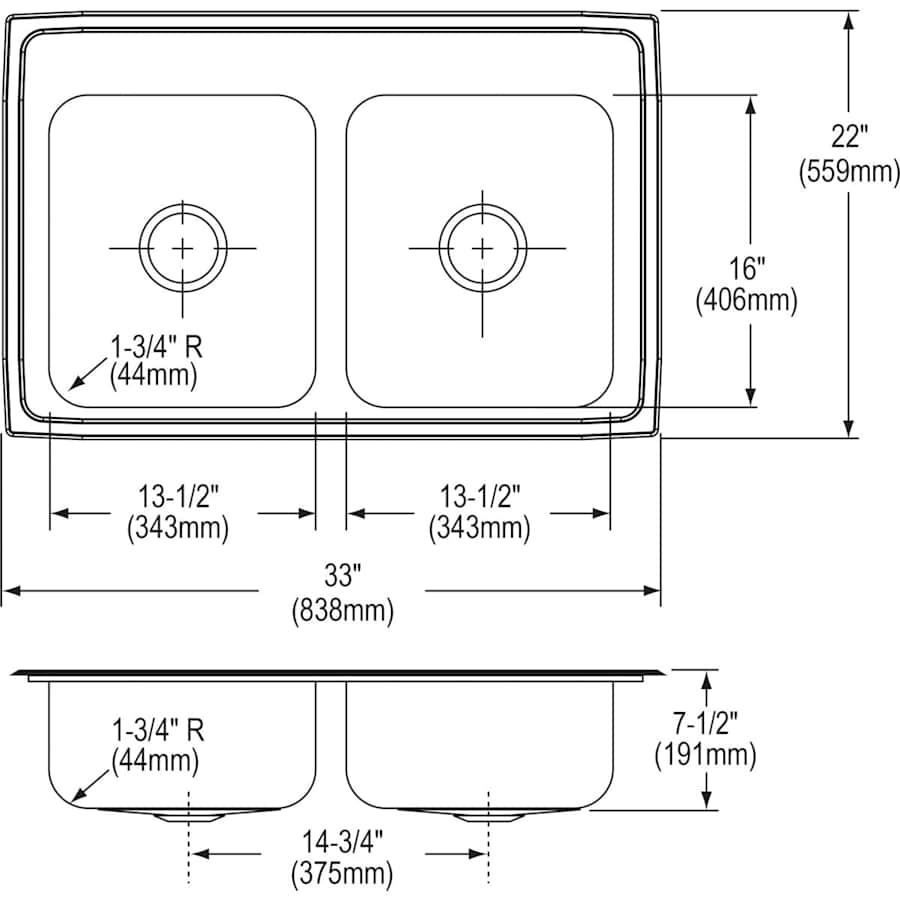

Elkay PSR3322 Specifications:
Height: 7-1/2″ (measured from bottom of sink to top of rim)
Length: 33″ (measured from left outer rim to right outer rim)
Width: 22″ (measured from back outer rim to front outer rim)
Basin Depth (left): 7-1/8″ (measured from center of basin to rim)
Basin Length (Left): 13-1/2″ (measured from left outer rim to right outer rim)
Basin Width (Left): 16″ (measured from back outer rim to front outer rim)
Basin Depth (Right): 7-1/8″ (measured from center of basin to rim)
Basin Length (Right): 13-1/2″ (measured from left outer rim to right outer rim)
Basin Width (Right): 16″ (measured from back outer rim to front outer rim)
Installation Type: Drop In
Minimum Cabinet Size: 36″
Basin Split: 50/50
Faucet Holes: 0 – 5 (holes required for faucet installation)
Drain Connection: 3-1/2″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Pacemaker Collection
Specifications
| Approved for Commercial Use | No |
| Series | Pacemaker, Sound Guard |
| ADA | No |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime Residential |
| Certifications | UPC |
| Made in America | Yes |
| Height | 7.5 in. |
| Width | 22 in. |
| Product Weight | 20 lbs. |
| Length | 33 in. |
| Faucet Centers | 0, 12, 16, 4, 8 in. |
| Nominal Length | 33 in. |
| Nominal Width | 22 in. |
| Backplate Depth | 7.125 in. |
| Drain Connection | 3.5 in. |
| Faucet Hole Size | 1.5 in. |
| Sink Length | 33 in. |
| Gauge | 20 |
| Minimum Cabinet Size | 36 in. |
| Basin Depth (Left) | 7.125 in. |
| Basin Depth (Right) | 7.125 in. |
| Basin Length (Left) | 13.5 in. |
| Basin Length (Right) | 13.5 in. |
| Basin Width (Left) | 16 in. |
| Basin Width (Right) | 16 in. |
| Material | Stainless Steel |
| Thermostat | Traditional |
| Overflow | No |
| Insulation Type | Drop In |
| Faucet Holes | 0, 1, 2, 3, 4, 5 |
| Sink Shape | Rectangular |
| Drain Placement | Center |
| Number Of Bathers | 2 |
| Basin Split | 50/50 |
| Corner Sink | No |
| Farmhouse | No |
| Sound Dampening | Yes |
| Stainless Steel Grade | 304 |
| Undercoating | Yes |
| Faucet Included | No |
| Drain Assembly Included | No |
| Basin Rack Included | No |
| Basket Strainer Included | No |
| Colander Included | No |
| Cutting Board Included | No |
| Color | 1 Faucet Hole, 2 Faucet Holes, 2 Faucet Holes (Middle Right), 3 Faucet Holes, 4 Faucet Holes, 5 Faucet Holes, No Faucet Holes |
| Color Tone | Whites |
