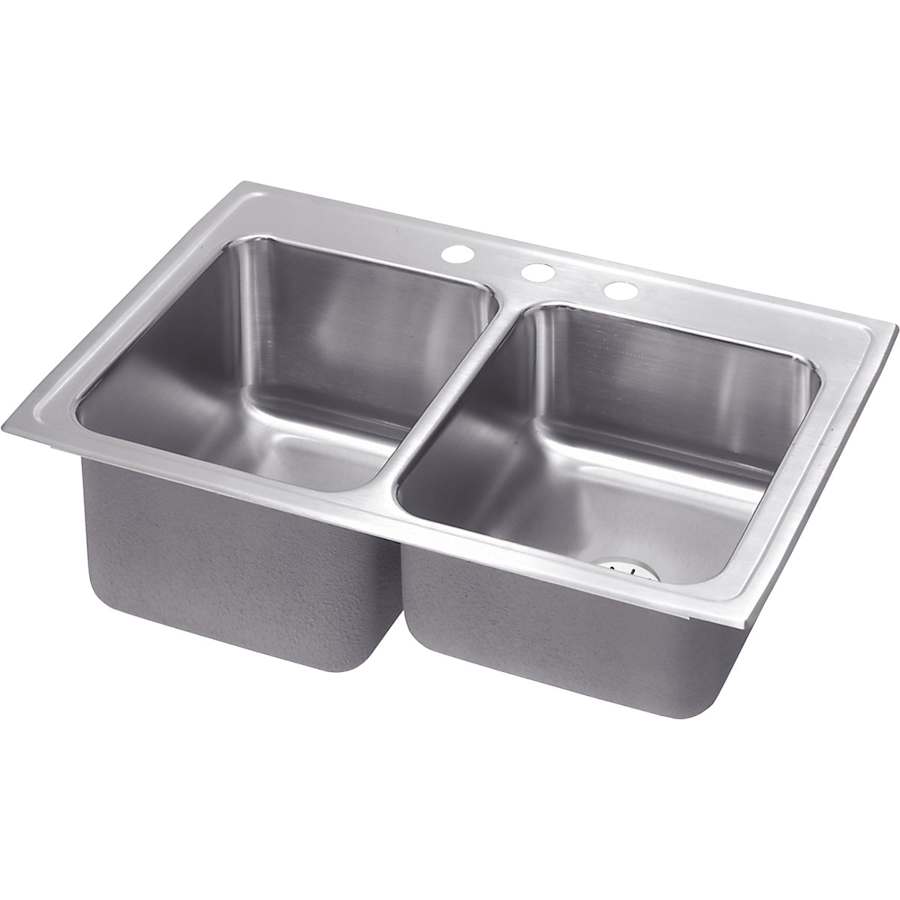

Elkay STLR3322LPD Features:
Constructed of 18-gauge T-304 grade stainless steel
Double basin sink with a 50/50 split increases versatility
Designed for drop in installations
Basins are undercoated and padded to prevent dish clatter and cabinet condensation
Center drain location provides optimal drainage capability
Stainless steel perfect drain assemblies included
Covered under Elkay’s limited lifetime residential warranty
Product Technologies / Benefits:
SoundGuard®: Elkay uses a non-toxic latex based material to undercoat sink bottoms and sides over sound pads which help absorb sound, maintain water temperature, reduce vibration and prevent condensation. The quietest stainless steel sink in the industry.
Perfect Drain: An edgeless drain that integrates seamlessly into the bottom of this sink. It eliminates the gap around the drain by doing away with the sink collar. This makes for a cleaner sink and expands your usable work space on the sink floor. Crumbs and gunk have nowhere to go but down the drain!

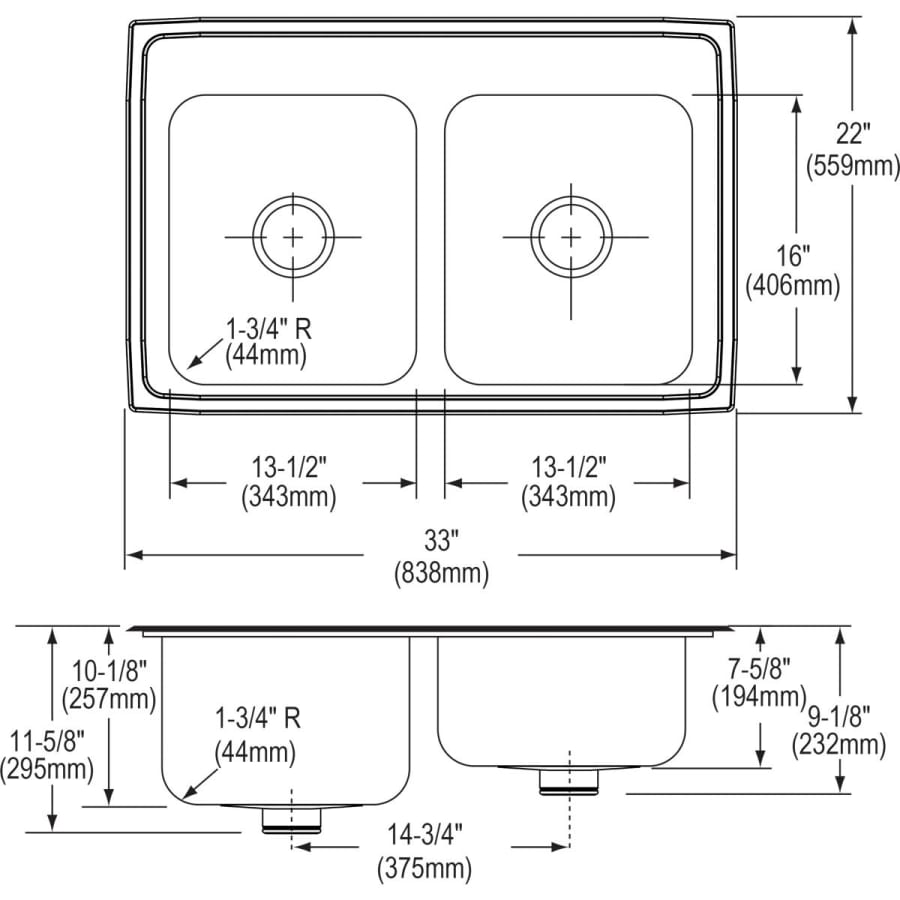

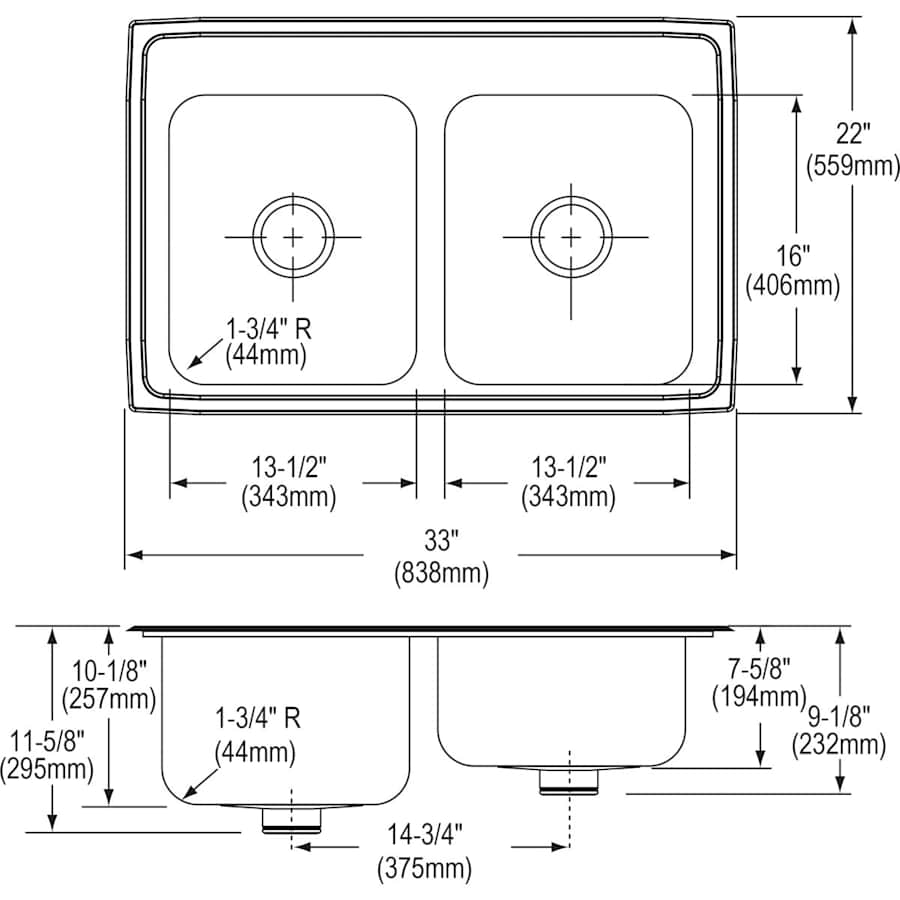

Elkay STLR3322LPD Specifications:
Height: 10-1/8″ (bottom of sink to top of rim)
Length: 33″ (left outer rim to right outer rim)
Width: 22″ (back outer rim to front outer rim)
Basin Depth (left): 10″ (center of basin to rim)
Basin Length (Left): 13-1/2″ (left outer rim to right outer rim)
Basin Width (Left): 16″ (back outer rim to front outer rim)
Basin Depth (Right): 7-1/2″ (center of basin to rim)
Basin Length (Right): 13-1/2″ (left outer rim to right outer rim)
Basin Width (Right): 16″ (back outer rim to front outer rim)
Installation Type: Drop In
Minimum Cabinet Size: 36″
Basin Split: 50/50
Faucet Holes: 1 – 5 (holes required for faucet installation)
Drain Connection: 3-3/8″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Gourmet Collection
Specifications
| Width | 22 in. |
| Height | 10.125 in. |
| Length | 33 in. |
| Nominal Length | 33 in. |
| Product Weight | 28.15 lbs. |
| Backplate Depth | 10, 7.5 in. |
| Faucet Centers | 0, 8 in. |
| Sink Length | 33 in. |
| Drain Connection | 3.375 in. |
| Nominal Width | 22 in. |
| Faucet Hole Size | 1.5 in. |
| Gauge | 18 |
| Minimum Cabinet Size | 36 in. |
| Basin Depth (Left) | 10 in. |
| Basin Depth (Right) | 7.5 in. |
| Basin Length (Left) | 13.5 in. |
| Basin Length (Right) | 13.5 in. |
| Basin Width (Left) | 16 in. |
| Basin Width (Right) | 16 in. |
| Insulation Type | Drop In |
| Material | Stainless Steel |
| Thermostat | Traditional |
| Drain Placement | Center |
| Faucet Holes | 1, 2, 3, 4, 5 |
| Number Of Bathers | 2 |
| Overflow | No |
| Sink Shape | Specialty |
| Corner Sink | No |
| Farmhouse | No |
| Sound Dampening | Yes |
| Basin Split | 50/50 |
| Stainless Steel Grade | 304 |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime Residential |
| ADA | No |
| Series | Perfect Drain, Sound Guard |
| Certifications | UPC |
| Drain Assembly Included | Yes |
| Faucet Included | No |
| Basin Rack Included | No |
| Basket Strainer Included | Yes |
| Colander Included | No |
| Cutting Board Included | No |
| Color | 1 Faucet Hole, 2 Faucet Holes, 2 Faucet Holes Middle Right, 3 Faucet Holes, 4 Faucet Holes, 5 Faucet Holes, 6 Faucet Holes |
| Color Tone | Whites |
