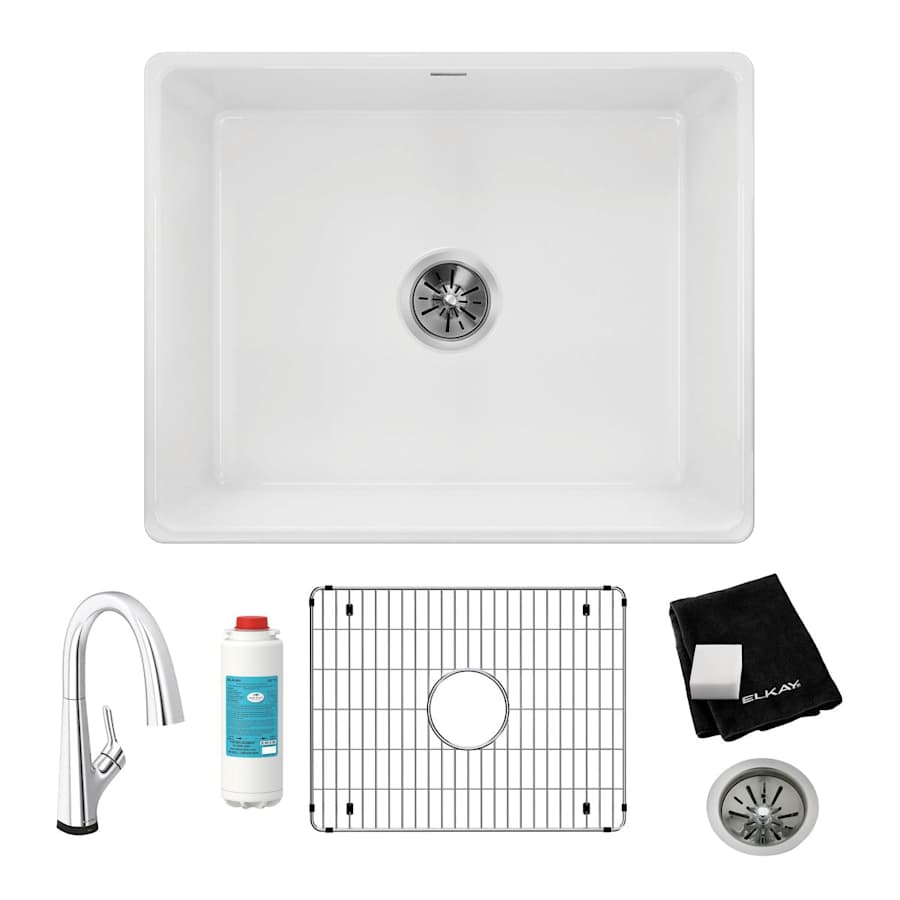

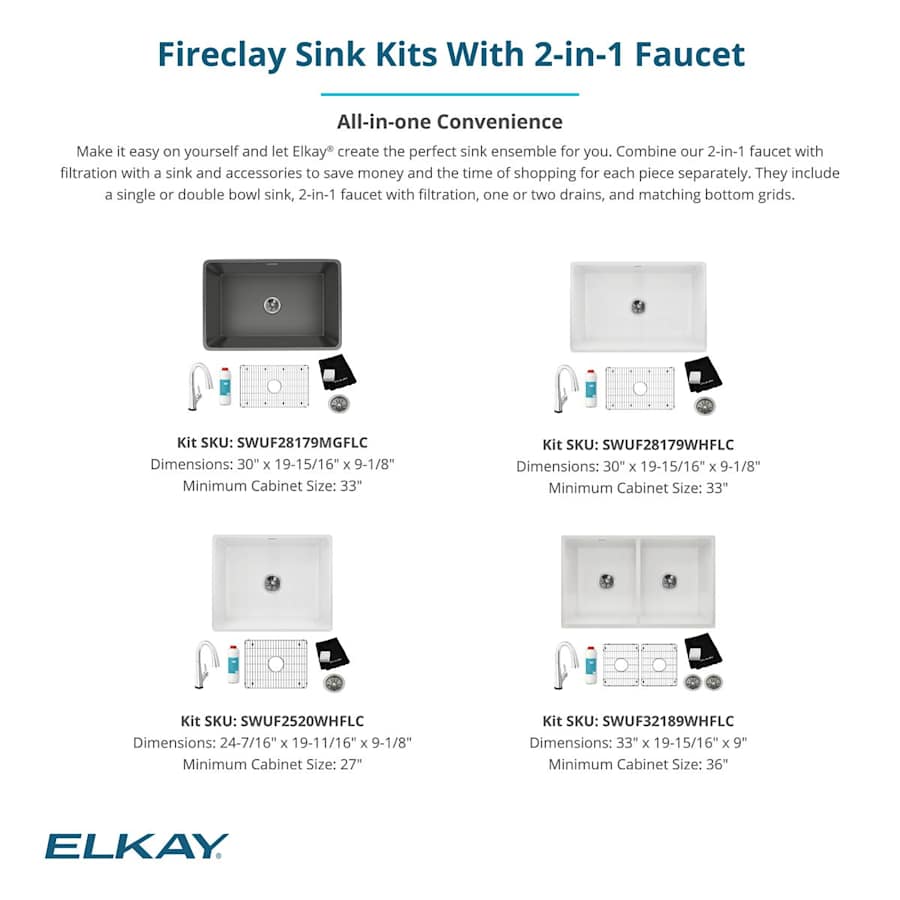

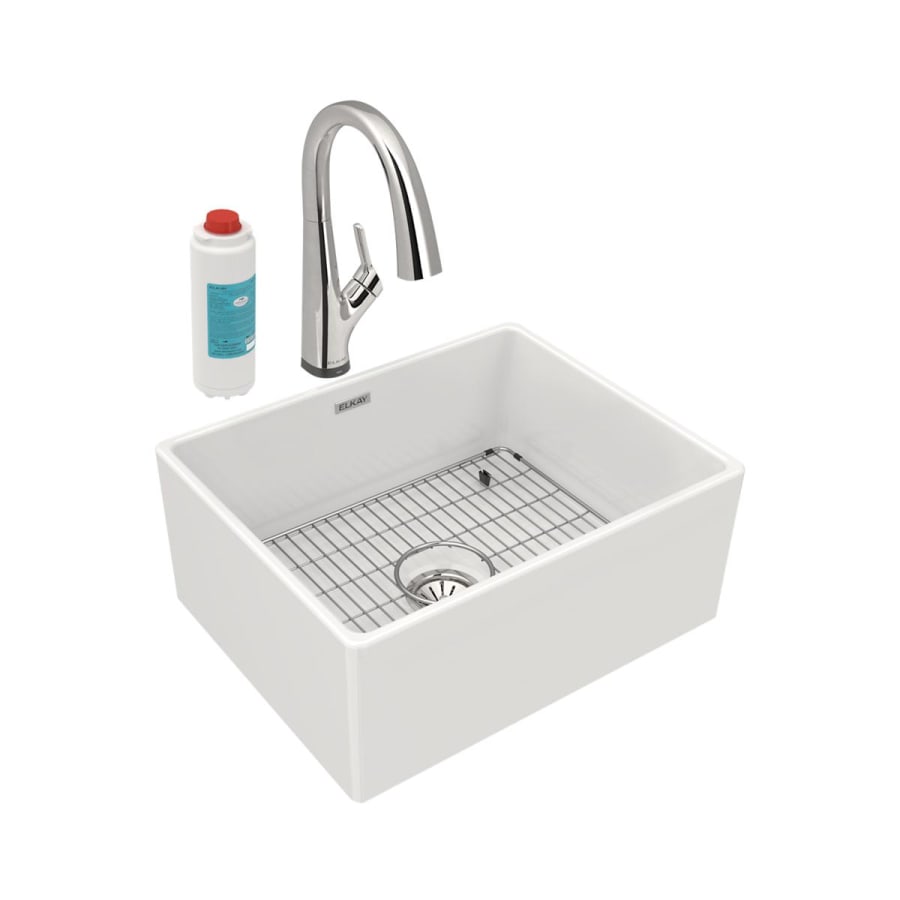

Elkay SWUF2520FLC Included Components:
24.4375 farmhouse 1 basin fireclay kitchen sink
Single Hole filtered kitchen faucet
Fitted basin rack
Coordinated basket strainers

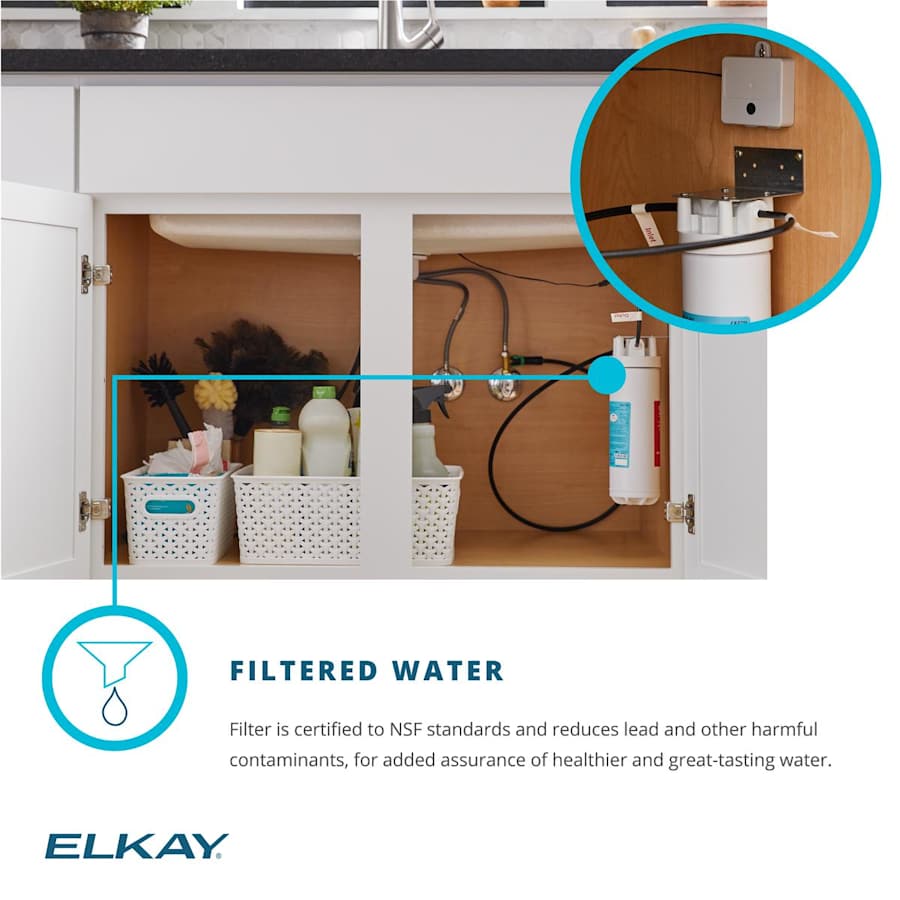

750 gallon residential water filter
Sink cleaning kit
Covered under Elkay’s limited lifetime warranty
Elkay Sink Features:

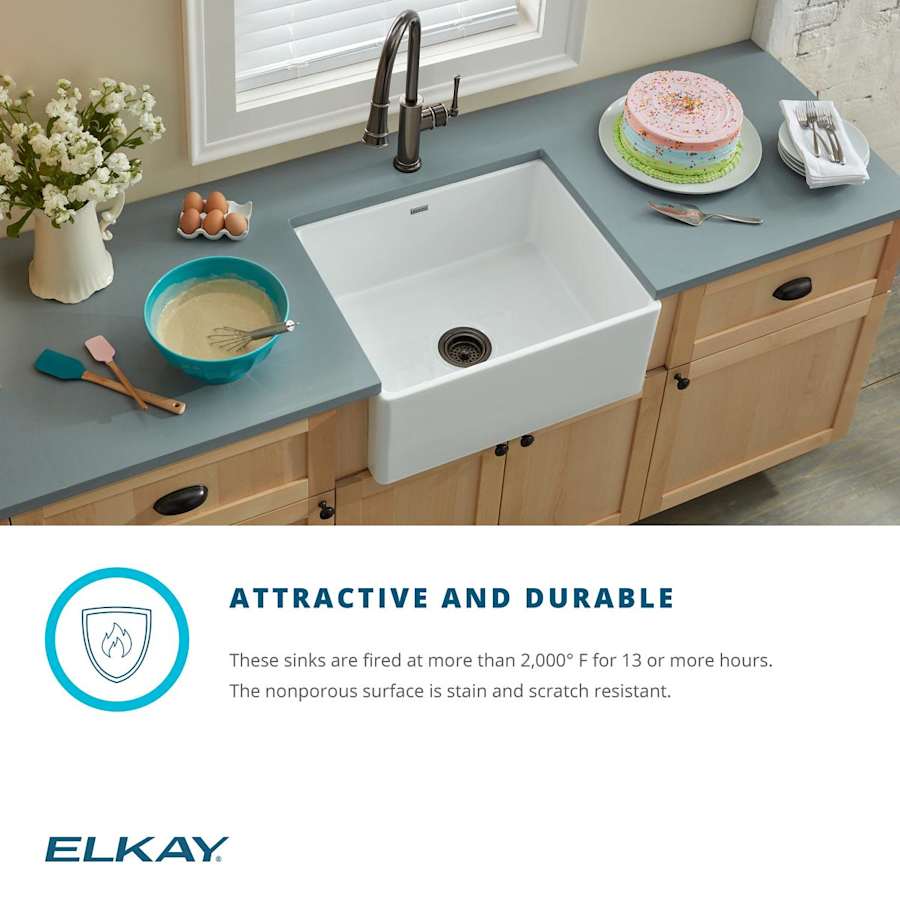

Constructed of fireclay

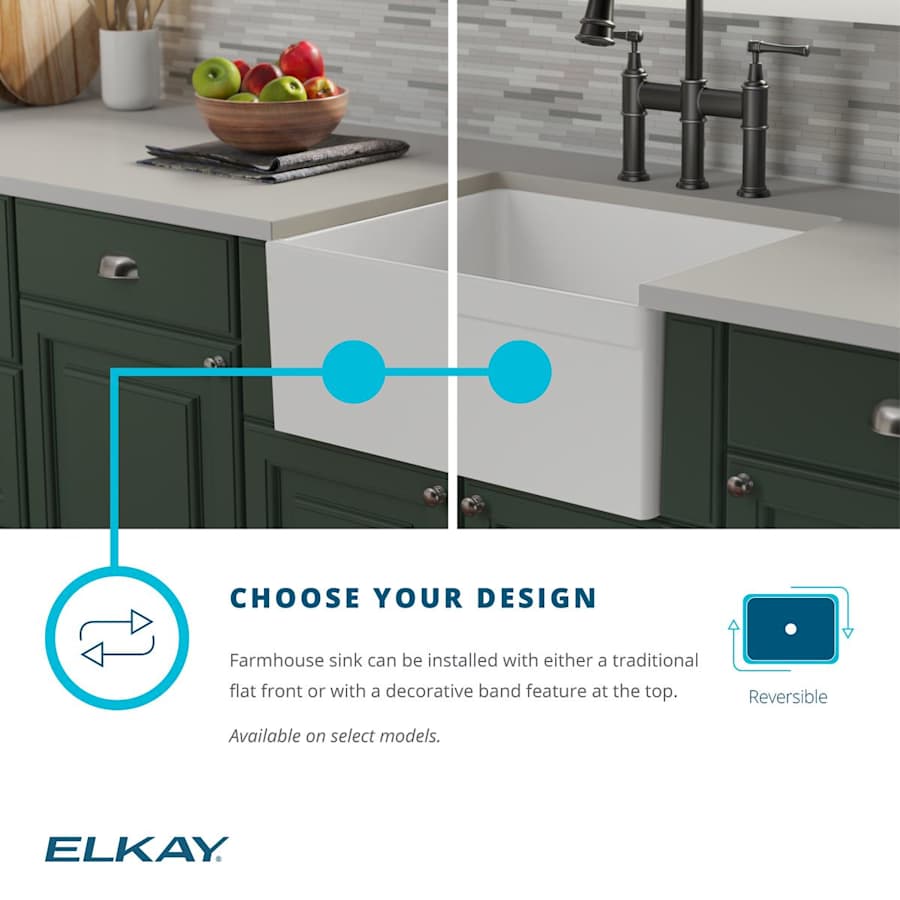

Farmhouse installation – sink will require special cabinets with and exposed front
Single basin design for maximum workspace
Material is naturally sound-deadening, minimizing sound and vibration for a quieter time at the sink
Center drain placement
Mounting hardware included

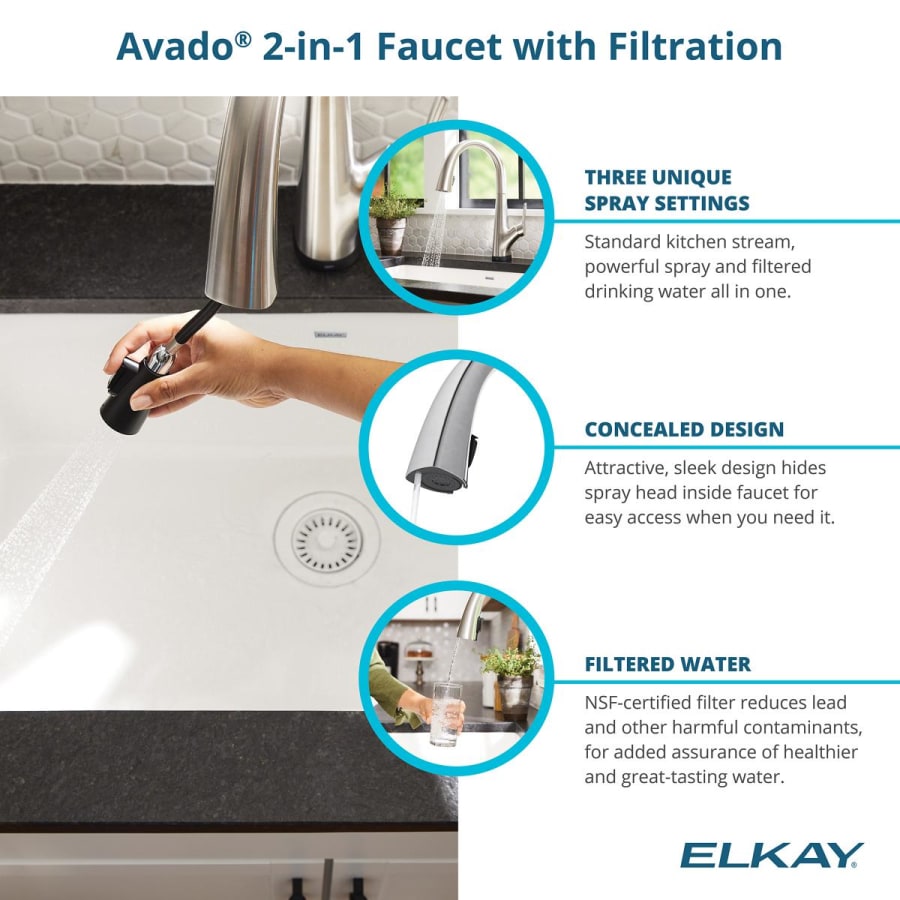

Elkay Faucet Features:
Faucet body constructed of Brass
Coordinates beautifully with other items from the Fireclay series
Single hole installation
Swivel spout allows for greater access to all areas of the sink
Single lever handle control the flow and temperature of water
Includes ceramic disc valve cartridge
Faucet includes escutcheon plate to cover additional faucet holes

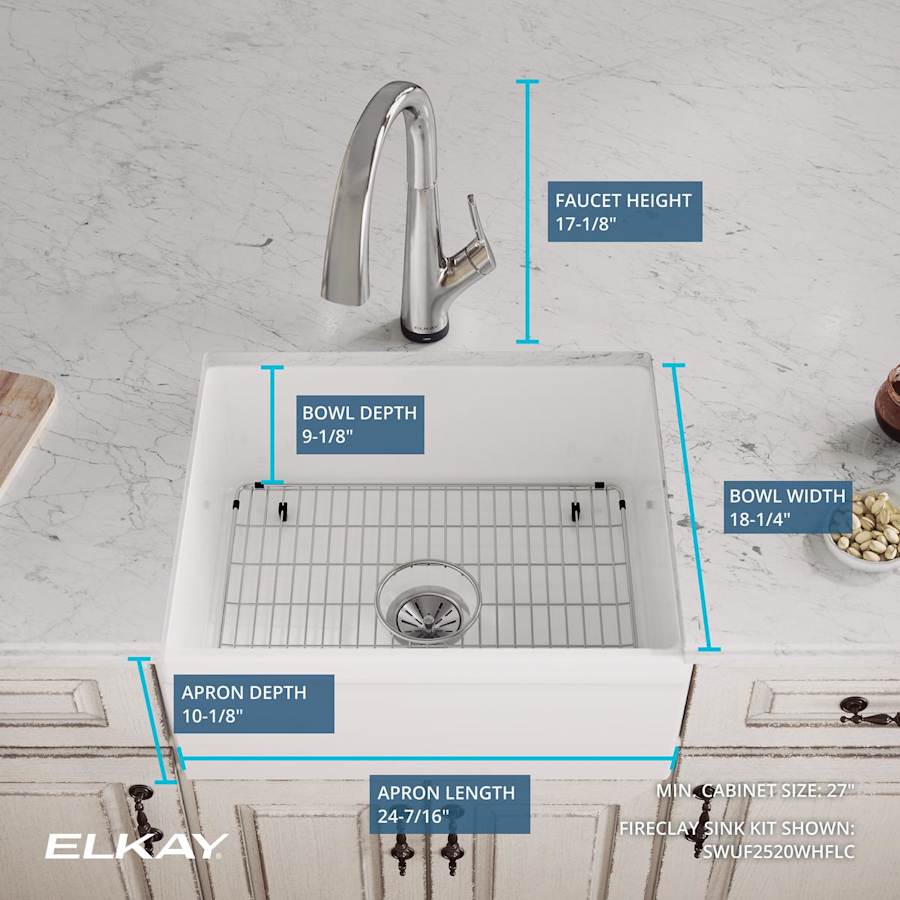

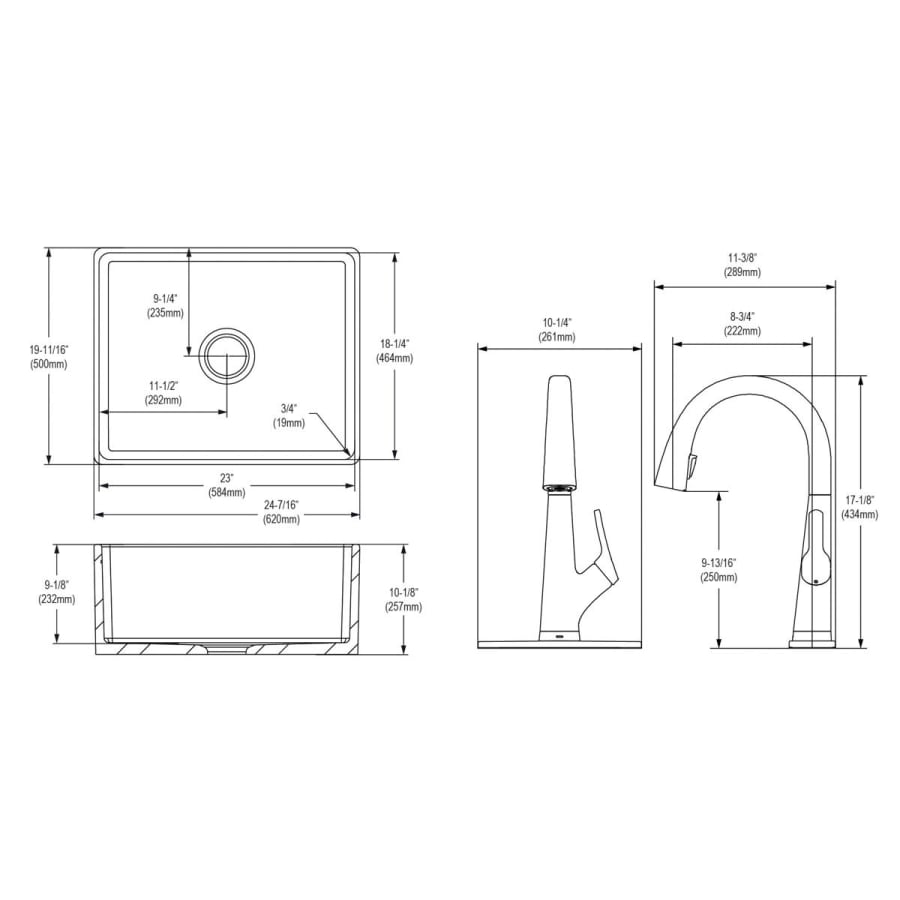

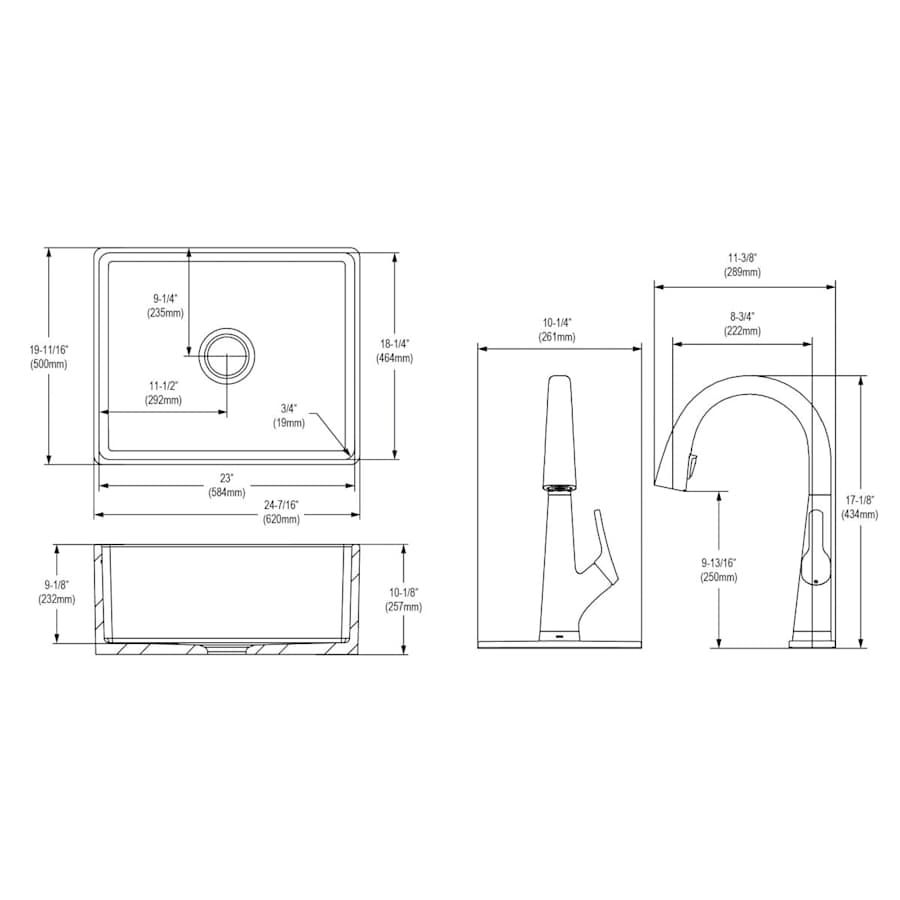

Elkay Sink Specifications:
Sink Length: 24-7/16″ (left to right)
Sink Width: 19-11/16″ (front to back)
Sink Height: 10-1/8″ (top to bottom)
Basin Dimensions: 23″ L x 18-1/4″ W x 9-1/8″ D
Drain Connection: 3-1/2″
Elkay Faucet Specifications:
Faucet Height: 17-1/8″ (deck to top of faucet)
Spout Height: 17-1/8″ (deck to spout outlet horizontally)
Spout Reach: 8-3/4″ (center of faucet body to center of spout outlet)
Flow Rate: 1.5 gallons-per-minute
Faucet Centers: 0″ (distance between centers of outside faucet holes)
Faucet Hole Size: 1-1/2″
Max Deck Thickness: 2-1/2″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Fireclay Collection
Specifications
| Backplate Depth | 9.125 in. |
| Bar Length | 23 in. |
| Base Width | 18.25 in. |
| Faucet Centers | 0 in. |
| Height | 10.13 in. |
| Nominal Width | 25 in. |
| Sink Length | 24.4375 in. |
| Sink Width | 19.68 in. |
| Width | 19.68 in. |
| Flow Rate (GPM) | 1.5 |
| Max Deck Thickness | 2.5 in. |
| Spout Height | 17.125 in. |
| Spout Reach | 8.75 in. |
| Spout Swivel | 180 Degrees |
| Drain Connection | 3.5 in. |
| Faucet Hole Size | 1.5 in. |
| Length | 24.4375 in. |
| Nominal Length | 24.4375 in. |
| Hose Length | 36 in. |
| Faucet Height | 17.125 in. |
| Sink Height | 10.13 in. |
| Minimum Cabinet Size | 27 in. |
| Escutcheon Included | Yes |
| Faucet Included | Yes |
| Filtering | Yes |
| Handshower Included | Yes |
| Sidespray | No |
| Soap Dispenser Included | No |
| Valve Included | Yes |
| Basin Rack Included | Yes |
| Basket Strainer Included | Yes |
| Colander Included | No |
| Cutting Board Included | No |
| Drainboard | No |
| Drain Placement | Center |
| Faucet Mounting Type | Single Hole |
| Insulation Type | Farmhouse |
| Number Of Bathers | 1 |
| Sink Material | Fireclay |
| Sink Shape | Rectangular |
| Thermostat | Traditional |
| Material | Fireclay |
| Bridge Faucet | No |
| Handle Style | Lever |
| Number Of Handles | 1 |
| Pre Rinse | No |
| Pullout Direction | Down |
| Pullout Spray | No |
| Spout Type | Swivel |
| Spray Settings | 3 |
| Valve Type | Ceramic Disc |
| Water Efficient | Yes |
| Corner Sink | No |
| Apron Front | Yes |
| Electronic | No |
| Sound Dampening | Yes |
| Faucet Finish | Chrome |
| Faucet Installation Type | Deck Mounted |
| Faucet Material | Brass |
| Battery Quantity | 2 |
| Basin Split | Single Basin |
| Farmhouse | Yes |
| Workstation Sink | Yes |
| ADA | No |
| CA Drought Compliant | Yes |
| Collection | Fireclay |
| Country Of Origin | Germany |
| Manufacturer Warranty | Limited Lifetime |
| ASSE Code | A112.19.2 |
| CSA Code | B45.1 |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Power Source | Battery |
| Battery Size | AA |
| Color | White |
| Color Tone | Whites |
