About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

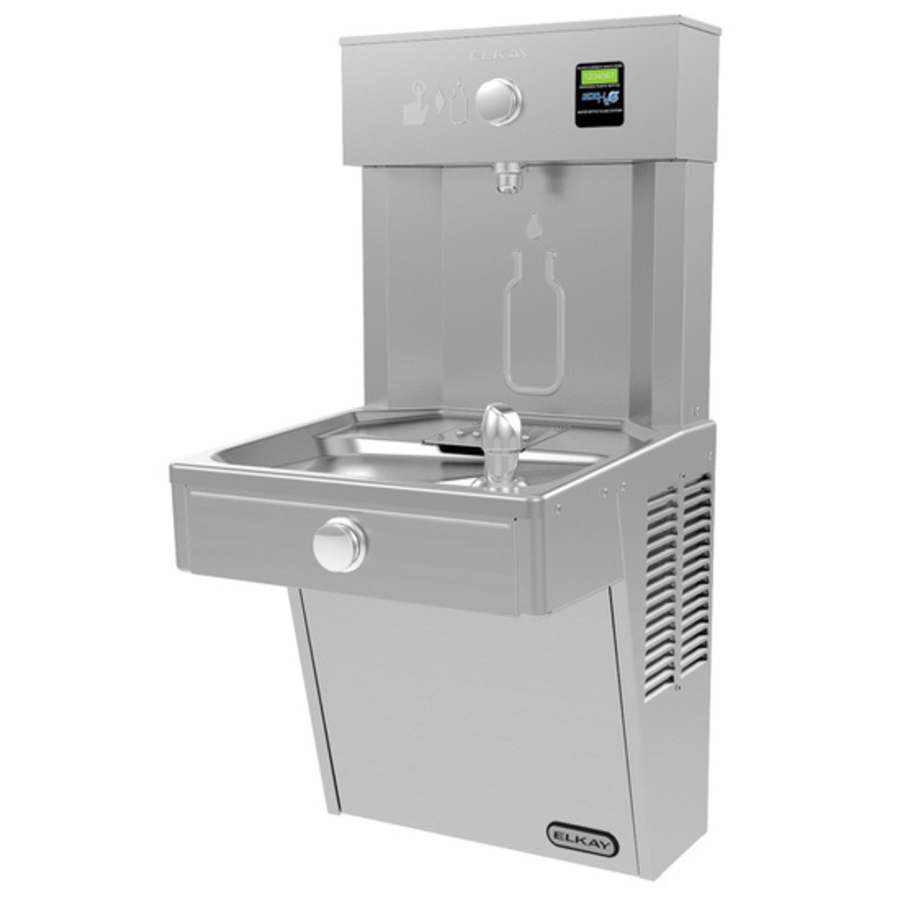

Elkay VRCDWSK Features:
Integral bottle filling station and water fountains in an ADA compliant design
Silver ion anti-microbial protection
Quick fill rate of 1.5 gpm
Visual user interface display includes green ticker counts the quantity of plastic bottles saved from waste
Pushbutton activation with automatic 20 second shut-off timer
Covered under Elkay’s 1 year limited warranty for electrical components
Galvanized structural steel cooler chassis provides structural integrity
Includes lower hinged panel for easy access and servicing
Secure mounting frame assembly included
Elkay VRC8WSK Technologies / Benefits:
Ease of Installation
TheezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay VRCDWSK Specifications:
Height: 38-13/16″ (measured from lowest rim to top rim of fixture)
Length: 18″ (measured from most left to most right rim of fixture)
Width: 18-5/8″ (measured from back to front of fixture)
Fountain Type: Non-Refrigerated
Installation Type: Wall Mounted
Bottle Filler Flow Rate(GPM): 1.5
Fountain Flow Rate(GPM): .13
Voltage: 115V/60Hz
Number of Stations: 1
ADA Compliant: Yes
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 38.8125 in. |
| Width | 18.625 in. |
| Length | 18 in. |
| Product Weight | 88 lbs. |
| Flow Rate (GPM) | .13 |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.25 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 8 GPH |
| Insulation Type | Wall Mounted |
| Material | Stainless Steel |
| Energy Efficient | Yes |
| Control Type | Push Button |
| Filtered | No |
| Number of Stations | 1 |
| Pet Friendly | No |
| Vandal Resistant | Yes |
| Freeze Resistant | No |
| Antimicrobial | Yes |
| Bi-Level | No |
| Hands Free | Yes |
| ADA | Yes |
| Collection | EZH2O |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 1 Year Limited |
| ASSE Code | A112.19.3 |
| Certifications | NSF, ANSI, ASME, UL |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Location Rating | Wet Location |
| Outdoor Approved | Yes |
| Made in America | Yes |
| Frequency | 60 Hertz |
| Wattage | 370 |
| Voltage | 115 |
| Amperage | 5 |
| Electrical Phases | 1 |
| Bottle Filler Included | Yes |
| Cooling Unit | No |
