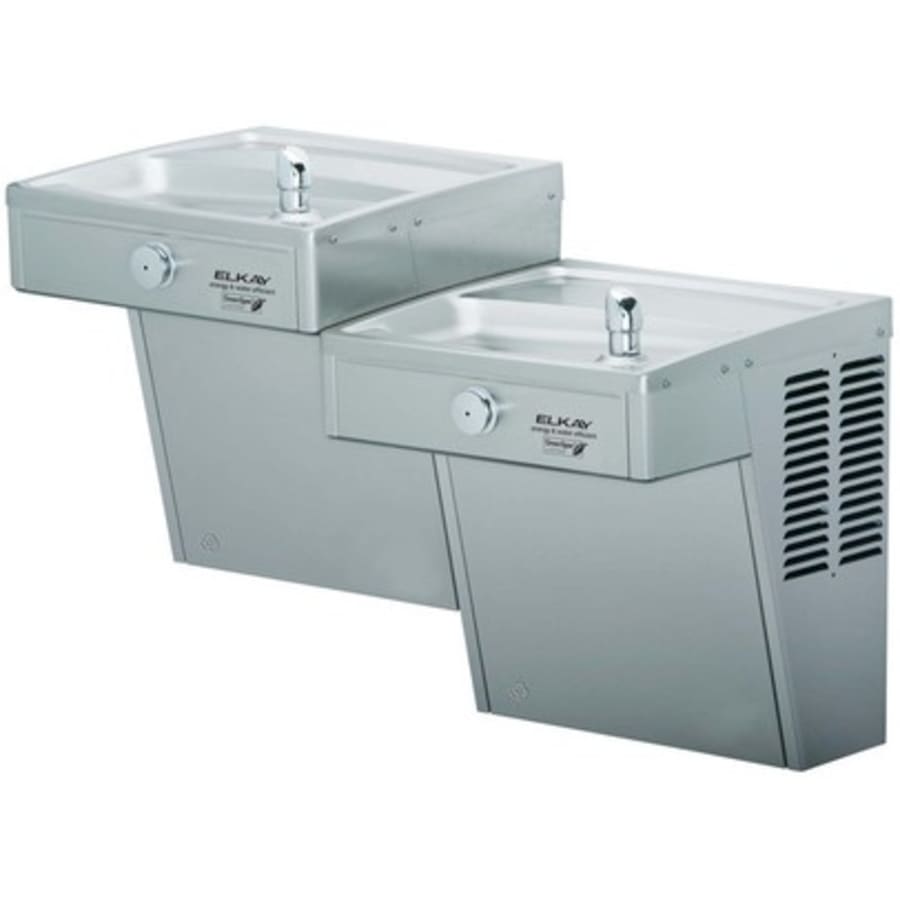

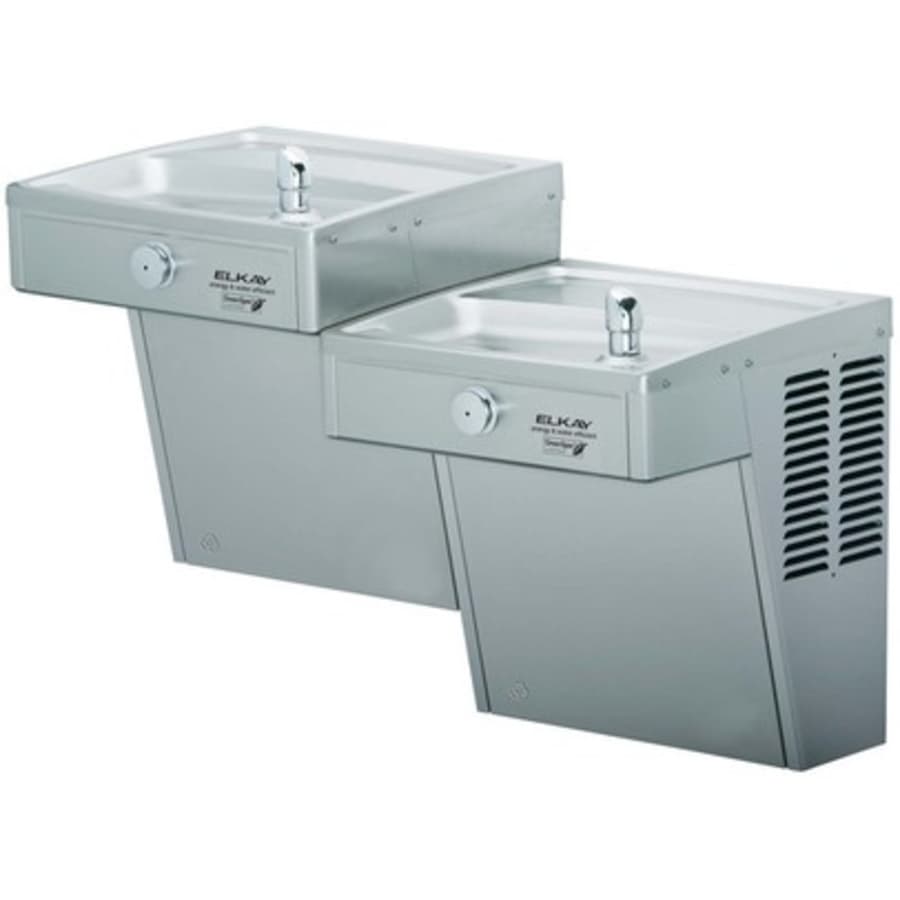

Elkay 8 GPH GreenSpec Wall Mount High Efficiency Bi-Level Water Cooler with Vandal Resistant Bubbler and Cane Apron
Elkay is sure to have a water cooler or drinking fountain that will meet or exceed your specifications.
Product Features:
GreenSpec listed, energy and water efficient
Two-level self contained water cooler
Electric refrigerated
Vandal-resistant unit
Rated for indoor or outdoor use
Flow regulator provides constant stream from 20 to 105 psi water pressure
Heavy duty push button control is vandal-resistant
Non-pressurized water tank is standard
Non-pressurized water tank is located after bubbler valve (so that the tank is subject to line pressure only when push bar is pressed)
ADA compliant
No lead design
Construction
Frame – Galvanized structural steel chassis supports fountain top and cabinet panels
Fountain Top – One piece stainless steel top, basin has embossed bubbler pad
Bubbler – Water-efficient, heavy-duty, vandal-resistant bubbler in one-piece construction. Keyed into position to prevent rotation
Cabinet – Cabinet design allows for flush to Wall mounting. No recess space is required. Includes bottom cover plate fastened with standard screws
Cooling System
Motor Compressor – Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
Condenser – Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
Cooling Unit – Combination tube-tank type. Designed for optimized heat transfer within the evaporator. Fully insulated
Refrigerant Control – Refrigerant type HFC-134a is controlled by accurately calibrated capillary tube for positively trouble free operation
Temperature Control – Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements. Easily accessible
Product Specifications:
Base Flow Rated: 8.0
Rated Watts: 575
Full Load Amps: 5
Fountain Type: Cooler
Shipping Weight: 66 lbs
Installation Type: Wall
Hands Free Operation: No
Voltage: 120V/60Hz
Height: 19-5/16″
Depth: 18-5/8″
Glass Filler: No
Vandal Resistant Bubbler: Yes
Louver Screen: No
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Height | 27 in. |
| Width | 18.625 in. |
| Product Weight | 94 lbs. |
| Flow Rate (GPM) | .13 |
| Length | 36.3125 in. |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.5 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 9.7 GPH |
| Material | Stainless Steel |
| Insulation Type | Wall Mounted |
| Control Type | Push Button |
| Filtered | No |
| Number of Stations | 2 |
| Pet Friendly | No |
| Freeze Resistant | No |
| Antimicrobial | Yes |
| Vandal Resistant | Yes |
| Bi-Level | Yes |
| Hands Free | Yes |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Manufacturer Warranty | 1 Year Limited |
| Certifications | NSF, ANSI, ASME, UL |
| Made in America | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Location Rating | Wet Location |
| Outdoor Approved | Yes |
| ASSE Code | A112.19.3 |
| Voltage | 115 |
| Wattage | 260 |
| Frequency | 60 Hertz |
| Amperage | 2.8 |
| Electrical Phases | 1 |
| Bottle Filler Included | No |
| Cooling Unit | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
