About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

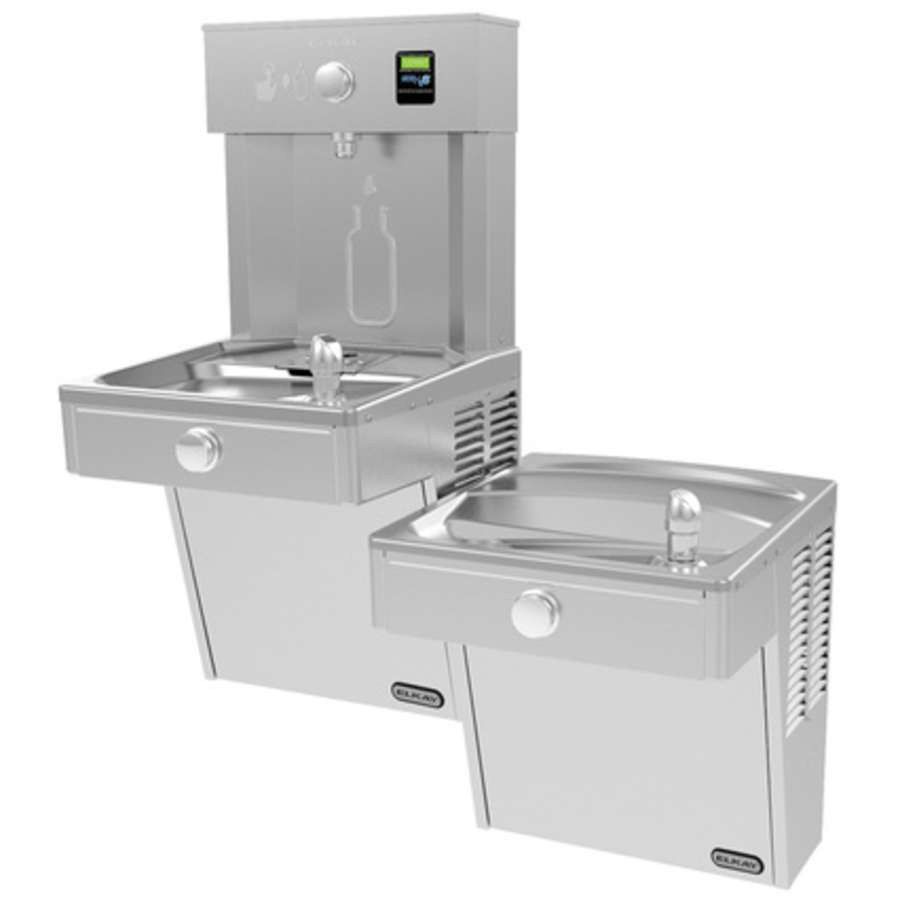

Elkay VRCTLDDWSK Features:
Integral bottle filling station and bi-level water fountain in an ADA compliant design
Vandal-resistant, easy to operate front push-button control
Constructed of stainless steel, ensuring durability and dependability
Covered under Elkay’s lifetime residential and 5 year commercial warranties
High quality finish – will resist rust and corrosion through everyday use
Push-button activation with automatic 20 second shut-off timer
Silver Ion anti-microbial protection
Visual user interface display includes Green Ticker that counts the quantity of bottles saved from the landfill
Covered under Elkay’s 1 year limited warranty for electrical components
Vandal-resistant one-piece bubbler
Secure mounting frame assembly included
Elkay VRCTLDDWSK Technologies / Benefits:
Ease of Installation
TheezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay VRCTLDDWSK Specifications:
Height: 38-13/16″ (measured from lowest rim to top rim of fixture)
Length: 36-1/8″ (measured from most left to most right rim of fixture)
Width: 18-5/8″ (measured from back to front of fixture)
Fountain Type: Non-Refrigerated
Installation Type: Wall Mounted
Bottle Filler Flow Rate(GPM): 1.5
Fountain Flow Rate(GPM): .13
Voltage: 115V/60Hz
Number of Stations: 2
ADA Compliant: Yes
Hands Free Operation: No
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 38.8125 in. |
| Width | 18.625 in. |
| Product Weight | 86 lbs. |
| Length | 36.3125 in. |
| Flow Rate (GPM) | .13 |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.5 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Insulation Type | Wall Mounted |
| Material | Stainless Steel |
| Control Type | Push Button |
| Energy Efficient | Yes |
| Filtered | No |
| Number of Stations | 2 |
| Pet Friendly | No |
| Freeze Resistant | No |
| Vandal Resistant | Yes |
| Antimicrobial | Yes |
| Bi-Level | Yes |
| Hands Free | No |
| ADA | Yes |
| Collection | EZH2O |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 1 Year Limited |
| Location Rating | Wet Location |
| Certifications | NSF, ANSI, ASME, UL |
| ASSE Code | A112.19.3 |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Made in America | Yes |
| Outdoor Approved | Yes |
| Wattage | 15 |
| Voltage | 115 |
| Frequency | 60 Hertz |
| Amperage | 1 |
| Bottle Filler Included | Yes |
| Cooling Unit | No |
