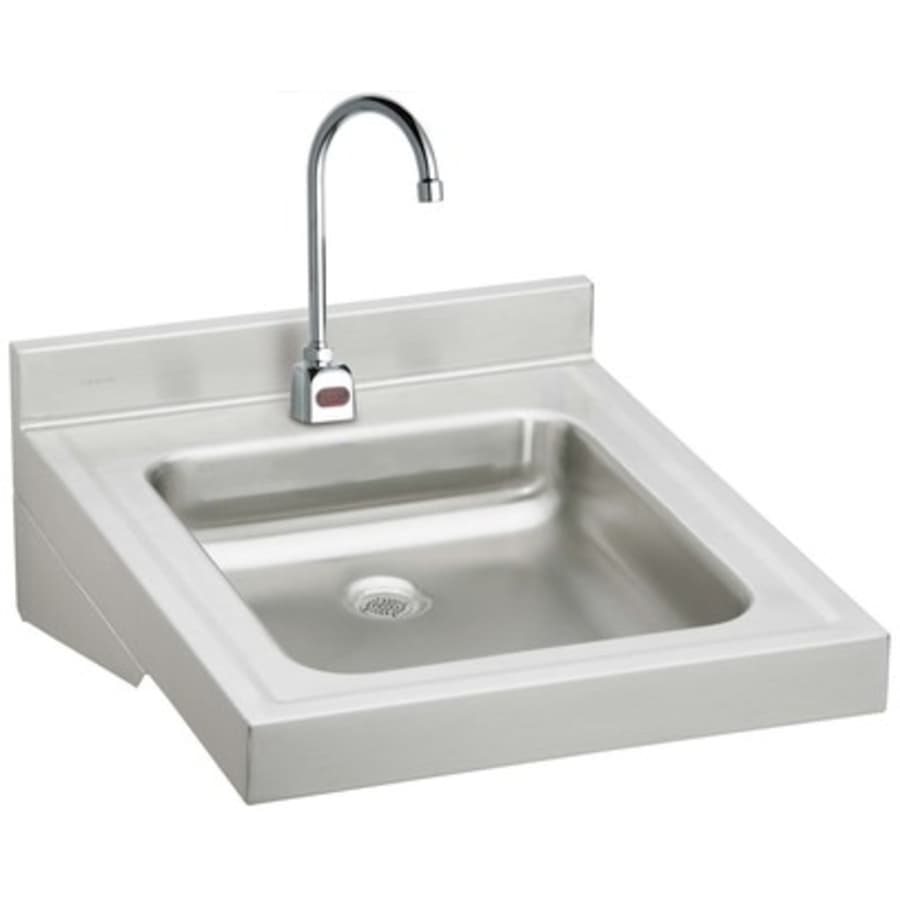

Elkay Stainless Steel 19″ x 23″ Single Basin Wheelchair Wash-Up Lavatory Sink Package with Sensor Faucet
Highest quality sink formed of 18 gauge nickel bearing stainless steel.
Product Features:
Wall mount
Single basin
Stainless steel
Wheelchair lavatory
5/32″ raised rim
Coved corners: 1-3/4″ vertical and horizontal radius
Exposed surfaces are hand blended
Underside is fully protected by undercoating to dampen sound and prevent condensation
Furnished with separate wall hanger, integral Stainless steel support brackets and grid strainer with elbow and offset tailpiece
Faucet:
Sensor-operated
Non-mixing
Deck-mounted
Gooseneck faucet with adjustable sensor eyes
Chrome-plated solid brass construction
2.0gpm laminar flow control on spout end
Includes water-resistant sensor control module and power cables
Features dual power options: AC plug-in and battery holder with four AA batteries
Slow-closing piston operated solenoid valve
In-line filter with clean out trap and flexible supply hose
Control circuit is solid state, has adjustable sensor range of 7/8″ to 6.75″
Shut off delay preset at 1 second and field adjustable to 2 seconds
Product Specifications:
Sink:
Installation Type: Wall
Mount Material: Stainless Steel
Number of Basins: 1
Sink Dimensions: 19″ L x 23″ W
Bowl Depth: 4″
Bowl Dimensions: 13-1/2″ L x 16″ W x 4″ D
Faucet Holes: 3
Drain Size: 1-5/8″
Faucet:
Mounting Type: Deck
Holes Required: One
Overall Height: 11-5/8″
Spout Height: 7-5/16″
Spout Reach: 5-5/8″
Material: Brass
Flow Rate: 0 GPM
Ship Wt: 27.4 lbs
Product Certifications and Compliances:
ADA Compliant
NSF Compliant
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Height | 9 in. |
| Length | 23 in. |
| Width | 19 in. |
| Backplate Depth | 4 in. |
| Bar Length | 16 in. |
| Base Width | 13.5 in. |
| Faucet Centers | 0 in. |
| Nominal Length | 23 in. |
| Nominal Width | 19 in. |
| Flow Rate (GPM) | 2 |
| Spout Height | 8.25 in. |
| Spout Reach | 5.38 in. |
| Gauge | 18 |
| Faucet Height | 12.5 in. |
| Material | Stainless Steel |
| Overflow | No |
| Drain Placement | Rear |
| Faucet Holes | 1 |
| Faucet Mounting Type | Single Hole |
| Insulation Type | Wall Mounted |
| Sink Shape | Rectangular |
| Electronic | Yes |
| Number Of Bathers | 1 |
| Sink Material | Stainless Steel |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| CA Drought Compliant | No |
| Certifications | NSF |
| Drain Assembly Included | No |
| Faucet Included | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
