Emtek Jackson Single Cylinder Keyed Entry Designer Brass Mortise Handleset

All Emtek items are made to order.

Emtek’s single cylinder mortise handlesets use traditional American mortise locks complete with a variety of trim styles, handcrafted from authentic materials. The mortise lock is operated by a key from the exterior, and a thumbturn from the interior. The door is opened from the exterior by a metal handle with thumb grip, and by your choice of a variety of knob and lever options from the interior. Uncompromisingly rugged and beautifully crafted, these locks are suitable for the very finest homes.

The Brass Modern Collection’s knob / lever handles are supported by springs mounted behind the rosettes and sideplates, which return the handles back to the rest position and prevent lever sag. The latches are heavy-duty die cast construction, with strong internal springs, solid brass nose bolts, and sintered metal cams. A plastic bushing located in the joint between the handle and the rosette ensures a friction-free wear surface, preventing metal from bearing on metal and providing smooth, long-lasting operation. Handles are positively connected to rosettes with a permanent clip. Each has a set screw which eliminates “handle wobble” when tightened. Emtek’s threaded tubes are machined brass to ensure good threads and prevent corrosion.

Features:

Standard Mortise Door Prep ANSI A115.1
Schlage C Keyway
Solid Forged Brass Trim
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Key Product Attributes:

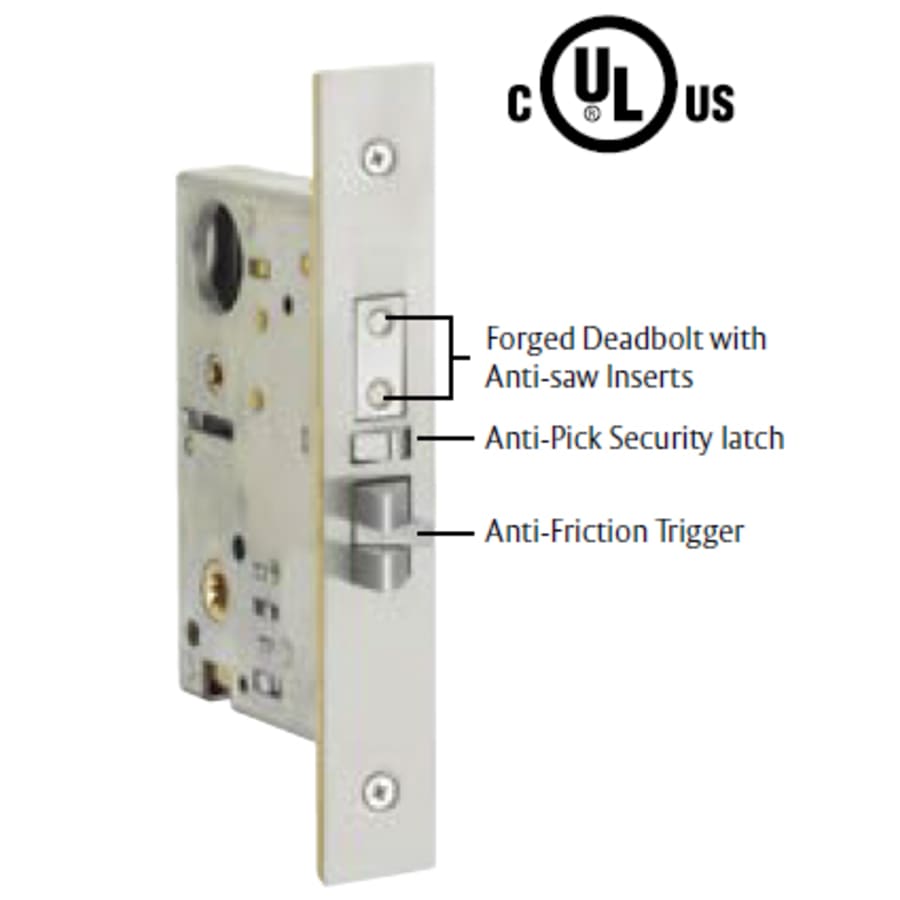

Emergency Egress Function (F13 Option): Simply turning the interior knob or lever frees both the latch and deadbolt, allowing a quick and easy exit. Locks without this function may require you to unlock both deadbolt and latch as separate actions. In order to customize your mortise lock with the emergency egress function you must choose the F13 (Emergency Egress Function) UL Function option above.

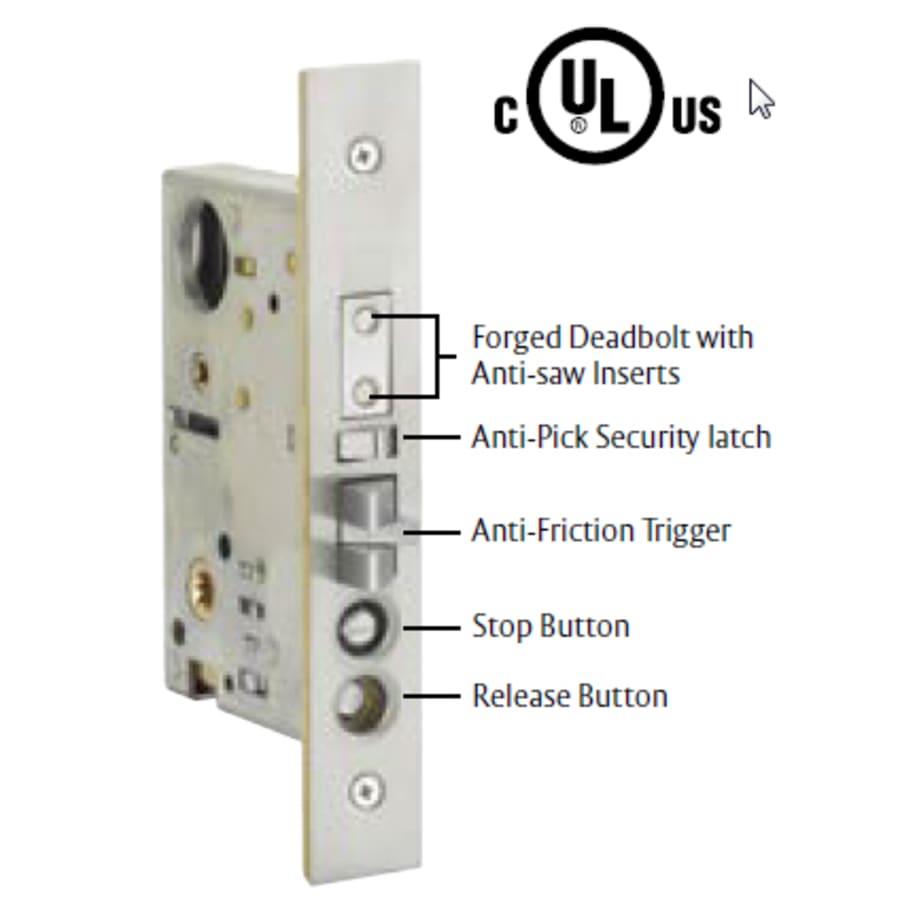

Lock Out Button (F20 Option): Enables the user to lock the outside handle, this way the latch cannot be operated from the outside at any time except with the key. In order to customize your mortise lock with the lock out button function you must choose the F20 (Lock Out Button) UL Function option above.

UL Listed: This product has been rigorously tested to ensure that the design and craftsmanship meets the high safety standards of both Canada and the United States. This mortise lock also features a UL 180 minute fire rating.

Specifications:

Backset: 2-1/2″ or 2-3/4″
Height: 17″
Width: 2-3/4″
Projection: 2-7/8″
Door Thickness: 1-3/4″ – 2-3/4″

Emtek is dedicated to bringing interesting, well made hardware back into American homes. Emtek’s mission is to satisfy the higher expectations of today’s homeowners with regard to door locks. They strive to provide a broad and interesting range of products that consumers can use as elements of decor, and not just as a way to latch a door.
