All Emtek items are made to order
Image shown may vary slightly from actual product

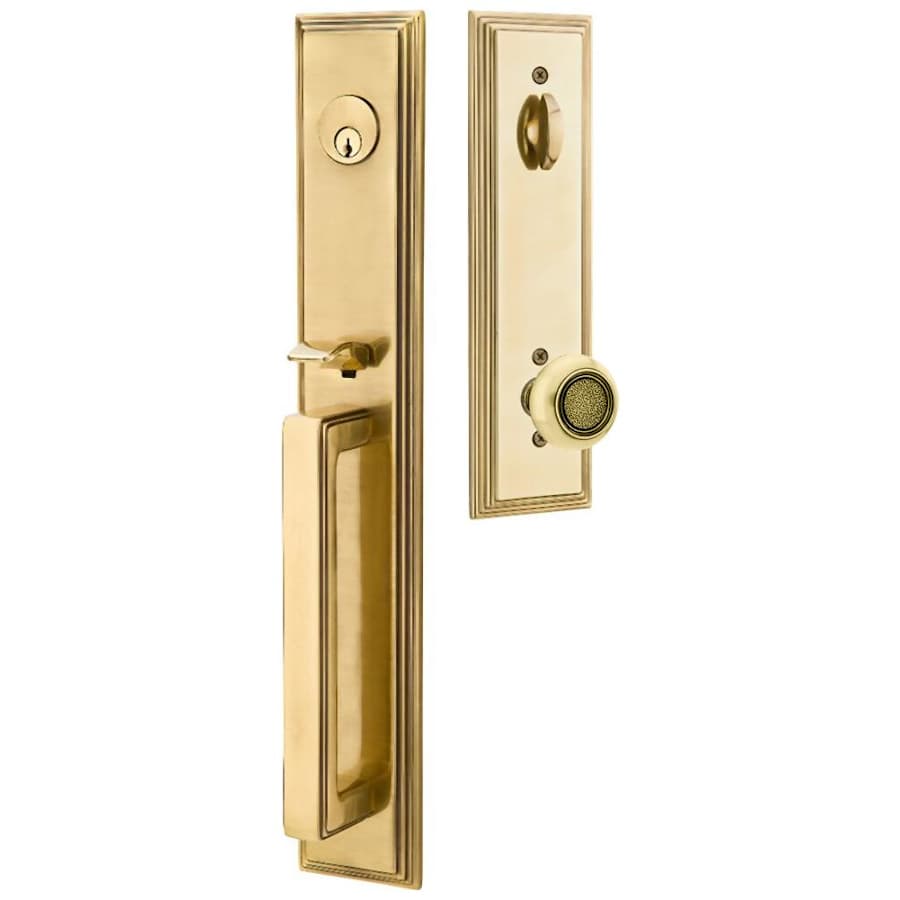

Single Cylinder Keyed Entry: Single cylinder handlesets are keyed on the exterior with an associated thumbturn on the inside that unlocks the door. The exterior handle has a thumb plate and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Features:
Tested to exceed ANSI/BHMA Grade 3 security requirements
Constructed of high quality brass for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Emtek’s limited lifetime manufacturer warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: 2-3/4″ or 2-3/8″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/4″ to 2-1/8″
Handing: Reversible Left or Right
Latch Faceplate: Round Corner or Square Corner
Cylinder: 5 Pin C
Mounting Center to Center: 5-1/2″
Grip Center to Center: 8-5/8″
Overall Height: 18-1/2″
Handle Projection: 2-5/8″
Trim Height: 18-1/2″
Trim Width: 3″
Interior Handle Height: 2-5/16″
Interior Handle Width: 2-5/16″
Interior Handle Projection: 2-1/2″
Interior Trim Height: 10″
Interior Trim Width: 2-11/16″
Additional Emtek Links
View the Manufacturer Warranty
Browse all Emtek Products
Emtek Melrose Collection
Specifications
| Door Thickness | 1-3/4", 1-7/8", 2", 2-1/8" |
| Handle Projection | 2.625 in. |
| Trim Height | 18.5 in. |
| Trim Width | 3 in. |
| Product Weight | 3.00 lbs. |
| Center to Center | 5.5 in. |
| Backset | 2-3/4", 2-3/8" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Grip Center to Center | 8.625 in. |
| Overflow Height | 18.5 in. |
| Interior Handle Width | 2.3125 in. |
| Interior Trim Height | 10 in. |
| Interior Trim Width | 2.6875 in. |
| Interior Handle Height | 2.3125 in. |
| Interior Handle Projection | 2.5 in. |
| Concealed Screws | No |
| Function | Keyed Entry |
| Handshower | Left, Reversible, Right |
| Handle Material | Metal |
| Material | Brass |
| Thermostat | Modern |
| Handle Style | Grip |
| Latch Faceplate | Round Corner, Square Corner |
| Adjustable Throughbolt | No |
| Interconnected | No |
| Mounting | Full Plate |
| Cylinder Type | Single Cylinder |
| Cylinder | 5 Pin C |
| Keyway | C |
| Lock Style | Single Point |
| Interior Handle Style | Knob |
| Handle Design | Melrose |
| ADA | No |
| Approved for Commercial Use | No |
| Collection | Brass Modern, Pre-Configured |
| Manufacturer Warranty | Limited Lifetime |
| Series | Melrose |
| BHMA Certification | Grade 3 |
| Interior Included | Yes |
| Cylinder Included | Yes |
| Color | French Antique, Lifetime Polished Brass, Oil Rubbed Bronze, Pewter, Polished Chrome, Satin Nickel, Unlacquered Brass |
| Color Tone | Brass Tones, Bronze Tones, Neutrals, Nickel Tones, Silver Tones |
