All Emtek items are made to order
Image shown may vary slightly from actual product
Â
Â

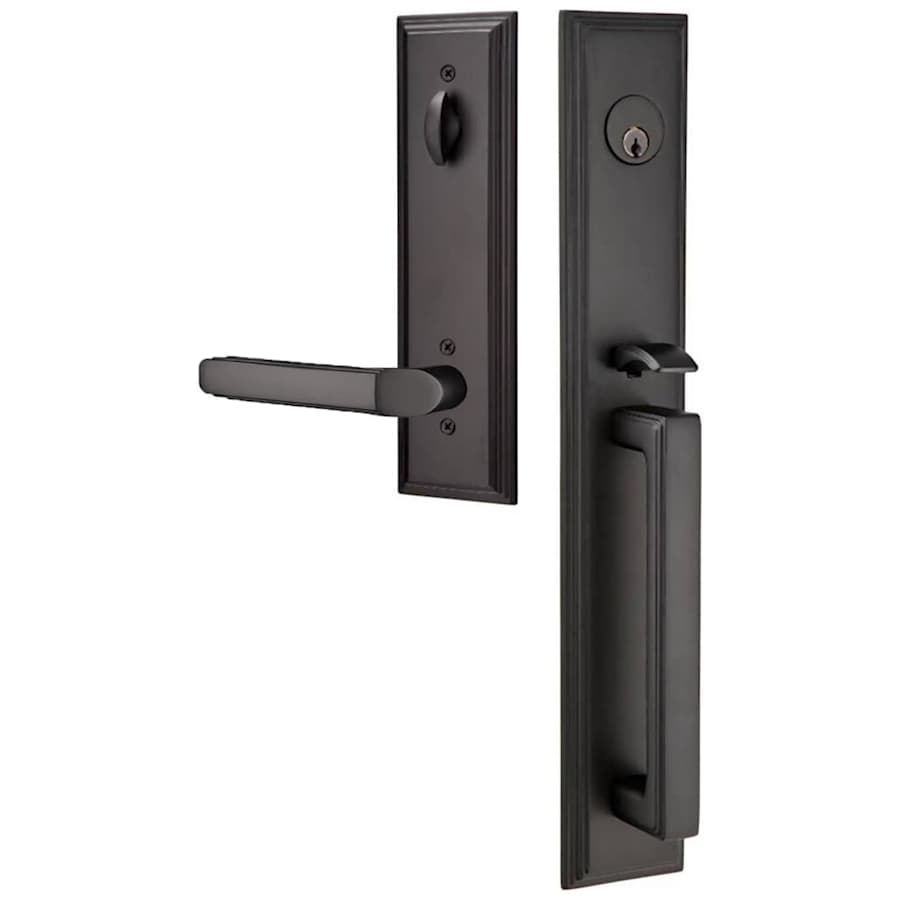

Single Cylinder Keyed Entry: Single cylinder handlesets are keyed on the exterior with an associated thumbturn on the inside that unlocks the door. The exterior handle has a thumb plate and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Â
Features:
Tested to exceed ANSI/BHMA Grade 3 security requirements
Constructed of high quality brass for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Emtek’s limited lifetime manufacturer warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: 2-3/4″ or 2-3/8″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/4″ to 2-1/8″
Handing: Right
Latch Faceplate: Round Corner or Square Corner
Cylinder: 5 Pin C
Mounting Center to Center: 5-1/2″
Grip Center to Center: 8-5/8″
Overall Height: 18-1/2″
Handle Projection: 2-5/8″
Trim Height: 18-1/2″
Trim Width: 3″
Interior Handle Length: 4-5/8″
Interior Handle Projection: 2-1/4″
Interior Trim Height: 10″
Interior Trim Width: 2-11/16″
Additional Emtek Links
View the Manufacturer Warranty
Browse all Emtek Products
Emtek Melrose Collection
Specifications
| Thermostat | Modern |
| Concealed Screws | No |
| Material | Brass |
| Handshower | Right |
| Function | Keyed Entry |
| Cylinder | 5 Pin C |
| Cylinder Type | Single Cylinder |
| Keyway | C |
| Latch Faceplate | Round Corner, Square Corner |
| Handle Material | Metal |
| Handle Style | Grip |
| Interconnected | No |
| Interior Handle Style | Lever |
| Mounting | Full Plate |
| Adjustable Throughbolt | No |
| Handle Design | Melrose |
| Lock Style | Single Point |
| ADA | No |
| Manufacturer Warranty | Limited Lifetime |
| Collection | Brass Modern, Pre-Configured |
| Approved for Commercial Use | No |
| BHMA Certification | Grade 3 |
| Series | Melrose |
| Center to Center | 5.5 in. |
| Door Thickness | 1-3/4", 1-7/8", 2", 2-1/8" |
| Product Weight | 3.00 lbs. |
| Backset | 2-3/4", 2-3/8" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Grip Center to Center | 8.625 in. |
| Handle Projection | 2.625 in. |
| Trim Height | 18.5 in. |
| Trim Width | 3 in. |
| Interior Trim Height | 10 in. |
| Interior Trim Width | 2.6875 in. |
| Interior Handle Length | 4.625 in. |
| Interior Handle Projection | 2.25 in. |
| Overflow Height | 18.5 in. |
| Interior Included | Yes |
| Cylinder Included | Yes |
| Color | Flat Black, French Antique, Lifetime Polished Brass, Oil Rubbed Bronze, Pewter, Polished Chrome, Polished Nickel, Satin Brass, Satin Nickel, Unlacquered Brass |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Neutrals, Nickel Tones, Silver Tones |
