All Emtek items are made to order

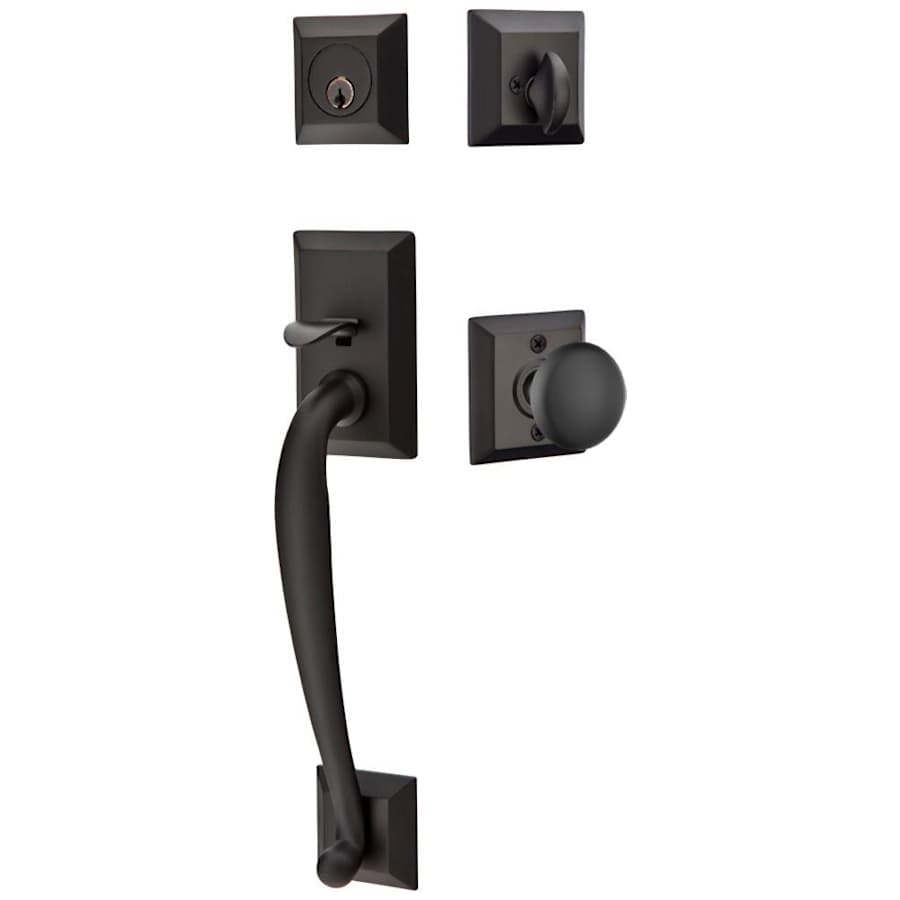

Image shown may vary slightly from actual product
Single Cylinder Keyed Entry: Single cylinder handlesets are keyed on the exterior with an associated thumbturn on the inside that unlocks the door. The exterior handle has a thumb plate and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Features:
Tested to exceed ANSI/BHMA Grade 3 security requirements
Constructed of high quality brass for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Emtek’s limited lifetime manufacturer warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: 2-3/4″ or 2-3/8″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/4″ to 2-1/8″
Handing: Reversible Left or Right
Latch Faceplate: Round Corner or Square Corner
Cylinder: 5 Pin C
Mounting Center to Center: 5-1/2″
Grip Center to Center: 8-5/8″
Overall Height: 17-1/4″
Handle Projection: 2-11/16″
Trim Height: 10″
Trim Width: 2-3/4″
Interior Handle Height: 2-1/4″
Interior Handle Width: 2-1/4″
Interior Handle Projection: 2-3/8″
Interior Trim Height: 2-1/2″
Interior Trim Width: 2-1/2″
Additional Emtek Links
View the Manufacturer Warranty
Browse all Emtek Products
Emtek Franklin Collection
Specifications
| Material | Brass |
| Handle Style | Grip |
| Thermostat | Modern |
| Cylinder Type | Single Cylinder |
| Handshower | Left, Reversible, Right |
| Keyway | C |
| Handle Material | Metal |
| Concealed Screws | No |
| Function | Keyed Entry |
| Cylinder | 5 Pin C |
| Adjustable Throughbolt | No |
| Handle Design | Franklin |
| Interconnected | No |
| Interior Handle Style | Knob |
| Latch Faceplate | Round Corner, Square Corner |
| Lock Style | Single Point |
| Mounting | Sectional |
| ADA | No |
| Approved for Commercial Use | No |
| Collection | Brass Classic, Pre-Configured |
| Manufacturer Warranty | Limited Lifetime |
| Series | Franklin |
| BHMA Certification | Grade 3 |
| Product Weight | 4.00 lbs. |
| Backset | 2-3/4", 2-3/8" |
| Door Thickness | 1-3/4", 1-7/8", 2", 2-1/8" |
| Center to Center | 5.5 in. |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.6875 in. |
| Interior Handle Projection | 2.375 in. |
| Trim Height | 10 in. |
| Trim Width | 2.75 in. |
| Overflow Height | 17.25 in. |
| Grip Center to Center | 8.625 in. |
| Interior Trim Height | 2.5 in. |
| Interior Trim Width | 2.5 in. |
| Interior Handle Height | 2.25 in. |
| Interior Handle Width | 2.25 in. |
| Cylinder Included | Yes |
| Interior Included | Yes |
| Color | Flat Black, French Antique, Lifetime Polished Brass, Oil Rubbed Bronze, Pewter, Polished Chrome, Polished Nickel, Satin Brass, Satin Nickel, Unlacquered Brass |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Neutrals, Nickel Tones, Silver Tones |
