All Emtek items are made to order
Image shown may vary slightly from actual product

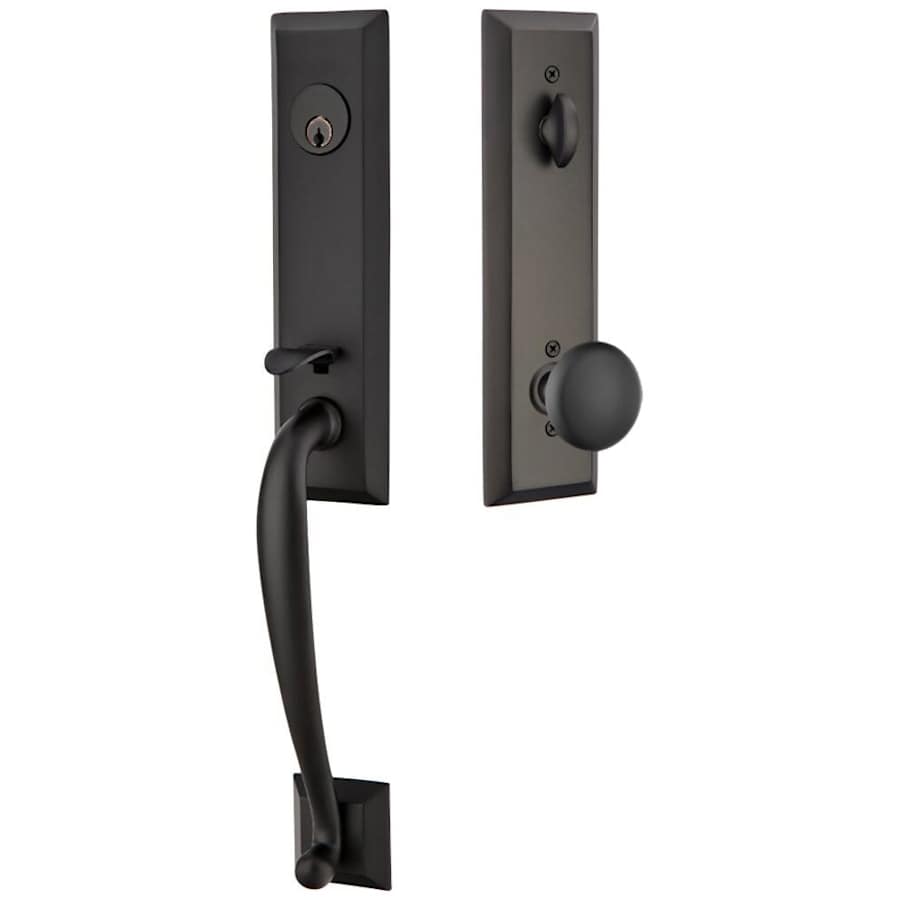

Single Cylinder Keyed Entry: Single cylinder handlesets are keyed on the exterior with an associated thumbturn on the inside that unlocks the door. The exterior handle has a thumb plate and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Features:
Tested to exceed ANSI/BHMA Grade 3 security requirements
Constructed of high quality brass for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Emtek’s limited lifetime manufacturer warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: 2-3/4″ or 2-3/8″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/4″ to 2-1/8″
Handing: Reversible Left or Right
Latch Faceplate: Round Corner or Square Corner
Cylinder: 5 Pin C
Mounting Center to Center: 5-1/2″
Grip Center to Center: 8-5/8″
Overall Height: 18-1/8″
Handle Projection: 2-11/16″
Trim Height: 10″
Trim Width: 2-3/4″
Interior Handle Height: 2-1/4″
Interior Handle Width: 2-1/4″
Interior Handle Projection: 2-3/8″
Interior Trim Height: 10″
Interior Trim Width: 2-3/4″
Additional Emtek Links
View the Manufacturer Warranty
Browse all Emtek Products
Emtek Adams Collection
Specifications
| Thermostat | Modern |
| Material | Brass |
| Handshower | Left, Reversible, Right |
| Handle Style | Grip |
| Handle Material | Metal |
| Concealed Screws | No |
| Cylinder | 5 Pin C |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Keyway | C |
| Latch Faceplate | Round Corner, Square Corner |
| Adjustable Throughbolt | No |
| Handle Design | Adams |
| Interior Handle Style | Knob |
| Mounting | One Piece |
| Interconnected | No |
| Lock Style | Single Point |
| ADA | No |
| Collection | Brass Classic, Pre-Configured |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Series | Adams |
| BHMA Certification | Grade 3 |
| Center to Center | 5.5 in. |
| Product Weight | 4.00 lbs. |
| Door Thickness | 1-3/4", 1-7/8", 2", 2-1/8" |
| Backset | 2-3/4", 2-3/8" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Trim Height | 10 in. |
| Trim Width | 2.75 in. |
| Handle Projection | 2.6875 in. |
| Overflow Height | 18.125 in. |
| Grip Center to Center | 8.625 in. |
| Interior Handle Height | 2.25 in. |
| Interior Handle Width | 2.25 in. |
| Interior Trim Height | 10 in. |
| Interior Trim Width | 2.75 in. |
| Interior Handle Projection | 2.375 in. |
| Cylinder Included | Yes |
| Interior Included | Yes |
| Color | Flat Black, French Antique, Lifetime Polished Brass, Oil Rubbed Bronze, Pewter, Polished Chrome, Polished Nickel, Satin Brass, Satin Nickel, Unlacquered Brass |
