Emtek Dumont Passage Door Lever Set from the Brass Modern Collection

All Emtek items are made to order.

Passage Function: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn’t needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.

Features:

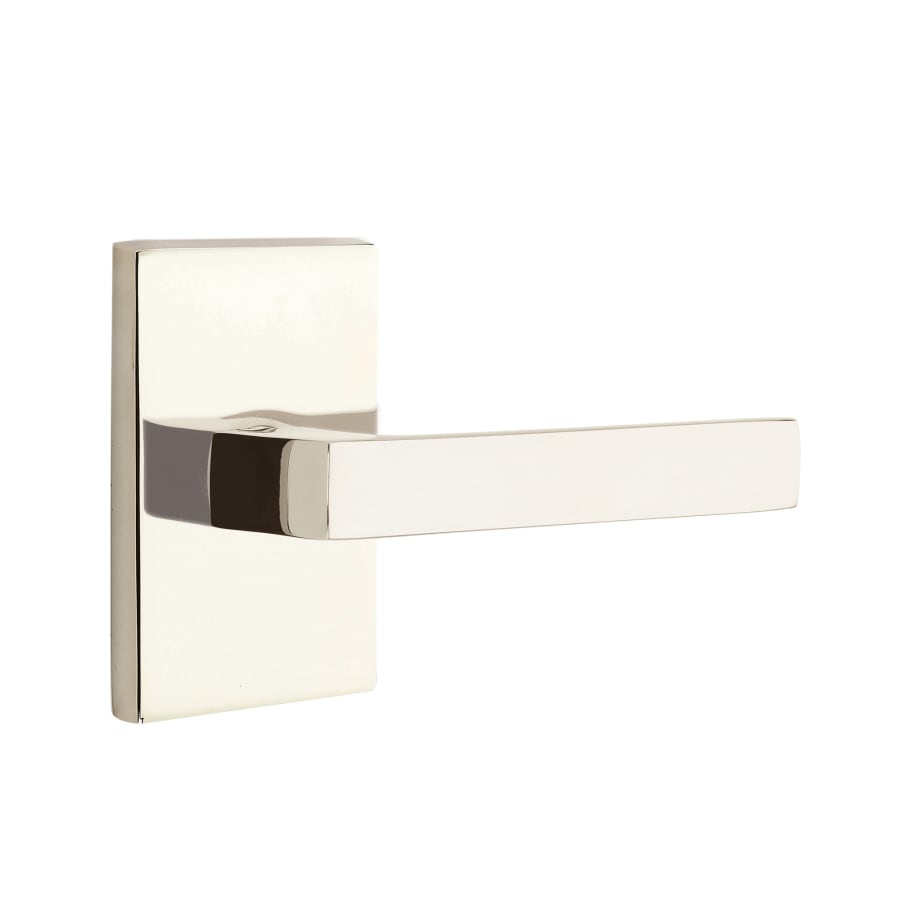

Image shows handle with disk rosette, select your rosette above
Constructed of solid brass for premium feel and durability
Installs on doors with 1-1/2″ to 3″ thickness
Choice of left or right handing based on door configurations
Includes round corner, square corner, and drive-in latch faceplates
Covered under a Limited Lifetime Mechanical and 5 Year Finish Warranty

Product Technologies:

Solid BrassConstruction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.

Specifications:

Backset: 2-3/4″ or 2-3/8″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/2″ to 3″
Handing: Left or Right
Handle Length: 4-1/2″
Handle Projection: 1-7/8″
Latch Faceplate: Round Corner, Square Corner, or Drive-In
Material: Brass

Product Variations:

505DT: Dummy Door Lever Set
510DT (This Model): Passage Door Lever Set
520DT: Privacy Door Lever Set
