All Emtek items are made to order
Image shown may vary slightly from actual product
Â
Â

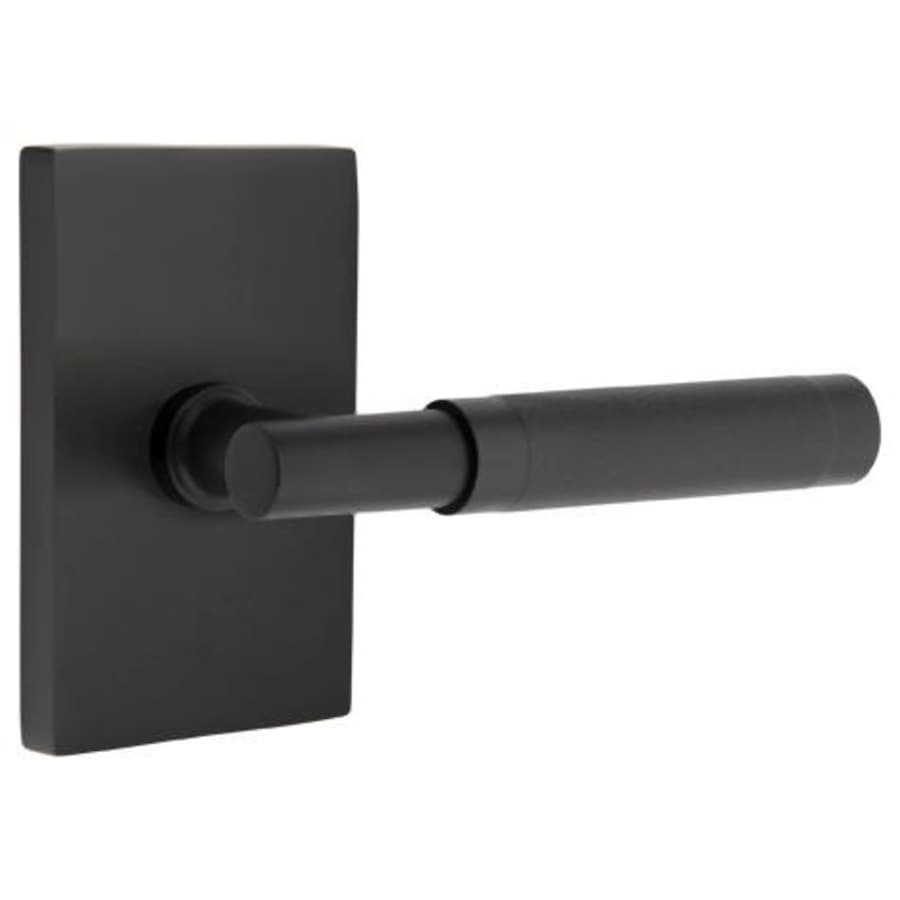

Passage: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn’t needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.
Â
Features:
Constructed of high quality brass for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Emtek’s limited lifetime manufacturer warranty
ADA compliant
Specifications:
Backset: 2-3/4″ or 2-3/8″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/4″ to 2″
Handing: Left
Handle Length: 4-5/8″
Handle Projection: 2-1/8″
Trim Width: 2-1/2″
Trim Height: 4″
Product Weight: 2.00 lbs.
Latch Faceplate: Round Corner or Square Corner
Additional Emtek Links
View the Manufacturer Warranty
Browse all Emtek Products
Emtek Knurled Collection
Specifications
| Material | Brass |
| Thermostat | Transitional |
| Handle Style | Lever |
| Handle Material | Metal |
| Concealed Screws | No |
| Characteristics | Knurled |
| Handshower | Left |
| Function | Passage |
| Handle Design | Knurled |
| Latch Faceplate | Round Corner, Square Corner |
| Lever Shape | Round, Straight |
| Rosette Shape | Rectangle |
| Trim Design | Modern Rectangular |
| Collection | SELECT, Pre-Configured |
| ADA | Yes |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Series | Knurled |
| Fire Rated | No |
| Product Weight | 2.00 lbs. |
| Door Thickness | 1-1/2", 1-1/4", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2" |
| Backset | 2-3/4", 2-3/8" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Length | 4.625 in. |
| Handle Projection | 2.125 in. |
| Trim Height | 4 in. |
| Trim Width | 2.5 in. |
| Color | Flat Black, Lifetime Polished Nickel, Oil Rubbed Bronze, Satin Brass, Polished Chrome, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
