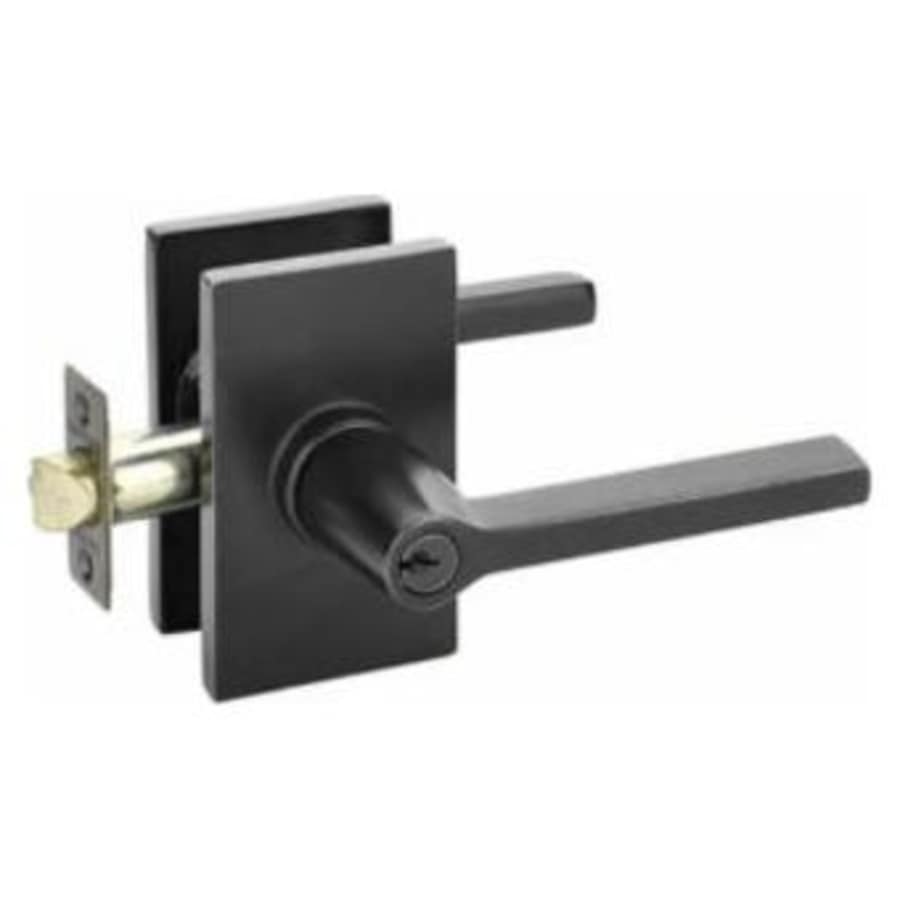

Emtek Helios Single Cylinder Keyed Entry Door Lever Set

Keyed Entry (Single Cylinder) Function: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.

Features:

Constructed of solid brass for durability and premium feel
Specify left or right handing above
Includes Rounded Corner and Squared Corner latch faceplates for versatile installation
Contains all hardware necessary to be installed for easy out of the box experience
Emtek provides a Limited Lifetime Mechanical Warranty for this product
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Product Technologies:

Solid Brass Construction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.

Specifications:

Backset: 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/4″ to 2″
Handing: Left, Right
Lever Length: 4-3/4″
Projection: 2-3/4″
Product Weight: 5 lbs.
Latch Faceplate: Round Corner, Square Corner, Drive-In
Cylinder: 5 Pin Schlage C

Additional Functions:

510HLO: Passage Door Lever Set
520HLO: Privacy Door Lever Set
505HLO: Single Dummy Door Lever Set
512HLO (This Model): Single Cylinder Keyed Entry Door Lever Set
