All Emtek items are made to order.
Privacy Function: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.
Features:

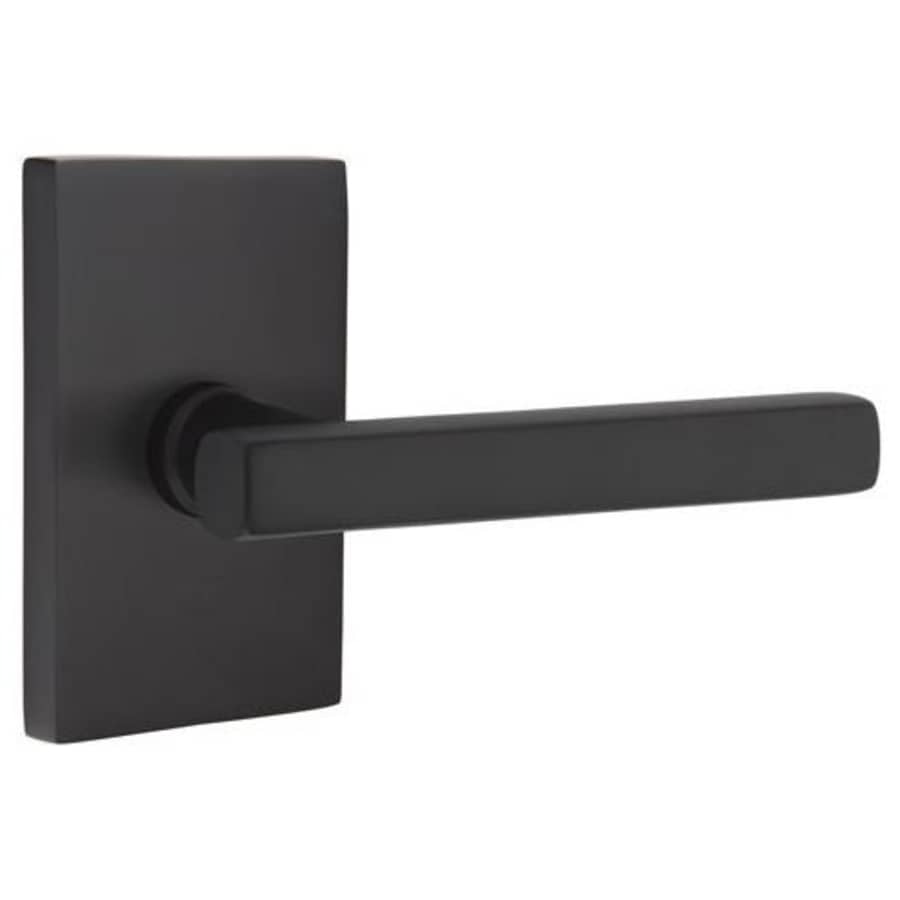

Image shows handle with modern rectangular rosette, select your rosette above
Constructed of solid brass for premium feel and durability
Installs on doors with 1-1/2″ to 3″ thickness
Choice of left or right handing based on door configurations
Includes round corner, square corner, and drive-in latch faceplates
Covered under a Limited Lifetime Mechanical and 5 Year Finish Warranty
Product Technologies:
Solid BrassConstruction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.
Specifications:
Backset: 2-3/4″ or 2-3/8″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/2″ to 3″
Handing: Left or Right
Handle Length: 4-5/8″
Handle Projection: 2-1/4″
Latch Faceplate: Round Corner, Square Corner, or Drive-In
Material: Brass
Product Variations:
505FRL: Dummy Door Lever Set
510FRL: Passage Door Lever Set
520FRL (This Model): Privacy Door Lever Set
Additional Emtek Links
View the Manufacturer Warranty
Browse all Emtek Products
Emtek Freestone Collection
Specifications
| Material | Brass |
| Thermostat | Modern |
| Function | Privacy |
| Handshower | Left, Right |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Rosette Shape | Rectangle, Round, Square |
| Lever Shape | Square, Straight |
| Solid Construction | Solid Brass |
| Concealed Screws | No |
| Locking Mechanism | Trim Lock |
| ADA | No |
| Collection | Urban Modern, Configurable |
| Approved for Commercial Use | No |
| Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
| Series | Freestone |
| Backset | 2-3/4", 2-3/8" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-1/4", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/4", 2-3/8", 2-5/8", 2-7/8", 3" |
| Edge Bore | 1" |
| Handle Projection | 2.25 in. |
| Handle Length | 4.625 in. |
| Color | Flat Black, Oil Rubbed Bronze, Polished Nickel, Satin Brass, Unlacquered Brass, Polished Chrome, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
