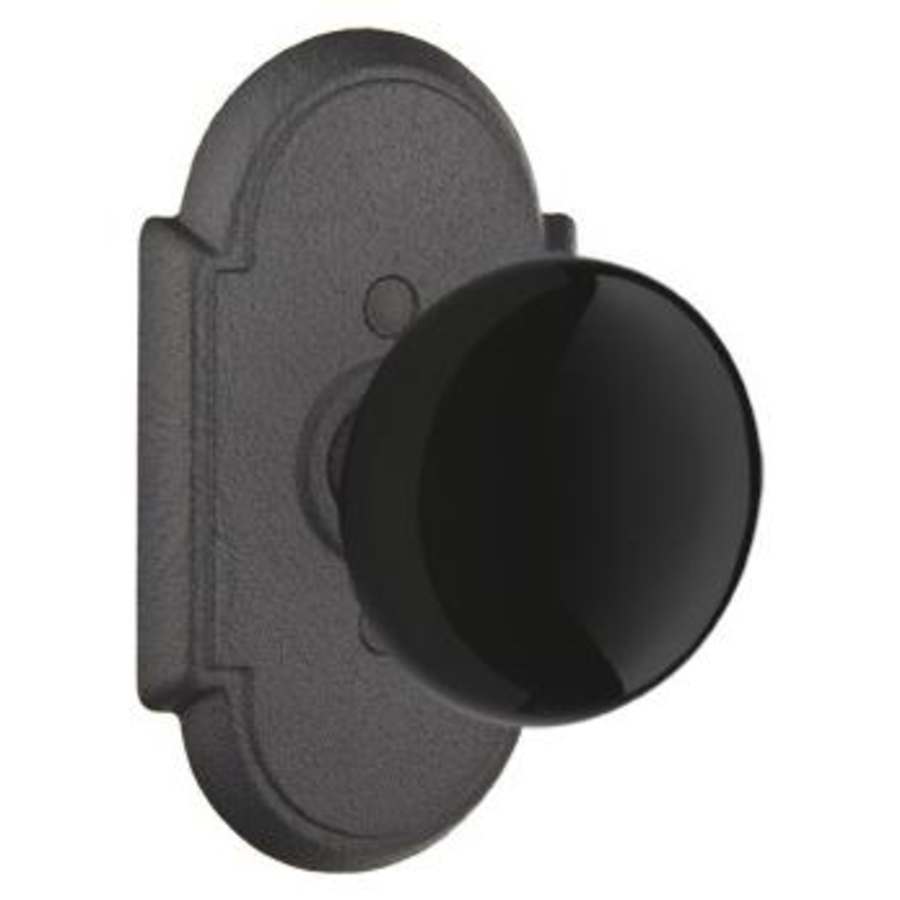

Emtek Black Madison Wrought Steel Passage Knobset

All Emtek items are made to order.

Emtek’s passage knobsets use traditional American latches complete with a variety of trim styles, handcrafted from authentic materials. The knobset is operated by a knob from both the interior and exterior. With the passage function, the door does not lock from either side. Uncompromisingly rugged and beautifully crafted, these locks are suitable for the very finest homes.

From the blacksmith’s anvil, Emtek’s Wrought Steel handlesets add beauty and character to any home. Wrought Steel handles are hot forged, distressed and relieved to achieve an appearance of graceful wear. Make a dramatic decorating statement with these handcrafted designs. The Wrought Steel Collection’s knob / lever handles are supported by springs mounted behind the rosettes and sideplates, which return the handles back to the rest position and prevent lever sag. The latches are heavy-duty die cast construction, with strong internal springs, solid brass nose bolts, and sintered metal cams. A plastic bushing located in the joint between the handle and the rosette ensures a friction-free wear surface, preventing metal from bearing on metal and providing smooth, long-lasting operation. Handles are positively connected to rosettes with a permanent clip. Each has a set screw which eliminates “handle wobble” when tightened. Emtek’s threaded tubes are machined brass to ensure good threads and prevent corrosion.

Features:

Standard Door Prep
Hand Forged Wrought Steel Trim

Specifications:

Knob Diameter: 2-1/4″
Projection: 2-3/8″
Material: Wrought Steel
Door Thickness: 1-3/8″ – 3″
Backset: 2-3/8″ or 2-3/4″

Emtek is dedicated to bringing interesting, well made hardware back into American homes. Emtek’s mission is to satisfy the higher expectations of today’s homeowners with regard to door locks. They strive to provide a broad and interesting range of products that consumers can use as elements of decor, and not just as a way to latch a door.
