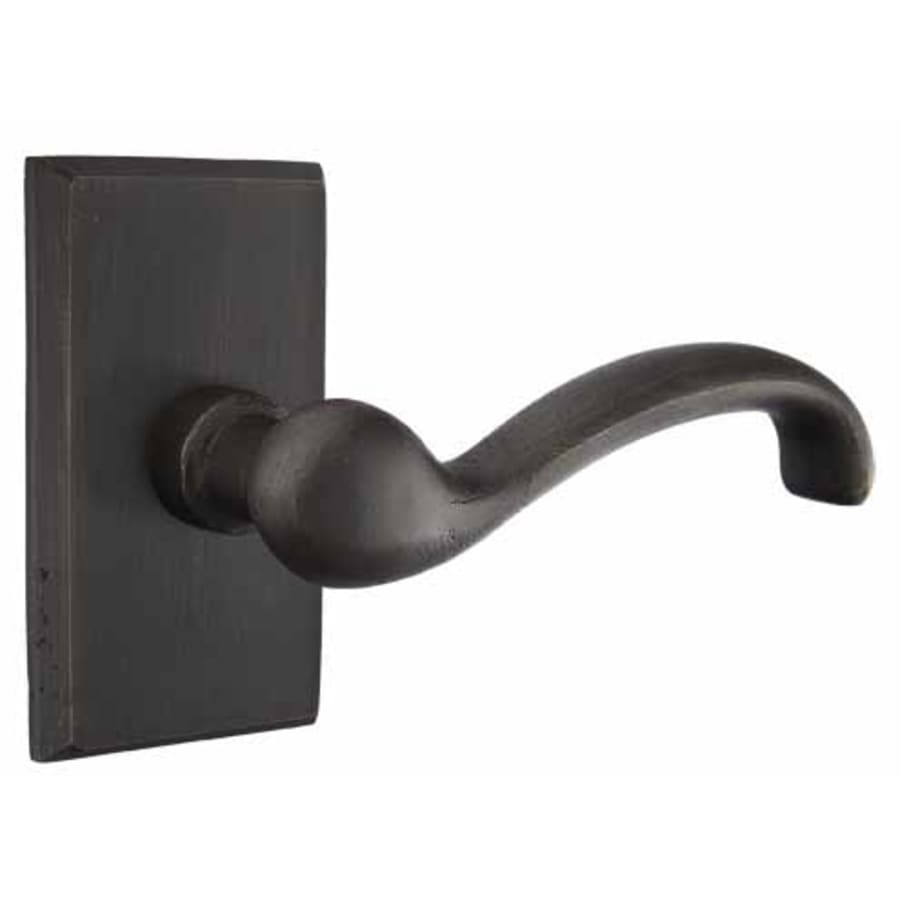

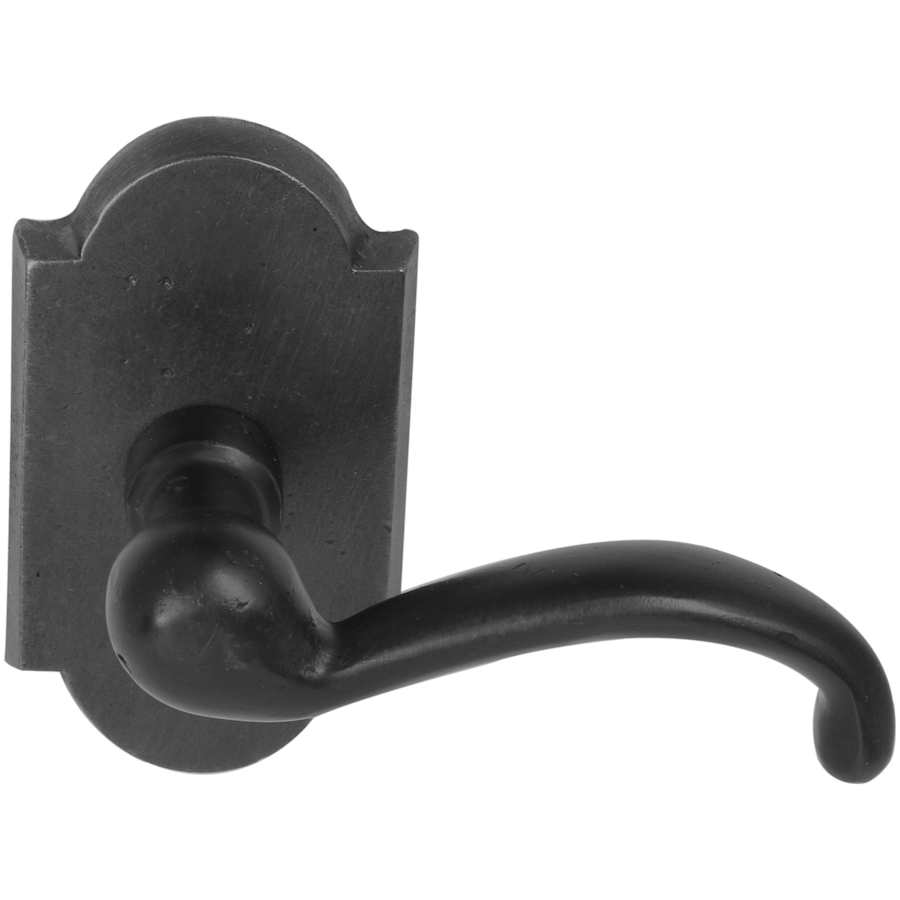

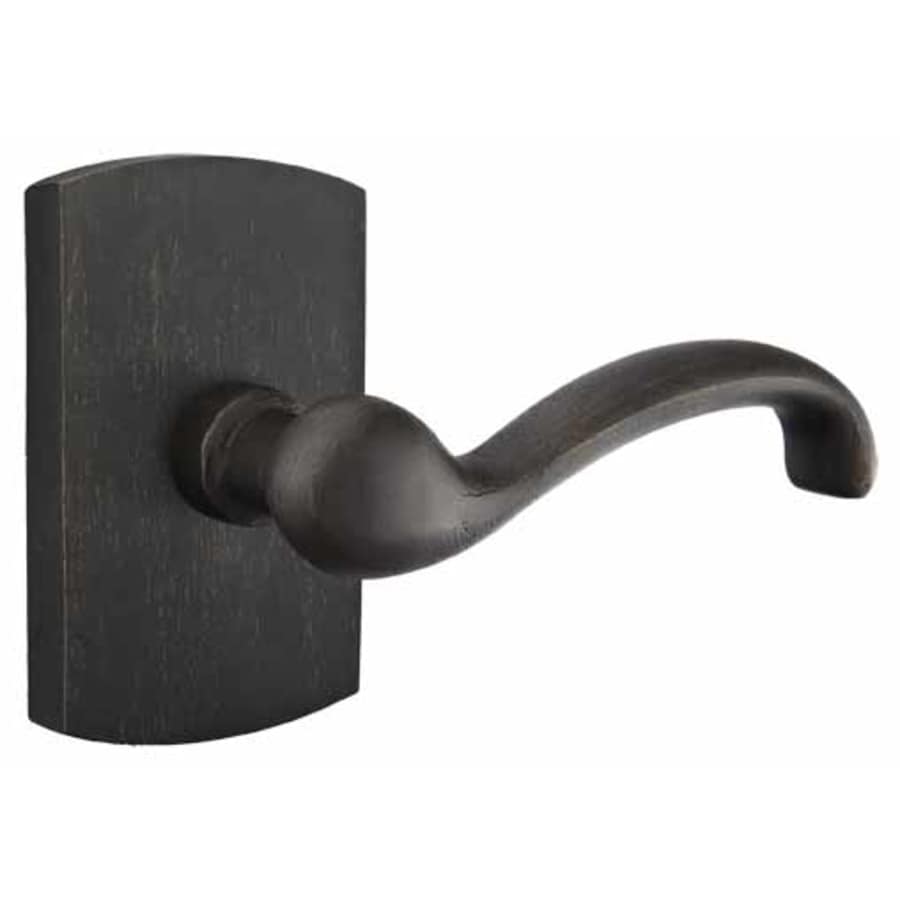

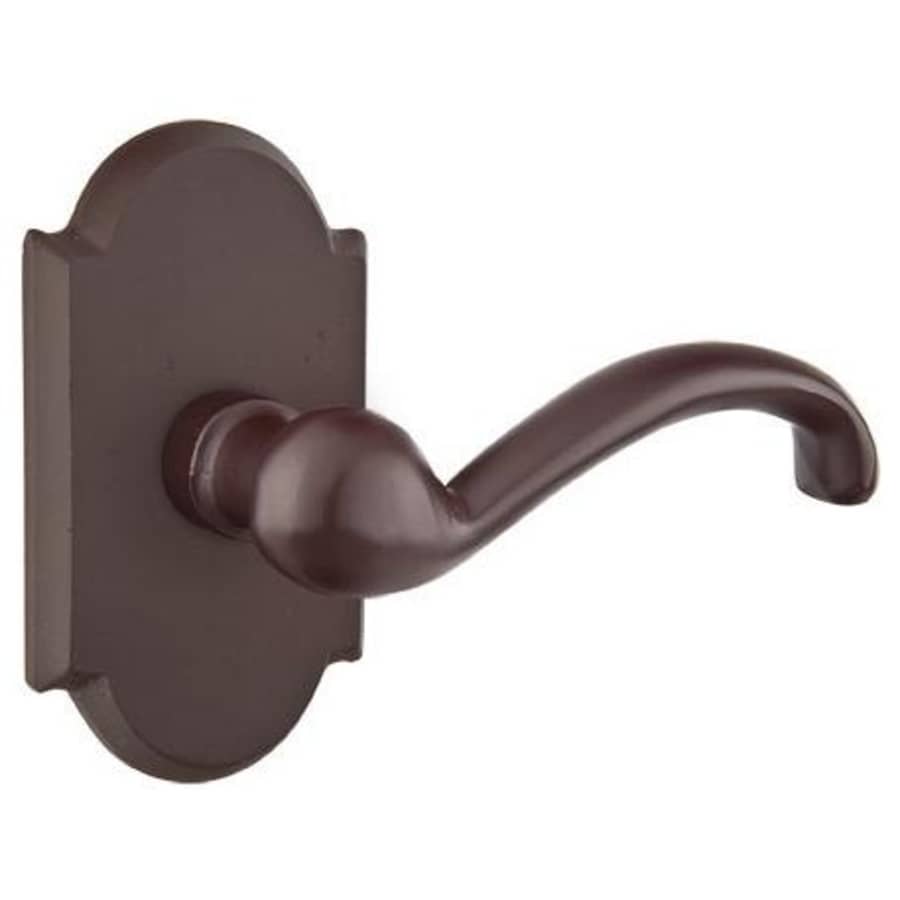

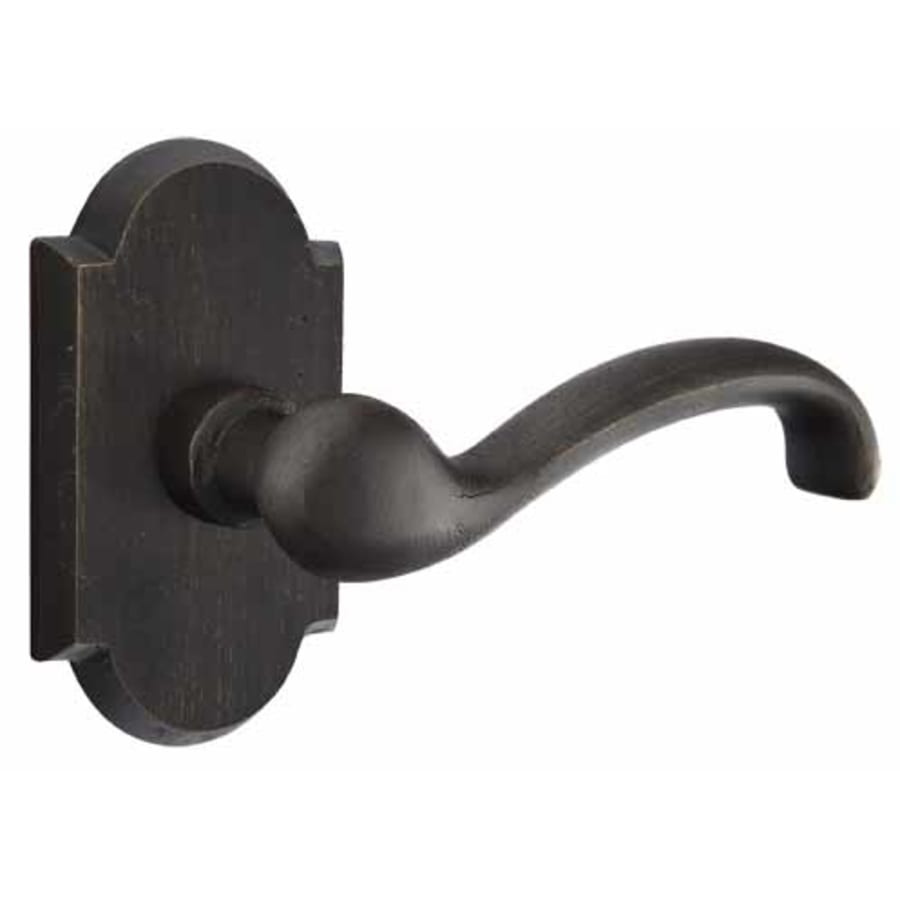

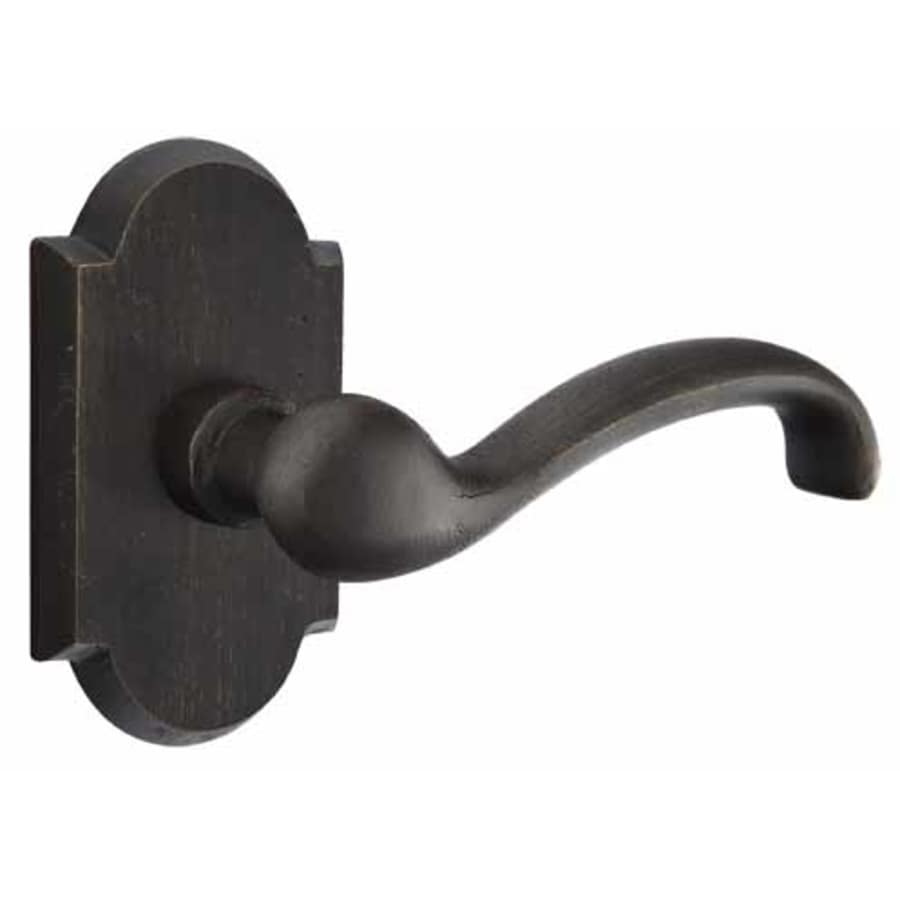

Emtek Teton Sandcast Bronze Passage Lever Set from the Rustic Collection

All Emtek items are made to order.

Passage Function: Emtek’s passage lever sets use traditional American latches complete with a variety of trim styles, handcrafted from authentic materials. The lever set is operated by a lever from both the interior and exterior. With the passage function, the door does not lock from either side.

Features:

Constructed from molten bronze one piece at a time into authentic rustic designs
Choose either left or right handing
Easily install into any standard prepared door
The latches are heavy-duty die cast construction, with strong internal springs, solid brass nose bolts, and sintered metal cams
Emtek offers a Limited Lifetime Warranty to the original purchaser

Specifications:

Backset: 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 3″
Handing: Left or Right
Lever Length: 4-7/8″
Projection: 2-3/8″
Latch Faceplate: Round Corner, Square Corner or Drive-In
Material: Bronze

Emtek’s patina finishes are achieved using the traditional techniques of bronze sculptors. With pitted surfaces and hand-finished patinas, these uniquely American designs resonate a calm strength. The knob/lever handles are supported by springs mounted behind the rosettes and side plates, which return the handles back to the rest position and prevent lever sag. A plastic bushing located in the joint between the handle and the rosette ensures a friction-free wear surface, preventing metal from bearing on metal and providing smooth, long-lasting operation. Handles are positively connected to rosettes with a permanent clip. Each has a set screw which eliminates “handle wobble” when tightened. Emtek’s threaded tubes are machined brass to ensure good threads and prevent corrosion.
