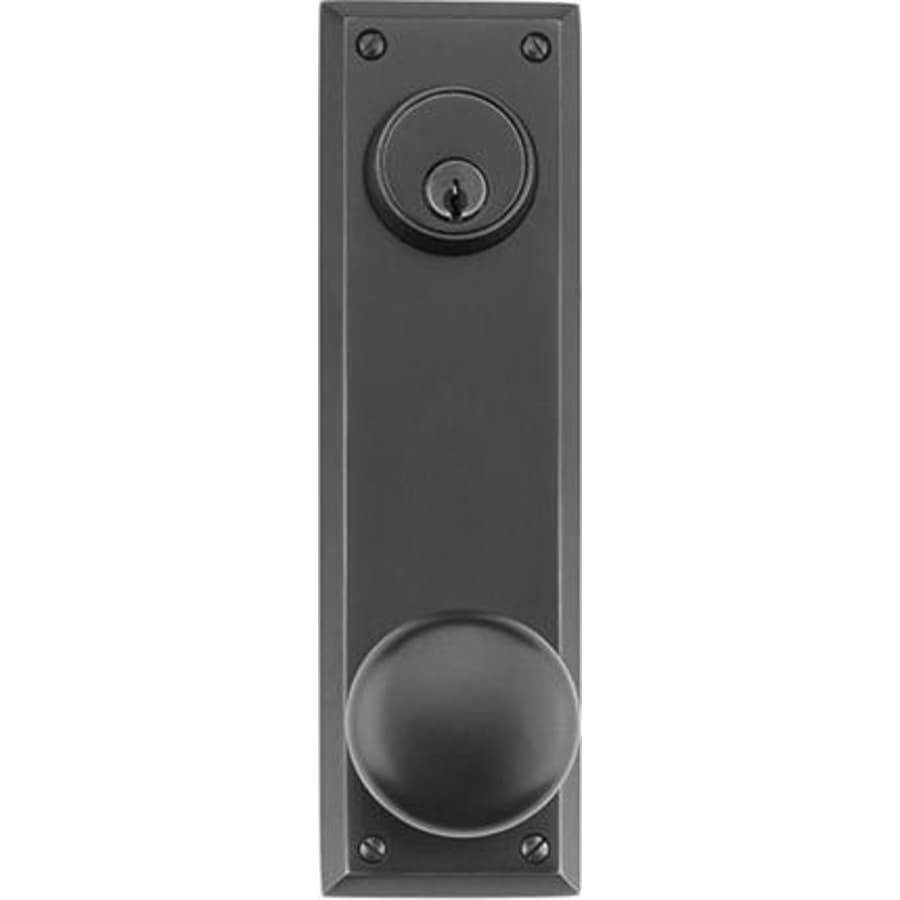

Emtek Quincy Sideplate Double Cylinder Keyed Entry Door Knob or Lever Set with 3-5/8 Inch Center to Center

All Emtek items are made to order.

Keyed Entry (Double Cylinder) Function: The deadbolt is thrown and retracted by a key from either side. As you will not be able to unlock this from the inside without a key, please check your local fire code to ensure this is allowed before purchasing.

Features:

Solid forged brass construction ensures elegant style along with long-lasting durability
Choose either left or right handing depending on the door application
Easily install into any standard prepared door
Emtek offers a Limited Lifetime Warranty to the original purchaser
Includes Knob or Lever, Latch, and Strike Plate
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Specifications:

Backset: 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-5/8″ to 2-1/2″
Handing: Left or Right
Height: 7-1/8″
Width: 2-3/8″
Center to Center: 3-5/8″
Latch Faceplate: Square Corner or Round Corner
Cylinder: Schlage C Keyway
Material: Solid Forged Brass

The American Classic Collection latches are heavy-duty die cast construction, with strong internal springs, solid brass nose bolts, and sintered metal cams. A plastic bushing located in the joint between the handle and the rosette ensures a friction-free wear surface, preventing metal from bearing on metal and providing smooth, long-lasting operation. Handles are positively connected to rosettes with a permanent clip. Each has a set screw which eliminates “handle wobble” when tightened. Emtek’s threaded tubes are machined brass to ensure good threads and prevent corrosion.
