All Emtek items are made to order

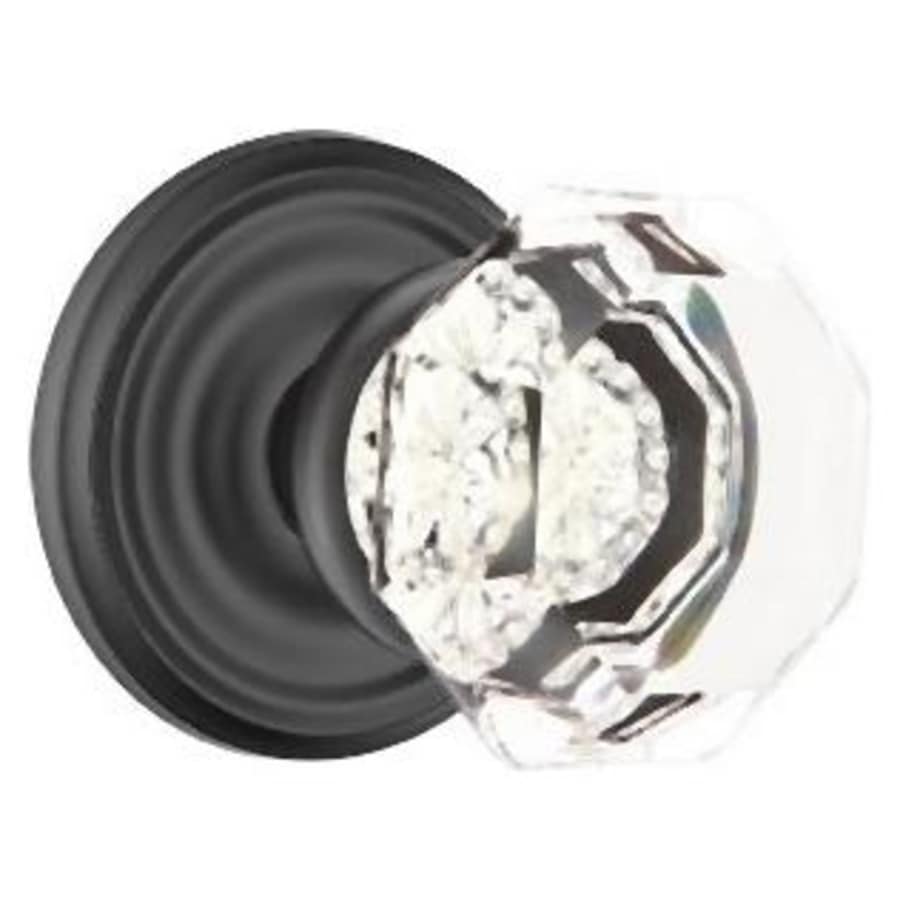

Image shown may vary slightly from actual product
Passage: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn’t needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.
Features:
Constructed of high quality brass and crystal for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Emtek’s limited lifetime manufacturer warranty
Specifications:
Backset: 2-3/4″ or 2-3/8″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/4″ to 2″
Handing: Reversible Left or Right
Handle Width: 2-1/4″
Handle Height: 2-1/4″
Handle Projection: 2-3/4″
Trim Width: 2-3/4″
Trim Height: 2-3/4″
Product Weight: 1.50 lbs.
Latch Faceplate: Round Corner or Square Corner
Additional Emtek Links
View the Manufacturer Warranty
Browse all Emtek Products
Emtek Old Town Collection
Specifications
| Door Thickness | 1-1/2", 1-1/4", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2" |
| Handle Height | 2.25 in. |
| Handle Projection | 2.75 in. |
| Handle Width | 2.25 in. |
| Trim Height | 2.75 in. |
| Trim Width | 2.75 in. |
| Product Weight | 1.50 lbs. |
| Backset | 2-3/4", 2-3/8" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Concealed Screws | No |
| Function | Passage |
| Handshower | Left, Reversible, Right |
| Handle Material | Crystal |
| Knob Shape | Octagonal |
| Material | Brass, Crystal |
| Rosette Shape | Round |
| Thermostat | Traditional |
| Handle Style | Knob |
| Handle Design | Old Town |
| Latch Faceplate | Round Corner, Square Corner |
| Trim Design | Regular |
| ADA | No |
| Approved for Commercial Use | No |
| Collection | Brass Crystal, Pre-Configured |
| Fire Rated | No |
| Manufacturer Warranty | Limited Lifetime |
| Series | Old Town |
| Color | Flat Black, French Antique, Oil Rubbed Bronze, Pewter, Polished Brass, Polished Chrome, Polished Nickel, Satin Brass, Satin Nickel, Unlacquered Brass |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Neutrals, Nickel Tones, Silver Tones |
