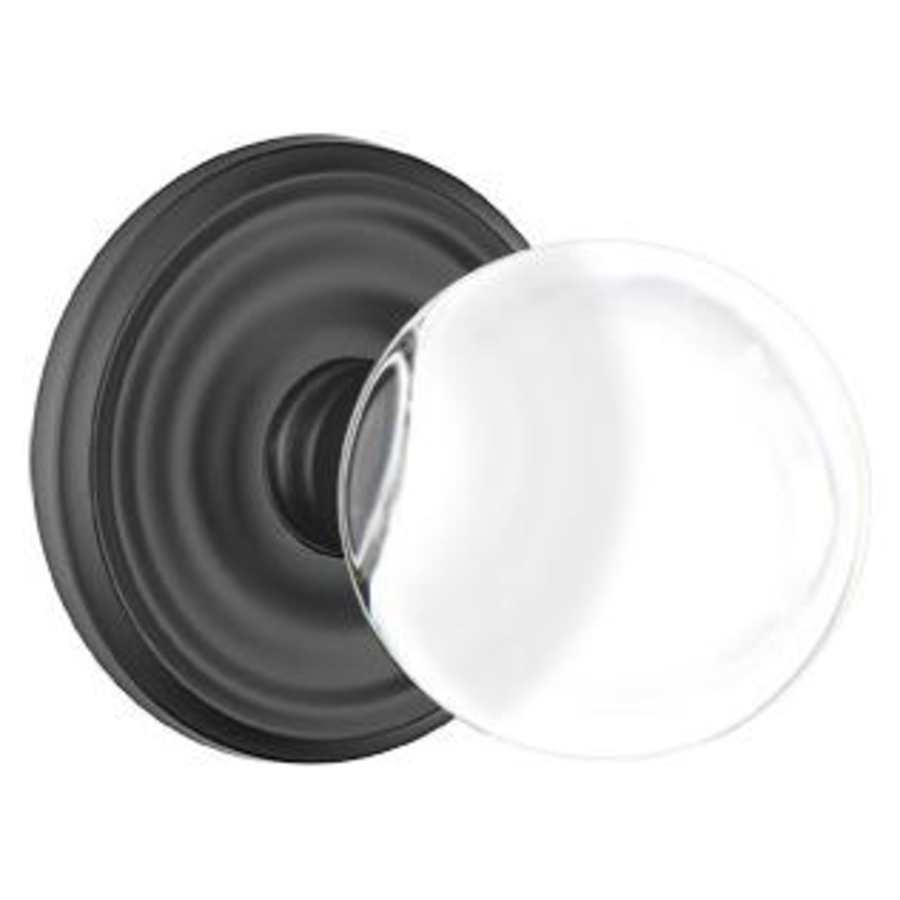

Emtek Bristol Crystal Passage Door Knob Set with Brass Rosette

All Emtek items are made to order.

Passage Function: Emtek’s passage knobsets are operated by a knob from both the interior and exterior. With the passage function, the door does not lock from either side. Uncompromisingly rugged and beautifully crafted, these locks are suitable for the very finest homes.

Features:

Beautifully constructed from solid brass and crystal for elegance and outstanding durability
Handing is reversible for either left or right door applications
Easily install onto any standard prepared door
Emtek offers a Limited Lifetime Warranty to the original purchaser

Specifications:

Backset: 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/4″ to 3″
Handing: Reversible Left or Right
Knob Diameter: 2-1/16″
Projection: 3-3/8″
Latch Faceplate: Round Corner, Square Corner or Drive-In
Material: Crystal and Solid Brass

These stunning crystal knobs are reproductions of early American designs. Each knob is hand polished and fitted to a sturdy and attractive brass rosette. The latches are heavy-duty die cast construction, with strong internal springs, solid brass nose bolts, and sintered metal cams. A plastic bushing located in the joint between the handle and the rosette ensures a friction-free wear surface, preventing metal from bearing on metal and providing smooth, long-lasting operation. Handles are positively connected to rosettes with a permanent clip. Each has a set screw which eliminates “handle wobble” when tightened. Emtek’s threaded tubes are machined brass to ensure good threads and prevent corrosion.
