All Emtek items are made to order.
Passage Function: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn’t needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.
Features:
Constructed of solid brass for durability and premium feel
Specify left or right handing above
Includes Drive-In, Rounded Corner and Squared Corner latch faceplates for versatile installation
Contains all hardware necessary to be installed for easy out of the box experience
Emtek provides a Limited Lifetime Mechanical Warranty for this product
Product Technologies:
Solid Brass Construction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.
Specifications:
Backset: 2-3/8″ or 2-3/4″
Cross Bore:Â 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/4″ to 3″
Handing: Left, Right
Lever Length: 4-5/8″
Projection: 2-1/4″
Product Weight: 3Â lbs.
Latch Faceplate: Round Corner, Square Corner, Drive-In
Additional Functions:
820M:Â Privacy Door Lever Set
810M (This Product):Â Passage Door Lever Set
805M:Â Dummy Door Lever Set
Additional Emtek Links
View the Manufacturer Warranty
Browse all Emtek Products
Emtek Milano Collection
Specifications
| Thermostat | Modern |
| Solid Construction | Solid Brass |
| Handshower | Left, Right |
| Handle Material | Metal |
| Style | Contemporary/Modern |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Function | Passage |

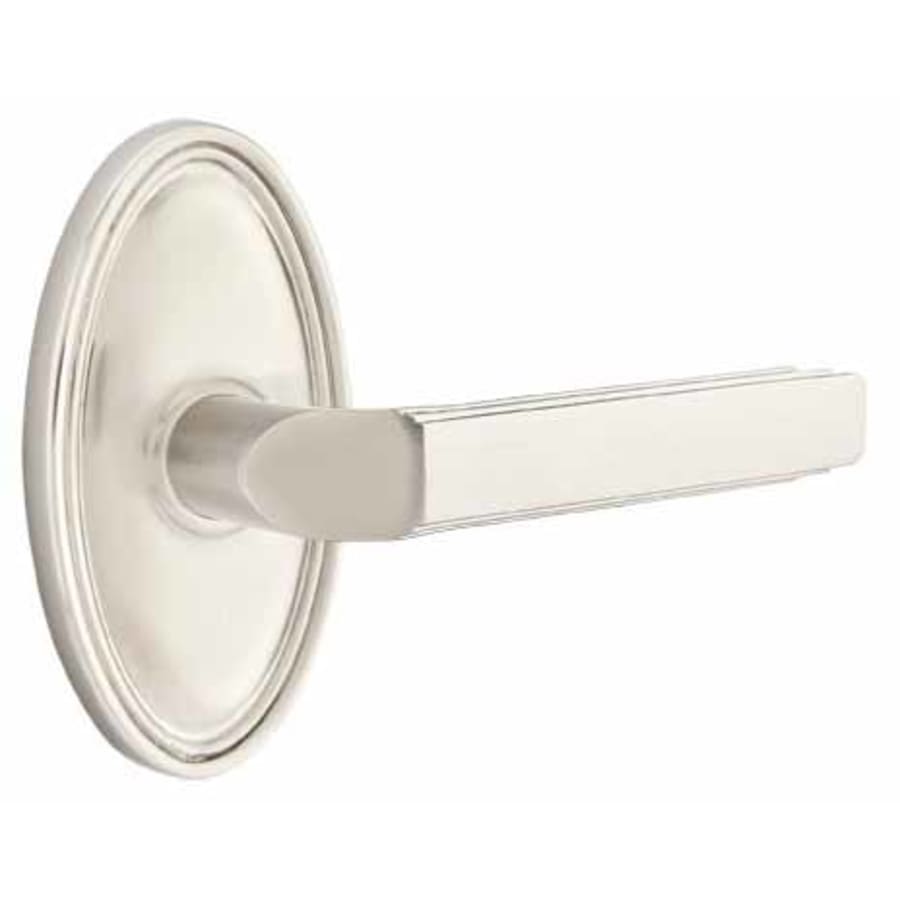

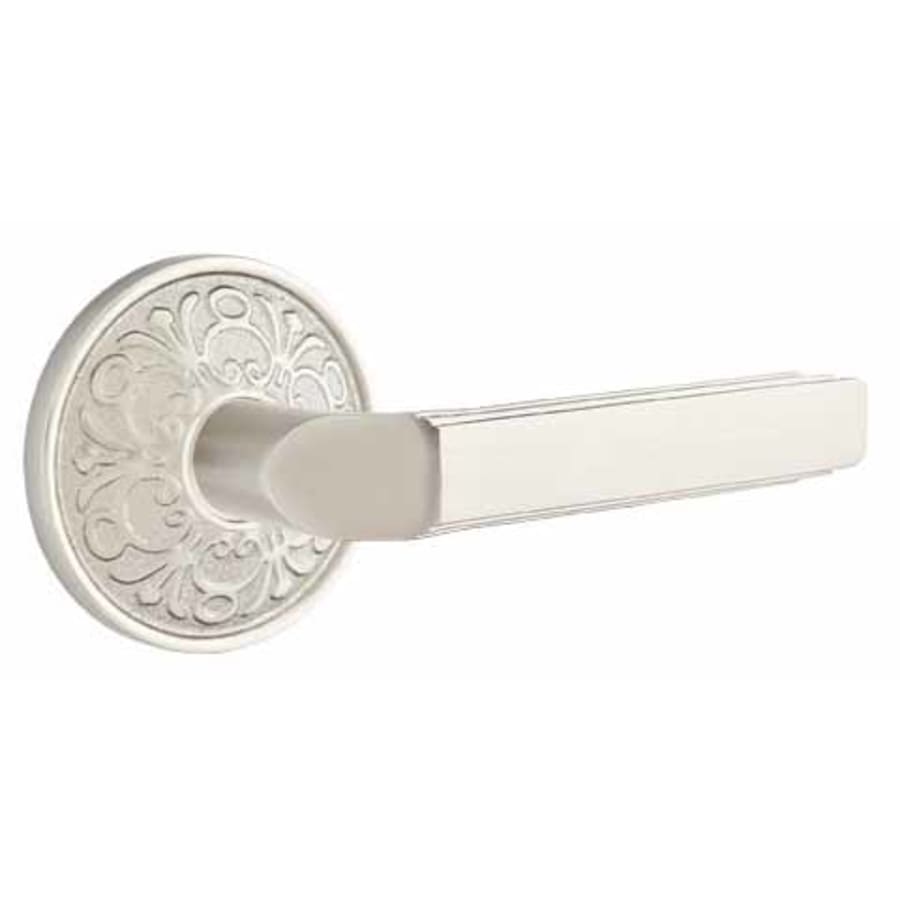

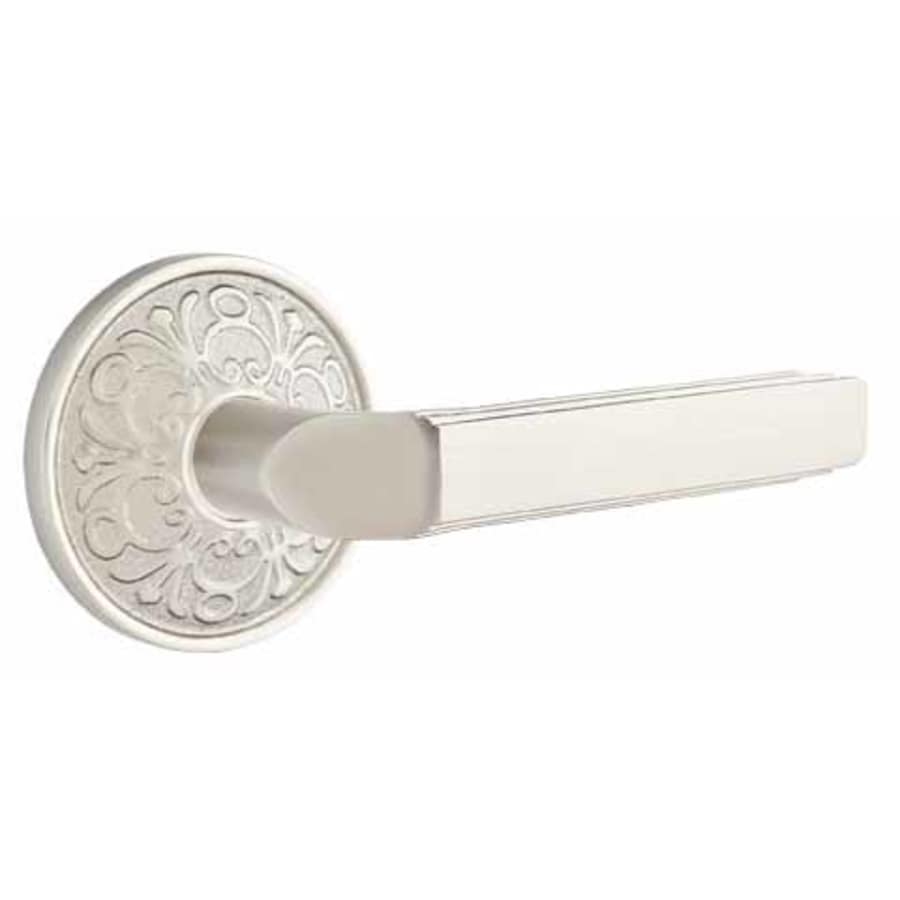

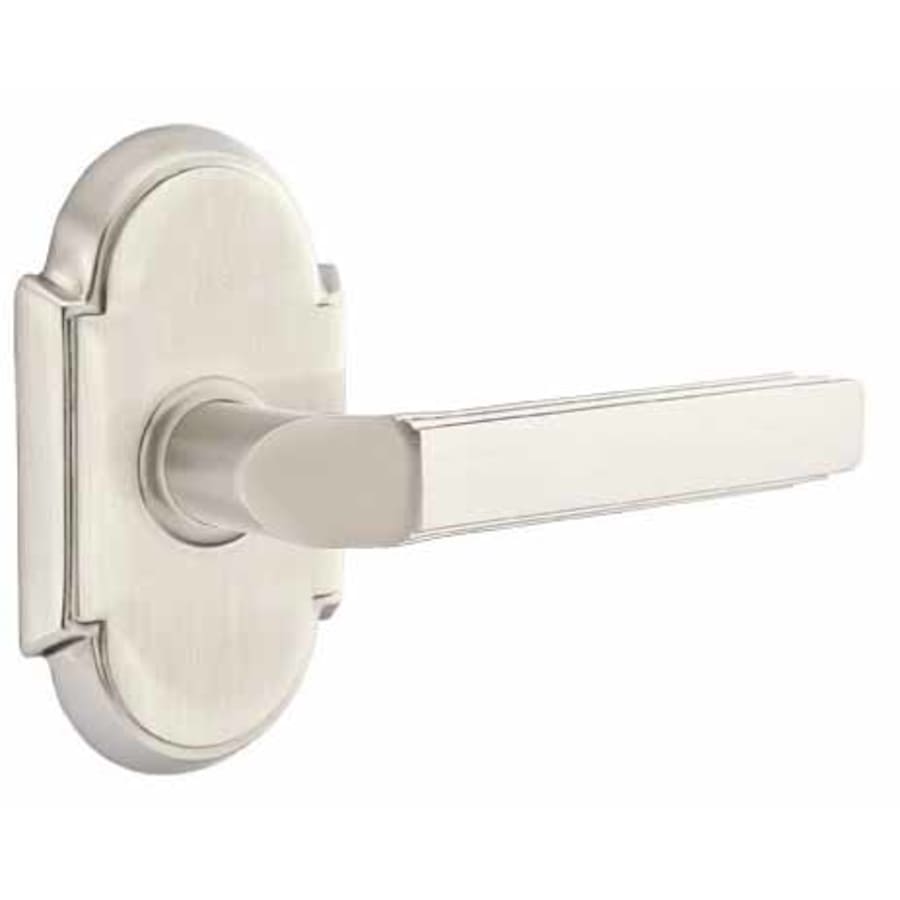

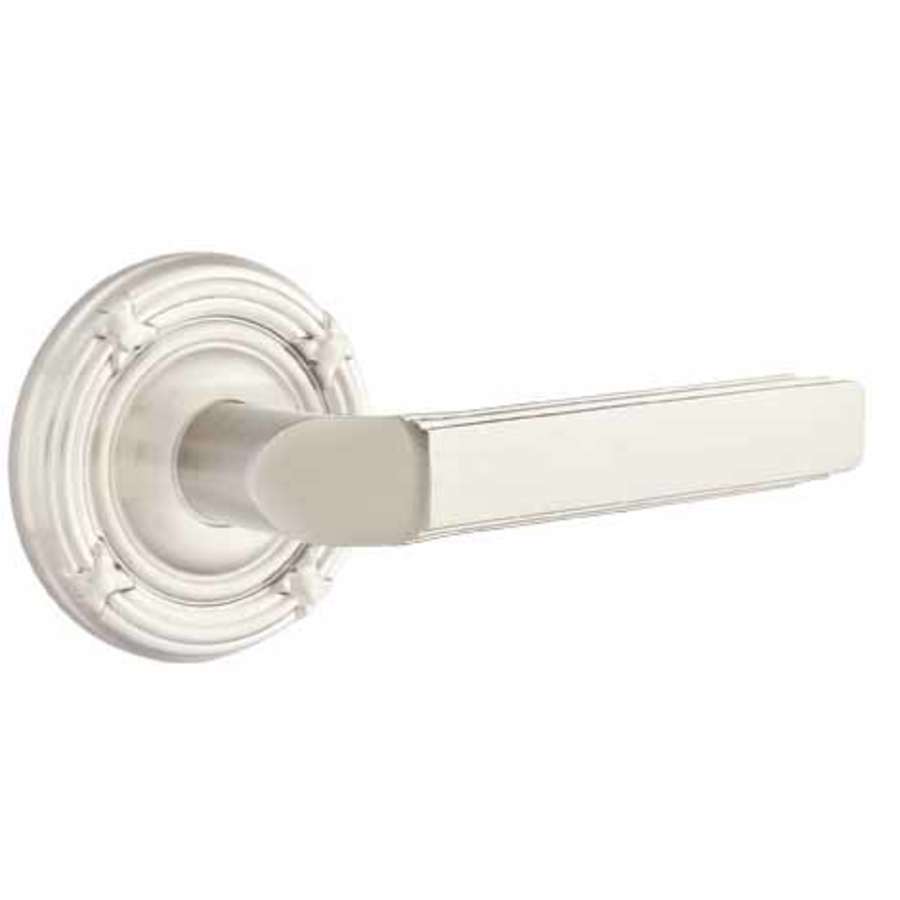

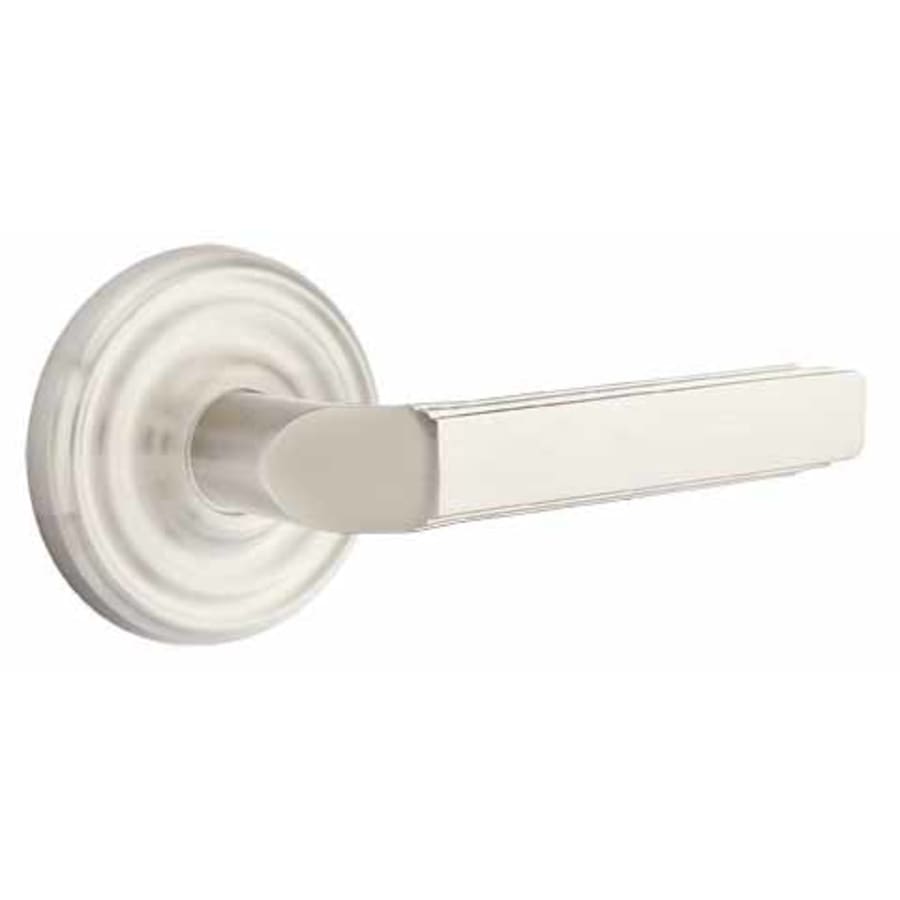

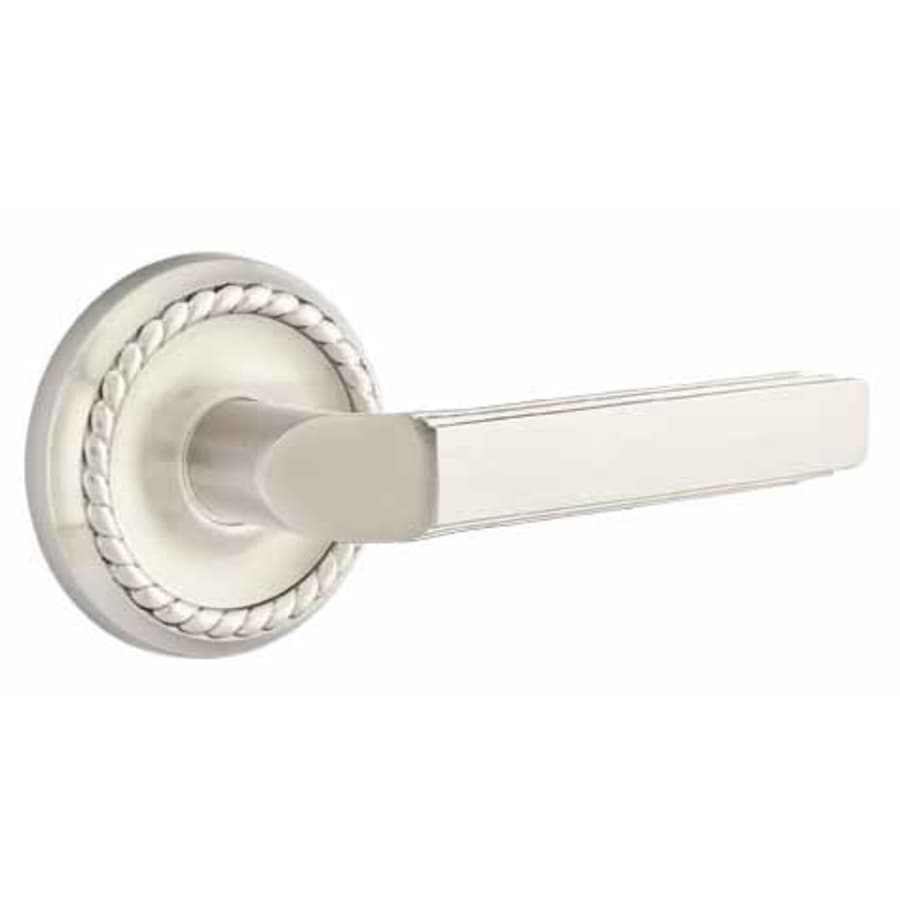

| Rosette Shape | Arch, Oval, Round |
| Lever Shape | Square, Straight |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime Mechanical |
| Door Thickness | 1-1/2", 1-1/4", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2-1/2", 2-1/4", 2-1/8", 2-3/4", 2-3/8", 2-7/8" |
| Backset | 2-3/4", 2-3/8" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.25 in. |
| Handle Length | 4.625 in. |
| Color | Flat Black, French Antique, Lifetime Polished Brass, Oil Rubbed Bronze, Pewter, Polished Chrome, Polished Nickel, Satin Brass, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Neutrals, Nickel Tones, Silver Tones |
