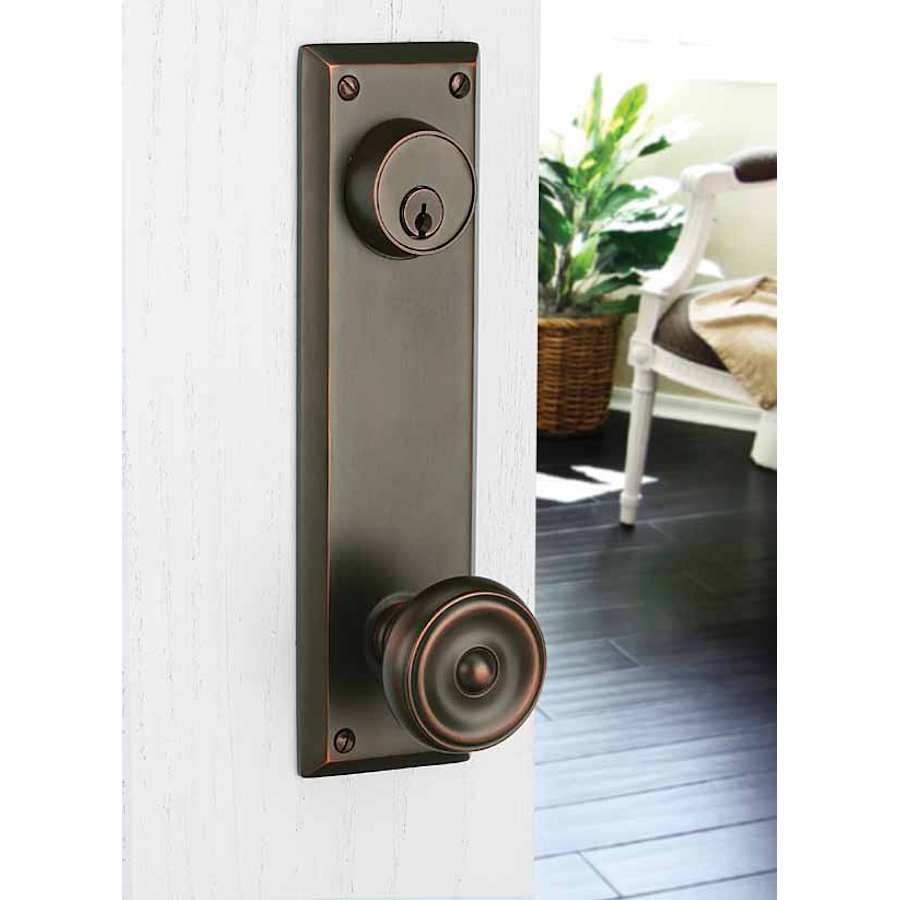

Emtek Quincy Single Cylinder Keyed Entry Set from the American Classic Collection

All Emtek items are made to order.

Note: Stuttgart Lever is not available in Polished Brass and Hammered Lever is not available in Pewter.

Single Cylinder Entry Set: Single cylinder entry sets have a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior. This entry set includes both the interior and the exterior for a complete entrance solution.

Features:

Sold as a complete set with both exterior and interior trims included
Constructed of solid brass for durability and beauty
Optional left or right handing
Optional round or square latch faceplate
Includes all necessary hardware for installation on standard prep doors
Emtek provides a lifetime limited warranty to the original owner
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Product Technologies:

Solid Brass Construction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.

Specifications:

Backset: Adjustable 2-3/4″ or 2-3/8″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 2-3/4″
Handing: Reversible Left or Right
Height: 9″
Width: 2-5/8″
Center to Center: 5-1/2″
Material: Solid Forged Brass
Cylinder: 5 Pin C Keyway
