All Emtek items are made to order.
Passage Function: Emtek’s passage knobs and levers have no locking mechanism and is free turning on both the inside and outside. Many times passage knobs and levers are used on either a hallway or closet door where no security is necessary, but sometimes are used paired with a deadbolt for an entrance or back door. The CF Mechanism provides concealed screws on both sides of the door, therefore featuring a clean look on both the interior and exterior.
Features:
Solid brass rosette and housing give a long lasting and durable beauty
Non handed design allows for field conversion from left to right handing
Standard door prep and installation
Limited lifetime warranty for the original owner
CF Mechanism provides concealed screws to give a clean look
Specifications:
Backset: 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/4″ to 2-1/4″
Handing: Left, Right, Reversible
Lever Length: 5″
Projection: 2-27/32″
Latch Faceplate: Square Corner
Product Variations:
C505POS:Â Dummy Lever Set with CF Mechanism

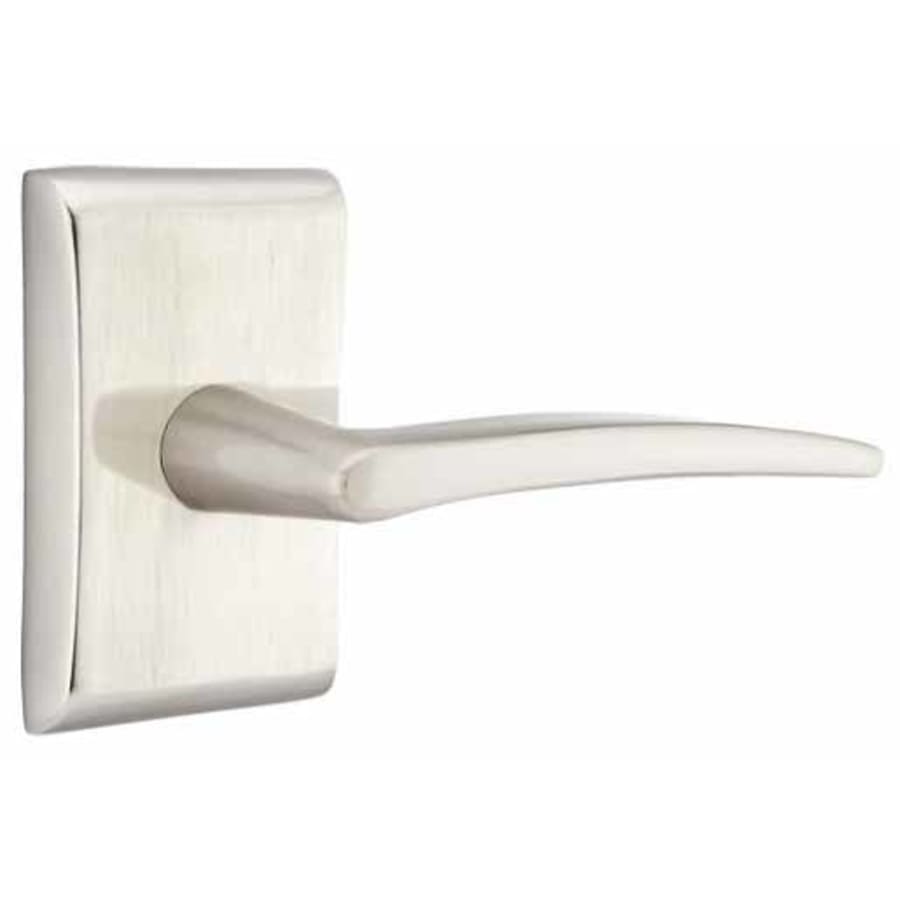

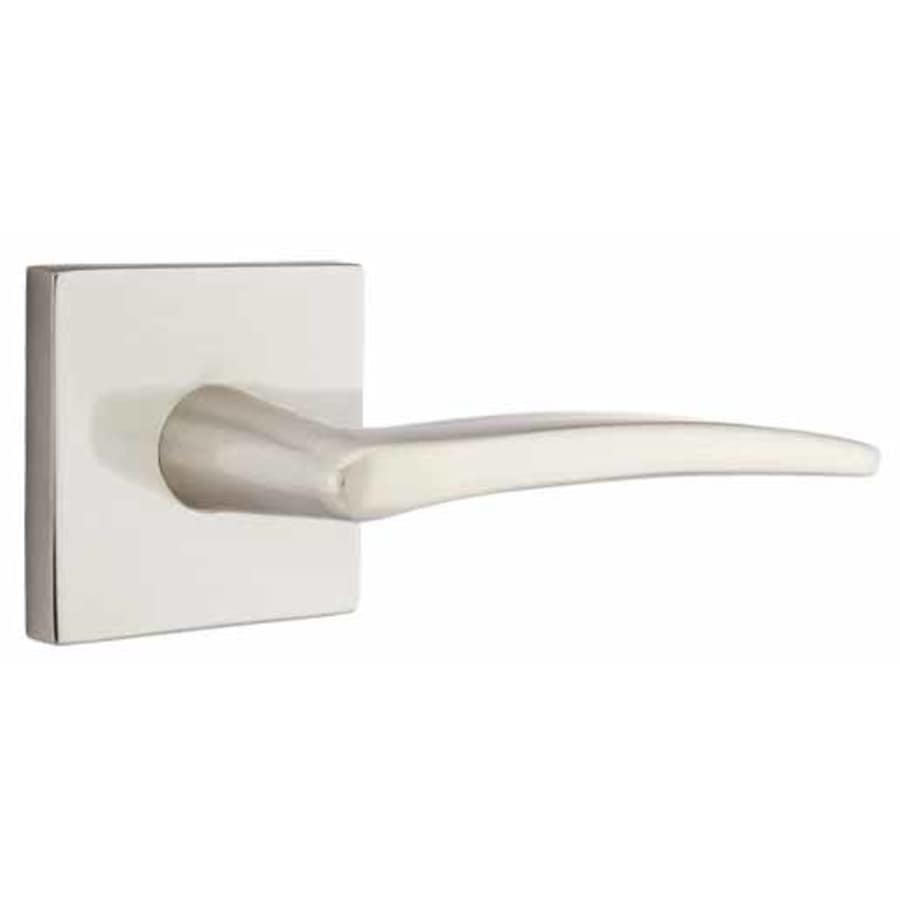

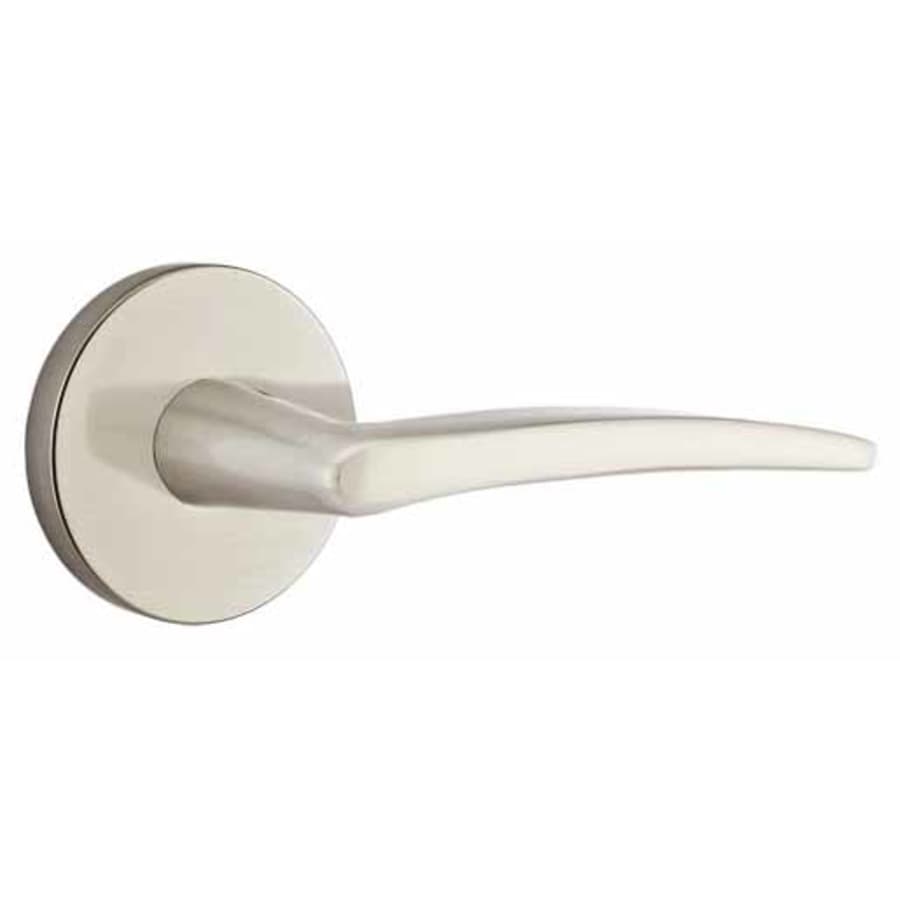

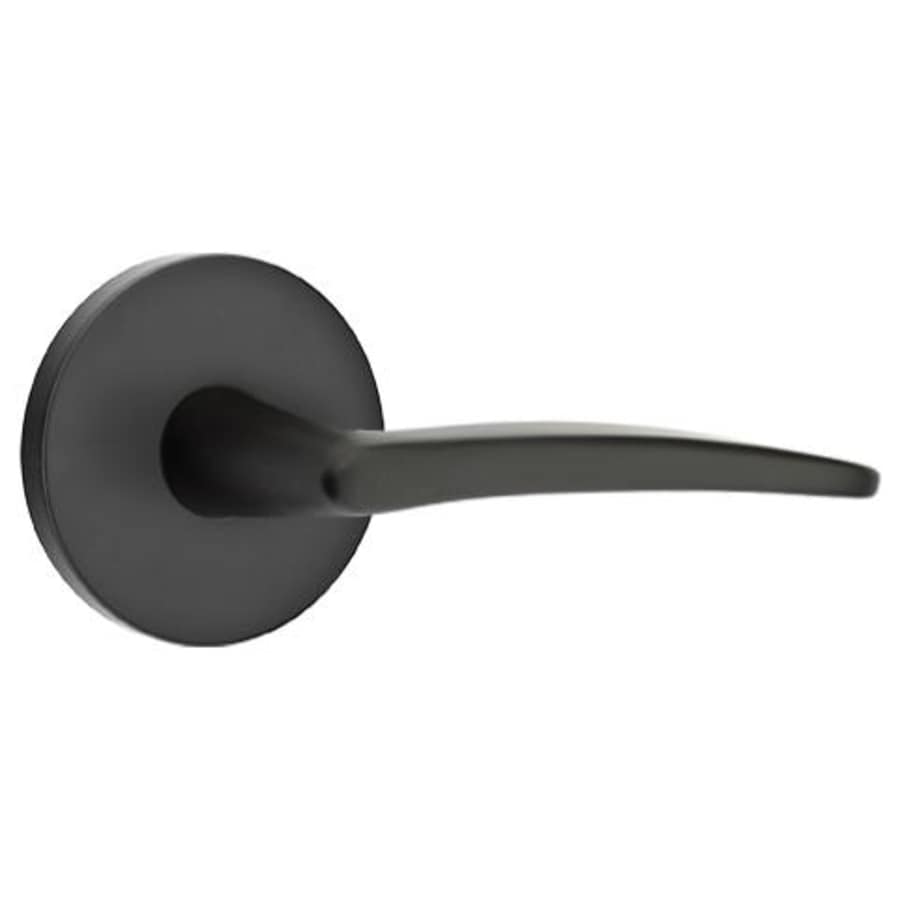

C510POS (This Model): Passage Lever Set with CF Mechanism
C520POS:Â Privacy Lever Set with CF Mechanism
Additional Emtek Links
View the Manufacturer Warranty
Browse all Emtek Products
Emtek Poseidon Collection
Specifications
| Thermostat | Transitional |
| Solid Construction | Solid Brass |
| Latch Faceplate | Square Corner |
| Handshower | Left, Reversible, Right |
| Function | Passage |
| Handle Material | Metal |
| Rosette Shape | Rectangle, Round, Square |
| Lever Shape | Designer, Straight |
| Approved for Commercial Use | No |
| Collection | Brass Modern |
| Manufacturer Warranty | Limited Lifetime |
| ADA | No |
| Series | Poseidon |
| Fire Rated | No |
| Door Thickness | 1-1/2", 1-1/4", 1-3/8", 1-5/8", 1-7/8", 2-1/4", 2-1/8" |
| Backset | 2-3/8", 2-3/4" |
| Edge Bore | 1" |
| Handle Projection | 2.84 in. |
| Cross Bore | 2-1/8" |
| Handle Length | 5 in. |
| 28 Degree Latch | Yes |
| Color | Flat Black, Oil Rubbed Bronze, Polished Chrome, Satin Brass, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
