All Emtek items are made to order. Please allow 1 to 2 weeks processing time.
Passage: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn’t needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.
Features:

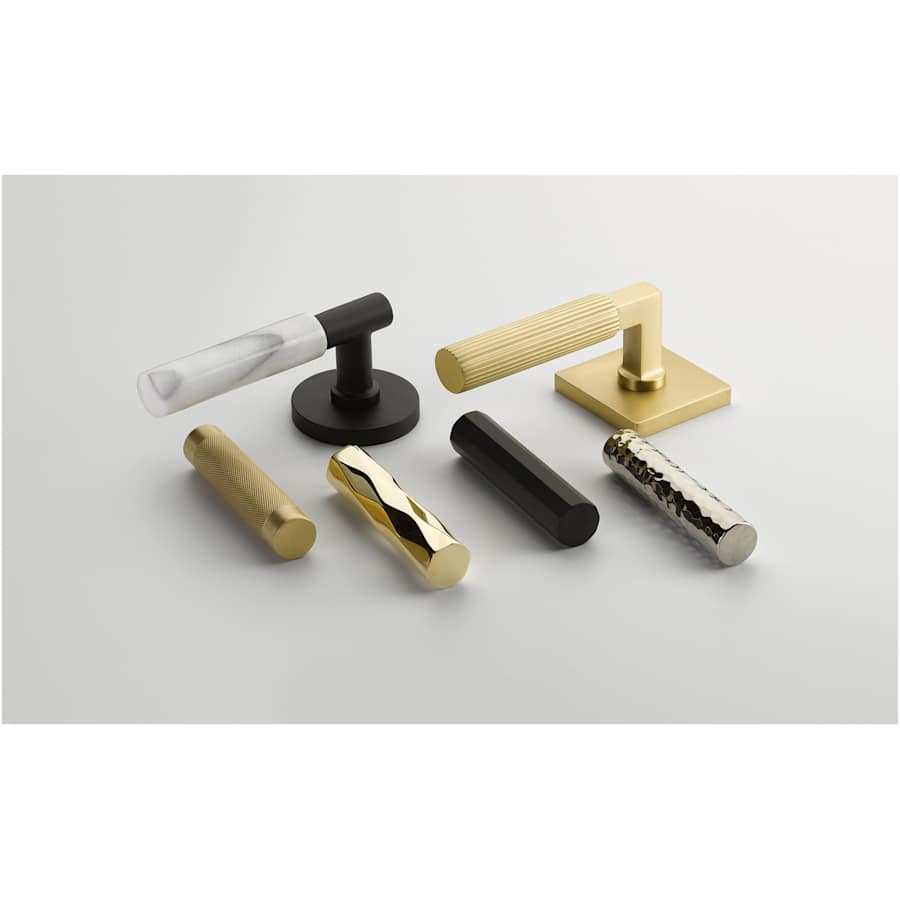

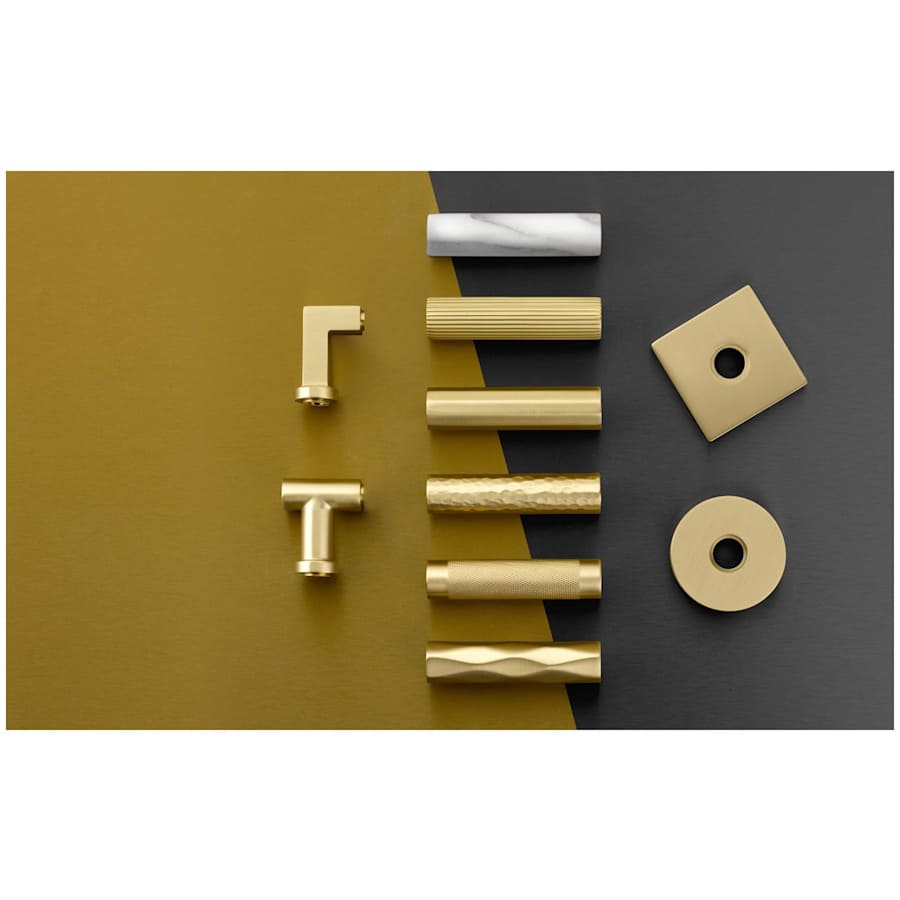

Emtek SELECT allows you to fully customize your lever set
Multiple finishes and stem options create unique combinations
Stem and handle will be permanently affixed
Crafted from solid brass for a premium feel
Handing can be selected for left or right handed doors
Includes a round or square corner latch faceplate
Installs on doors with 1-1/4″ to 3″ thickness
Covered under a Limited Lifetime Mechanical and 5 Year Finish Warranty
All necessary mounting hardware is included
Unlacquered Brass (US3NL) finish is available for an additional $40 to MSRP. Please contact a Sales Representative to order
Product Technologies:
Solid Brass Construction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.
28 Degree Premium Latch: Incorporates a unique chassis design that significantly shortens the rotation and creates a more crisp and ergonomic function.
Specifications:
Backset: 2-3/4″ or 2-3/8″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/4″ to 3″
Handing: Left or Right
Handle Length: 4-5/8″
Handle Projection: 2-1/8″
Latch Faceplate: Round Corner or Square Corner
Product Weight: 2 lbs.
Material: Brass
Additional Emtek Links
View the Manufacturer Warranty
Browse all Emtek Products
Emtek Straight Knurled Collection
Specifications
| Product Weight | 2 lbs. |
| Backset | 2-3/4", 2-3/8" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-1/4", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/4", 2-3/8", 2-5/8", 2-7/8", 3" |
| Edge Bore | 1" |
| Handle Length | 4.625 in. |
| Handle Projection | 2.125 in. |
| Thermostat | Transitional |
| Material | Brass |
| Concealed Screws | Yes |
| Function | Passage |
| Handshower | Left, Right |
| Latch Faceplate | Round Corner, Square Corner |
| Lever Shape | Round, Straight |
| Rosette Shape | Rectangle, Round, Square |
| Handle Style | Lever |
| Solid Construction | Solid Brass |
| Characteristics | Fluted |
| Handle Material | Metal |
| ADA | No |
| Approved for Commercial Use | No |
| Collection | SELECT |
| Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
| Fire Rated | No |
| Series | Straight Knurled |
| 28 Degree Latch | Yes |
| Color | Flat Black, Lifetime Polished Nickel, Matte White, Oil Rubbed Bronze, Polished Chrome, Satin Brass, Satin Nickel, Unlacquered Brass |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones, Whites |
