Emtek Helios Privacy Door Lever Set with Concealed Screws

All Emtek items are made to order.

Privacy Function: Emtek’s privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.

Features:

Perfect fit for the contemporary home with its simple yet decorative design and beautiful finishes
Crafted of solid brass construction for durability and long-lasting quality
Installs on doors with 1-1/4″ to 2-1/4″ thickness
Reversible handing installs on both left or right handed doors

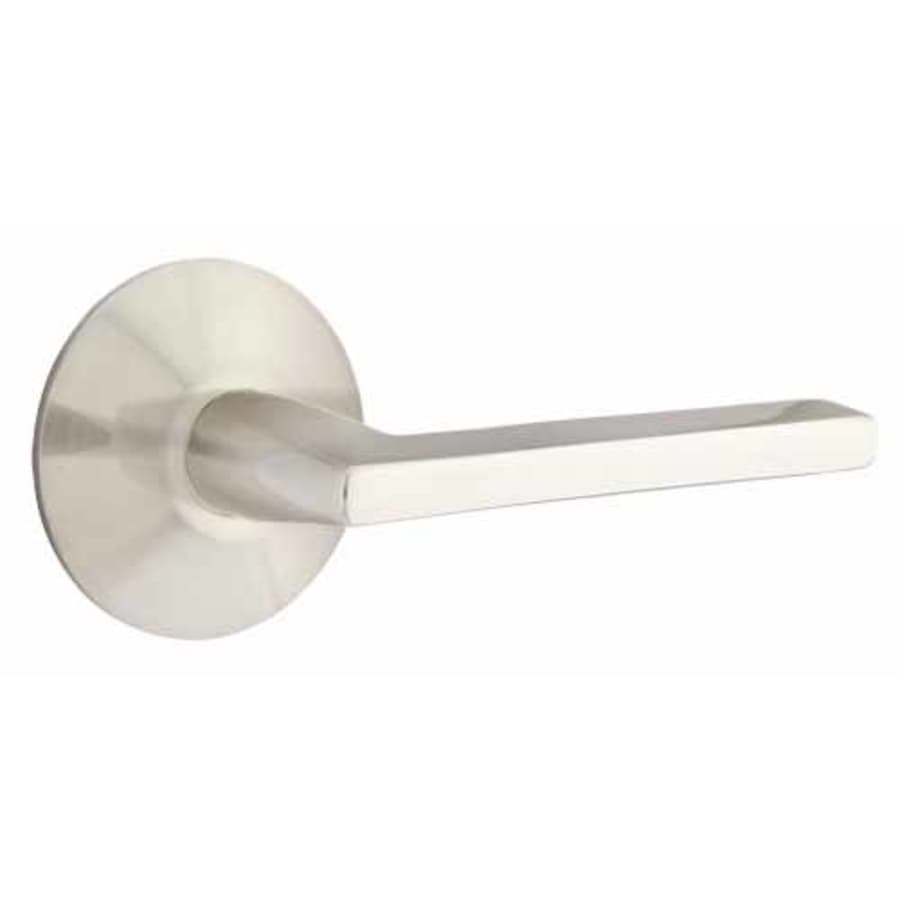

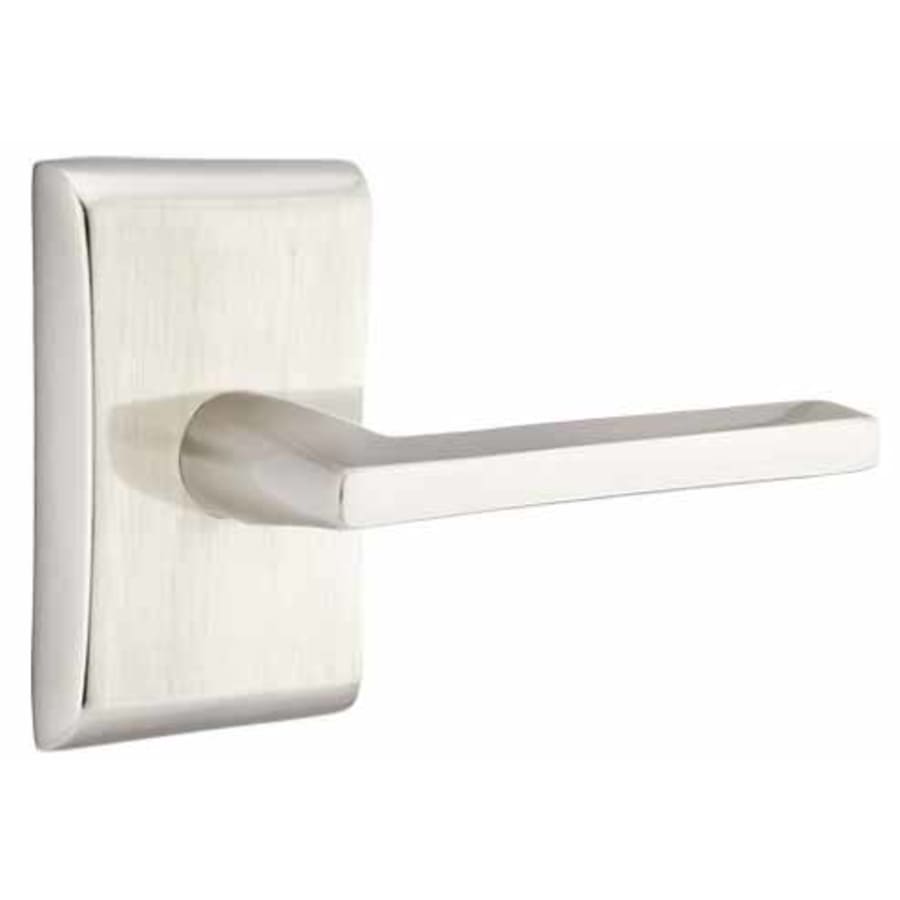

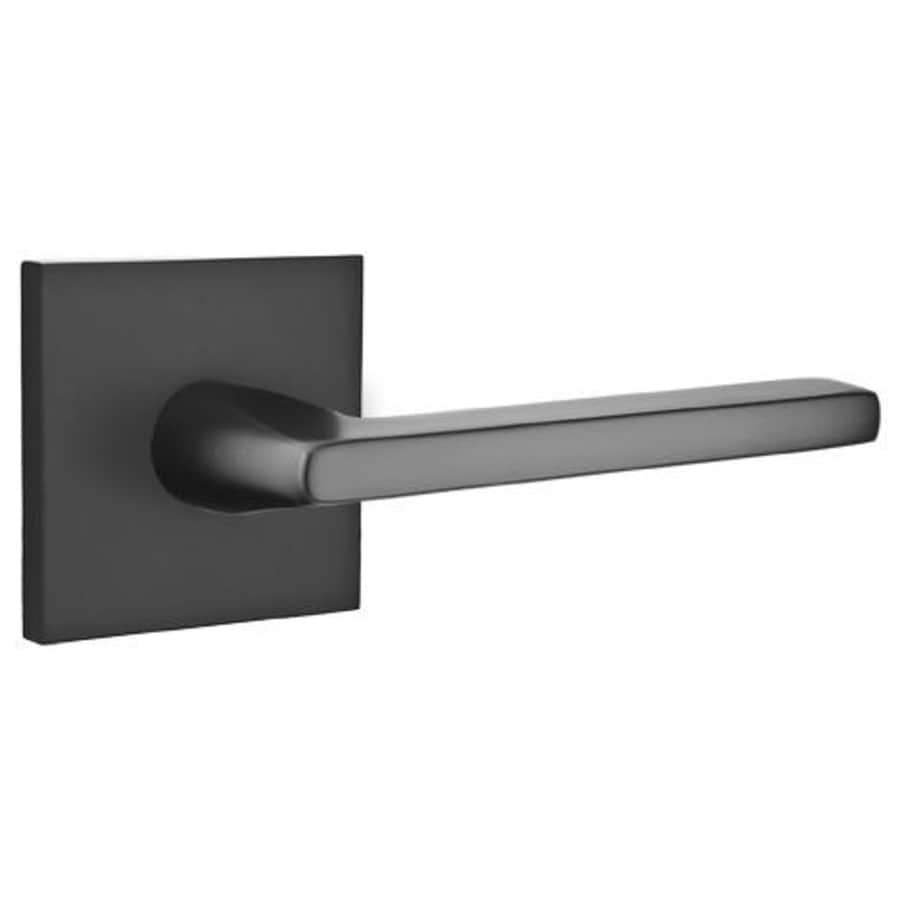

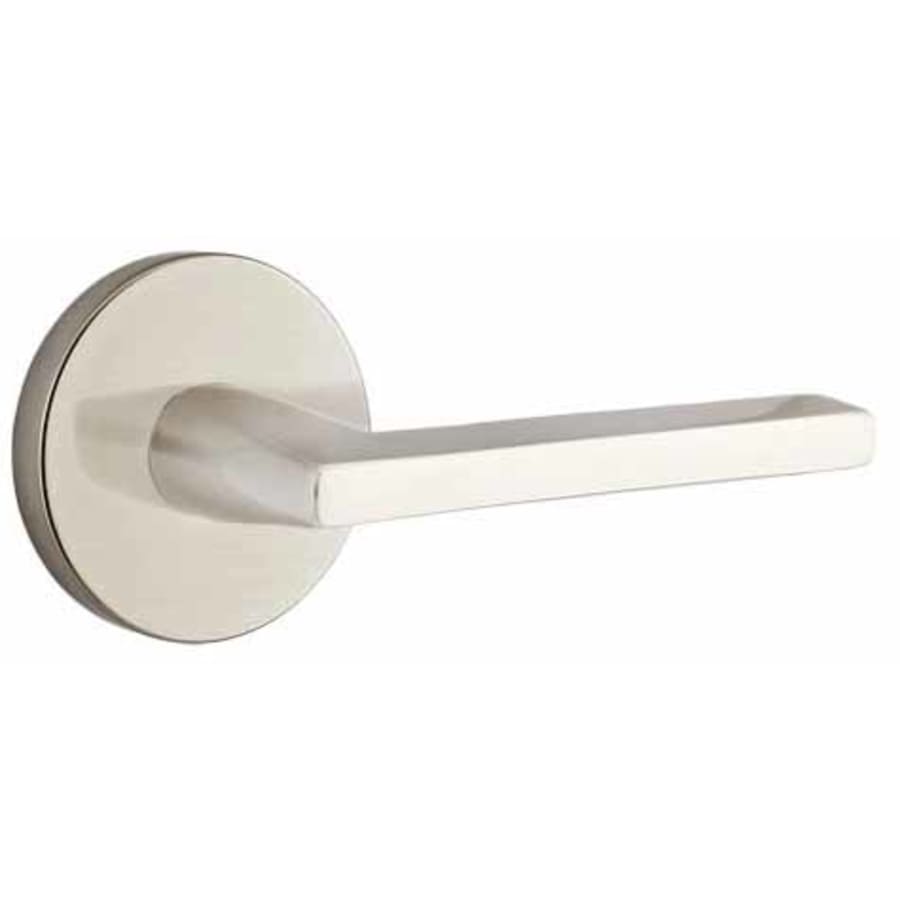

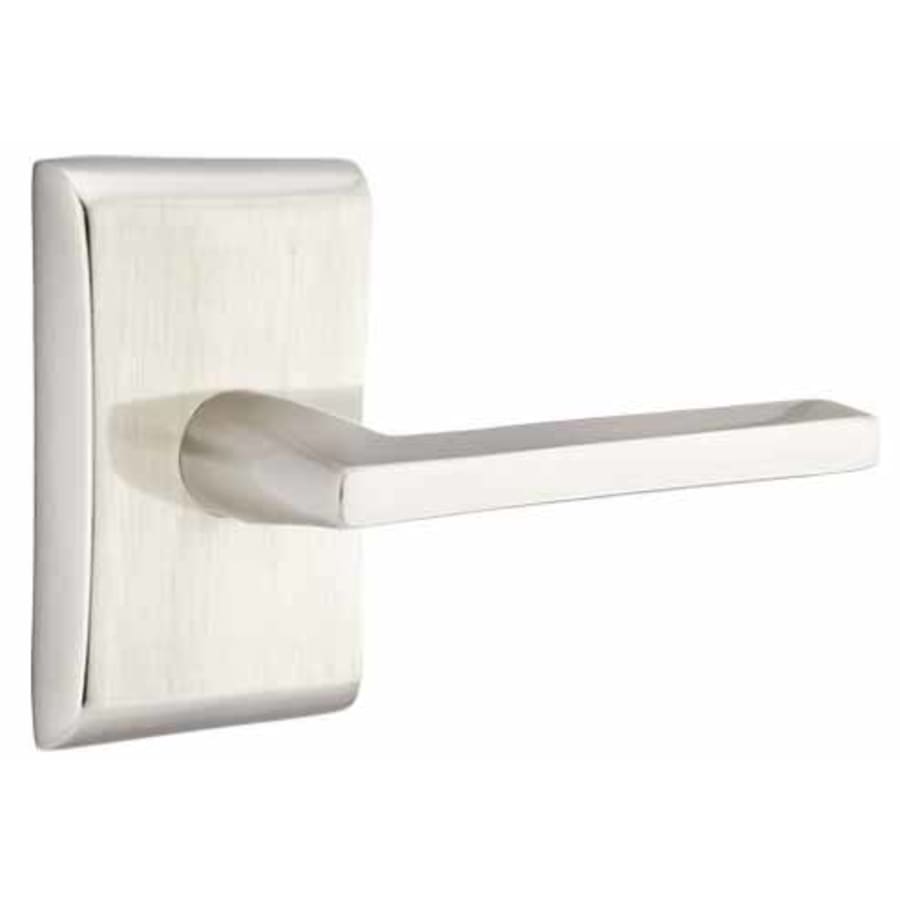

Select a rosette to customize your lever set
Emtek offers a Limited Lifetime Mechanical Warranty to the original purchaser

Product Technologies:

Solid BrassConstruction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.
CF Mechanism: Emtek’s proprietary CF Mechanism design incorporates a unique chassis design that significantly shortens the rotation and creates a more crisp and ergonomic function. This 28° latch mechanism comes standard with all units equipped with the CF Mechanism, affording a superior and robust operation.
Concealed Screws: Emtek knobs and levers that feature the CF Mechanism install cleanly on both the interior and exterior of the door, completely concealing all screws required for the installation. All you’ll ever see is the door and the hardware you’ve chosen for it—both seamlessly co-existing.

Specifications:

Backset: 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/4″ to 2-1/4″
Lever Length: 5″
Projection: 2-1/8″
Latch Faceplate: Round Corner or Square Corner

Emtek is dedicated to bringing interesting, well-made hardware back into American homes. Emtek’s mission is to satisfy the higher expectations of today’s homeowners with regard to door locks. They strive to provide a broad and interesting range of products that consumers can use as elements of decor, and not just as a way to latch a door.
