All Emtek items are made to order. Please allow 1 to 2 weeks processing time.
Privacy: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.
Features:
Emtek SELECT allows you to fully customize your lever set

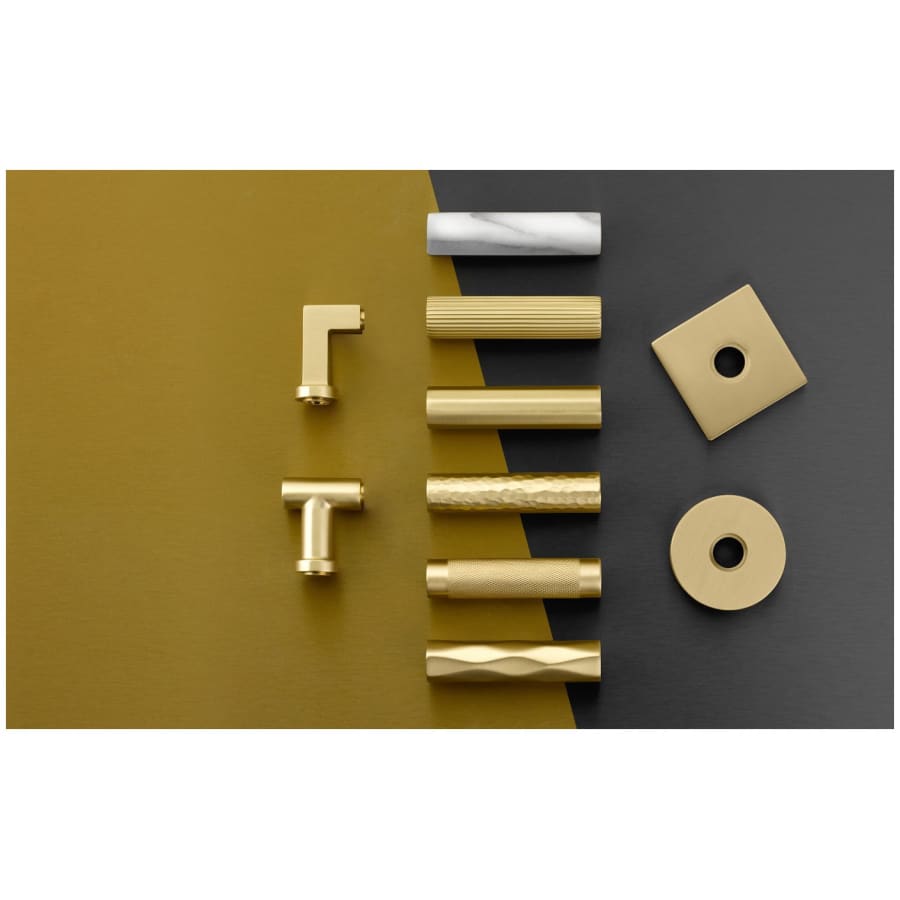

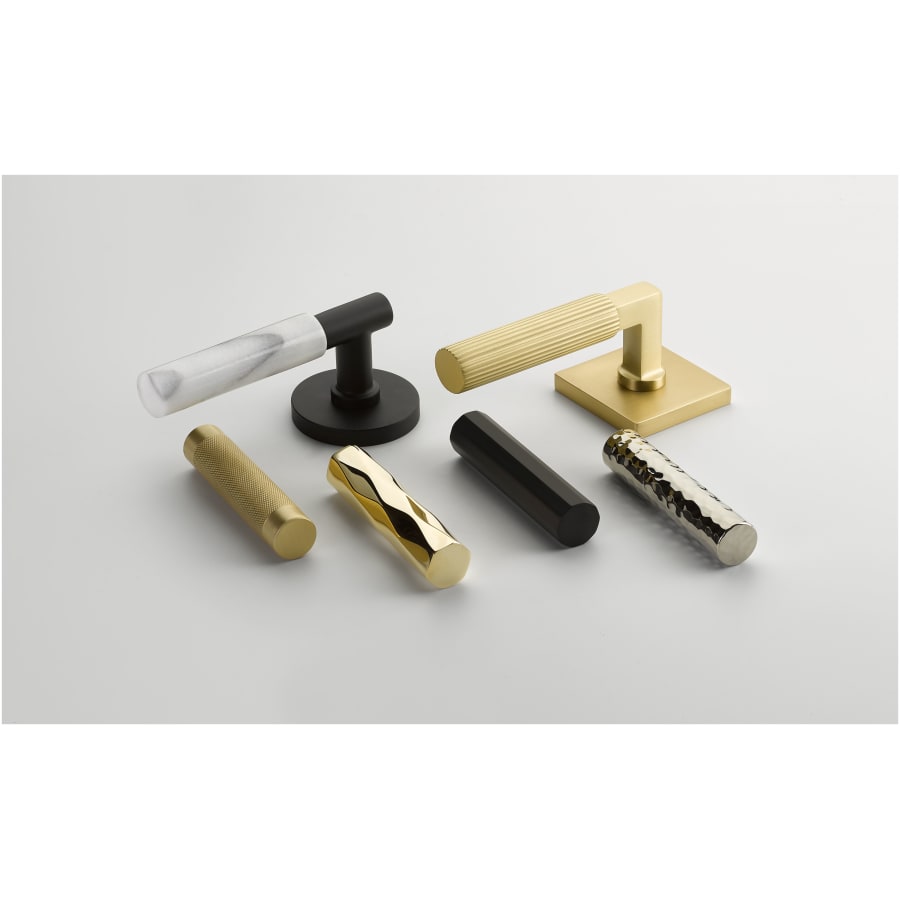

Multiple finishes and stem options create unique combinations
Stem and handle will be permanently affixed
Crafted from solid brass for a premium feel
Handing can be selected for left or right handed doors
Includes a round or square corner latch faceplate
Installs on doors with 1-1/4″ to 3″ thickness
Covered under a Limited Lifetime Mechanical and 5 Year Finish Warranty
All necessary mounting hardware is included
Unlacquered Brass (US3NL) finish is available for an additional $40 to MSRP. Please contact a Sales Representative to order
Product Technologies:
Solid Brass Construction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.
28 Degree Premium Latch: Incorporates a unique chassis design that significantly shortens the rotation and creates a more crisp and ergonomic function.
Specifications:
Backset: 2-3/4″ or 2-3/8″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/4″ to 3″
Handing: Left or Right
Handle Length: 4-5/8″
Handle Projection: 2-1/8″
Latch Faceplate: Round Corner or Square Corner
Product Weight: 2 lbs.
Material: Brass
Additional Emtek Links
View the Manufacturer Warranty
Browse all Emtek Products
Emtek Straight Knurled Collection
Specifications
| Characteristics | Fluted |
| Thermostat | Transitional |
| Function | Privacy |
| Material | Brass |
| Handshower | Left, Right |
| Locking Mechanism | Trim Lock |
| Handle Style | Lever |
| Concealed Screws | Yes |
| Handle Material | Metal |
| Latch Faceplate | Round Corner, Square Corner |
| Solid Construction | Solid Brass |
| Rosette Shape | Rectangle, Round, Square |
| Lever Shape | Round, Straight |
| Collection | SELECT |
| Series | Straight Knurled |
| Approved for Commercial Use | No |
| ADA | No |
| Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
| Fire Rated | No |
| Product Weight | 2 lbs. |
| Backset | 2-3/4", 2-3/8" |
| Door Thickness | 1-1/2", 1-1/4", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/4", 2-3/8", 2-5/8", 2-7/8", 3" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.125 in. |
| Handle Length | 4.625 in. |
| 28 Degree Latch | Yes |
| Color | Flat Black, Lifetime Polished Nickel, Matte White, Oil Rubbed Bronze, Polished Chrome, Satin Brass, Satin Nickel, Unlacquered Brass |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones, Whites |
