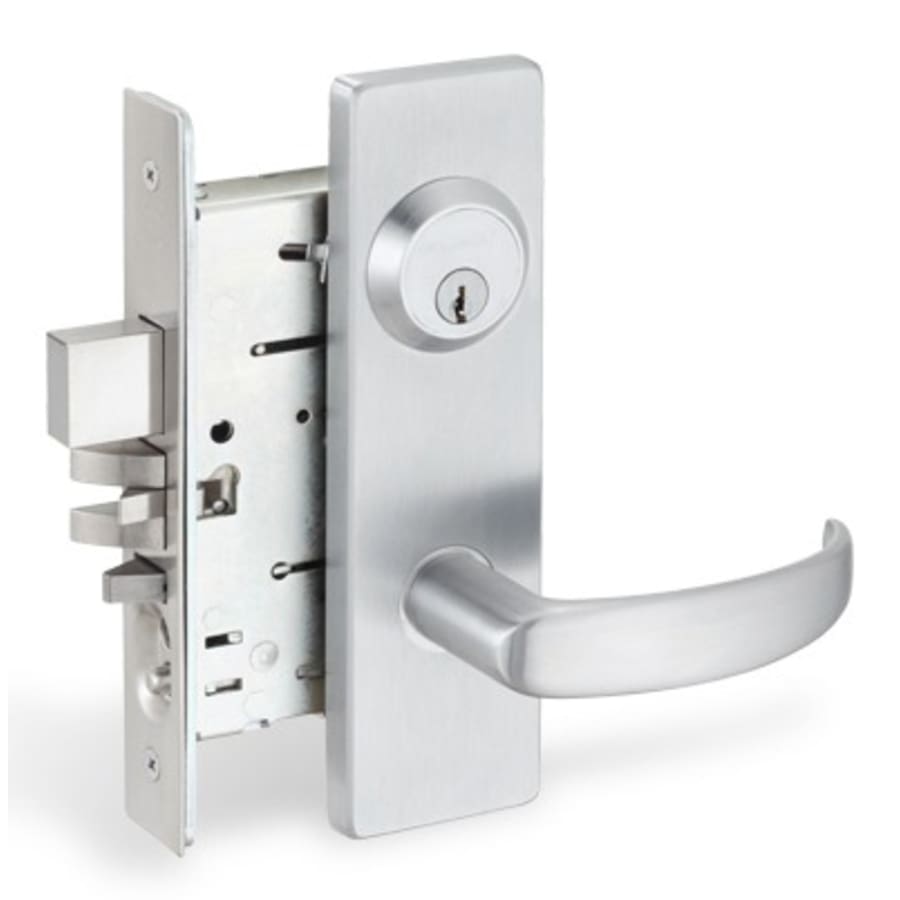

Image shown may differ slightly from actual product
Function:
Entry/Office Lock with Button Lockout: Latch bolt operated by handle from either side except when outside handle is made inoperative by buttons in face. When outside knob/ lever is locked, latch bolt is retracted by key from outside or by operating inside handle. Auxiliary dead latch. Outside handle is unlocked by buttons on face. (ANSI F04)
Features:
Constructed of high quality materials for lasting durability
UL listed and fire rated for up to 3 hours
Easily reversible handing for your convenience
All necessary mounting hardware included
Covered by Falcon’s 1 year limited warranty
Specifications:
Handle Length: 4-7/8″
Handle Projection: 3″
Door Thickness: 1-3/4″, 1-7/8″
Americans with Disabilities Act Compliant: No
ANSI Certification: A156.13
BHMA Certification: Grade 1
Additional Falcon Links
View the Manufacturer Warranty
Browse all Falcon Products
Falcon MA Series Collection
Specifications
| Width | 4.875 in. |
| Backset | 2-3/4" |
| Door Thickness | 1-3/4", 1-7/8" |
| Edge Bore | 1" |
| Product Weight | 4.5 lbs. |
| Projection | 3 in. |
| Material | Steel |
| Concealed Screws | Yes |
| Function | Office, Keyed Entry |
| Handshower | Left, Right, Reversible |
| Handle Material | Metal |
| Handle Style | Lever |
| Rosette Shape | Rectangle |
| Thermostat | Transitional |
| Keyway | C |
| Mounting | One Piece |
| Cylinder | 5 Pin Schlage C |
| ADA | No |
| Approved for Commercial Use | Yes |
| Certifications | ANSI, UL |
| Country Of Origin | USA |
| Made in America | Yes |
| Collection | MA Series |
| Fire Rated | Yes |
| Manufacturer Warranty | 1 Year Limited |
| ANSI Certification | A156.13 |
| BHMA Certification | Grade 1 |
| Color | Satin Stainless Steel |
