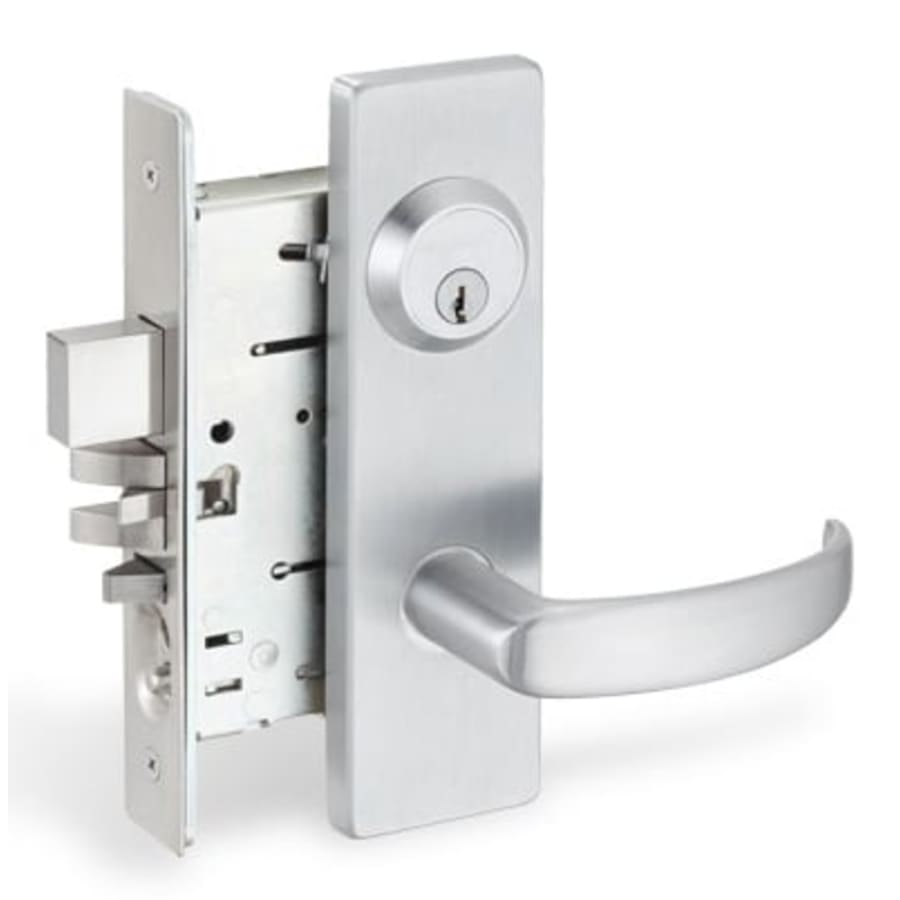

Image shown may differ slightly from actual product
Function:
Storeroom Fail Secure: Latch bolt operated by handle from inside except when outer handle is electrically unlocked, then latch bolt from either side. When locked, key in cylinder outside retracts latch bolt. Deadlocking latch.
Features:
Constructed of high quality materials for lasting durability
UL listed and fire rated for up to 3 hours
Easily reversible handing for your convenience
All necessary mounting hardware included
Covered by Falcon’s 1 year limited warranty
Specifications:
Handle Length: 4-1/2″
Handle Projection: 2-1/2″
Door Thickness: 1-3/4″, 1-7/8″
Americans with Disabilities Act Compliant: No
ANSI Certification: A156.13
BHMA Certification: Grade 1
Additional Falcon Links
View the Manufacturer Warranty
Browse all Falcon Products
Falcon MA Series Collection
Specifications
| Thermostat | Transitional |
| Concealed Screws | Yes |
| Material | Steel |
| Handshower | Left, Reversible, Right |
| Function | Storeroom, Keyed Entry |
| Cylinder | 5 Pin Schlage C |
| Keyway | C |
| Handle Material | Metal |
| Handle Style | Lever |
| Mounting | Sectional |
| Rosette Shape | Round |
| ADA | No |
| Country Of Origin | USA |
| Manufacturer Warranty | 1 Year Limited |
| Collection | MA Series |
| Approved for Commercial Use | Yes |
| Certifications | ANSI, UL |
| Fire Rated | Yes |
| ANSI Certification | A156.13 |
| BHMA Certification | Grade 1 |
| Series | MA Series |
| Made in America | Yes |
| Door Thickness | 1-3/4", 1-7/8" |
| Product Weight | 4.5 lbs. |
| Projection | 2.5 in. |
| Backset | 2-3/4" |
| Edge Bore | 1" |
| Color | Satin Chrome |
