Features:
Meets BHMA Grade 2 and UL Rating A certification for commercial durability and three (3) hour fire rating
Mechanical pieces are constructed of stainless steel and are zinc plated for strength and corrosion protection
Solid brass trim offers better corrosion resistance then other materials
Can be installed on left or right handed doors and is user reversible
Only ships with a square corner latch plate
Comes with combination wood/machine screws for installation in wood or metal doors
Meets federal and state ADA requirements
10 year limited warranty for the original owner
Specifications:
Backset: 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Left, Right, Reversible

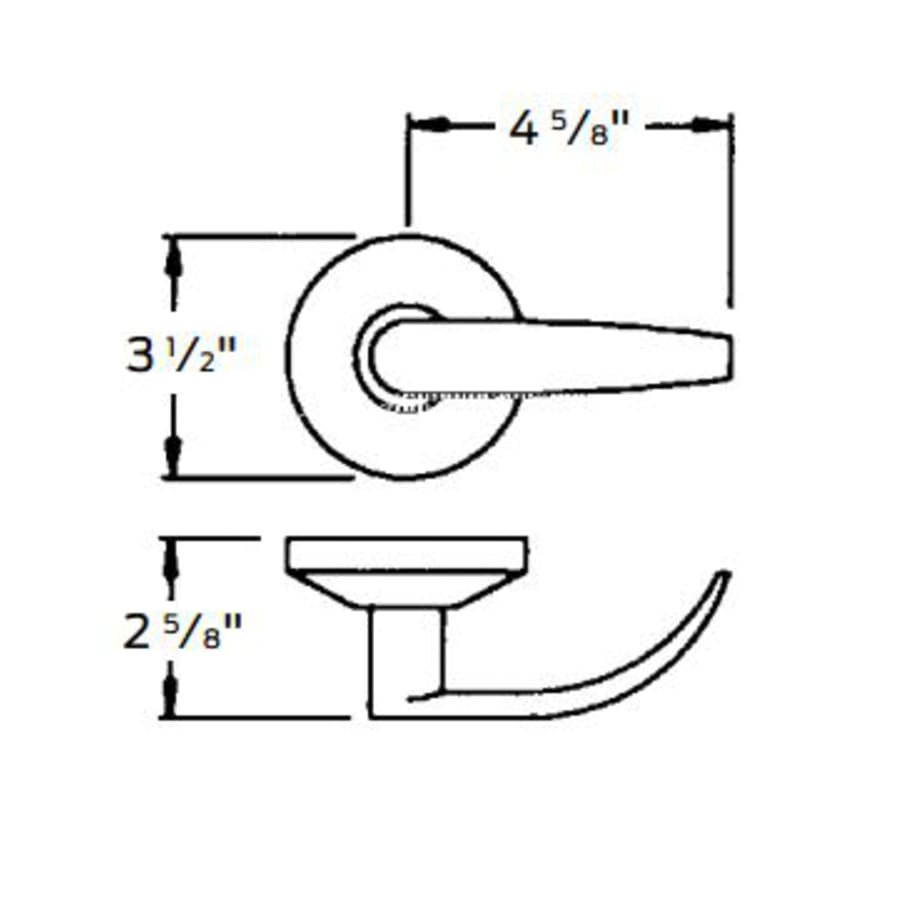

Rose Diameter: 3-3/8″
Lever Length: 4-5/8″
Projection: 2-11/32″
Latch Faceplace: Square Corner
Material: Zinc, Brass
Additional Falcon Links
View the Manufacturer Warranty
Browse all Falcon Products
Falcon Quantum Collection
Specifications
| Thermostat | Transitional |
| Material | Brass, Stainless Steel |
| Solid Construction | Solid Brass |
| Handle Material | Metal |
| Handshower | Reversible, Right, Left |
| Latch Faceplate | Square Corner |
| Style | Contemporary/Modern |
| Concealed Screws | Yes |
| Function | Passage |
| Lever Shape | Straight |
| Approved for Commercial Use | Yes |
| Collection | W Series, Quantum |
| Country Of Origin | USA |
| Manufacturer Warranty | 10 Year Limited |
| ADA | Yes |
| Series | Quantum |
| Certifications | ANSI, UL |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 2 |
| Fire Rated | Yes |
| Edge Bore | 1" |
| Backset | 2-3/4", 2-3/8" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4", 1-3/8", 1-5/8", 1-1/2", 1-7/8" |
| Handle Projection | 2.675 in. |
| Trim Height | 3.5 in. |
| Trim Width | 3.5 in. |
| Handle Length | 4.675 in. |
| 28 Degree Latch | No |
| Color | Oil Rubbed Bronze |
| Color Tone | Bronze Tones |
