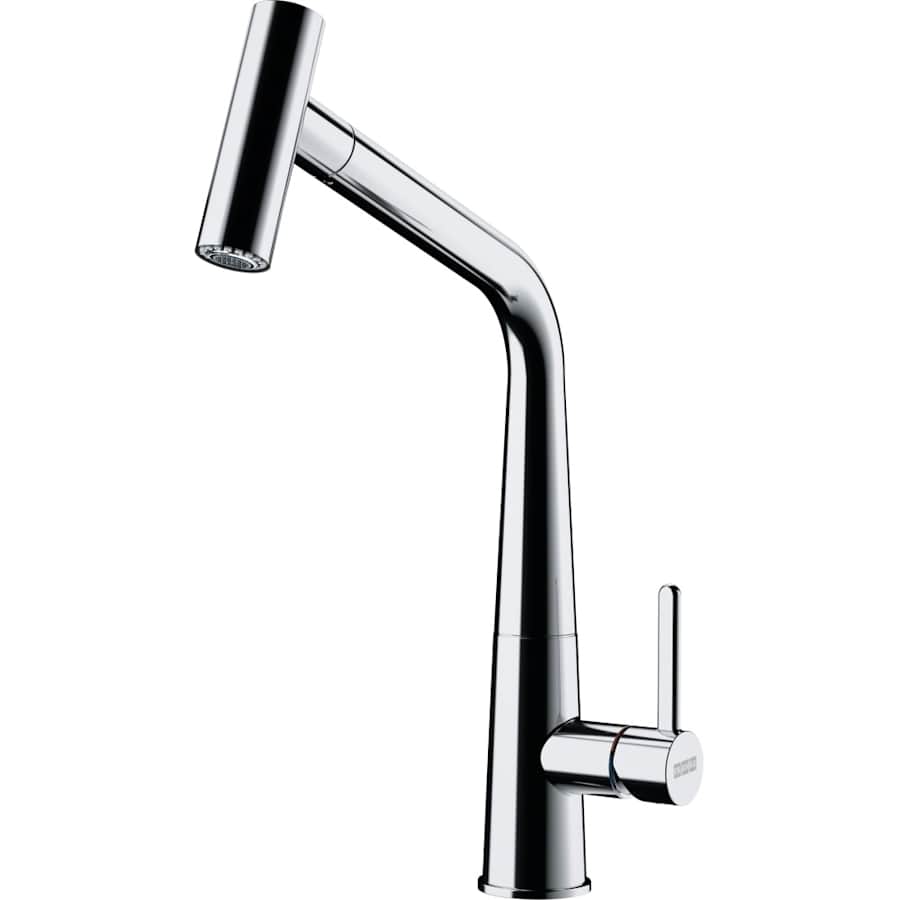

Franke ICN-PO Features:
Covered under Franke’s limited lifetime warranty
Faucet body constructed of brass
Coordinates with products from the Icon line
Single hole mounting type
Deck mounted faucet installs directly to sink or countertop
Pull-out spray with 2 spray functions
Swivel spout rotates 360 degrees which allows for greater access to all areas of the sink
Single lever handle controls the flow and temperature of water
Includes ceramic disc cartridge
Mounting hardware included
Complies with ADA standards
Low lead compliant
Franke ICN-PO Specifications:
Height: 14″ (deck to top of faucet)
Spout Height: 10-1/4″ (deck to spout outlet)
Spout Reach: 7-7/8″ (center of faucet body to center of spout outlet)
Flow Rate: 1.75 gallons-per-minute
Faucet Holes: Single Hole
Faucet Hole Size: 1-3/8″
Max Deck Thickness: 1-3/4″ (from deck bottom to top of deck)
Additional Franke Links
View the Manufacturer Warranty
Browse all Franke Products
Franke Icon Collection
Specifications
| Material | Brass |
| Handle Material | Brass |
| Handle Style | Lever |
| Thermostat | Contemporary |
| Insulation Type | Deck Mounted |
| Faucet Type | Kitchen Faucet |
| Number Of Handles | 1 |
| Spray Settings | 2 |
| Valve Type | Ceramic Disc |
| Water Connection Type | Female, NPT |
| Water Efficient | Yes |
| Faucet Holes | 1 |
| Mounting Type | Single Hole |
| Spout Type | Swivel |
| Bridge Faucet | No |
| Electronic | No |
| Pre Rinse | No |
| Pullout Spray | Yes |
| Pullout Direction | Out |
| Magnetic Docking | No |
| ADA | Yes |
| Approved for Commercial Use | No |
| ASSE Code | A112.18.1 |
| Certifications | ANSI, ASME, CSA, NSF |
| Country Of Origin | Italy |
| CSA Code | B125.1 |
| Collection | Icon |
| Manufacturer Warranty | Limited Lifetime |
| CA Drought Compliant | No |
| Low Lead Compliant | Yes |
| ANSI Certification | 372, 61 |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Product Weight | 5.18 lbs. |
| Height | 13.98 in. |
| Flow Rate (GPM) | 1.75 |
| Spout Reach | 7.88 in. |
| Water Connection | 3/8" |
| Faucet Centers | 0 in. |
| Faucet Hole Size | 1.38 in. |
| Spout Height | 10.24 in. |
| Max Deck Thickness | 1.77 in. |
| Spout Swivel | 360 Degrees |
| Handshower Included | Yes |
| Valve Included | Yes |
| Installation Hardware Included | Yes |
| Escutcheon Included | No |
| Soap Dispenser Included | No |
| Filtering | No |
| Sidespray | No |
| Color | Chrome, Matte Black |
