Features:
Blower outputs up to 500 CFM to keep your kitchen free of cooking fumes and odors
Mesh filters effectively trap and filter out unwanted smoke, odors, and grease
2 LED lights illuminate the cooking area
Unobtrusive visor hood design thanks to integrated glass panel in the steam screen
Especially quiet operation thanks to integrated sound insulation
Steam screen extends by touching the handle bar

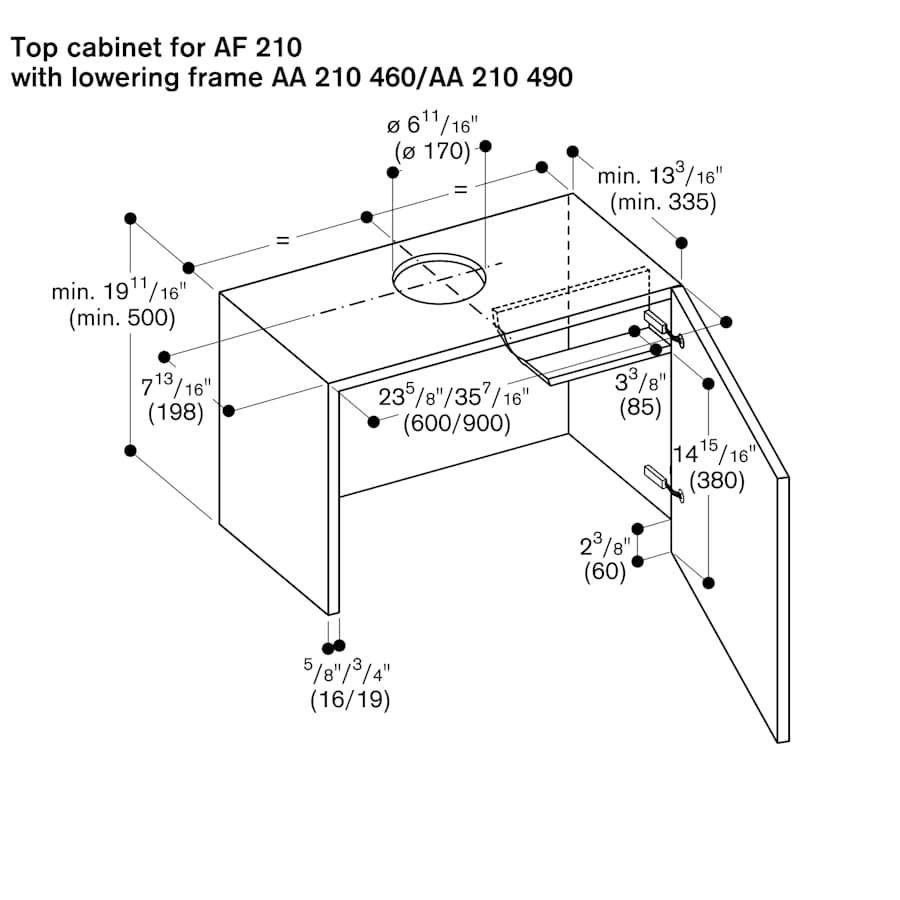

Patented lowering frame allows the visor hood to disappear completely into the upper cabinet
Includes a one-way flap
Push button controls allow you to easily set the power level of your range hood
3 available speeds provide just the right amount of ventilation
Specifications:
CFM: 340, 500

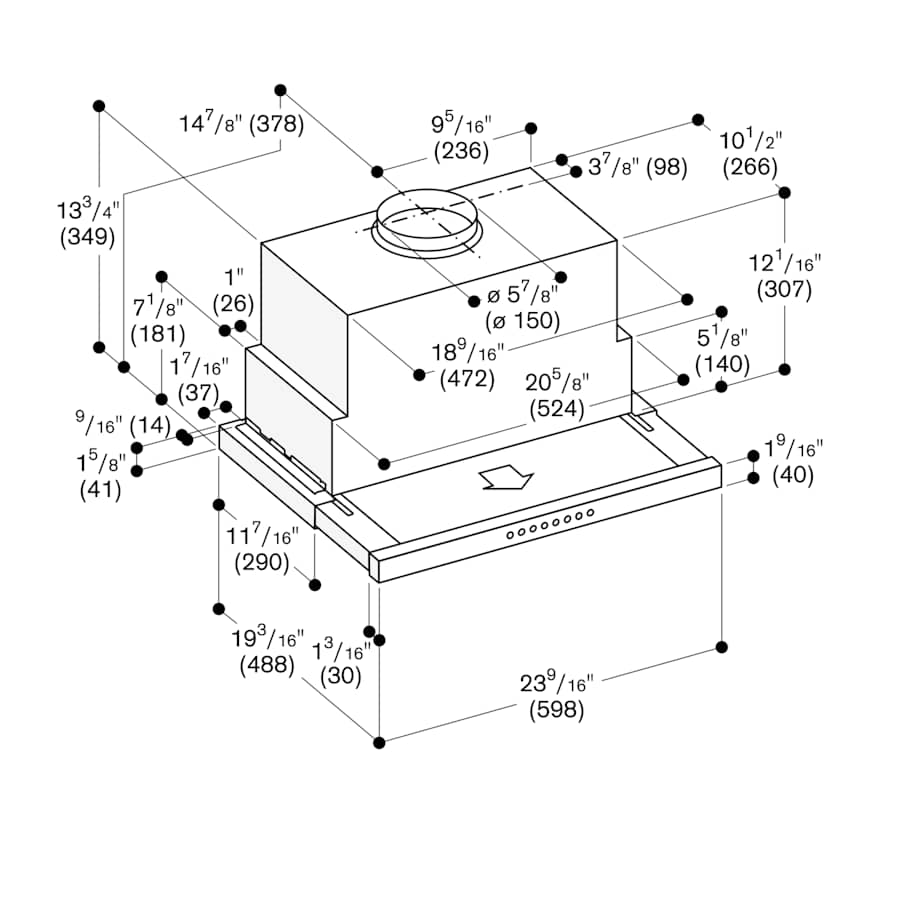

Nominal Width: 24″
Width: 23-1/2″
Height: 14-7/8″
Depth: 12-1/2″
Duct Size: 7″ Round
Amperage: 10A
Voltage: 120V
Wattage: 430W
Additional Gaggenau Links
Browse all Gaggenau Products
Specifications
| Depth | 12.5 in. |
| Width | 23.5 in. |
| Product Weight | 34 lbs. |
| Height | 14.88 in. |
| Nominal Width | 24 in. |
| Duct Size | 7" Round |
| CFM | 340, 500 |
| Height Above Cooktop (Min) | 17, 25 in. |
| CFM (High) | 500 |
| Material | Stainless Steel |
| Control Type | Push Button |
| Insulation Type | Full Installation |
| Number of Bulbs | 2 |
| Bubbler Type | LED |
| Blower Type | Internal |
| Duct Discharge | Vertical |
| Filter Type | Mesh Filters |
| Fingerprint Resistant | No |
| Panel Ready | No |
| Country Of Origin | USA |
| Outdoor Approved | No |
| Light Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | No |
| Ductless | No |
| Includes Remote | No |
| Amperage | 10 |
| Frequency | 60 Hertz |
| Voltage | 120 |
| Wattage | 430 |
| Speeds | 3 |
| Color | Stainless Steel |
