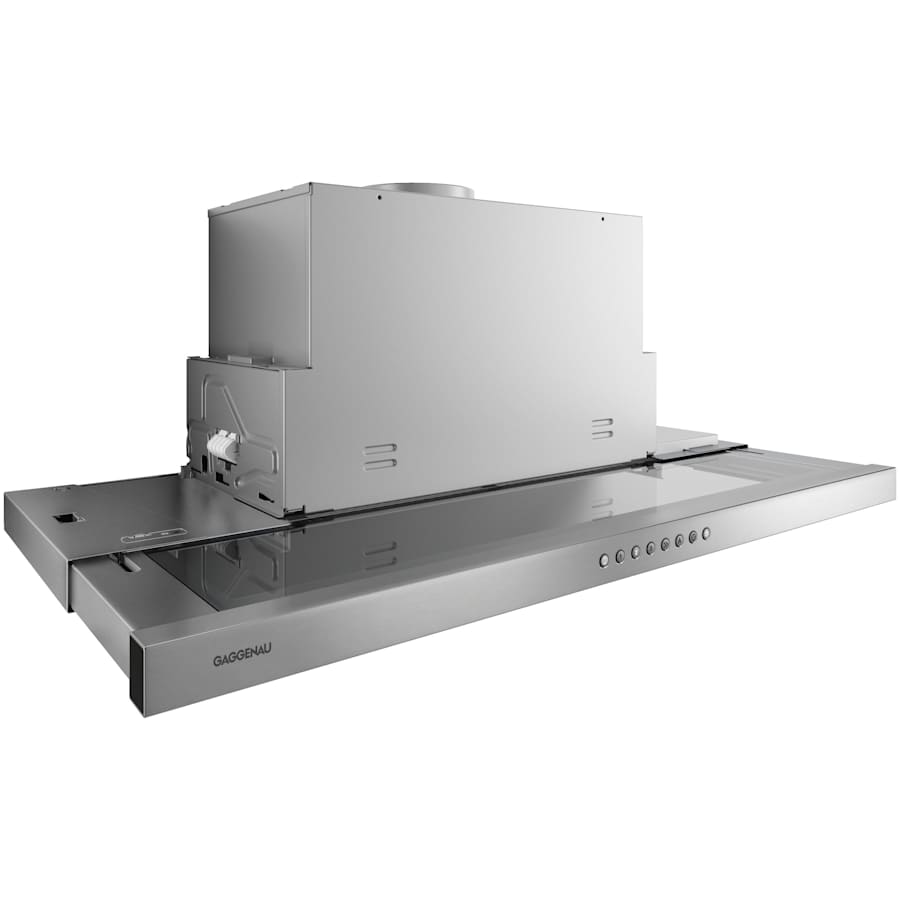

Gaggenau 200 Series 90 – 370 CFM 36 Inch Wide Range Hood Insert with 3 Speeds and Push Button Controls

Features:

Blower outputs up to 370 CFM to keep your kitchen free of cooking fumes and odors
Baffle filters effectively trap and filter out unwanted smoke, odors, and grease
lighting illuminates the cooking area
Push button controls allow you to easily set the power level of your range hood
3 available speeds provide just the right amount of ventilation
Unobtrusive visor hood design thanks to integrated glass panel in the steam screen
Especially quiet operation thanks to integrated sound insulation
Steam screen extends by touching the handle bar
Especially high air output
Dimmable, neutral white LED light for ideal illumination of the whole cooktop
The patented lowering frame allows the visor hood to disappear completely into the upper cabinet
Air extraction or air recirculation system
Air recirculation module with activated charcoal filter: quiet and highly efficient air recirculation solution with odor reduction as in air extraction mode and long replacement intervals
Output:
Air extraction:
622 / 875m³/h
64 / 71dB (A) re 1 pW
51 / 58 dB (A) re 20 ?Pa
odor reduction air recirculation 94 %
Controls at front
3 electronically controlled power levels and 1 intensive mode
Grease filter saturation indicator
Neutral white LED light (3600 K), continuously dimmable
Illuminance 441 lx
Light can be switched on separately
Integrated sound insulation for quiet operation
The fan is activated when the steam screen is extended
Patented technology for extension of the steam screen
Extendable steam screen up to 7 13/16
Airflow-optimized interior for efficient air circulation and ease of cleaning
Patented easy mounting system for simple installation
The package includes an one-way flap
Planning notes:
Patented air recirculation module with activated charcoal filter can be installed in the upper cabinet. The activated carbon filter can be changed from the front by simply pulling out the activated charcoal filter
The door of the upper cabinet must be fully open in order to change the activated charcoal filter

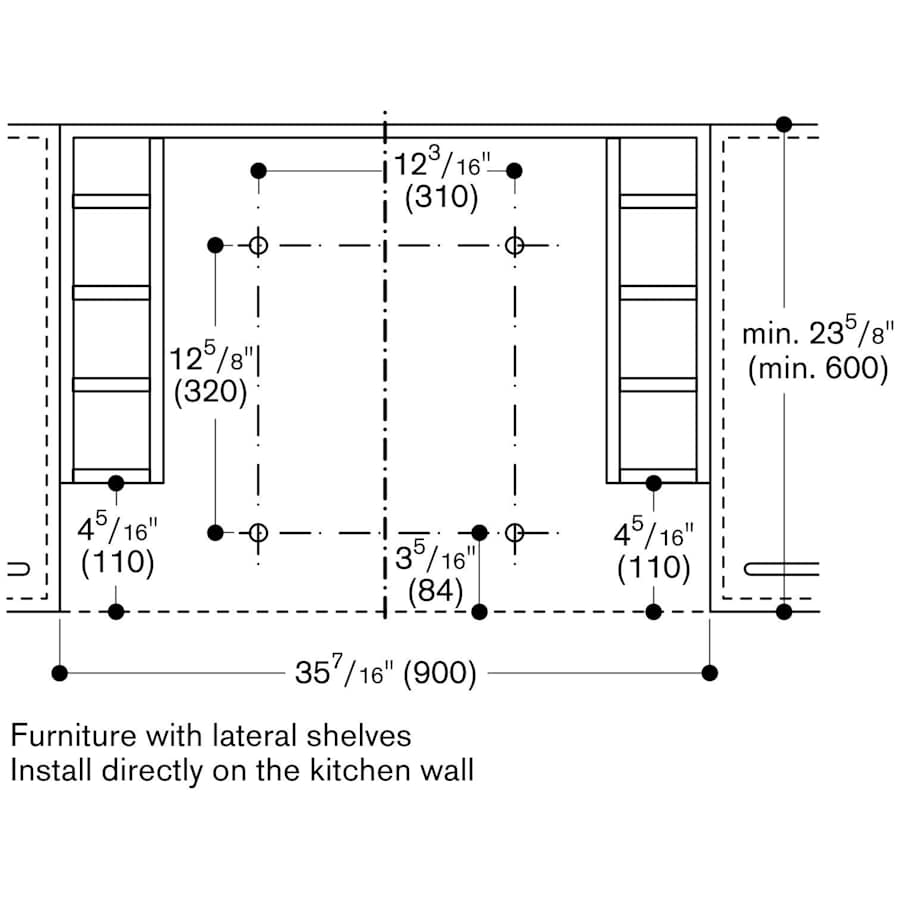

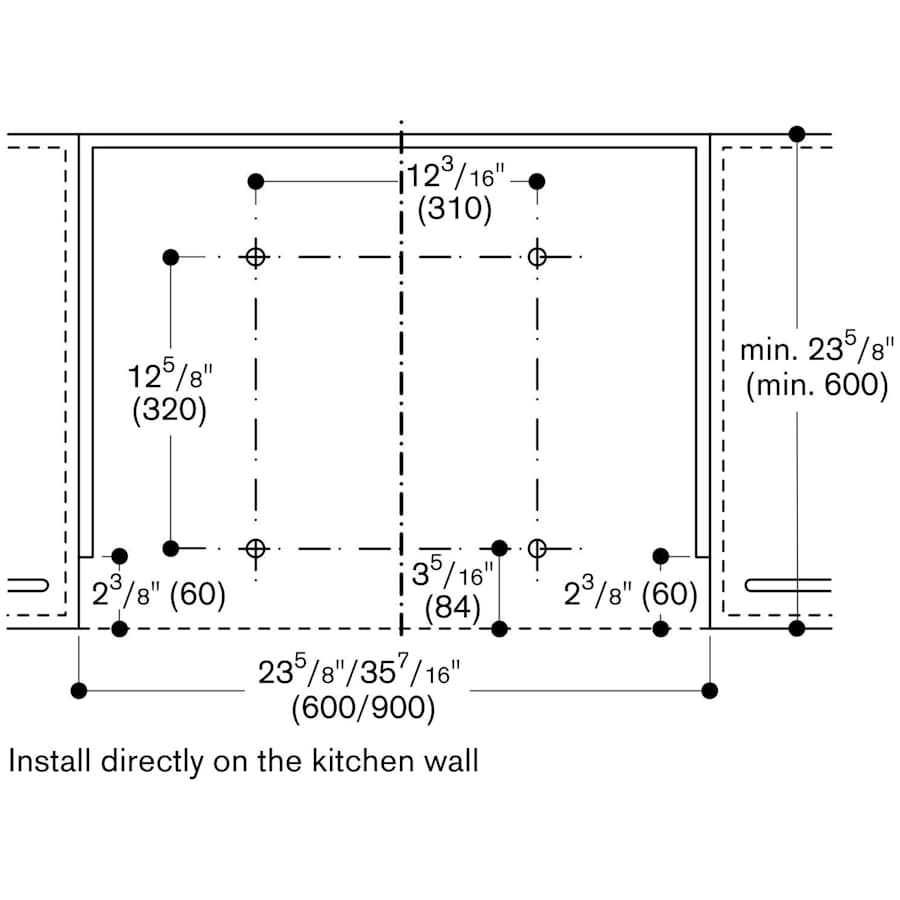

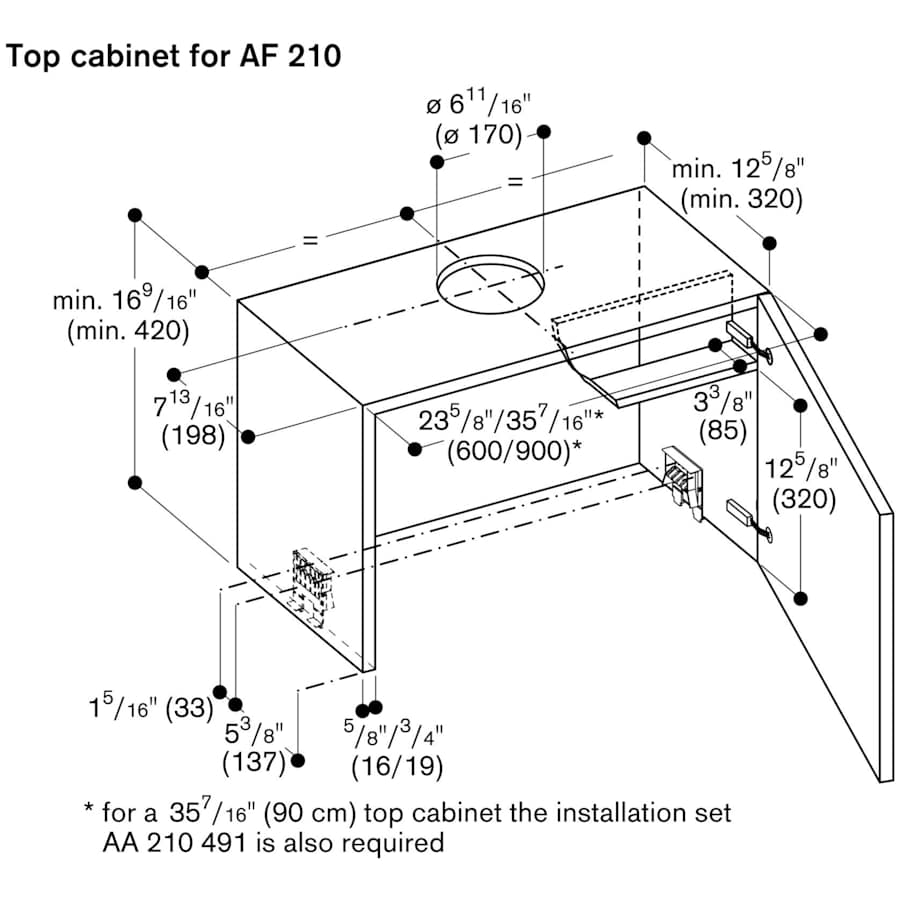

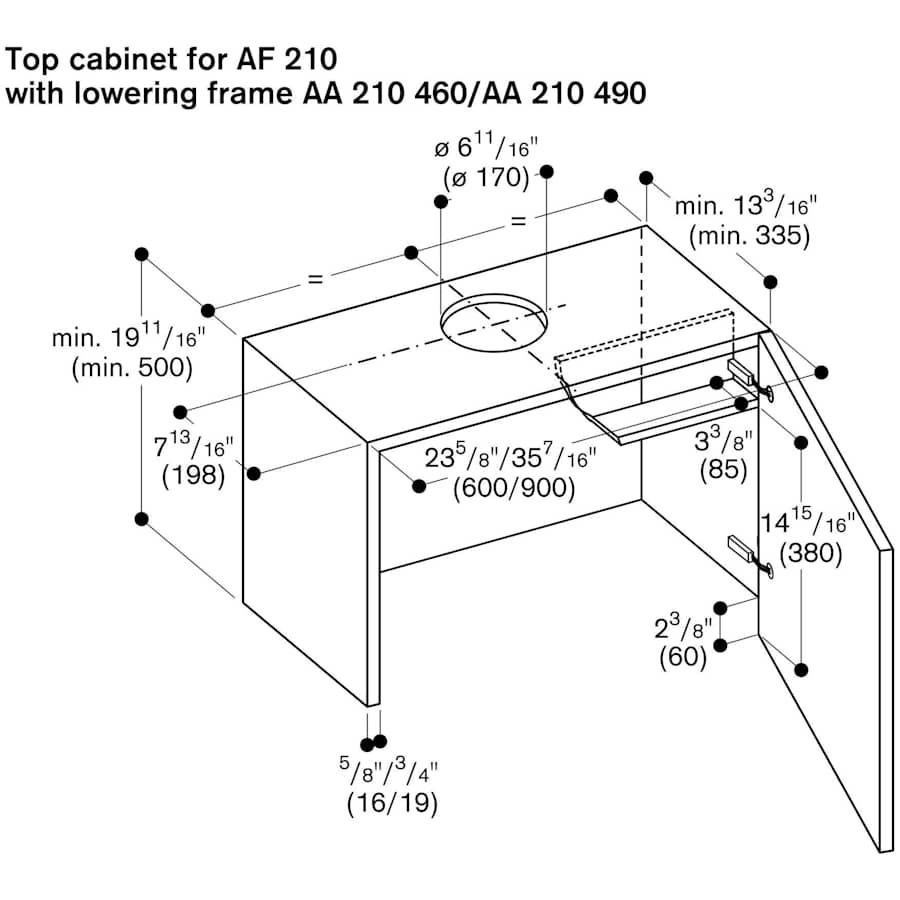

To be installed in an upper cabinet without base

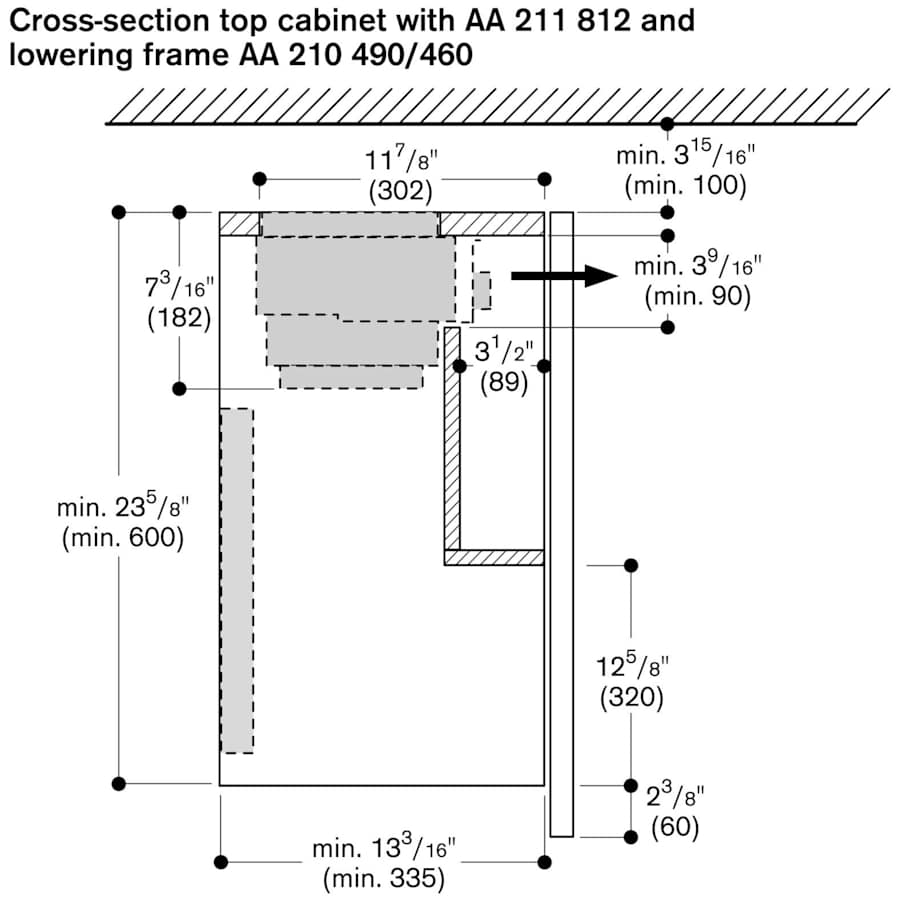

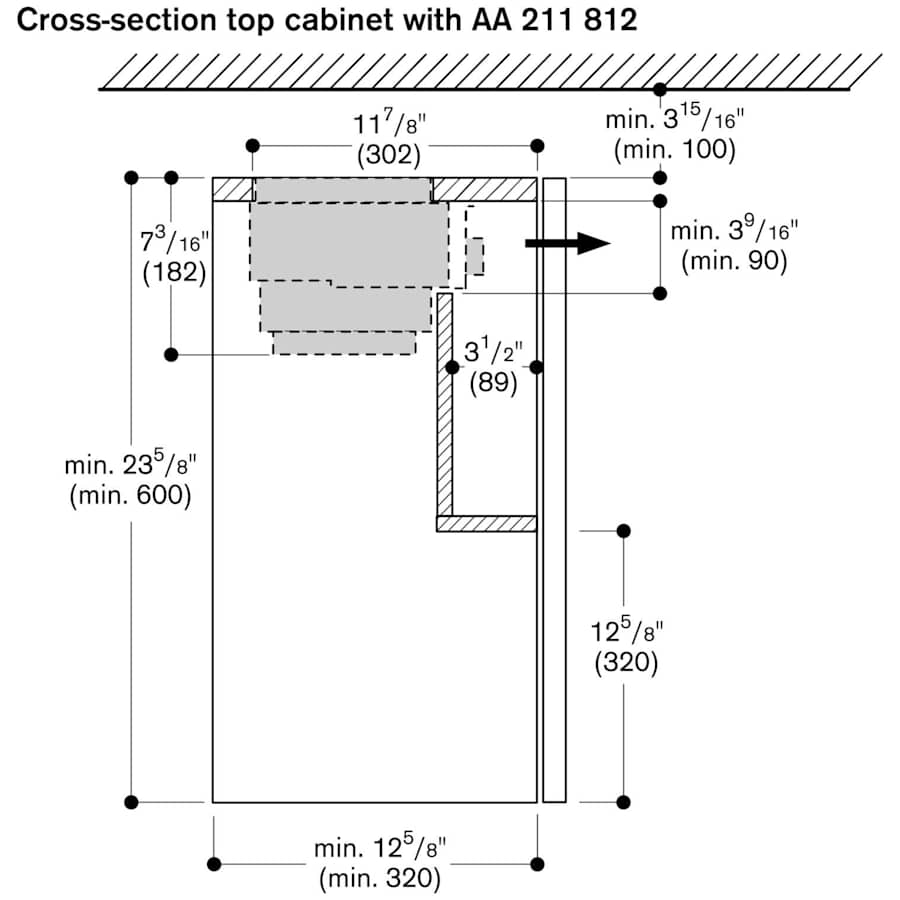

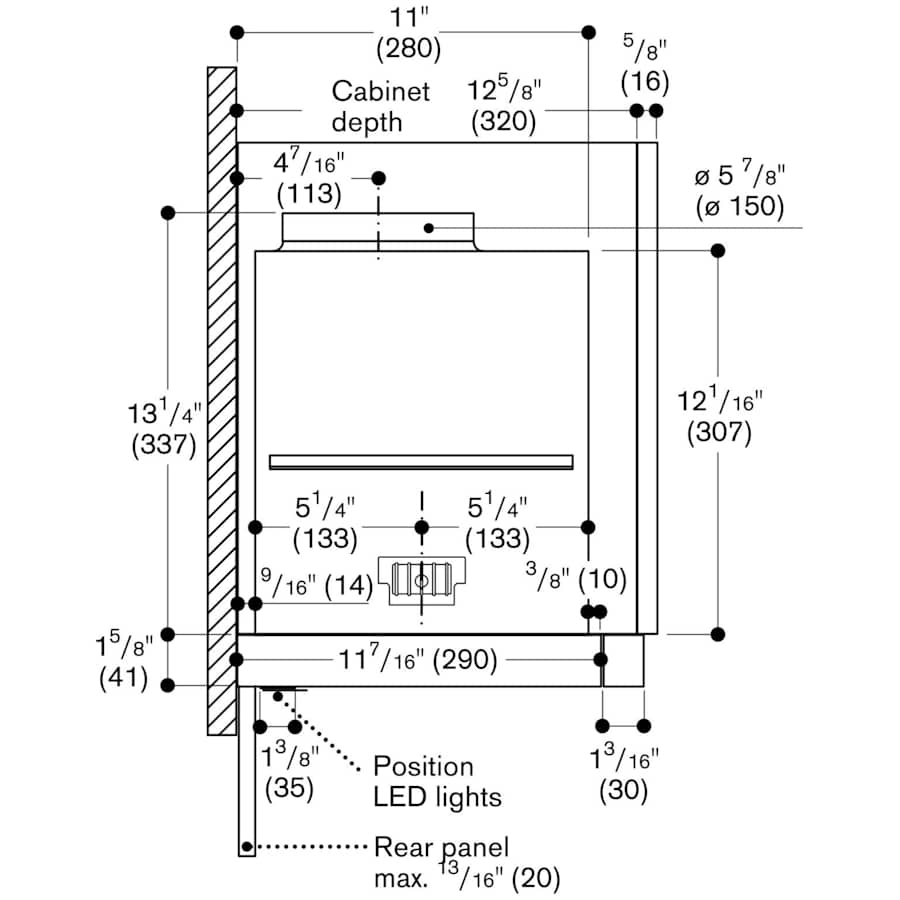

The required cavity depth of the upper cabinet together with the lowering frame measures 13 3/16″ (335mm)
The required cavity height of the upper cabinet together with the lowering frame measures 23 5/8
Clearance above gas appliances min 65 cm.(more than total load gas 12 kW min 70 cm)
Clearance above electric appliances min 28″
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch
Rating:
Total rating: 430 W
Total amps: 10 A
120 V / 60 Hz
Connecting cable 354″ with plug

Specifications:

CFM: 200, 370, 90
Sones: 1.5, 6

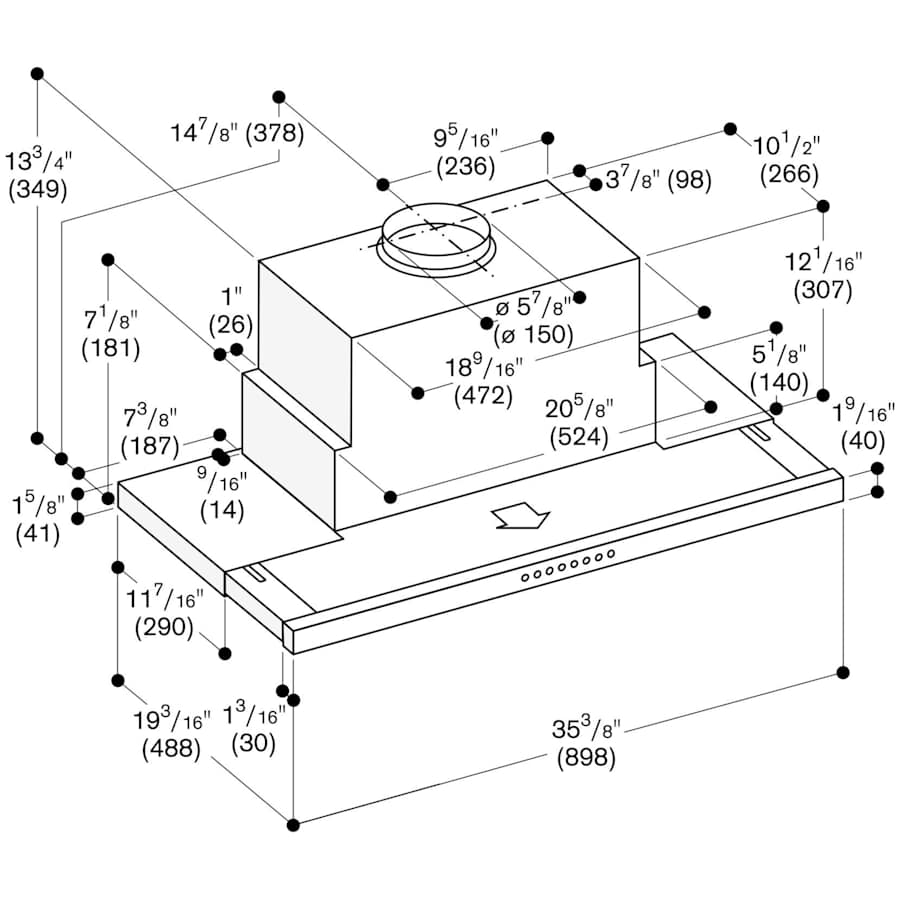

Nominal Width: 36″
Width: 35-3/8″
Height: 14-7/8″
Depth: 12-5/8″
Amperage: 10A
Voltage: 120V
Wattage: 430W
