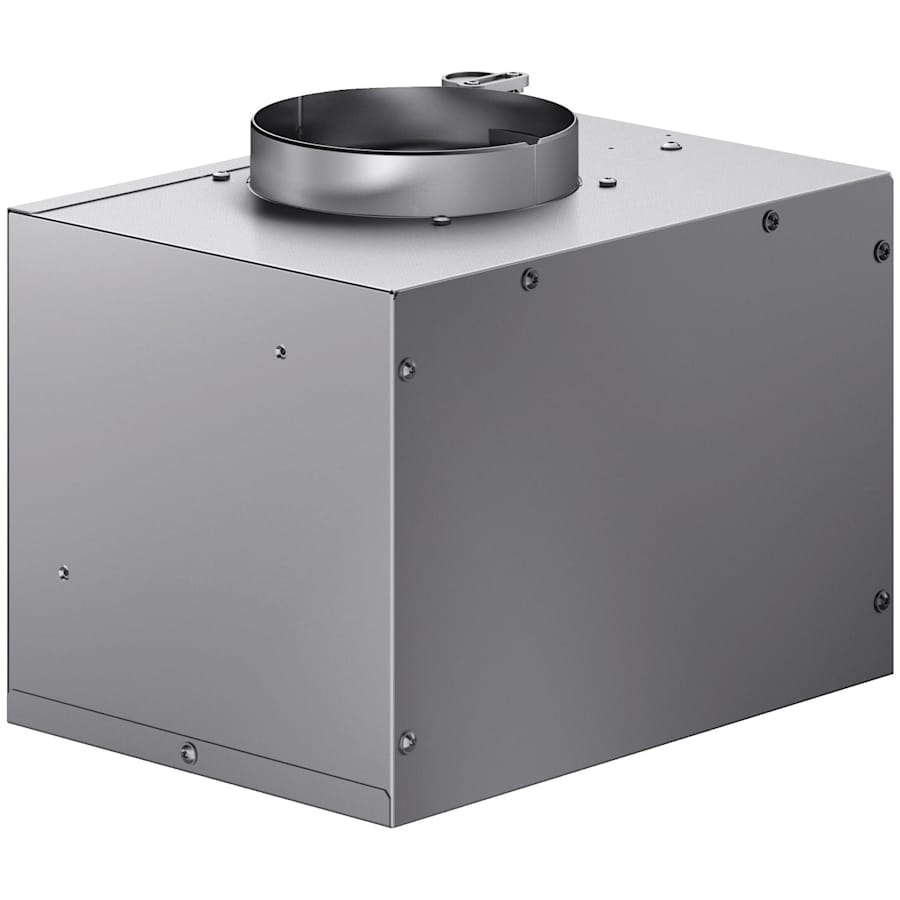

Features:
Efficient BLDC technology
Compact and space-saving due to the installation in the duct cover of AI/AW 442 island/wall hood
Power levels depend on the ventilation system
3 electronically controlled power levels and one intensive mode
Fan technology with highly efficient, brushless DC motor (BLDC)
Including sound insulation to minimize the noise level
Planning notes:
Remote fan unit in combination with the motorless AI/AW 442
Connection to the respective appliances via network cable
Installation in the chimney of AI/AW 442
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch
Rating
120 V / 60 Hz.
Connecting and network cable included with the blower
Additional Gaggenau Links
Browse all Gaggenau Products
Gaggenau 400 Collection

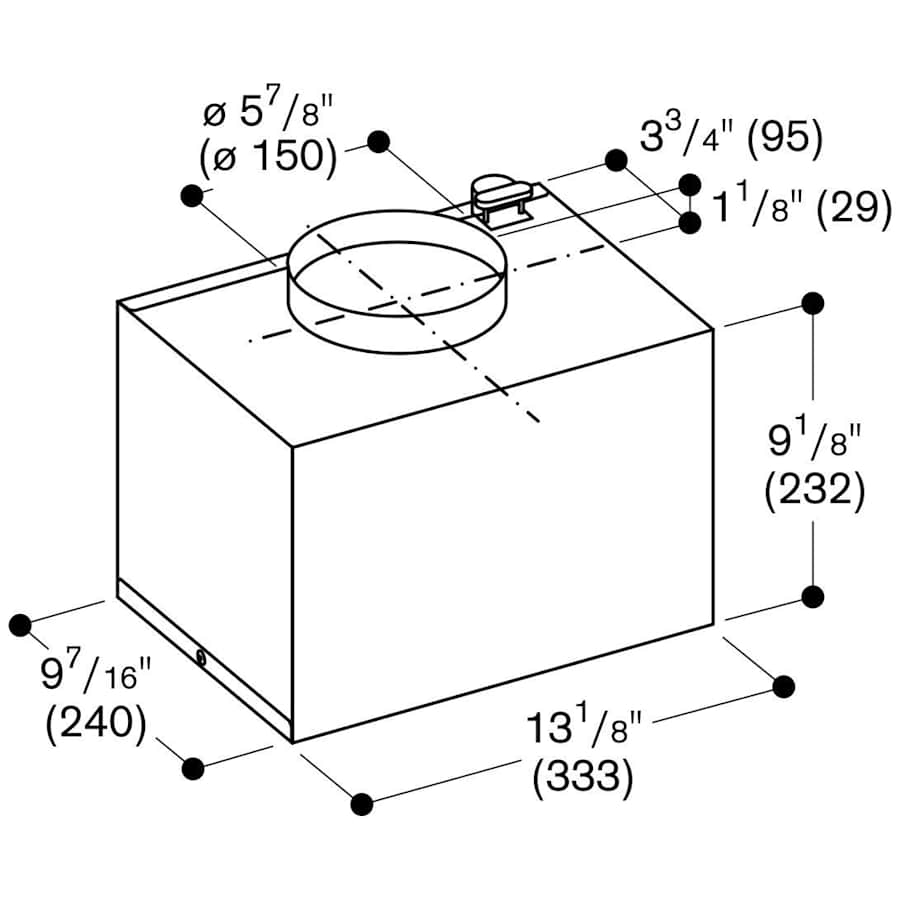

Specifications
| Depth | 9.45 in. |
| Height | 9.125 in. |
| Product Weight | 17.04 lbs. |
| Width | 13.78 in. |
| CFM | 150, 300 |
| CFM (High) | 300 |
| Voltage | 120 |
| Amperage | 2 |
| Speeds | 2 |
| Blower Type | In-Line |
