Features:
Blower outputs up to 340 CFM to keep your kitchen free of cooking fumes and odors
Baffle filters effectively trap and filter out unwanted smoke, odors, and grease
lighting illuminates the cooking area
Push button controls allow you to easily set the power level of your range hood
3 available speeds provide just the right amount of ventilation
Professional technology hood combined with classic Gaggenau design
Highly efficient extraction of cooking vapors due to large vapor collection area
Angled baffle filter with high grease absorption
Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapors

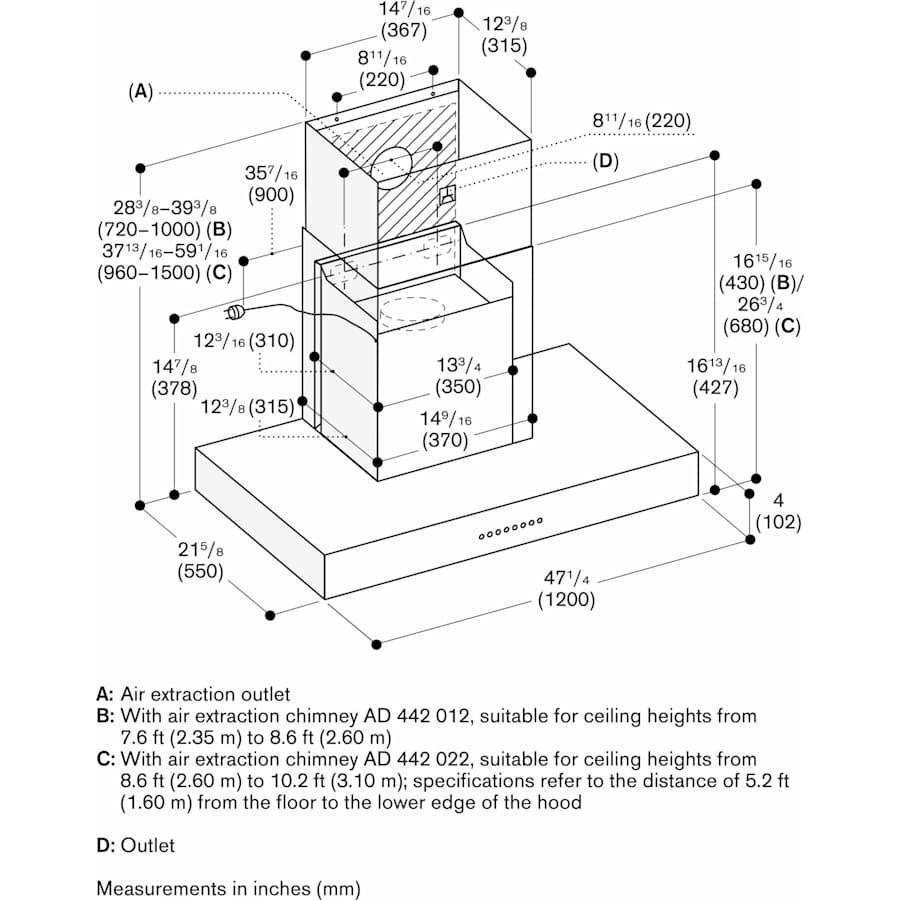

Air extraction or air recirculation system
Air recirculation module with activated charcoal filter: quiet and highly efficient air recirculation solution with odor reduction as in air extraction mode and long replacement intervals
Output:
Noise level depends on the built-in situation
3 electronically controlled power levels and 1 intensive mode
Automatic function with sensor-controlled run-on function
Grease filter saturation indicator
Baffle filter, dishwasher-safe

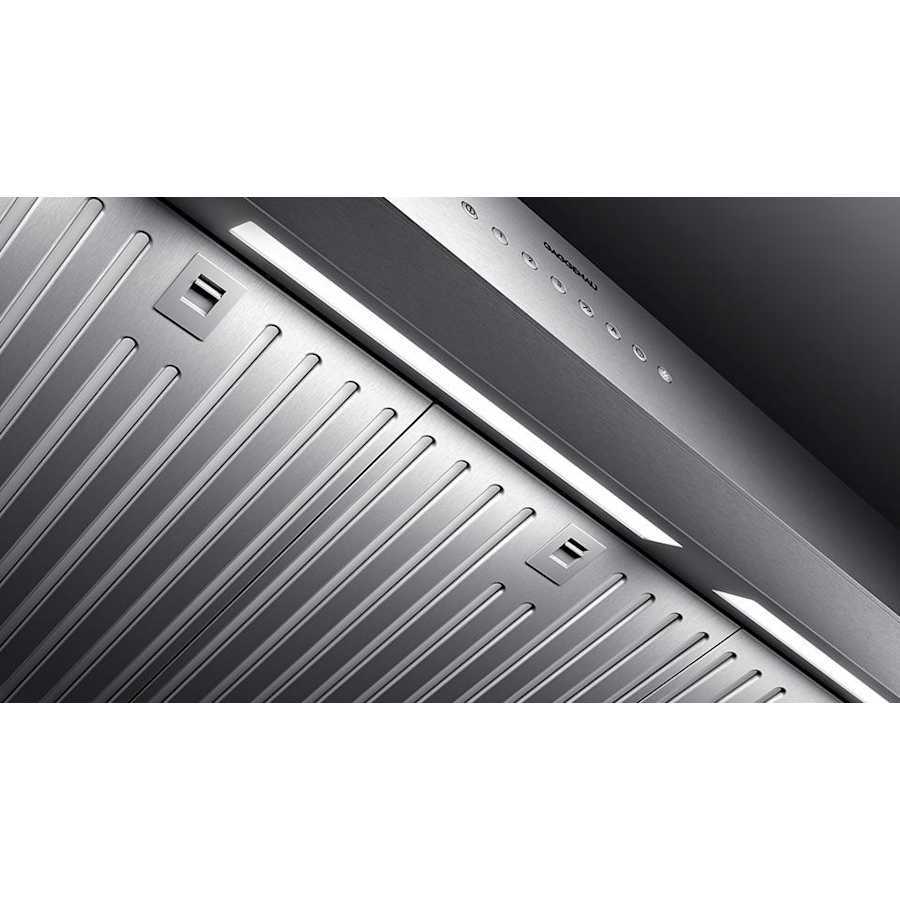

Lamp output 3 x LED light bars 10W
Illuminance 1110 lx
Easy mounting system for simple installation and alignment
Planning notes:
To chose the correct blower for either extraction or recirculation, refer to the blower overview in the Models and Dimensions
The two-part duct cover must be ordered as a separate installation accessory
Connection to the respective appliances via network cable
Clearance above gas appliances min 30″
Clearance above electric appliances min 28″

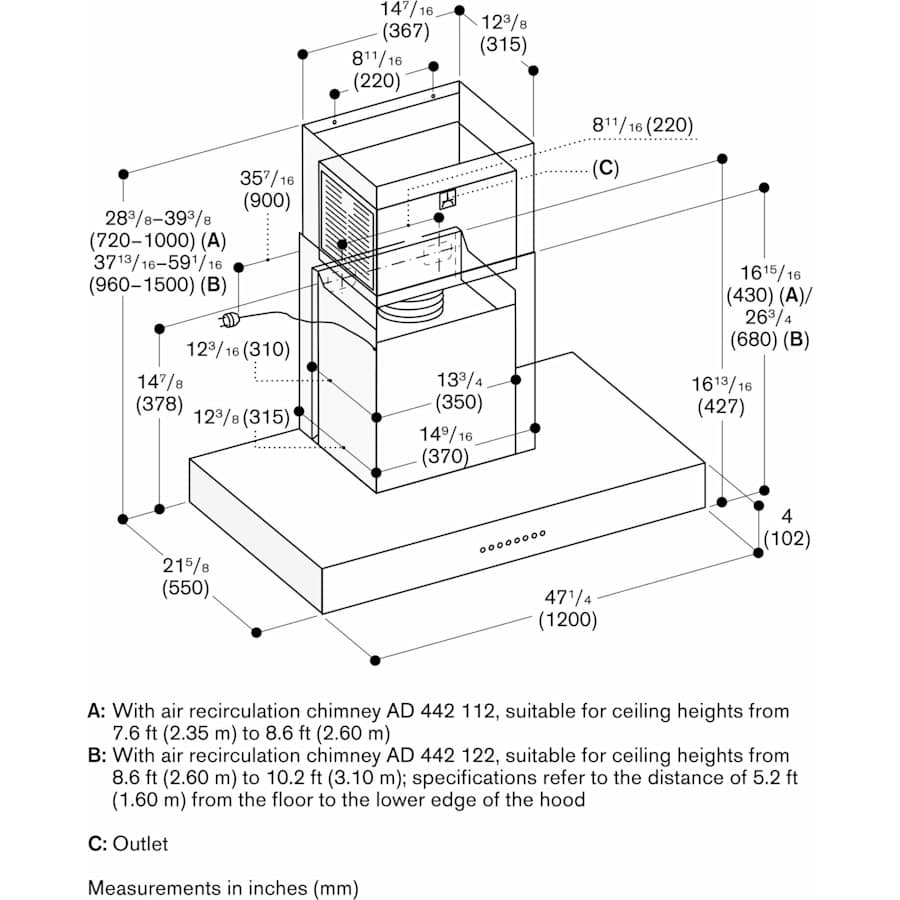

Air recirculation module with 2 activated charcoal filters is installed in the inner chimney. Special air recirculation chimneys are available for this
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch
Rating:
Total rating: 40 W
120 V / 60 Hz
Specifications:
CFM: 120, 180, 340
Sones: 0.5, 4.5
Nominal Width: 48″
Width: 47-1/4″
Height: 28-3/8″
Depth: 21-5/8″
Ceiling Height: 122.4″ – 91.2″
Height Above Cooktop: 30″
Amperage: 10A
Voltage: 120V
Wattage: 40W
Additional Gaggenau Links
Browse all Gaggenau Products
Gaggenau 400 Collection
Specifications
| Depth | 21.65 in. |
| Height | 28.35 in. |
| Width | 47.24 in. |
| Nominal Width | 48 in. |
| Product Weight | 67.02 lbs. |
| Ceiling Height (Max) | 91.2 in. |
| Ceiling Height (Min) | 122.4 in. |
| CFM | 120, 180, 340 |
| CFM (High) | 340 |
| Height Above Cooktop | 30" |
| Thermostat | Contemporary |
| Control Type | Push Button |
| Insulation Type | Full Installation |
| Panel Ready | No |
| Fingerprint Resistant | No |
| Blower Type | Internal |
| Duct Discharge | Vertical |
| Filter Type | Baffle Filters |
| Collection | 400 Series |
| Outdoor Approved | No |
| Title 20 Compliant | No |
| Amperage | 10 |
| Voltage | 120 |
| Wattage | 40 |
| Frequency | 60 Hertz |
| Sones | 0.5, 4.5 |
| Speeds | 3 |
| Available Without Blower | Yes |
| Convertible to Ductless / Recirculating | No |
| Ductless | No |
| Color | Stainless Steel |
