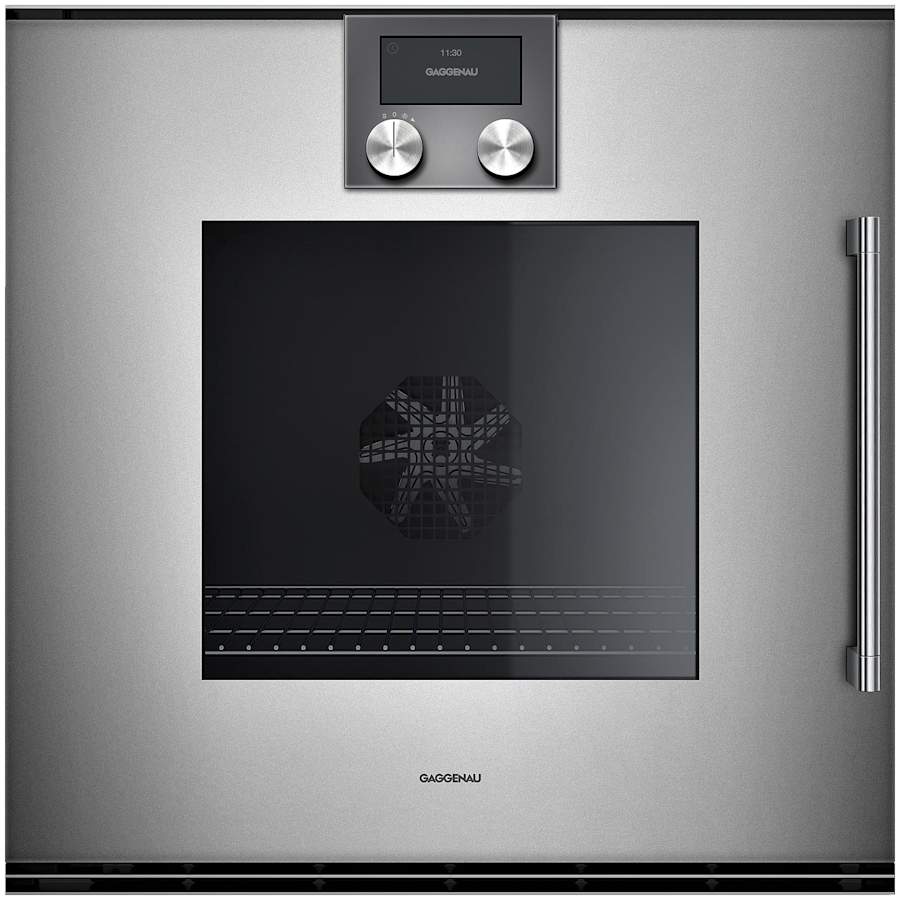

Gaggenau 200 Series 24 Inch Wide 3.1 Cu. Ft. Electric Single Oven with Safety Shut Off and Convection

Features:

3.1 cu. ft. capacity meets the needs of most homes in a space saving design
Easy to use controls
Convection baking provides even heat distribution for improved browning and crisping
Enjoy the convenience of self-cleaning
Oven includes meat thermometer, sabbath mode, and viewing window
The 3-point core temperature sensor measures precisely the temperature and revises the cooking times as the dish is cooking.
Flush installation
Pyrolytic self-cleaning system
Universal heating system with 13 heating modes, with meat probe and baking stone operation
Automatic programs
Core temperature probe with estimation of cooking time
Panel-free appliance with surface control module
Electronic temperature control from 85°F – 550°F
Net volume (76 liters)
Cooking Modes:
Convection
Economy convection Top + bottom heat Top heat Bottom heat Convection + bottom heat, Convection broiling, Broiling, Economy broiling, Baking stone operation, Roaster operation, Dough proofing and Defrosting
Operation:
Rotary knob and TFT touch display operation
Clear text display in 44 languages
Option to save 50 individual recipes (incl core temperature probe)
Personalization of automatic programs
Information key with use indicators
Side-opening door opens up to 110° angle
Three-point core temperature prove with automatic shut-off and estimation of cooking time
Automatic programs
Baking stone outlet
Actual temperature display
Fast heating setting
60 W halogen light on the top
Enameled side shelf supports with 4 tray levels, pyrolysis-safe
Home network integration for digital services (Home Connect) either via cable connection LAN (recommended) or wireless via WiFi
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com
Safety:
Thermally insulated door with quintuple glazing
Child lock
Safety shut-off
Cooled housing with temperature protection
Cleaning:
Pyrolytic self-cleaning
Gaggenau Clean-Enamel
Heated air cleaning catalyst

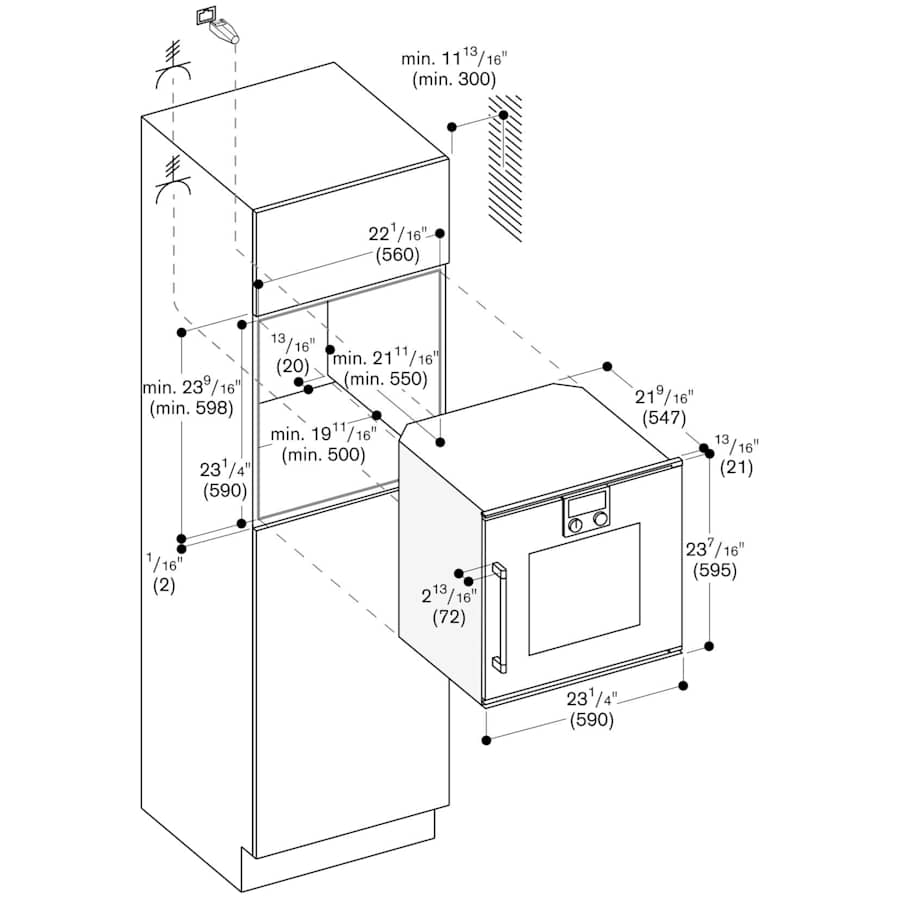

Planning notes:
Door hinge not reversible
The door panel front of the appliance extends 13/16″ from the cabinet front
The outer edge of the door handle extends 2 13/16″ from the cabinet front
Necessary lateral gap between appliance door and cabinet front of min 3/16″
Consider the overhang, incl the door handle, when planning to open drawers next to the appliance
When planning a corner solution, pay attention to the 110° door opening angle
For installation underneath cooktops:
Distance between the underside of the cooktop and the top edge of the oven cavity: min 9/16″ The planning notes for the cooktops (particularly regarding ventilation, gas/ electric connection) must be taken into account
To achieve the 21 ?” (550 mm)
installation depth, the connection cable needs to follow the slanted edge on the corner of the housing
Plan a power outlet outside of the cut-out niche
The LAN port can be found at the back on the upper right side
Rating:
Total rating 4.0 KW
Total Amps: 17 A
208 – 240 V / 60 Hz
Connecting cable 63″ without plug (hardwire required)
Plan for an ethernet / LAN cable or connect via WiFi
Power consumption standby/display off 05 W
Power consumption standby/network 14 W
Time auto-standby/network 20 min
Please check the user manual for how to switch off the WiFi module

Specifications:

Total Capacity: 3.1 Cu. Ft.
Convection: Yes
Sabbath Mode: Yes
Self Cleaning: Yes
Depth: 22-3/8″
Height: 23-7/16″
Width: 23-1/4″
