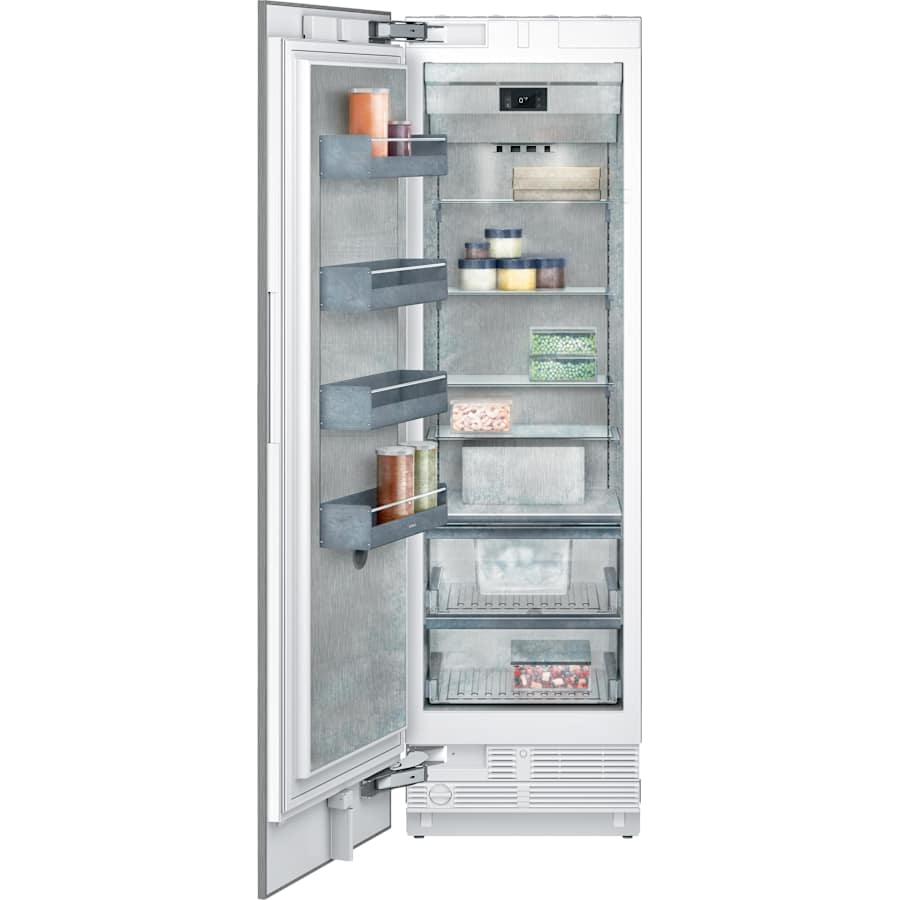

Gaggenau 400 Series 24 Inch Wide 12.2 Cu. Ft. Built-In Energy Star Column Freezer with Touch Display and Sabbath Mode

Features:

12.2 cu. ft. capacity meets the needs of today’s homes in a sleek column design
Opening assist for door with two options
Stainless steel interior with solid anthracite aluminum elements
Warm white and glare-free LED light spots
Opening assist for door with two options
Glass shelves and solid anthracite aluminum door racks
Almost invisible rail system for shelves and door racks for flexible positioning
Net volume 122 cu. ft.. (345 liters)
ENERGY STAR certified
Operation:
TFT touch display operation
Clear text display in 44 languages
Technical Features:
Dynamic cold air distribution with Multi-Flow Air System
Automatic defrosting with defrost water evaporation
Cushioned door closing system
Sabbath mode certified by Star-K
When rest mode is active, the appliance can only be opened using a handle
Open-door and malfunction warning system
Home network integration for digital services (Home Connect) wireless via WiFi
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com
Freezer Compartment:
No-frost technology with fast freezing at -22 °F
Temperature adjustable from 3 °F to -11 °F
4-star freezer compartment
4 safety glass shelves, white glass, 3 of which are individually height adjustable
2 fully extendable drawers with transparent front
Flat door rail system with fully flexible positioning of door racks
4 height-adjustable door racks
Ice Dispenser:
Integrated automatic ice maker in the freezer compartment, with fixed water connection
Particle filter for water inlet, integrated in ventilation grille area
Saturation indicator shown in TFT touch display
Ice maker can be switched off independently
Ice cube production approximately 29 lb. (13 kg)/24 h
Removable ice storage container with approximately 66 lbs. (25 kg) capacity

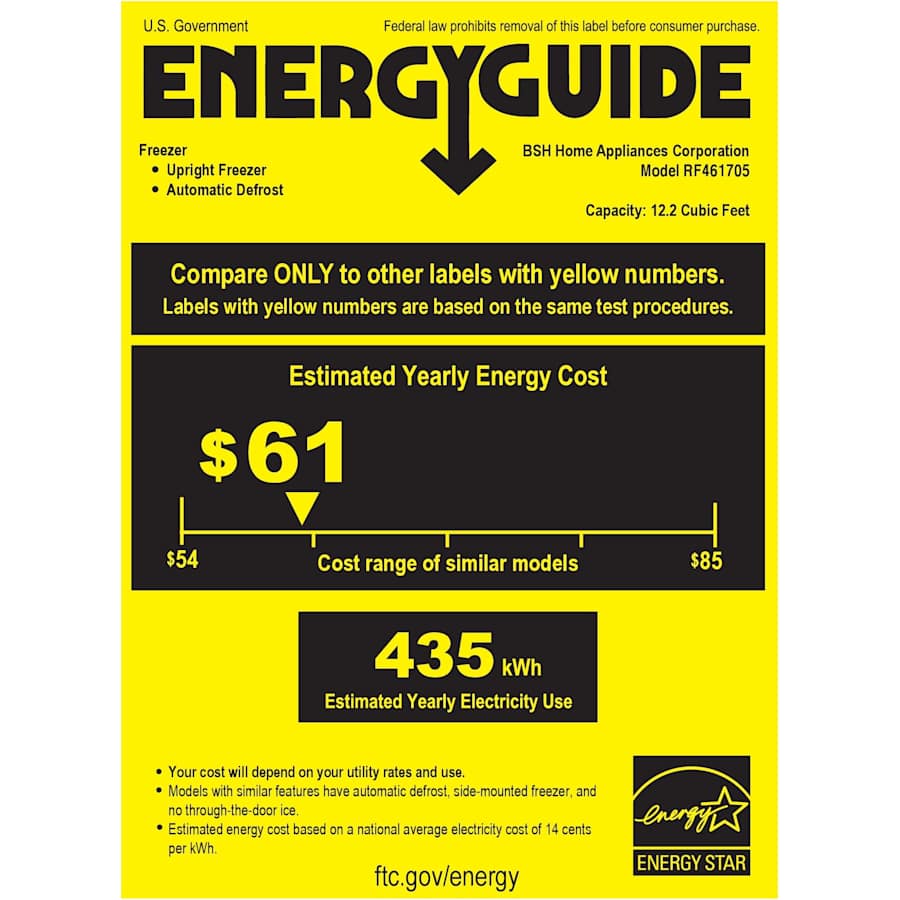

Consumption Data:
Energy consumption 435 kWh/year
Noise level 42 dB (re 1 pW)

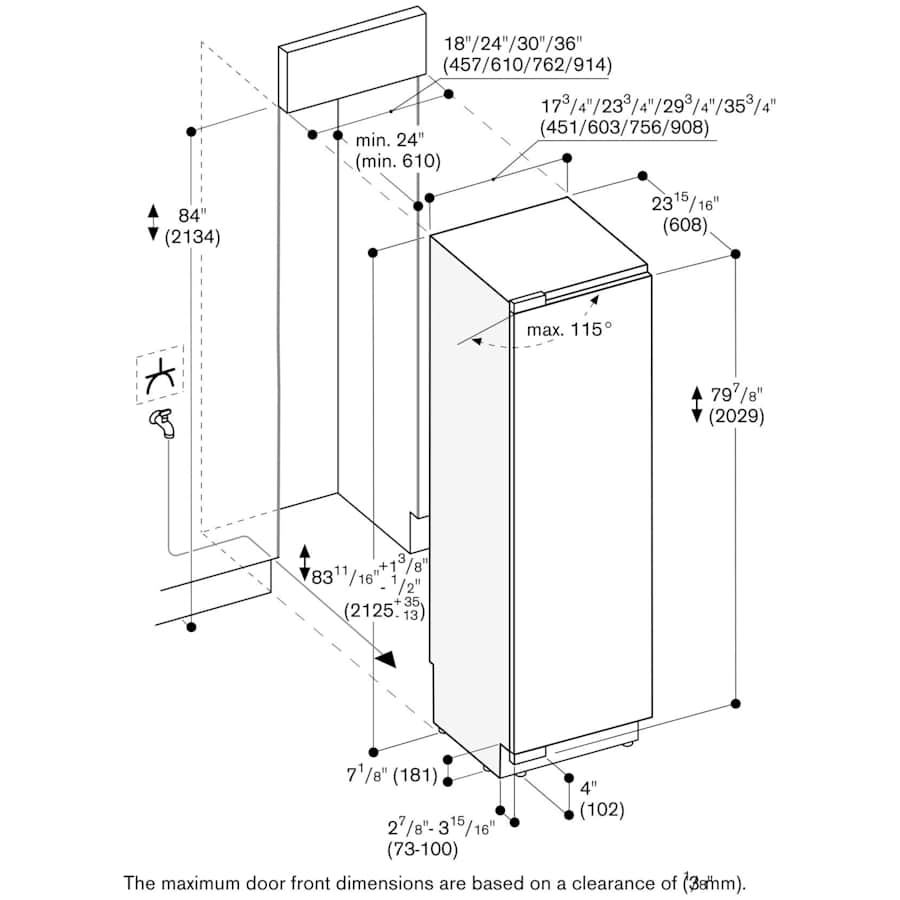

Planning notes:
Flat hinge
Door hinge left, reversible
Door opening angle of 115°, fixable at 90°
For installation with a door opening angle of 90° the ice storage container must be exchanged for the small ice storage container (RA 448220) This must be done prior to fixing the door
Max door panel weight 90 lbs. (41 kg)
Shut-off valve for water connection must be planned next to the appliance and always be accessible
If the water pressure exceeds 116 psi, connect pressure relief valve between water tap and hose set
Rating:
Total rating 1079 kWh/24 h
Total Amps: 10 A
Connecting cable 118″ (30 m), detachable
Cold water connection required
Electrical location 6″ above ground in lower left corner of unit
Supply hose 47,2 INCH (12 m) with 1/4″ male compression fitting (standard icemaker connector)
Water pressure 29 to 116 psi

Specifications:

Total Capacity: 12.2 Cu. Ft.
Shelf Material: Glass
Freezer Type: Column Freezer
Depth: 23-15/16″
Height: 79-7/8″
Width: 23-3/4″
Amperage: 10A
Voltage: 120V
