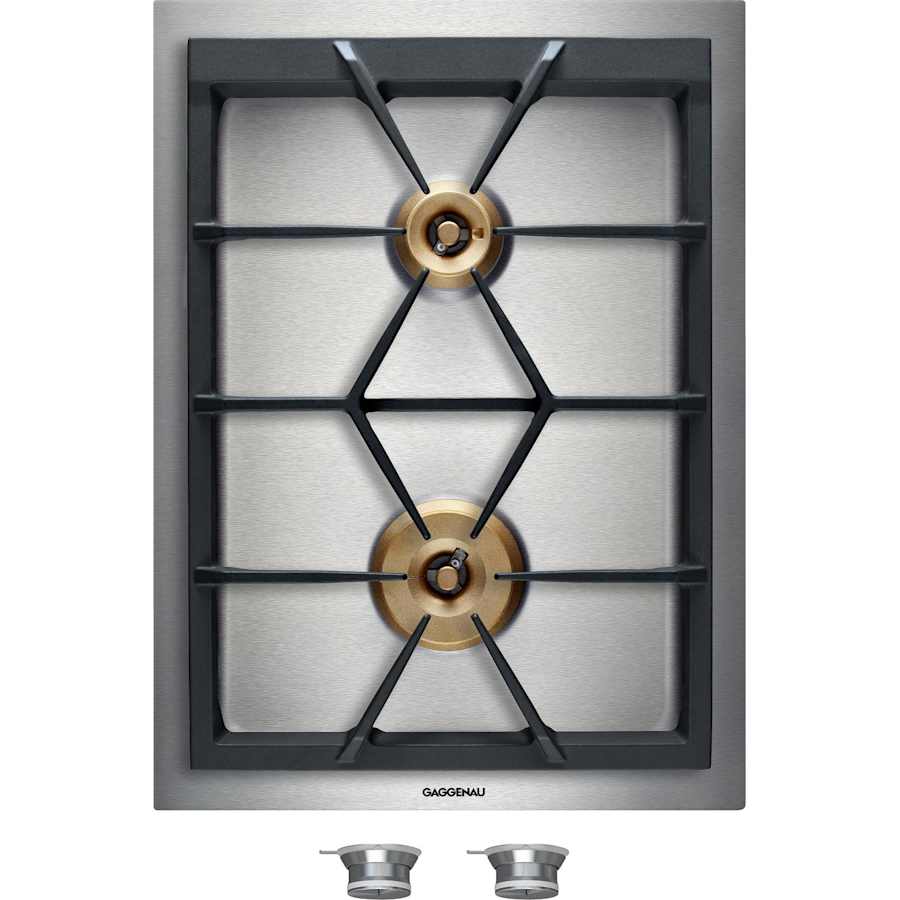

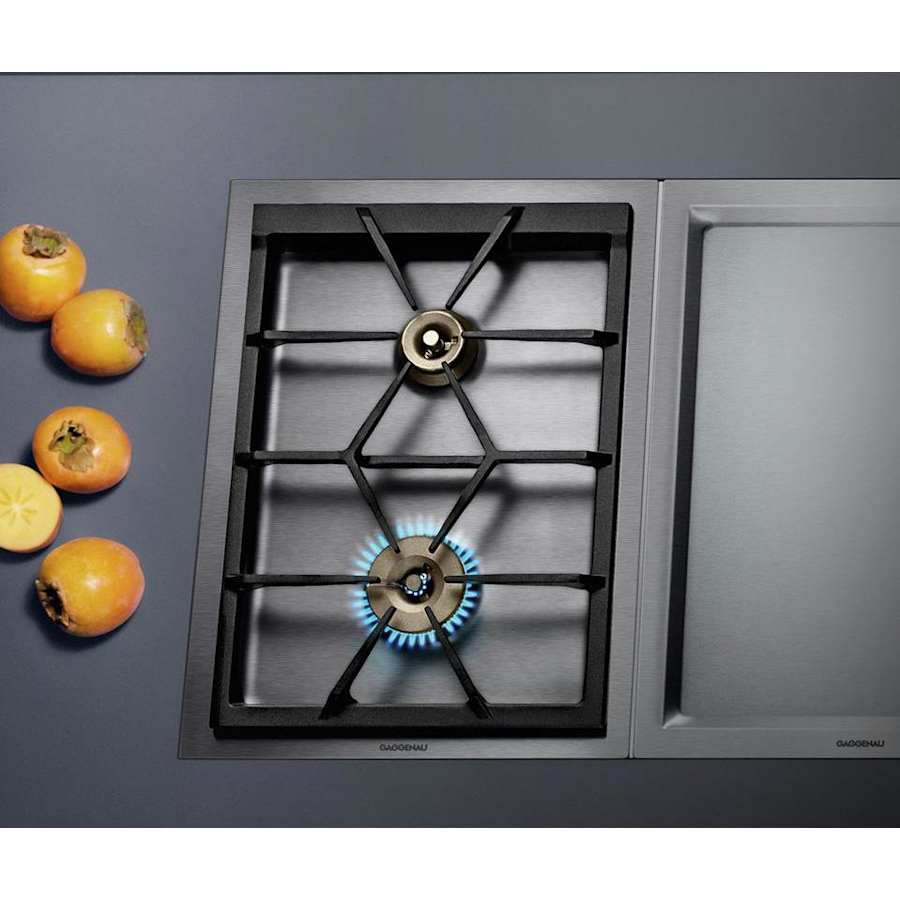

Gaggenau 400 Series 15 Inch Wide 2 Burner Natural Gas Cooktop with Simmer Function and Control Knobs

Features:

Two-ring burners with up to 13,600 BTU
Full electronic power level regulation on 12 levels
Full electronic gas valves for precise and reproducible power regulation
Automatic quick ignition, electronic flame monitoring with automatic re-ignition
Simmer function for cooking on a very low output level
Solid stainless steel control knobs
Precision crafted 3mm stainless steel frame

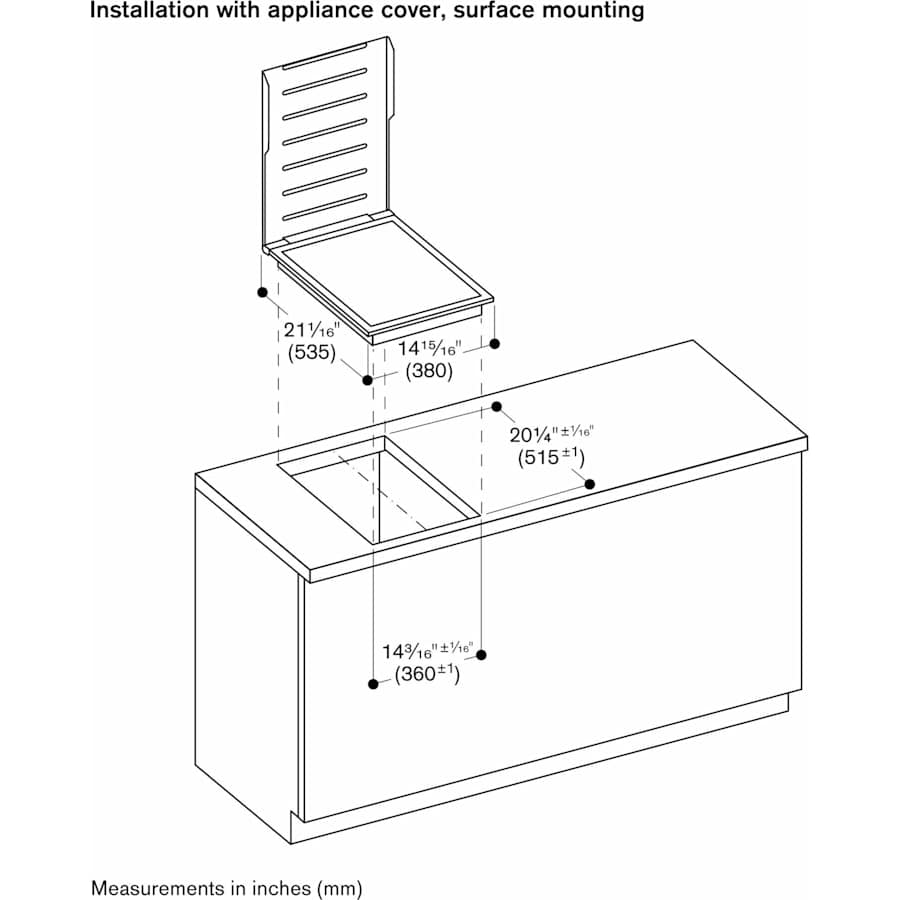

For surface-mount installation with a visible edge or for flush installation

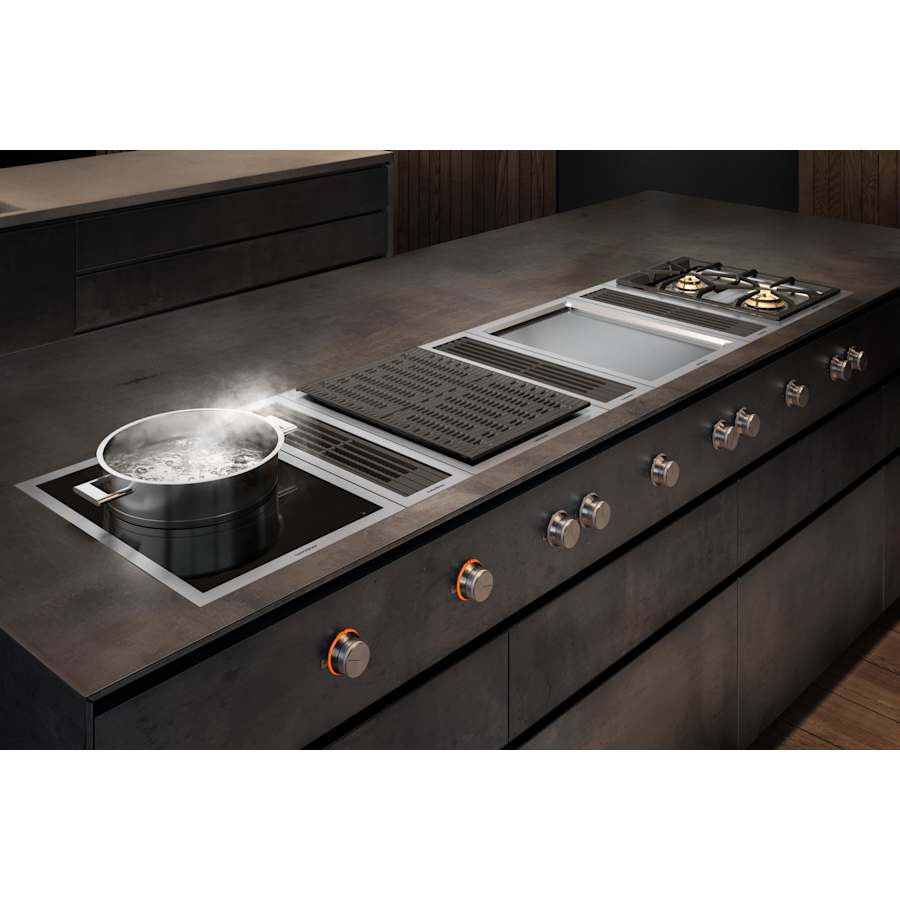

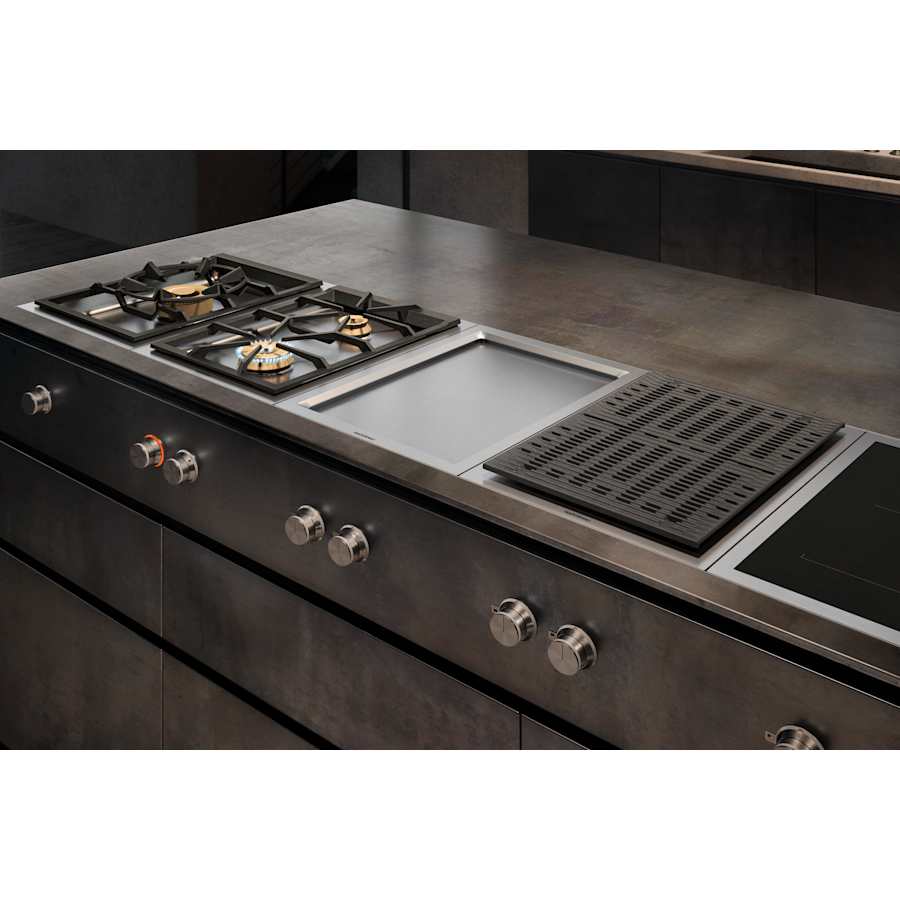

Can be perfectly combined with other Vario 400 series appliances
Operation:

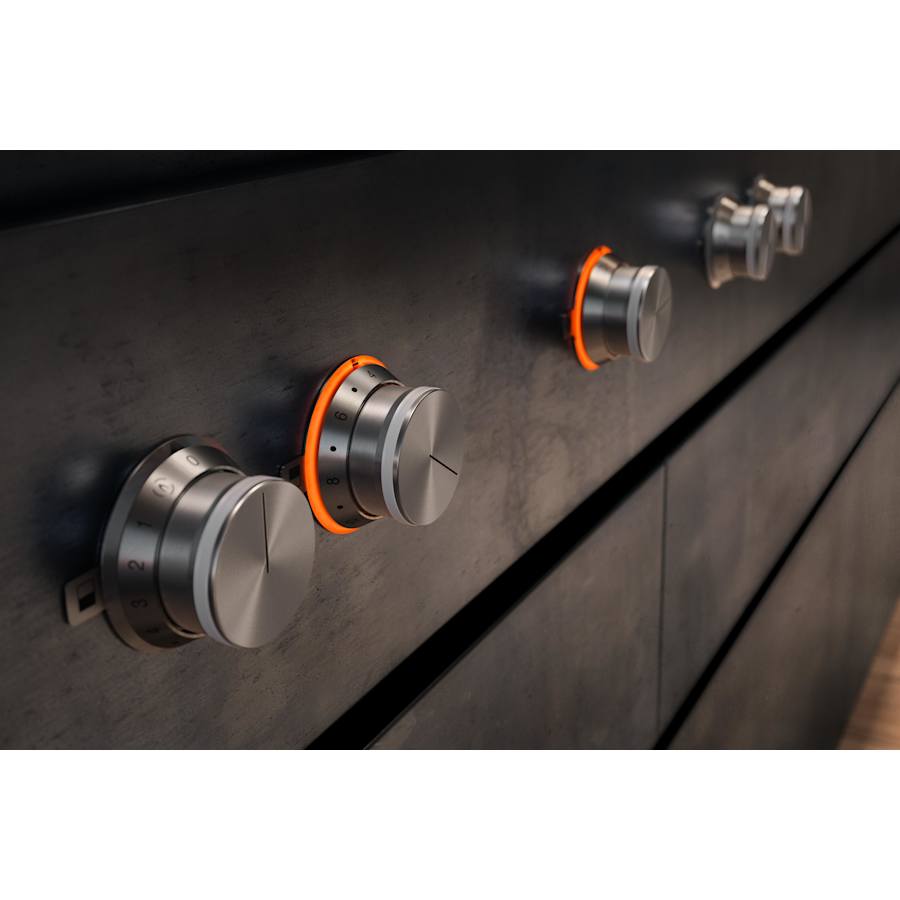

Control knobs with illuminated ring, cooking zone and output level markings
One-handed operation
Full electronic control in 12 output levels for exact power level regulation plus simmer function
Automatic quick ignition
Simmer function
Cast-Iron pan support with flat, continuous pot surface

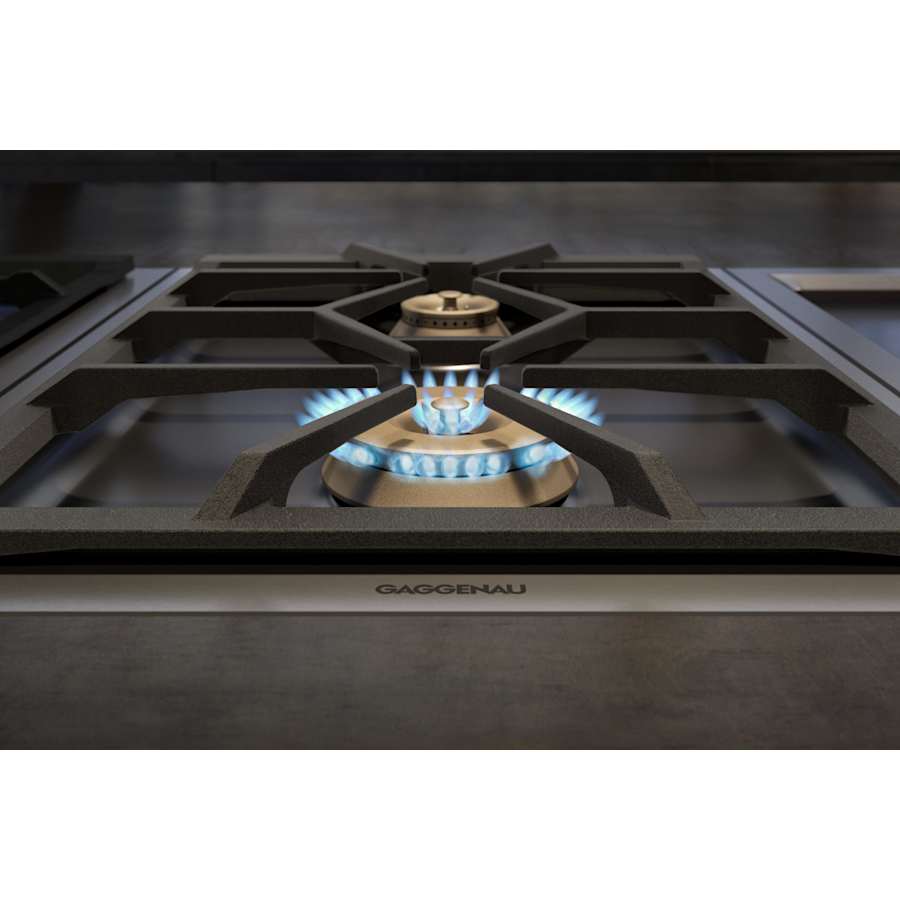

Brass burner rings
Safety:
Electronic flame monitoring with automatic re-ignition
Residual heat indicator
Safety shut-off
Planning notes:

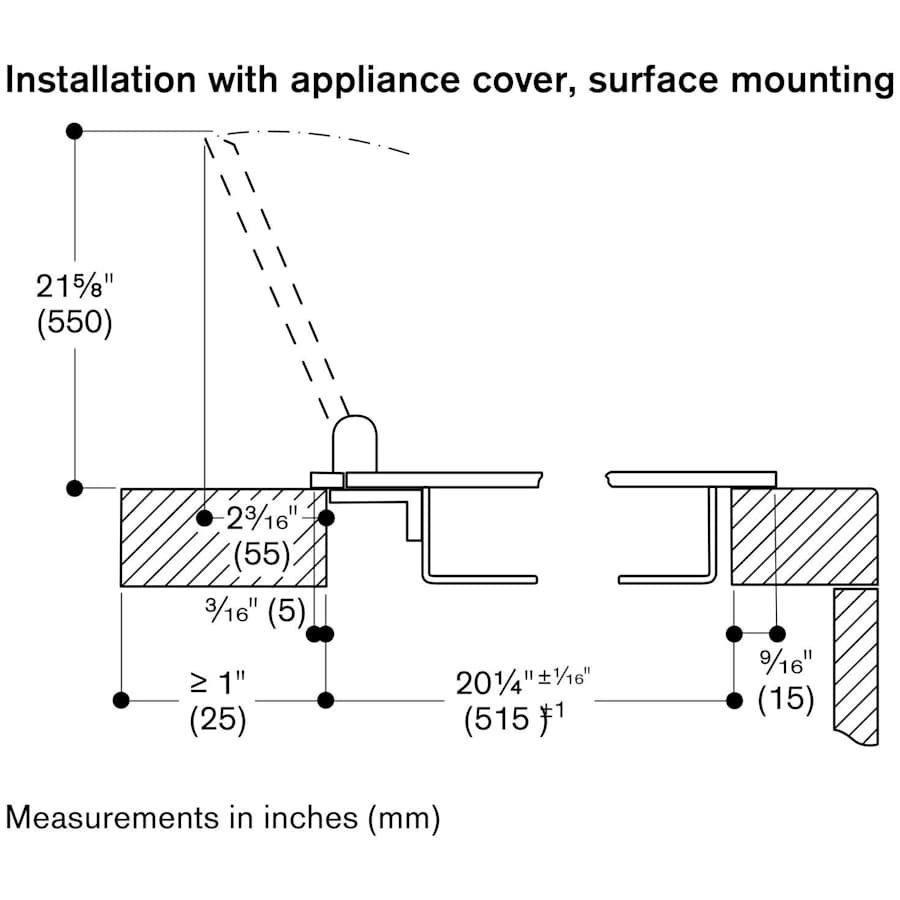

Depending on the type of installation — surface-/ or flush-mounted, with or without cover — the specific location of the control knob positions may vary

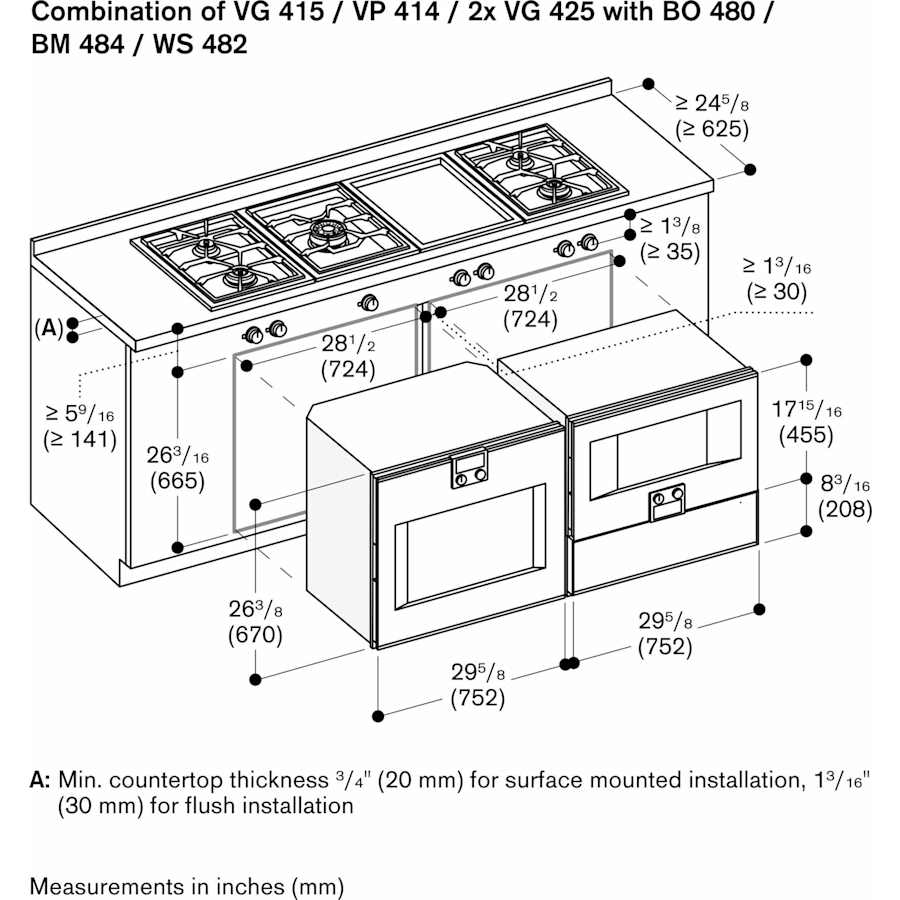

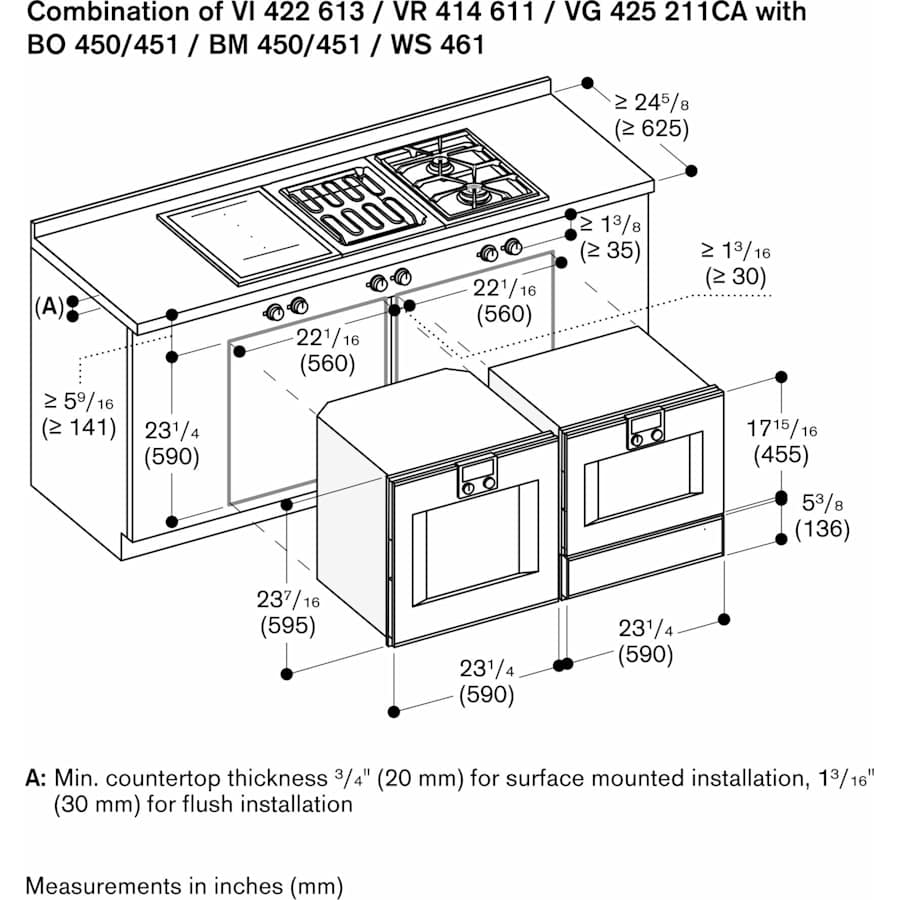

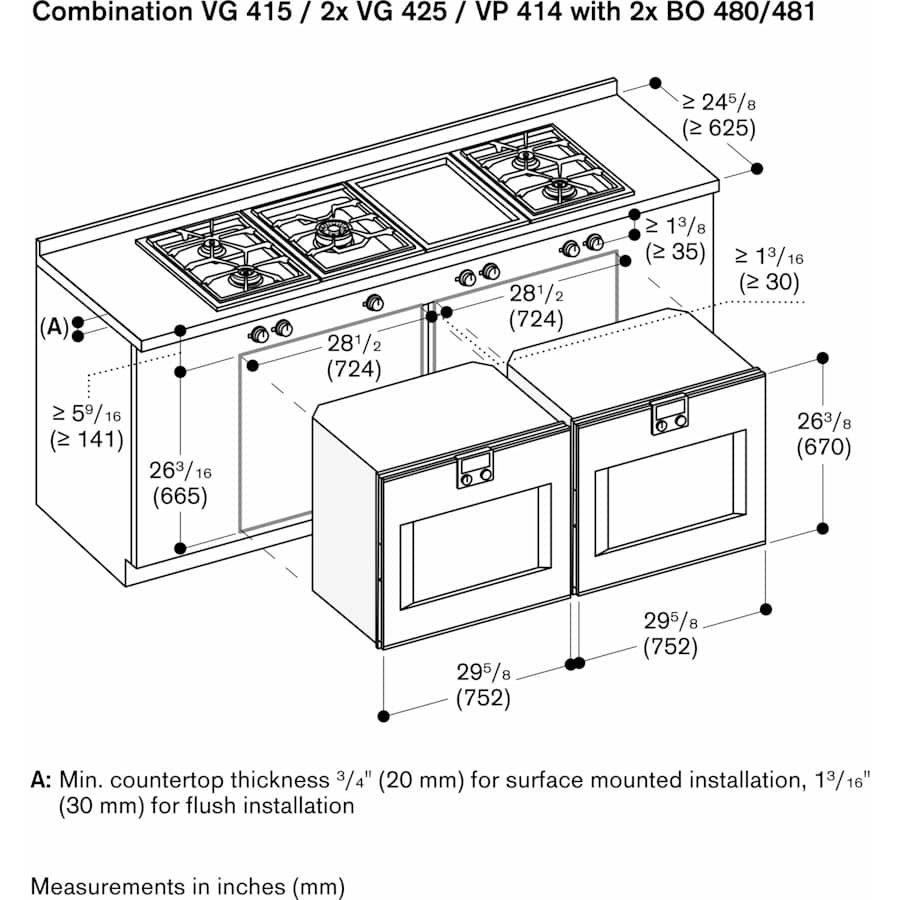

If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided
The bearing capacity and stability in the case of thin countertops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads

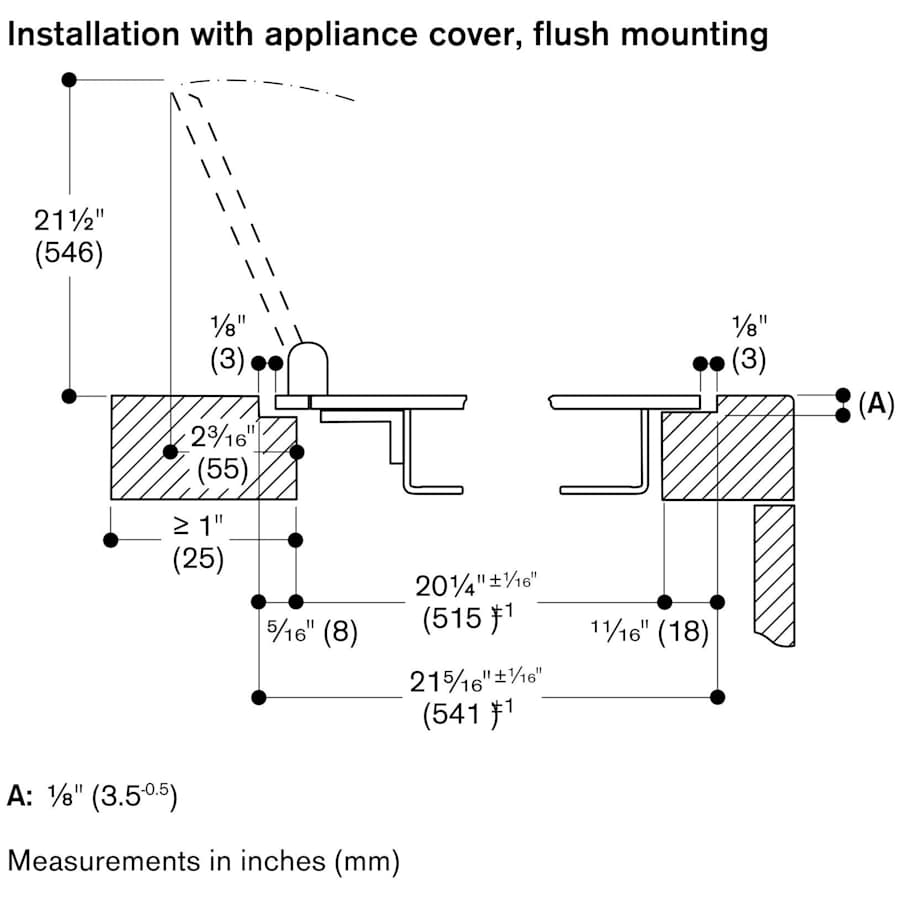

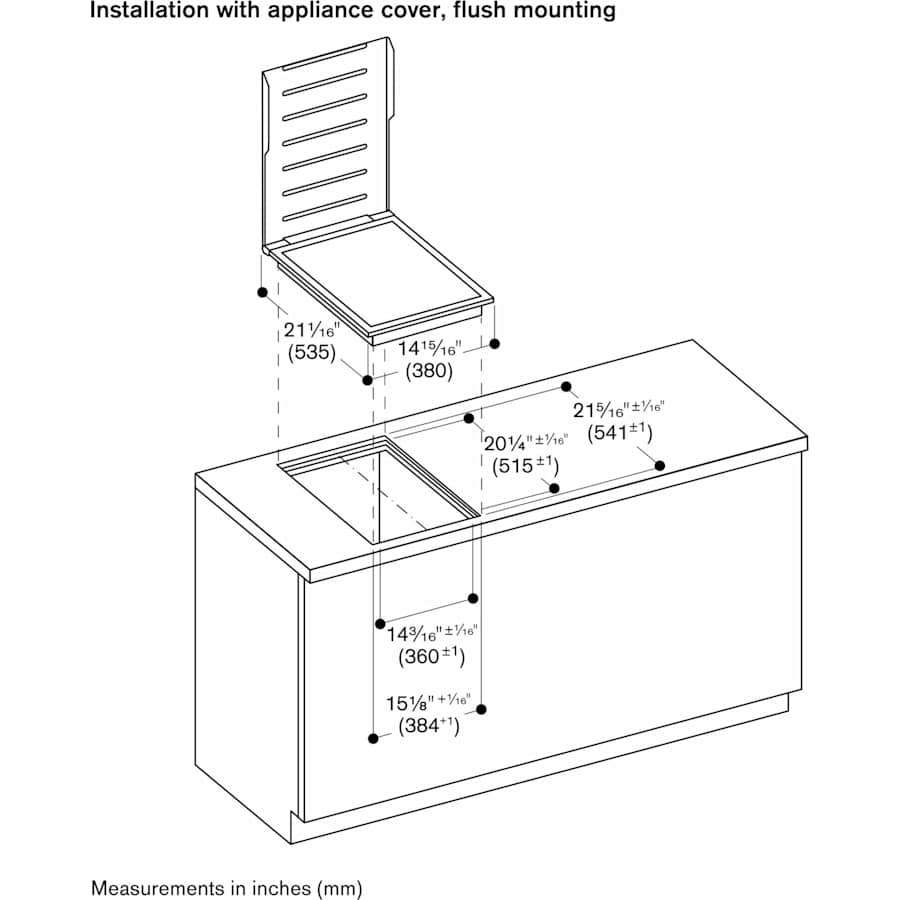

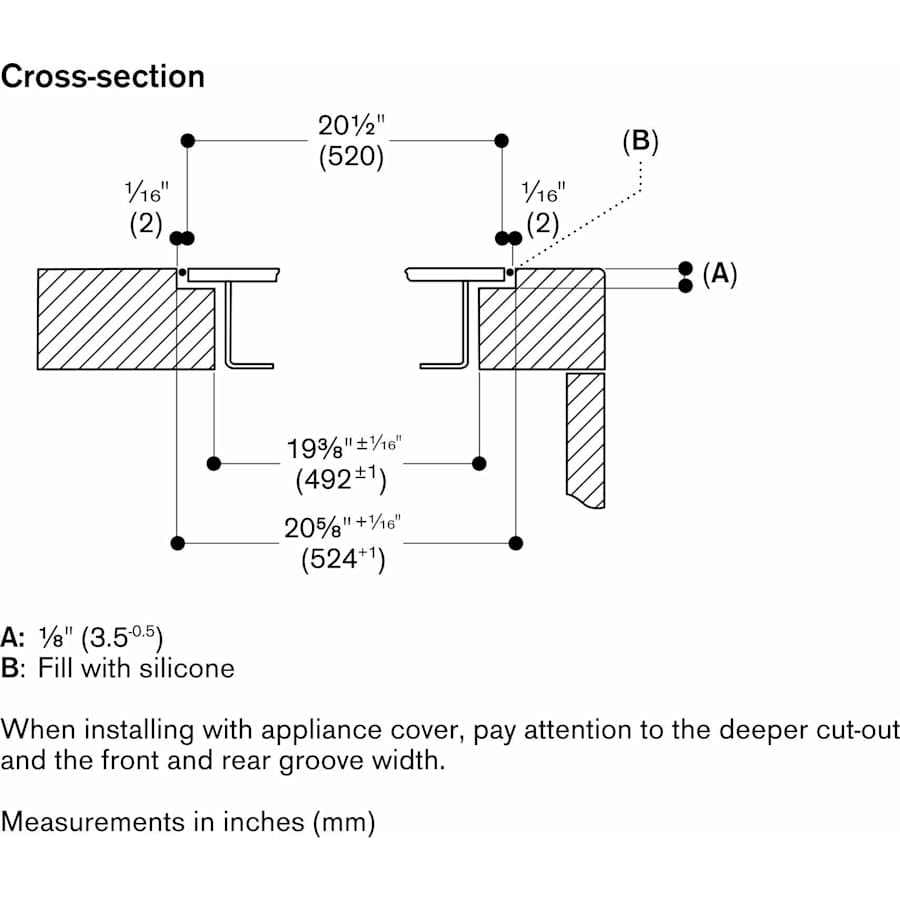

Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer
The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining
The joint width may vary due to size tolerances of the combinations and of the countertop cut-out
If installing several appliances in individual cut-outs allow for a division bar of minimum 1 ³¹???” (50 mm) between the individual cut-outs

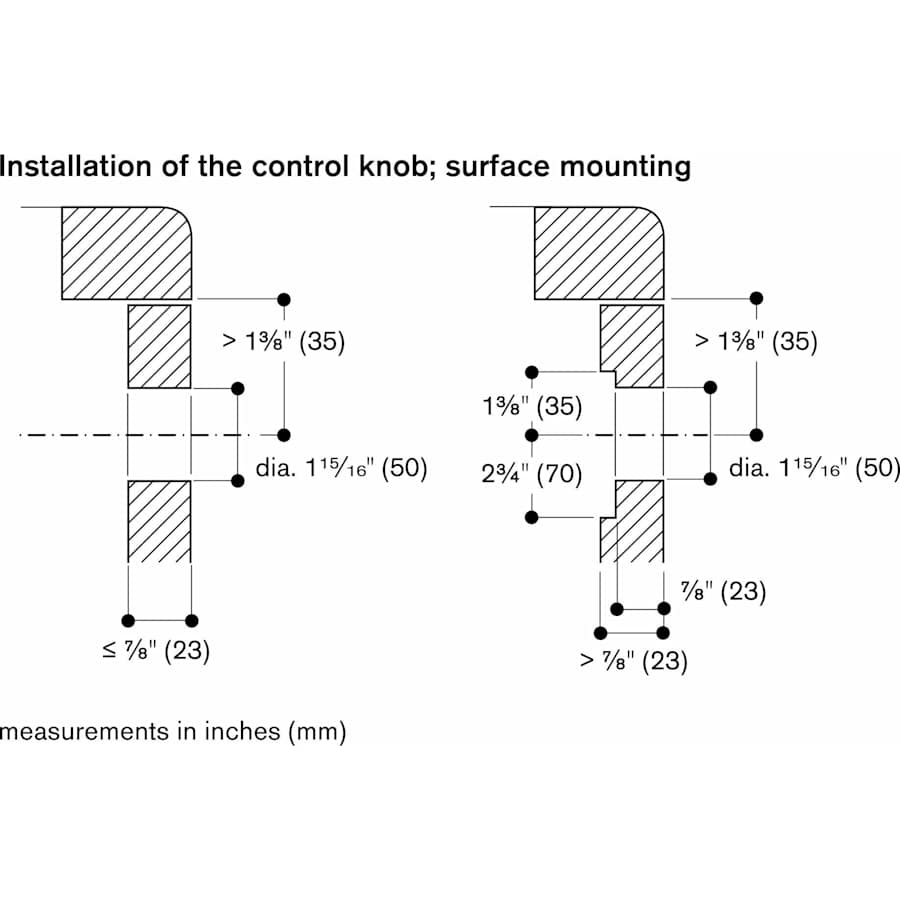

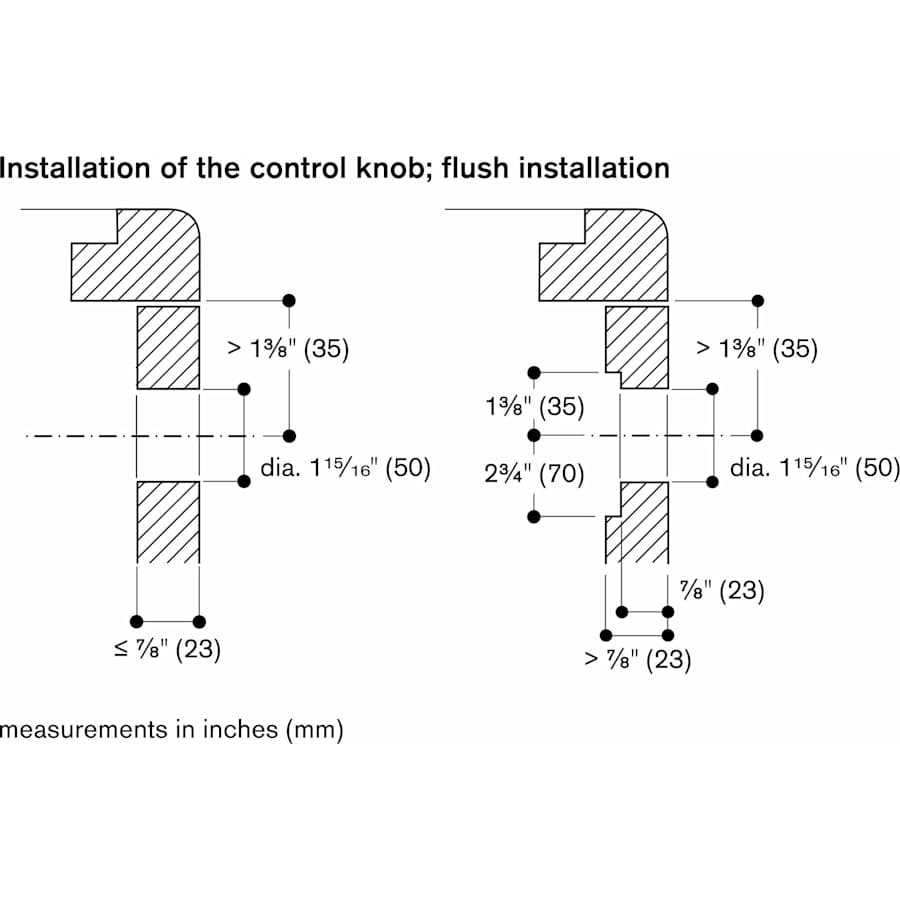

The adjacent drawing “Installation of the control knob” must be observed if the panel is more than 1″ thick. There must be a recess at the rear for proper electronic knob installation
Plan for an electrical connection (the appliance is not operable without power supply)
Air intake from above
No intermediate shelf required
The rear panel must consist of a non-flammable material Wall trims must be resistant to heat
The minimum distance from the side of appliance edge to the wall or furnishing components must be at least 6″

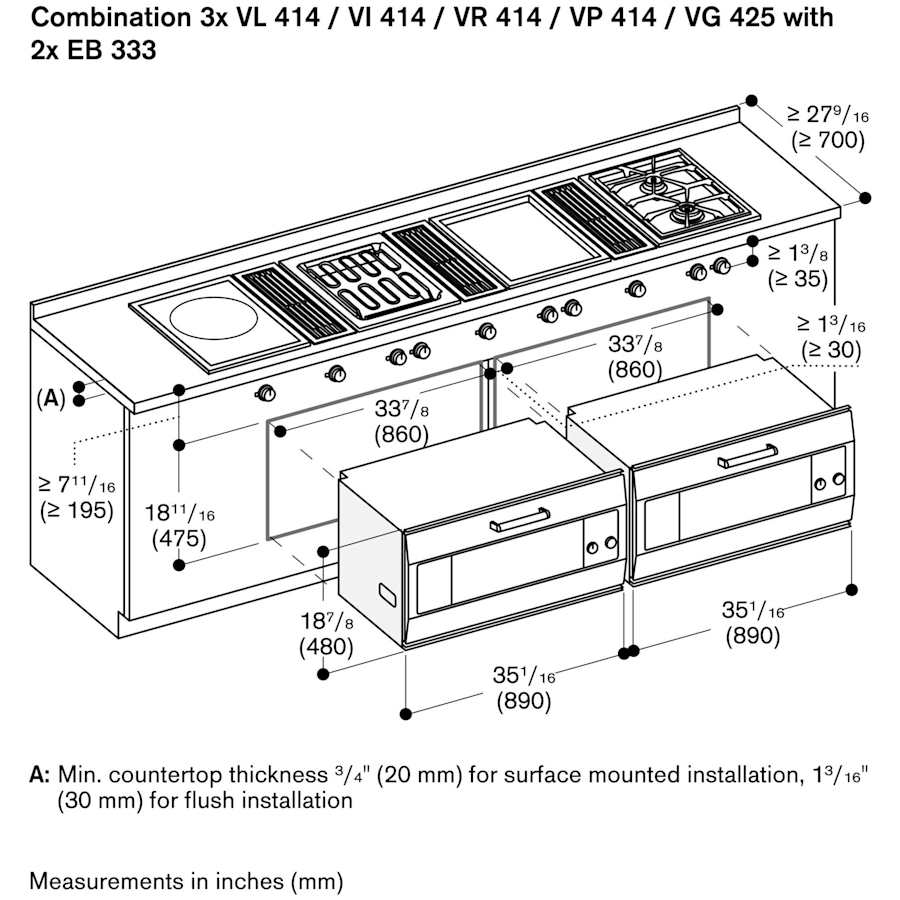

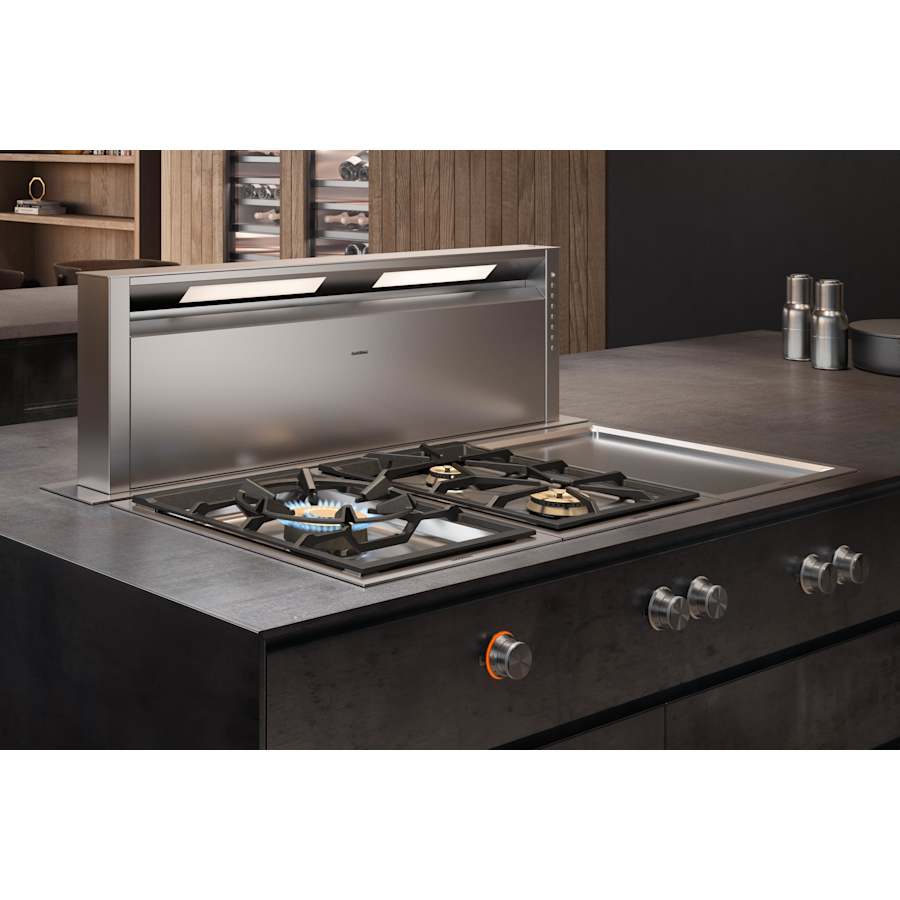

When used with VL 414 downdraft ventilation, the air deflector AA 414 is recommended to ensure maximum performance of the cooktop
Minimum distance between gas cooktop(s) with more than 37,533 BTU (11kW) and ventilation hood must be 30″ (76cm)
Appliance can be snapped into the worktop from above
Connecting cable 55″ (1.4 m) with plug

Specifications:

Back Middle Burner BTU: 570, 6800
Front Middle Burner BTU: 13600, 570
Number of Burners: 2
Fuel Type: Gas
Hot Surface Indicator Lights: Yes

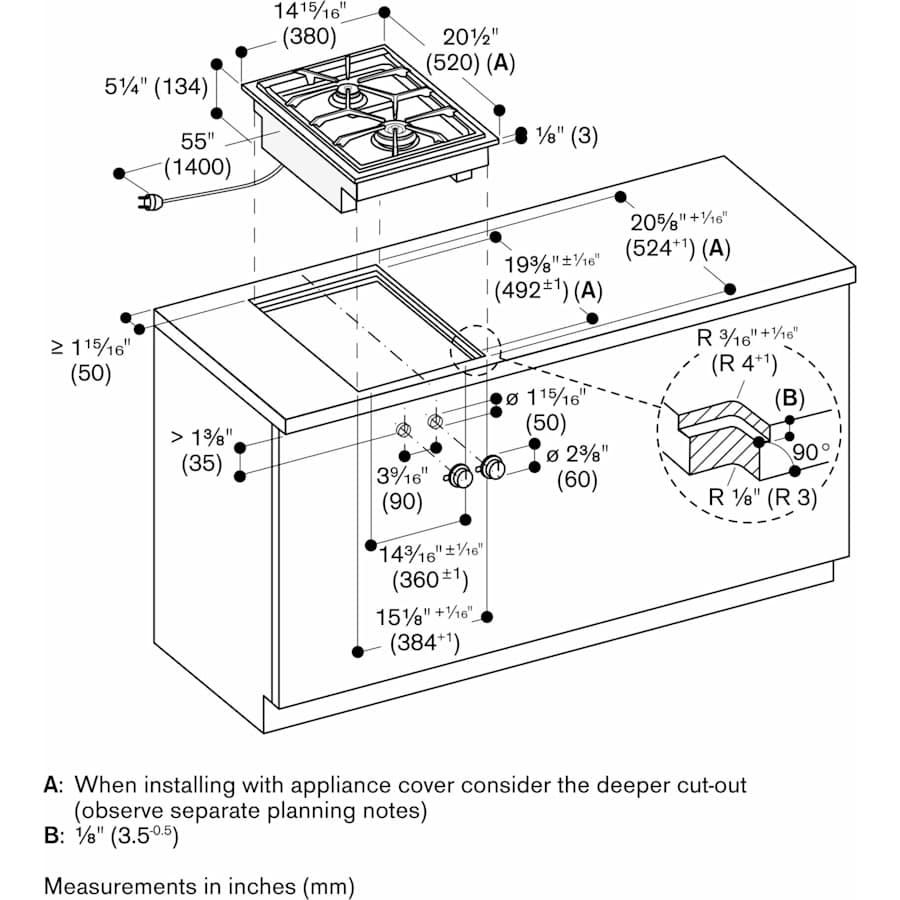

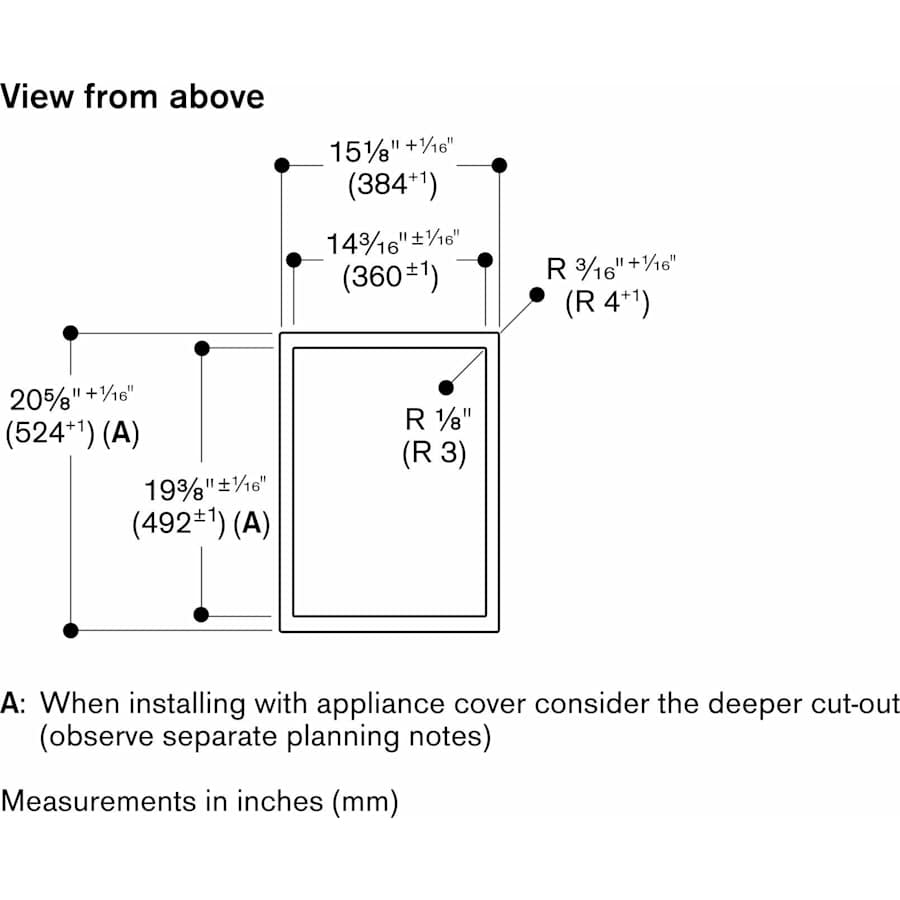

Cutout Depth: 19.375, 20.625″
Cutout Width: 14.1875, 15.125″
Depth: 20-1/2″
Height: 5-1/4″
Width: 14-15/16″
Amperage: 15A
Voltage: 120V
