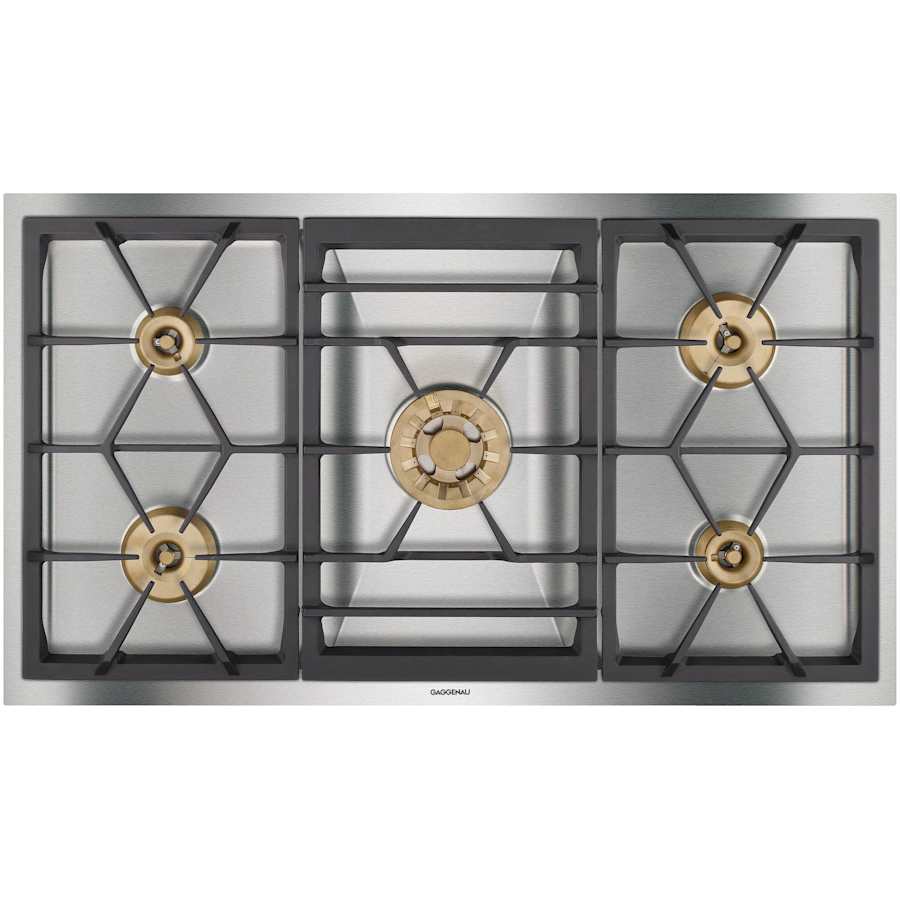

Gaggenau 400 Series 36 Inch Wide 5 Burner Natural Gas Cooktop with Simmer Function and Residual Heat Indicator

Features:

Five multi-ring burners, up to 59,700 BTU
Full electronic power level regulation on 12 levels
Full electronic gas valves for precise and reproducible power regulation
Automatic quick ignition, electronic flame monitoring with automatic re-ignition
Simmer function for cooking on a very low output level
Solid smooth-surface cast-Iron pan support
Solid stainless steel control knobs
Precision crafted 3mm stainless steel frame

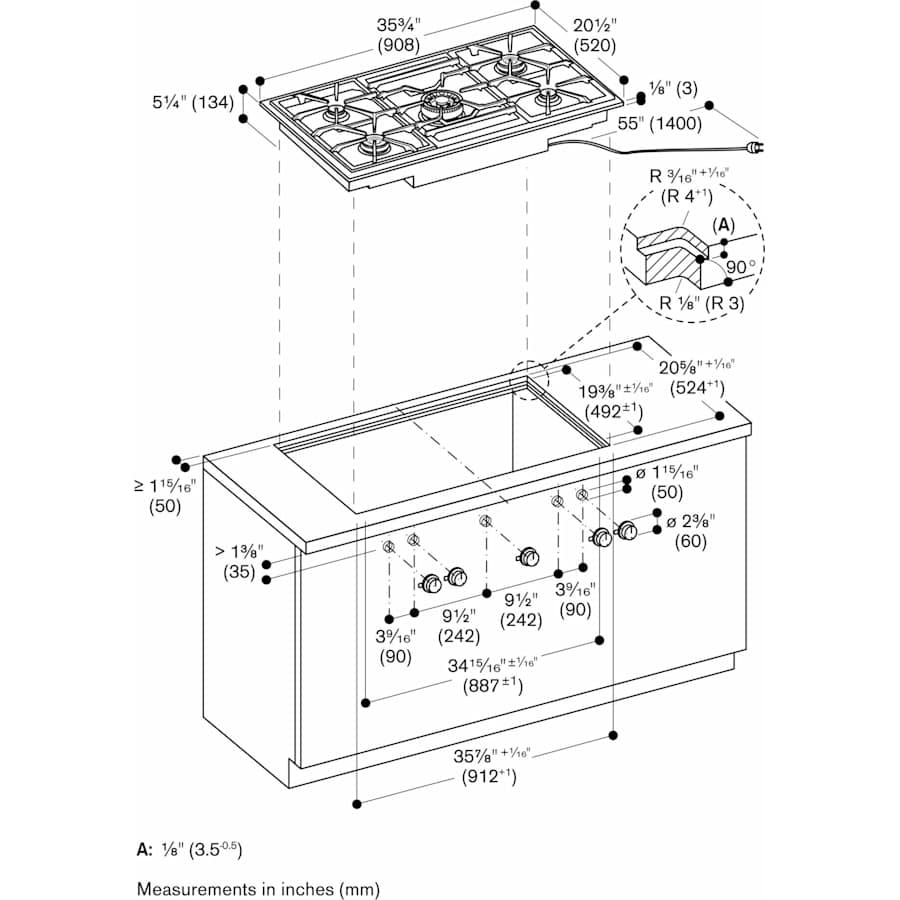

For surface-mount installation with a visible edge or for flush installation

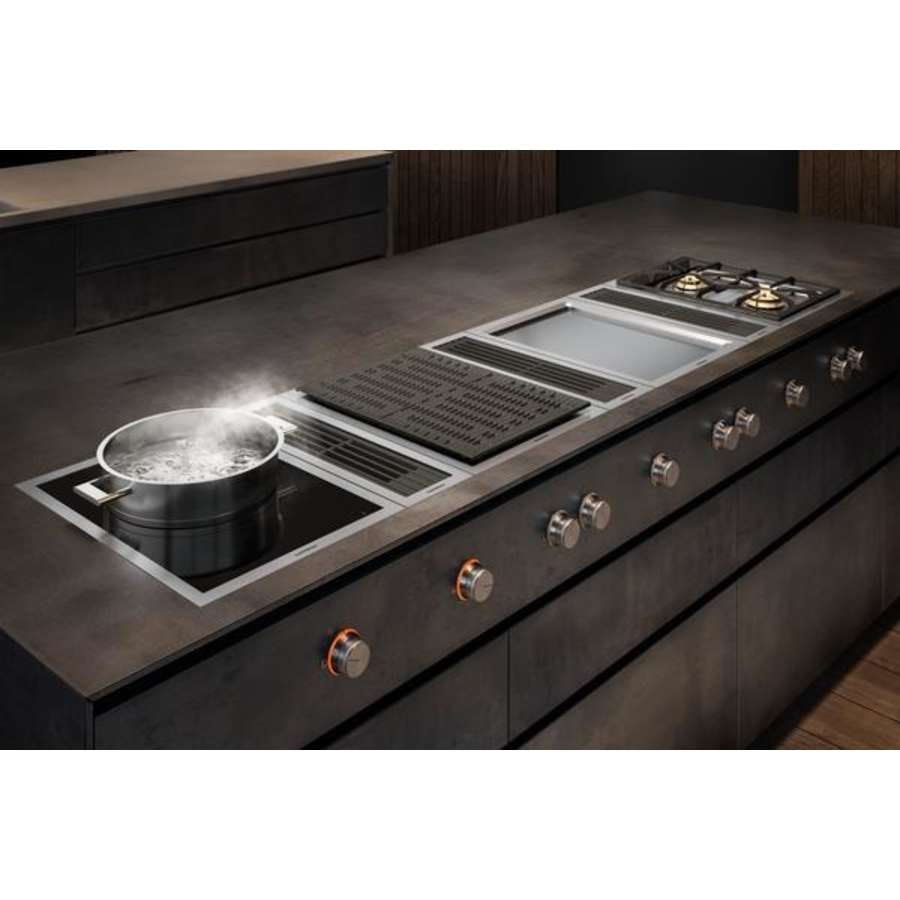

Can be perfectly combined with other Vario 400 series appliances
Operation:

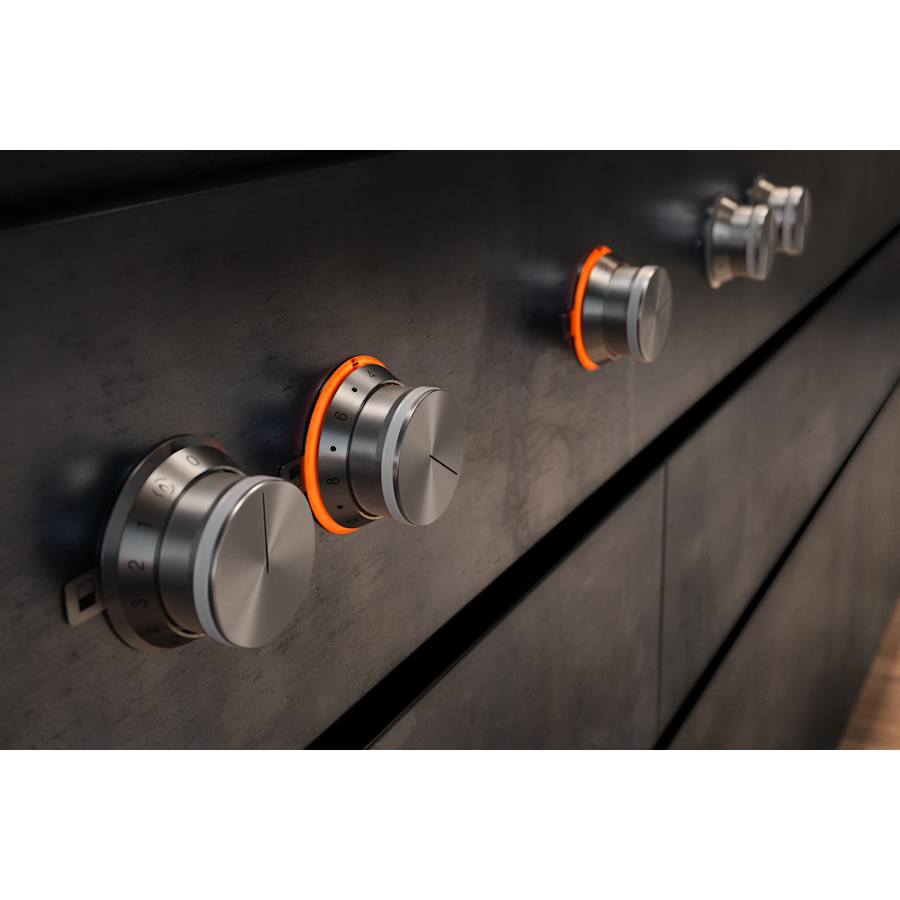

Control knobs with illuminated ring, cooking zone and output level markings
One-handed operation
Full electronic control in 12 output levels for exact power level regulation plus simmer function
Automatic quick ignition
Simmer function
Three-part cast Iron pan support with flat, continuous pot surface
Brass burner rings
Safety:
Electronic flame monitoring with automatic re-ignition
Residual heat indicator
Safety shut-off
Planning notes:

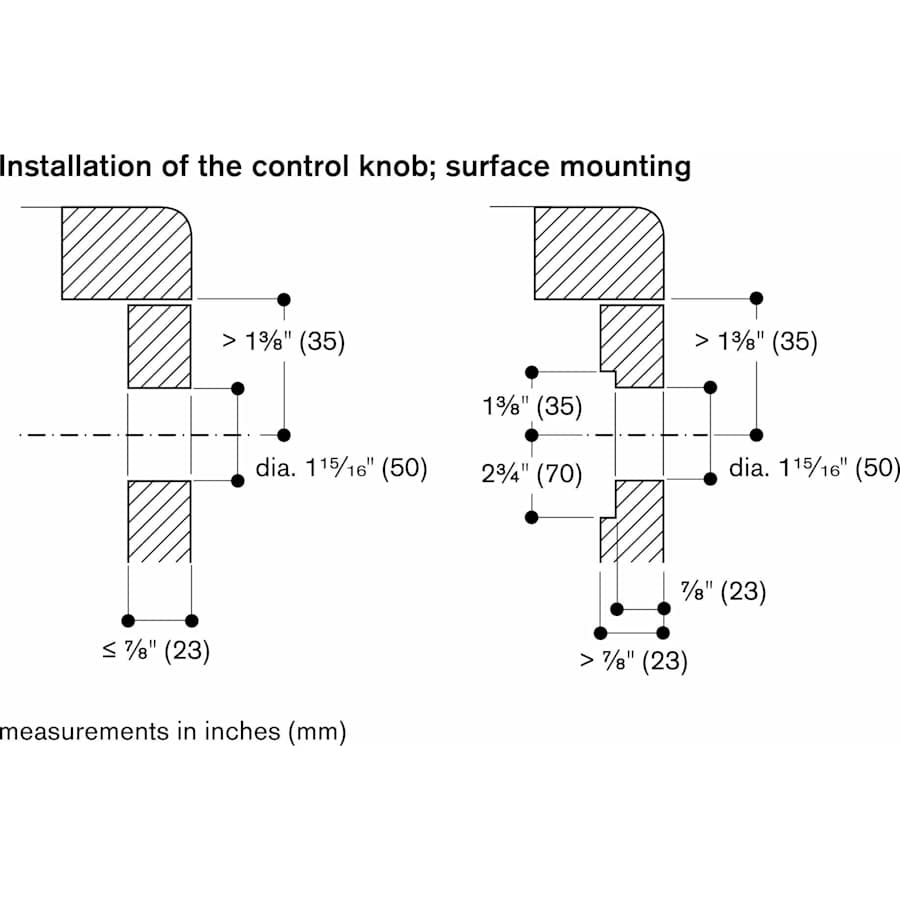

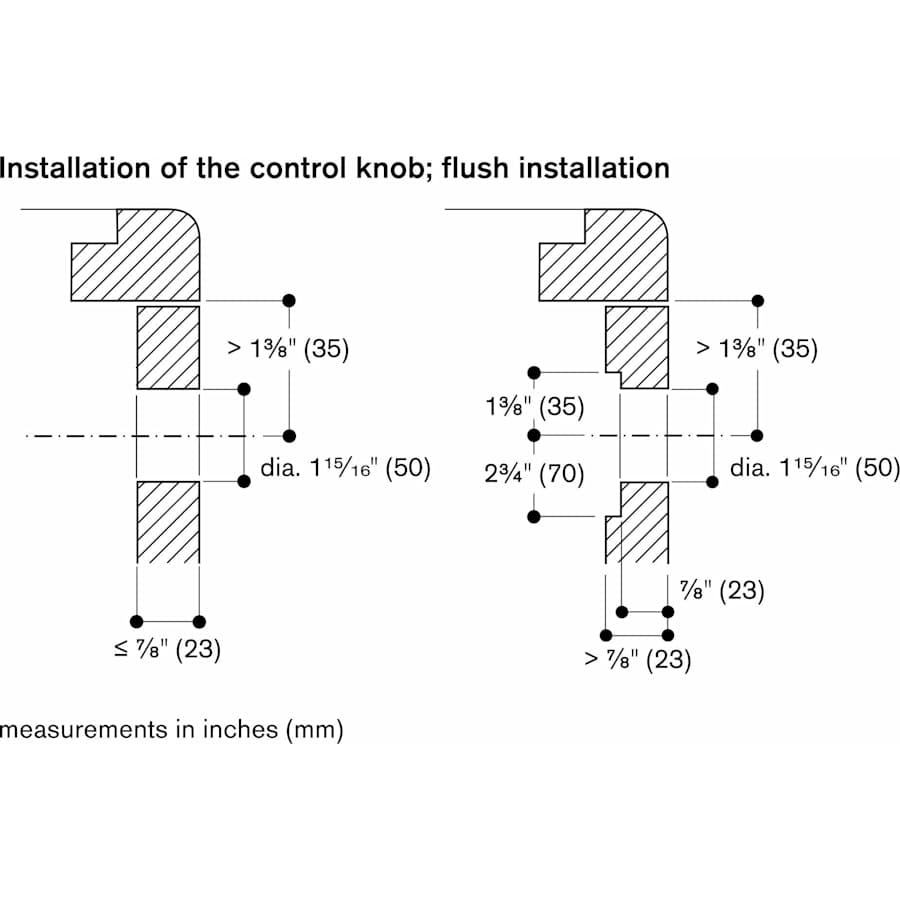

Depending on the type of installation — surface-/ or flush-mounted, with or without cover — the specific location of the control knob positions may vary

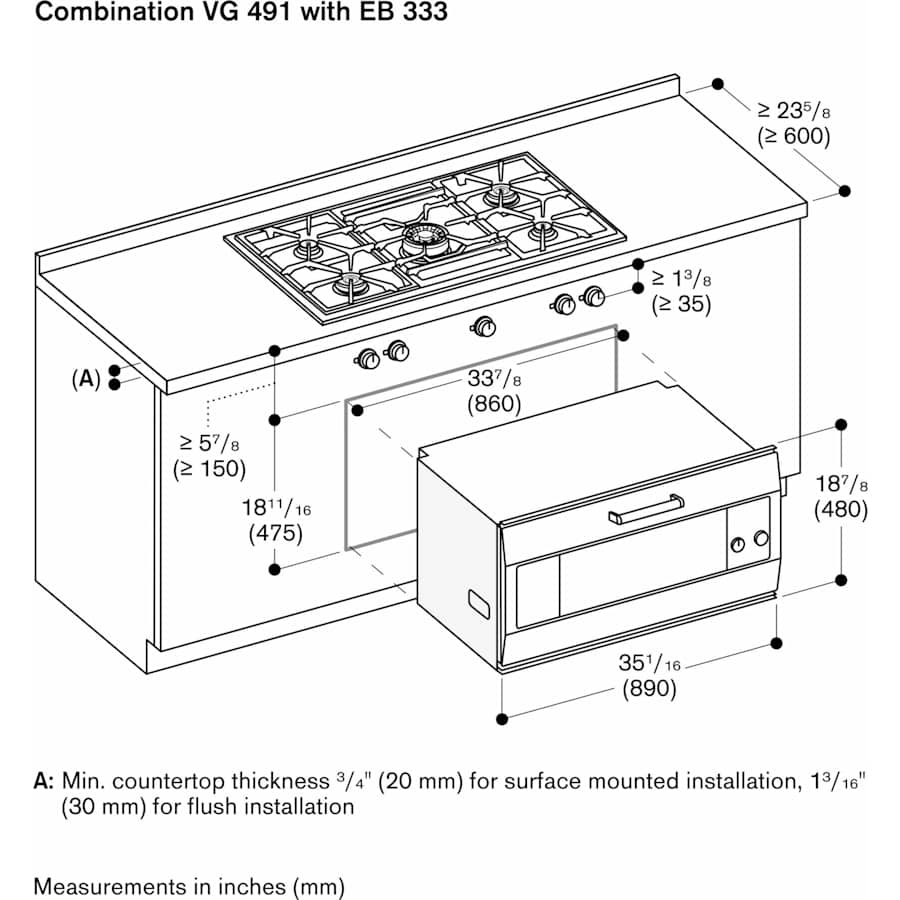

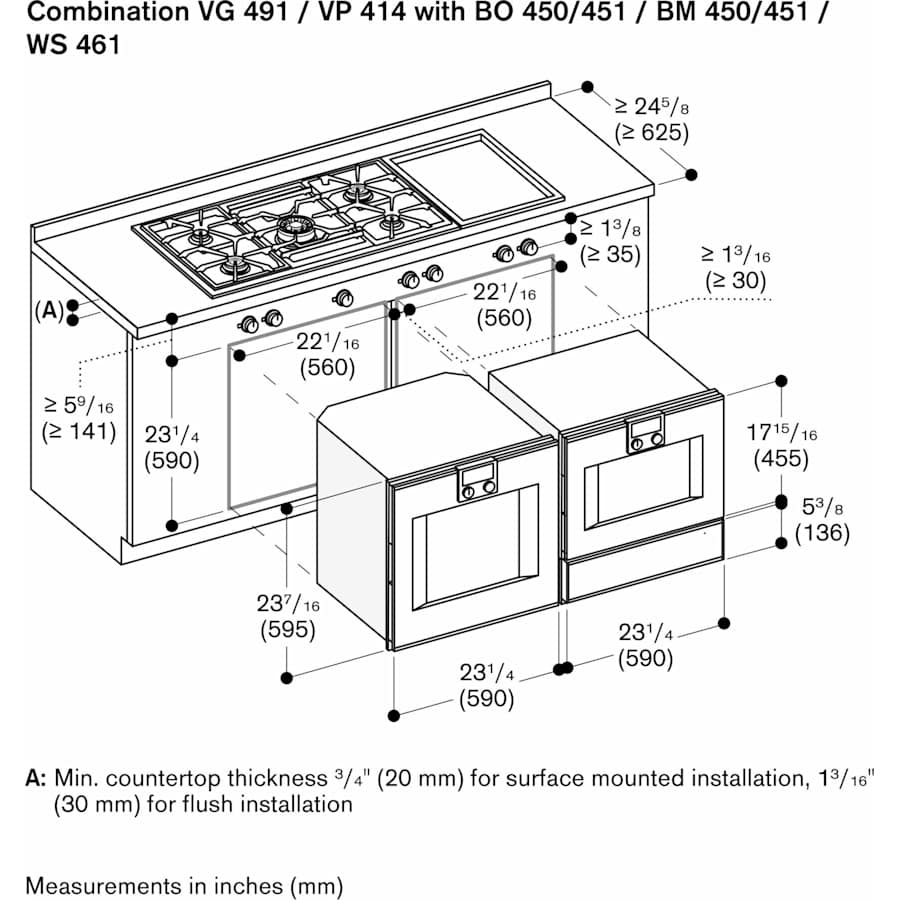

If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided
The bearing capacity and stability in the case of thin countertops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads

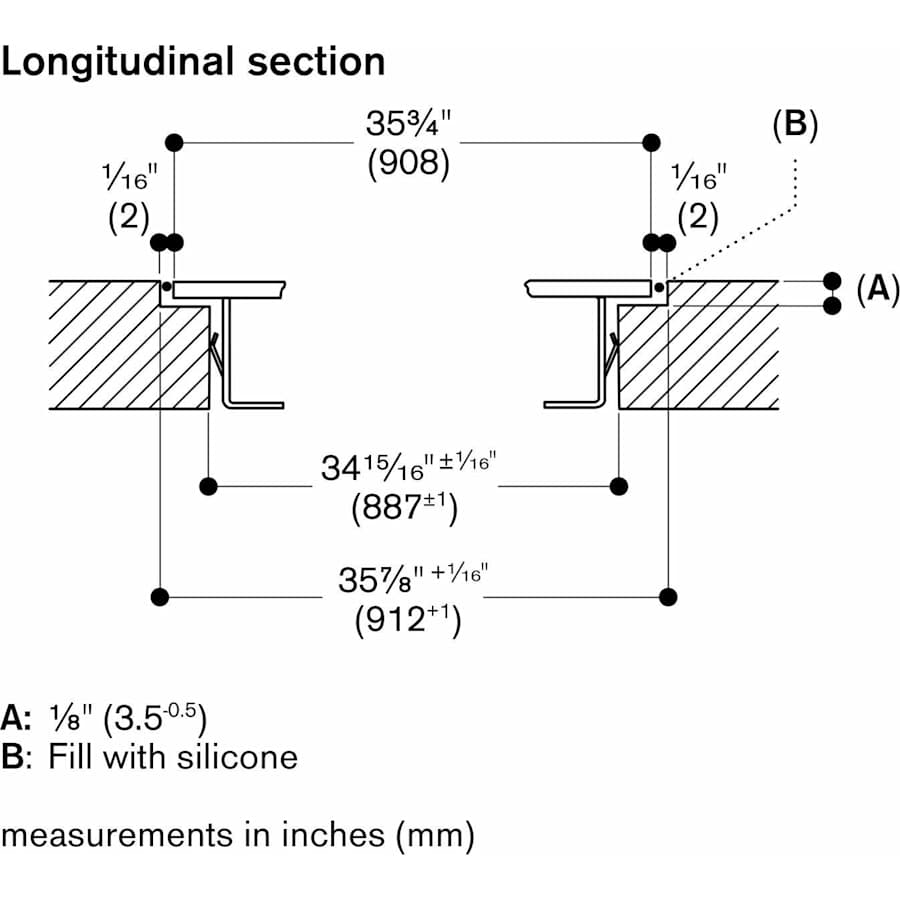

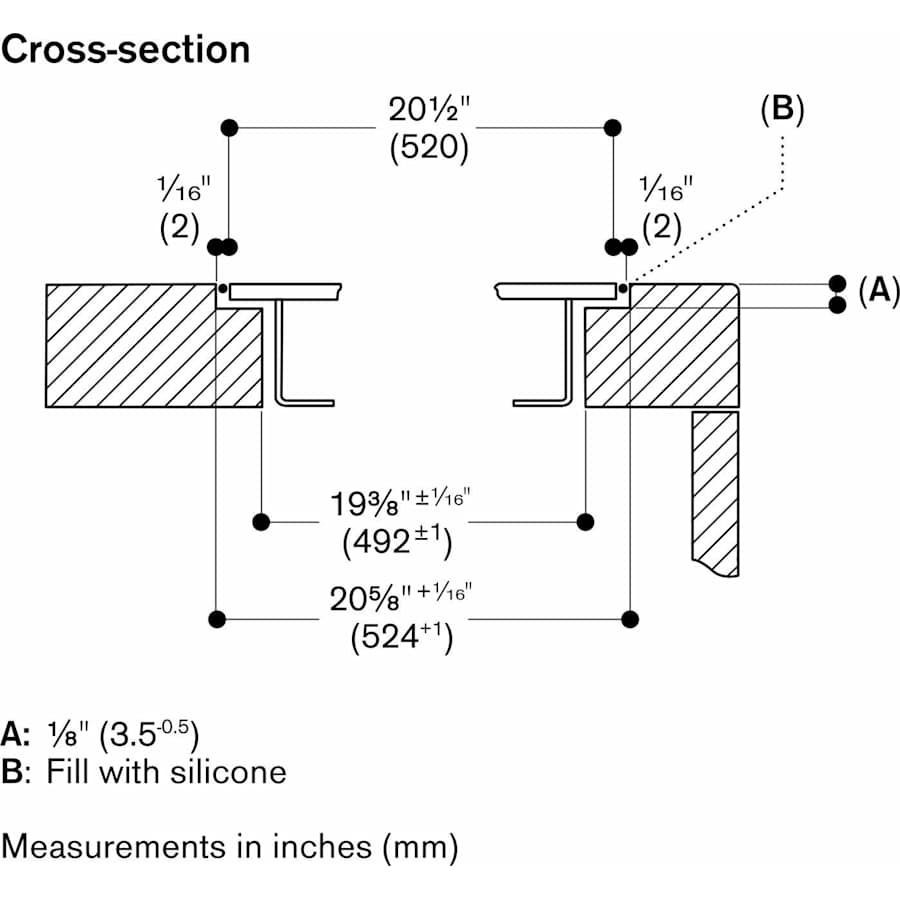

Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer
The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining
The joint width may vary due to size tolerances of the combinations and of the countertop cut-out
If installing several appliances in individual cut-outs allow for a division bar of minimum 1 ³¹???” (50 mm) between the individual cut-outs
Plan for an electrical connection (the appliance is not operable without power supply)
Air intake from above
No intermediate shelf required
The rear panel must consist of a non-flammable material. Wall trims must be resistant to heat
A minimum lateral clearance of at least 12″ from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted
Installation in a 36″ wide lower cabinet is required
The combination with VL 414 is not recommended, since the air extraction from the center burner cannot be guaranteed due to the distance
Minimum distance between gas cooktop(s) with more than 37,533 BTU (11kW) and ventilation hood must be 30″ (76cm)

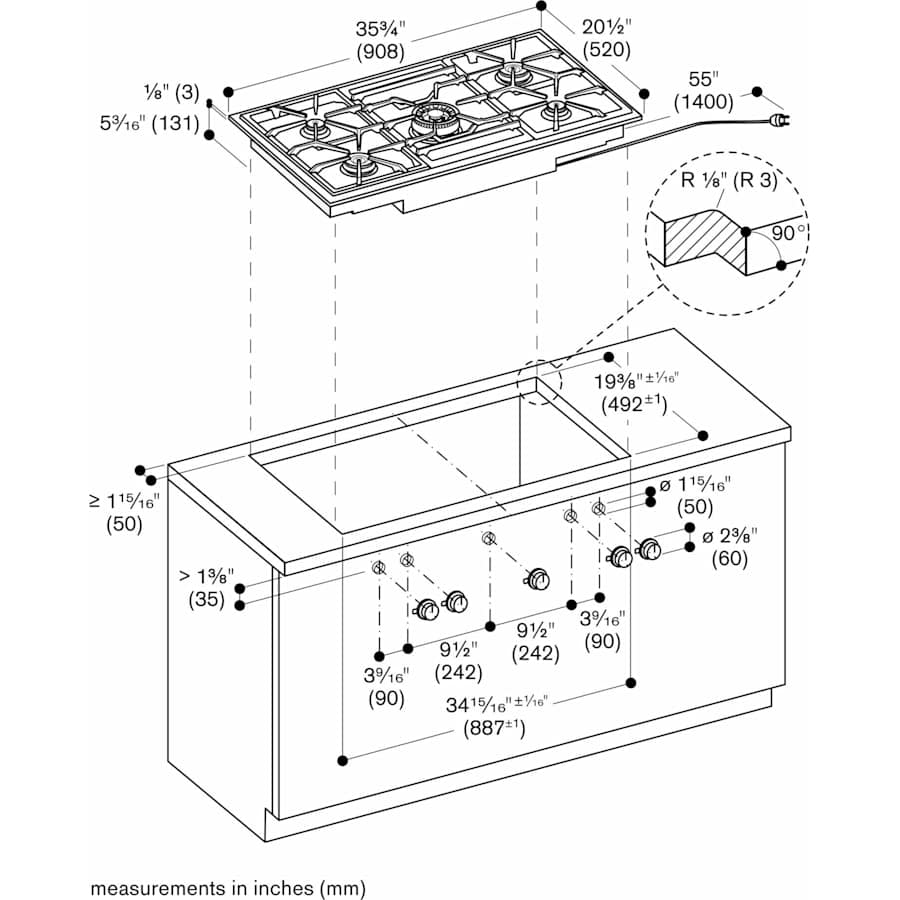

Appliance can be snapped into the worktop from above

Specifications:

Back Left Burner BTU: 570, 6800
Back Right Burner BTU: 13600, 570
Front Left Burner BTU: 13600, 570
Front Right Burner BTU: 570, 6800
Number of Burners: 5
Fuel Type: Gas
Hot Surface Indicator Lights: Yes

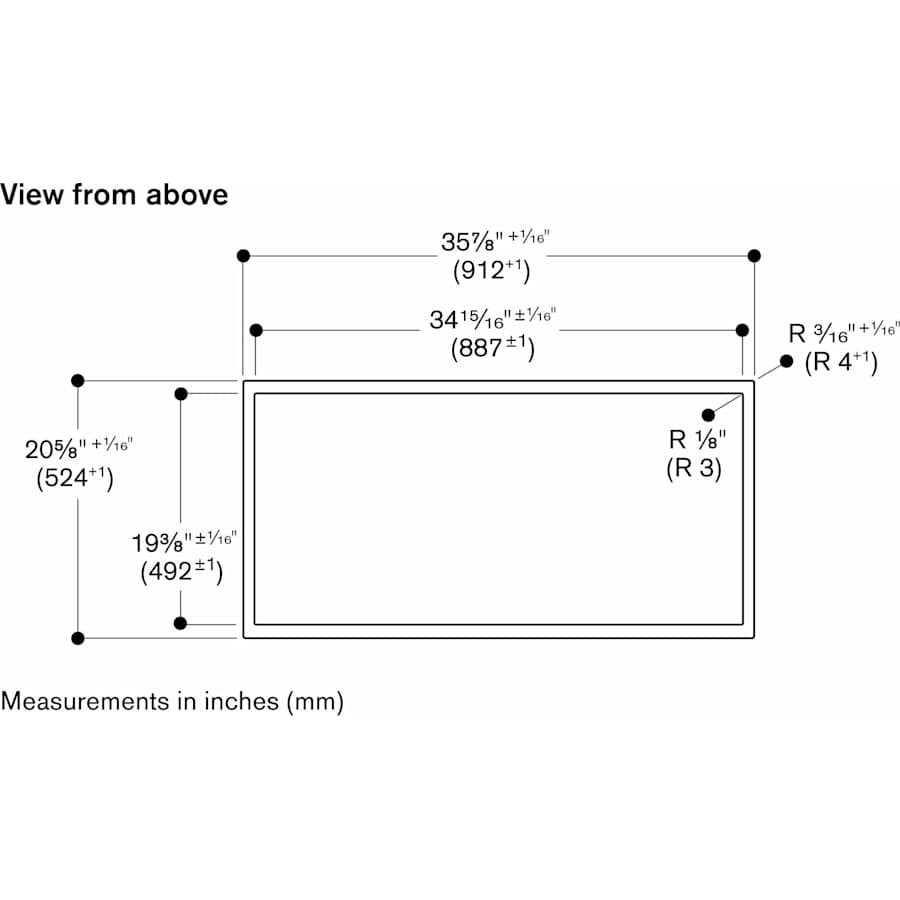

Cutout Depth: 19.375, 20.625″
Cutout Width: 34.9375, 35.875″
Depth: 20-1/2″
Height: 5-1/4″
Width: 35-3/4″
Amperage: 15A
Voltage: 120V
