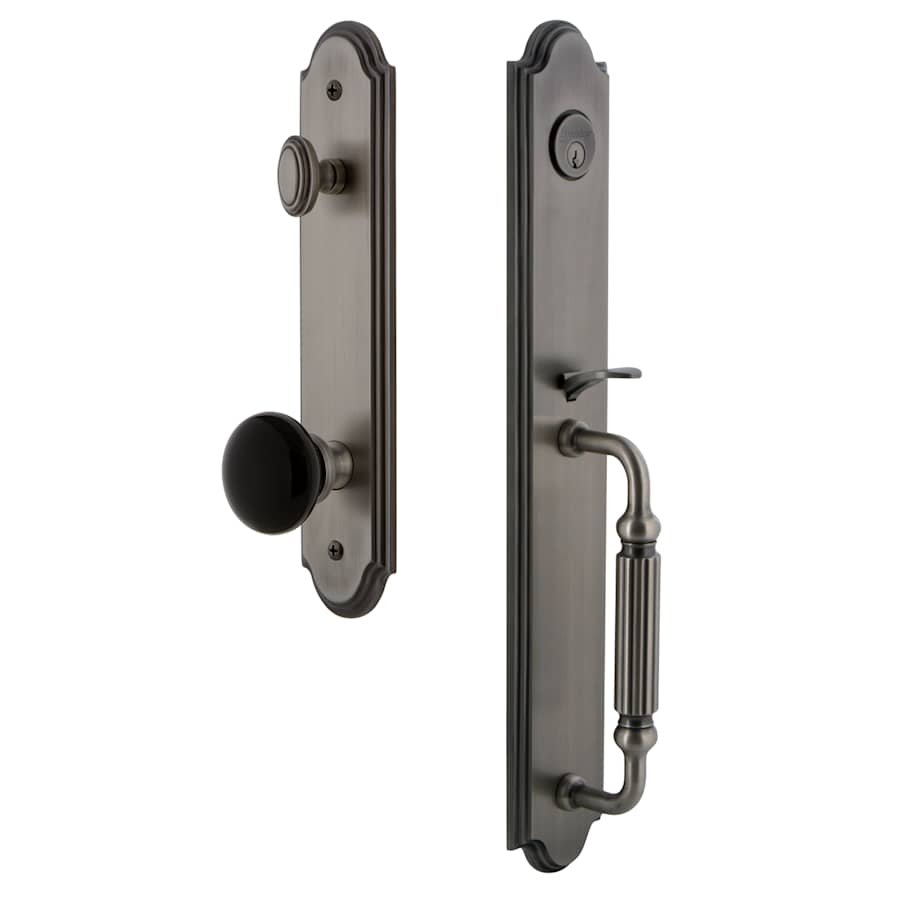

Dummy Set: Dummy handlesets have no latch or locking mechanism but give the appearance of a single cylinder handleset. Typically, dummy handlesets are used as a pull on the inactive side of a double door entry. Pair this with a single cylinder version to make a complete set for a full double door solution. This dummy set comes with both the exterior handleset and the interior.
Features:
Hand forged from solid brass and genuine lead crystal
Handing is reversible for left or right handed doors
Covered by a Limited Lifetime Mechanical and 10 Year Finish Warranty
Does not fulfill criteria of the American’s with Disabilities Act (ADA)
Hand assembled in the United States
Product Technologies:
Solid Brass Construction: Grandeur rosettes and backsets are forged from a solid piece of brass. This process yields a denser, stronger and higher quality product that can better display intricate designs than casted door hardware.
Genuine Crystal: Grandeur crystal knobs are constructed of at least 24% lead crystal. Crystal is both stronger and more reflective than glass; displaying a bright sparkle and rainbow prism effect.
Specifications:
Door Thickness: 1-3/4″ to 2″
Handing: Reversible, Left or Right
Interior Height: 11″
Width: 3″
Grip Projection: 3″
Center to Center: 5-1/2″
Grip Center to Center: 8-7/16″
Interior Height: 11″
Interior Width: 2-1/2″
Material: Brass
Additional Grandeur Links
View the Manufacturer Warranty
Browse all Grandeur Products
Grandeur Coventry Collection
Specifications
| Product Weight | 8 lbs. |
| Center to Center | 5.5 in. |
| Door Thickness | 1-3/4", 1-7/8", 2" |
| Handle Projection | 3 in. |
| Trim Width | 3 in. |
| Grip Center to Center | 8.46 in. |
| Interior Handle Width | 2.3 in. |
| Interior Handle Projection | 2.44 in. |
| Interior Trim Height | 11 in. |
| Interior Trim Width | 2.5 in. |
| Overflow Height | 19 in. |
| Deadbolt Throw | 1" |
| Manufacturer Warranty | 10 Year Finish, Limited Lifetime Mechanical |
| ADA | No |
| Collection | Coventry |
| Country Of Origin | USA |
| Approved for Commercial Use | No |
| Series | Arc |
| Fire Rated | No |
| Made in America | Yes |
| Material | Brass, Porcelain |
| Thermostat | Traditional |
| Concealed Screws | No |
| Shape | Round |
| Function | Dummy Set |
| Handshower | Left, Reversible, Right |
| Handle Material | Porcelain |
| Rosette Shape | Arch |
| Trim Design | Arc |
| Cylinder Type | Single Cylinder |
| Handle Style | Grip |
| Solid Construction | Solid Brass |
| Mounting | Full Plate |
| Lock Style | Single Point |
| Adjustable Throughbolt | No |
| Interior Handle Style | Knob |
| Handle Design | F Grip |
| Interior Included | Yes |
| Cylinder Included | Yes |
| 28 Degree Latch | No |
| Interchangeable Core | Yes |
| Color | Antique Pewter, Lifetime Brass, Satin Nickel, Timeless Bronze, Vintage Brass |
| Color Tone | Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
