All products in this package are covered under Grohe’s limited lifetime warranty

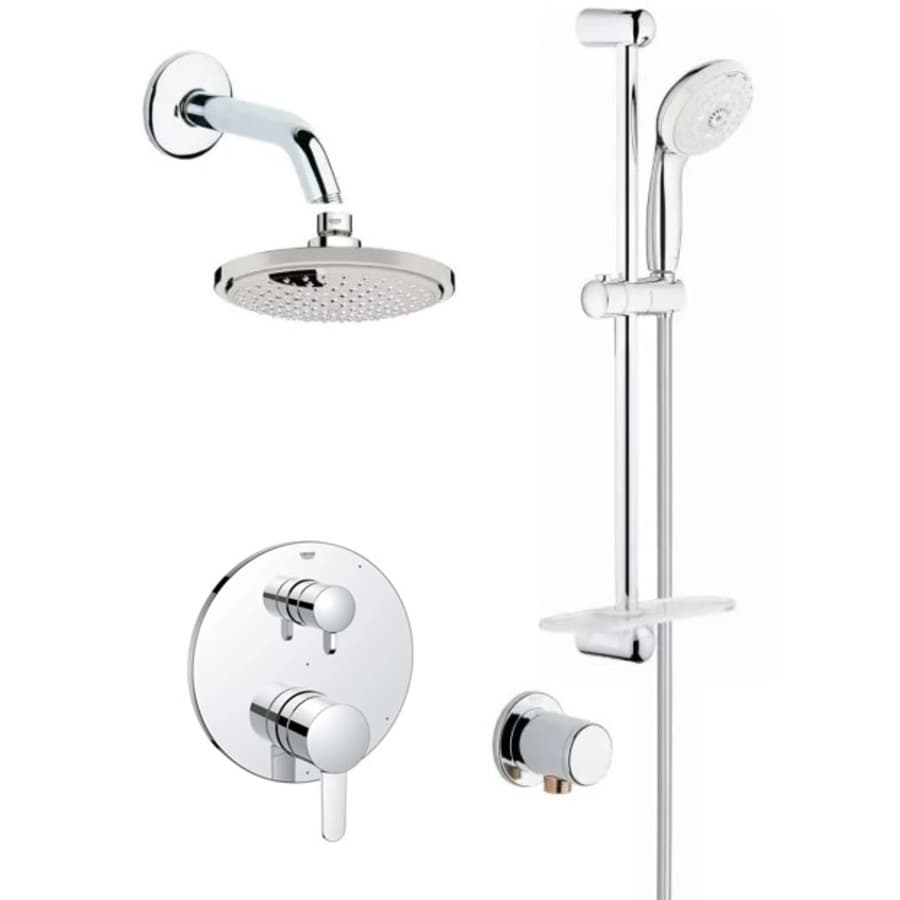

What’s Included:
29 434 Pressure Balanced Valve Trim
27 492 Rain Shower Head
28 436 Slide Bar & Handshower
27 414 Shower Arm

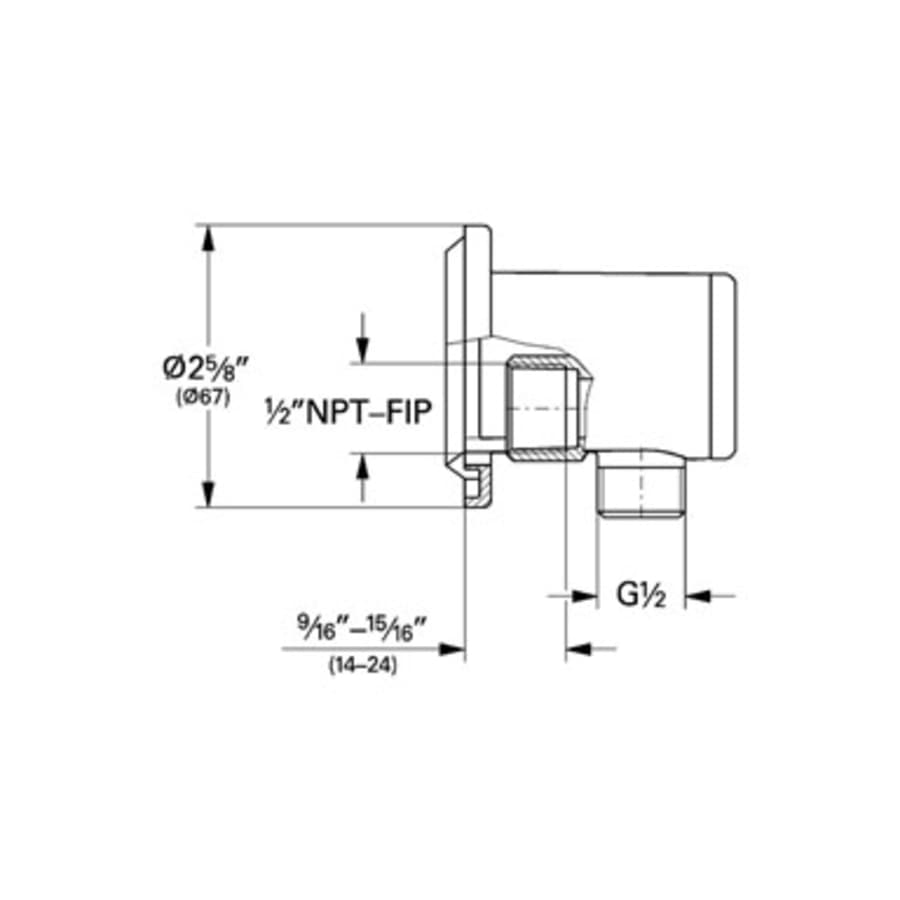

28 627 Wall Supply
35 117 Rough-In Valve
19 881 Pressure Balanced Valve Trim:
Dual function – one handle controls temperature of water and one handle controls volume of water and transfer of water flow
2-way diverter transfers water flow from shower head to handshower
100° integrated scald guard button on valve trim
Features Grohe’s SilkMove® cartridge
Trim Diameter: 6-11/16″
Depth: 3-3/16″ – 4-3/8″ (adjustable from wall)
Required rough-in valve is included

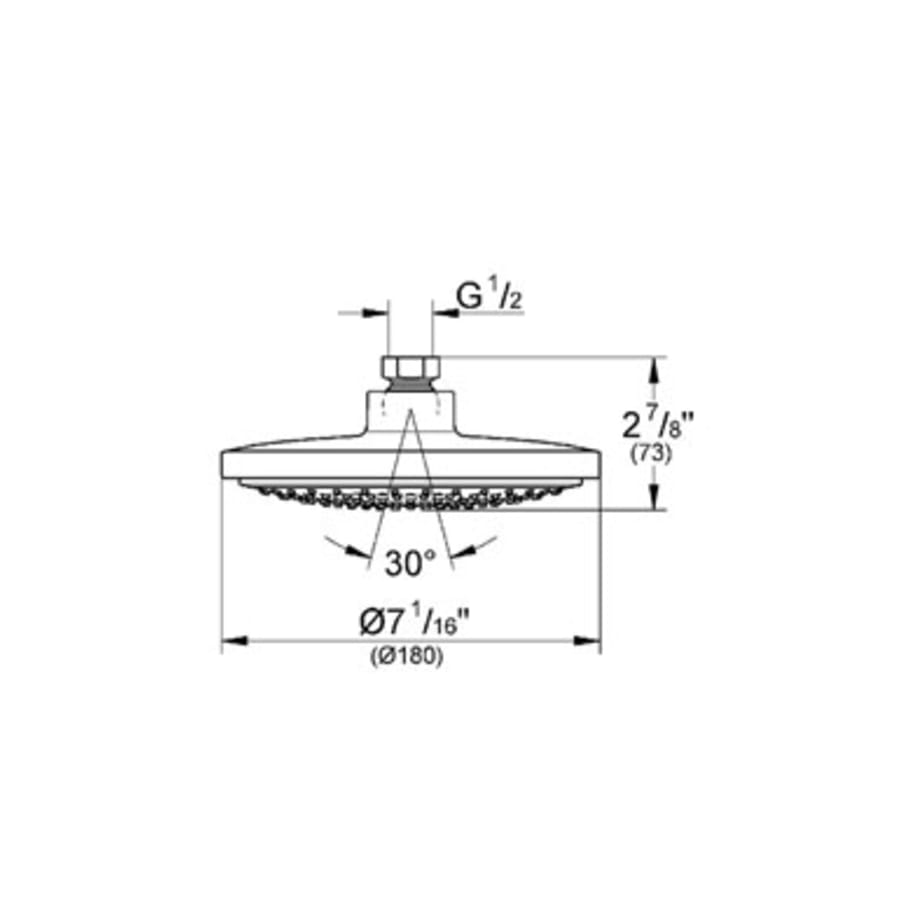

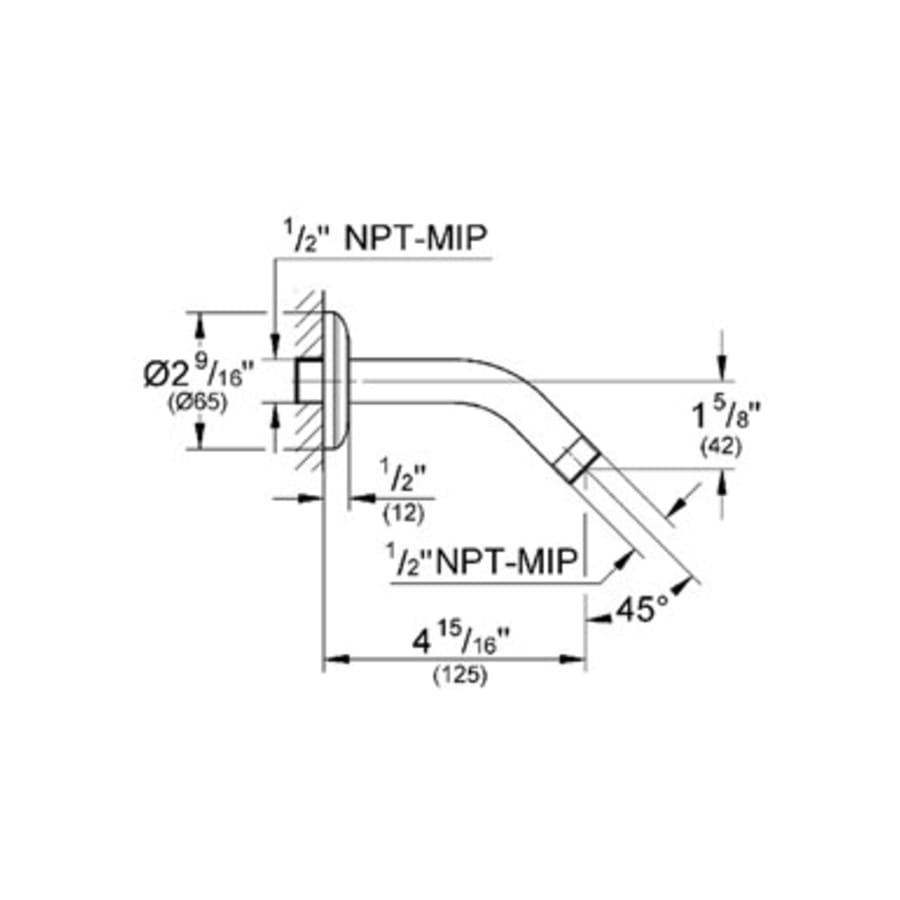

27 492 Rain Shower Head / 27 414 Shower Arm:
Features one spray pattern – Rain
Equipped with Grohe’s SpeedClean and DreamSpray technologies
Rotates 30° in any direction for maximum coverage
Flow Rate: 2.5 GPM (gallons-per-minute)
Shower Head Diameter: 7-1/16″
Shower Head Height: 2-7/8″
Shower Arm Reach: 4-15/16″

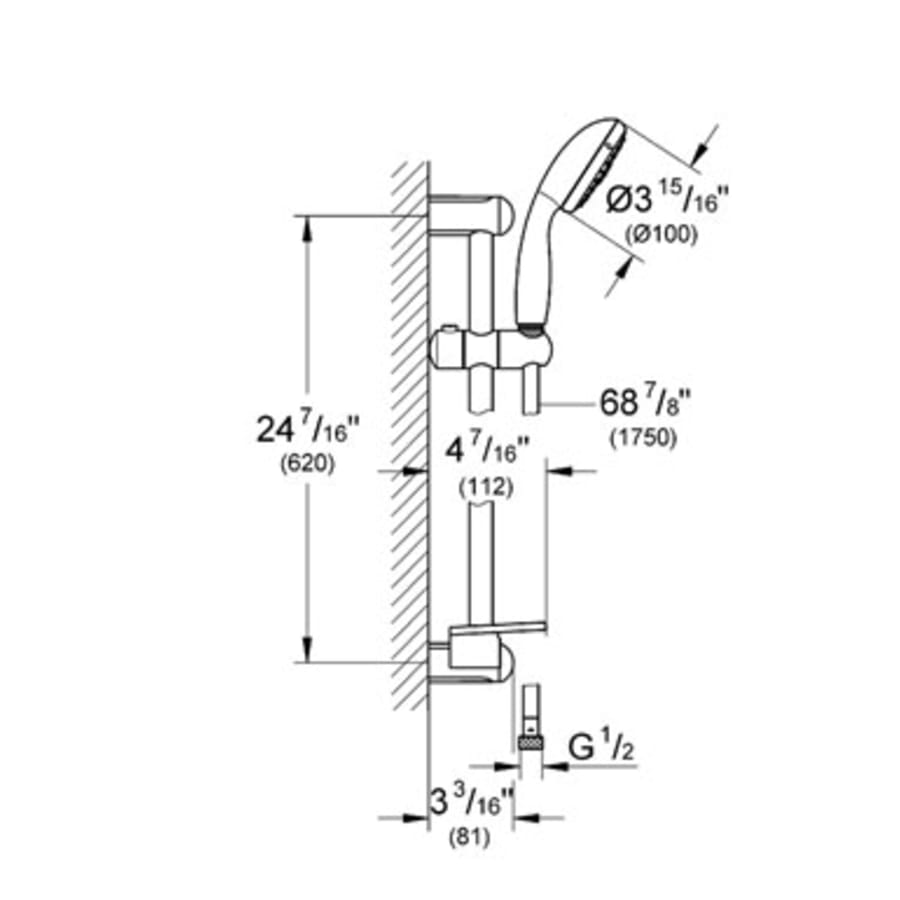

28 436 Slide Bar & Handshower:
Handshower features four spray patterns
Slide bar features a swivel holder to adjust angle of handshower
Integrated soap dish increases storage space in the shower
Handshower features Grohe’s SpeedClean and DreamSpray technologies
Handshower Flow Rate: 2.5 GPM (gallons-per-minute)
Slide Bar Length: 24-7/16″ (adjustable center-to-center distance between mounting holes)
Hose Length: 69″
Slide bar package includes wall supply (28 627)
Additional Grohe Links
View the Manufacturer Warranty
Browse all Grohe Products
Grohe Europlus / Cosmopolitan Collection
Specifications
| Insulation Type | Wall Mounted |
| Thermostat | Transitional |
| Handle Style | Grip, Lever |
| Number Of Handles | 2 |
| Valve Type | Pressure Balanced |
| Faucet Type | Shower System |
| Showerhead Shape | Round |
| Spray Pattern | Rain |
| Handshower | Multi Function |
| Scald Guard | Yes |
| Diverter Location | Valve Trim |
| ADA | No |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | Limited Lifetime |
| CA Drought Compliant | No |
| Hose Length | 69 in. |
| Base Diameter | 6.6875 in. |
| Flow Rate (GPM) | 2.5 |
| Shower Arm Reach | 4.9375 in. |
| Handshower Flow Rate | 2.5 |
| Showerhead Width | 7.0625 in. |
| Valve Trim Width | 6.6875 in. |
| Showerhead Flow Rate (GPM) | 2.5 |
| Showerhead Height | 2.875 in. |
| Valve Trim Height | 6.6875 in. |
| Diverter Included | Yes |
| Handshower Included | Yes |
| Valve Included | Yes |
| Volume Control | Yes |
| Integrated Diverter | Yes |
| Hose Included | Yes |
| Slide Bar Included | Yes |
| Wall Supply Included | Yes |
| Shower Head Included | Yes |
| Bodysprays Included | No |
| Tub Spout Included | No |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
