All products in this package are covered under Grohe’s limited lifetime warranty

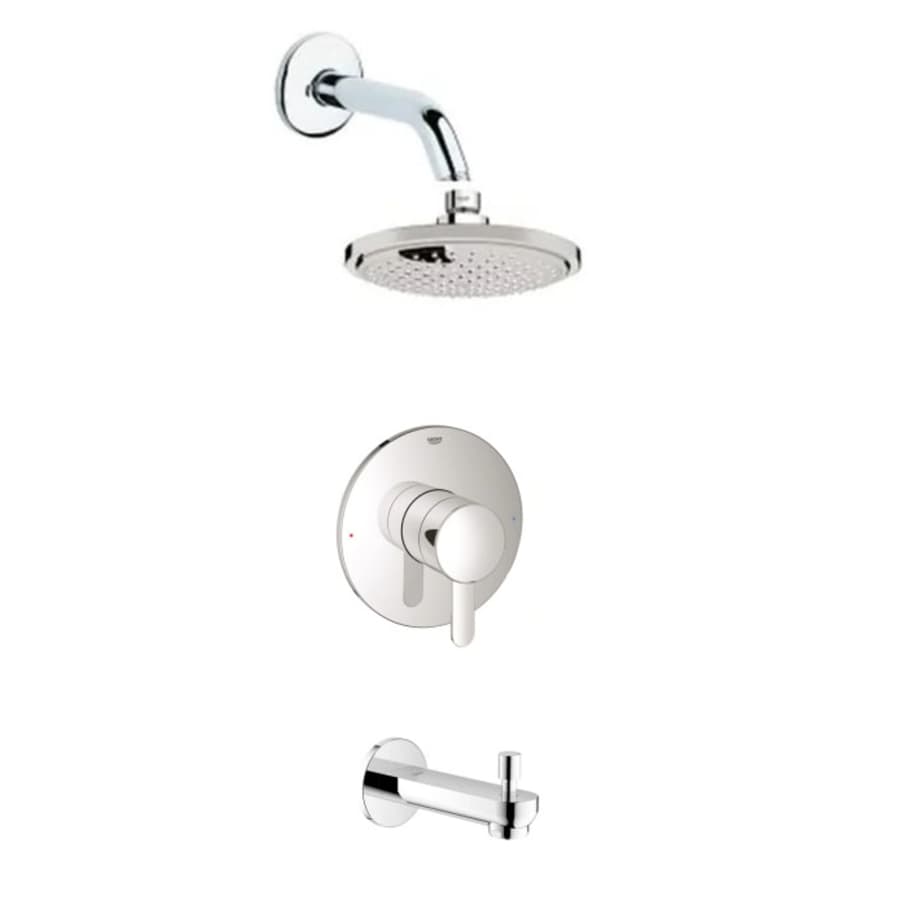

What’s Included:
29 331 3 Pressure Balanced Valve Trim
27 492 Rain Shower Head
27 414 Shower Arm
13 273 Diverter Tub Spout

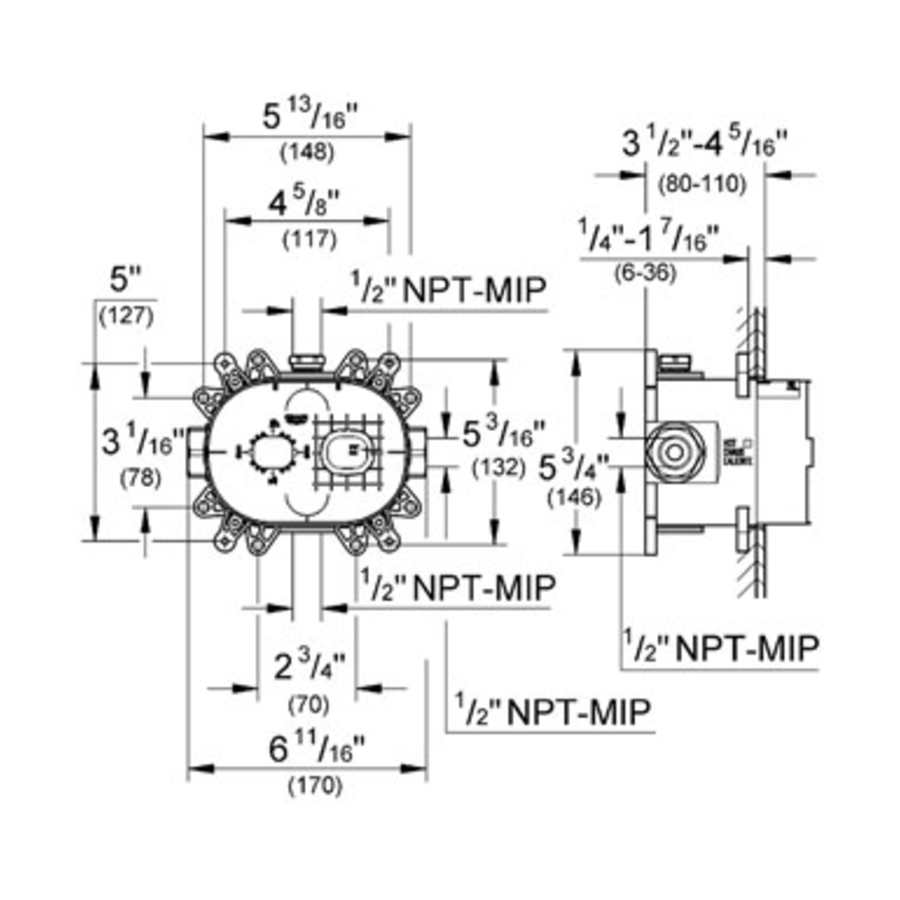

35 110 Rough-In Valve

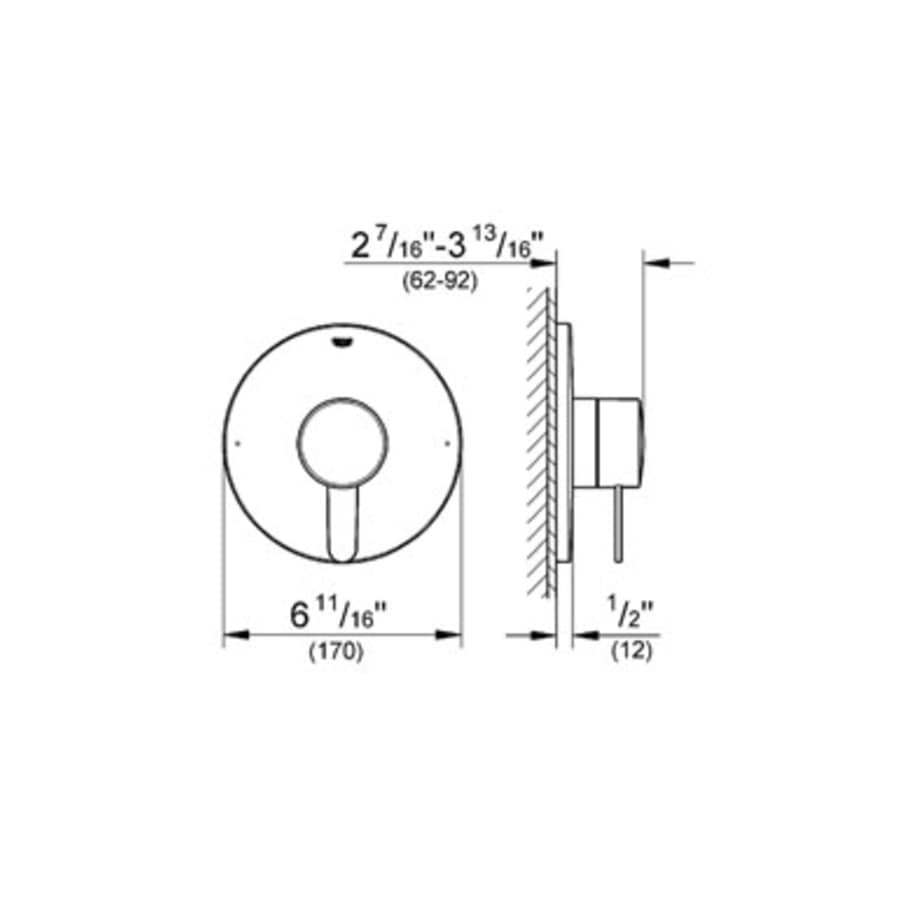

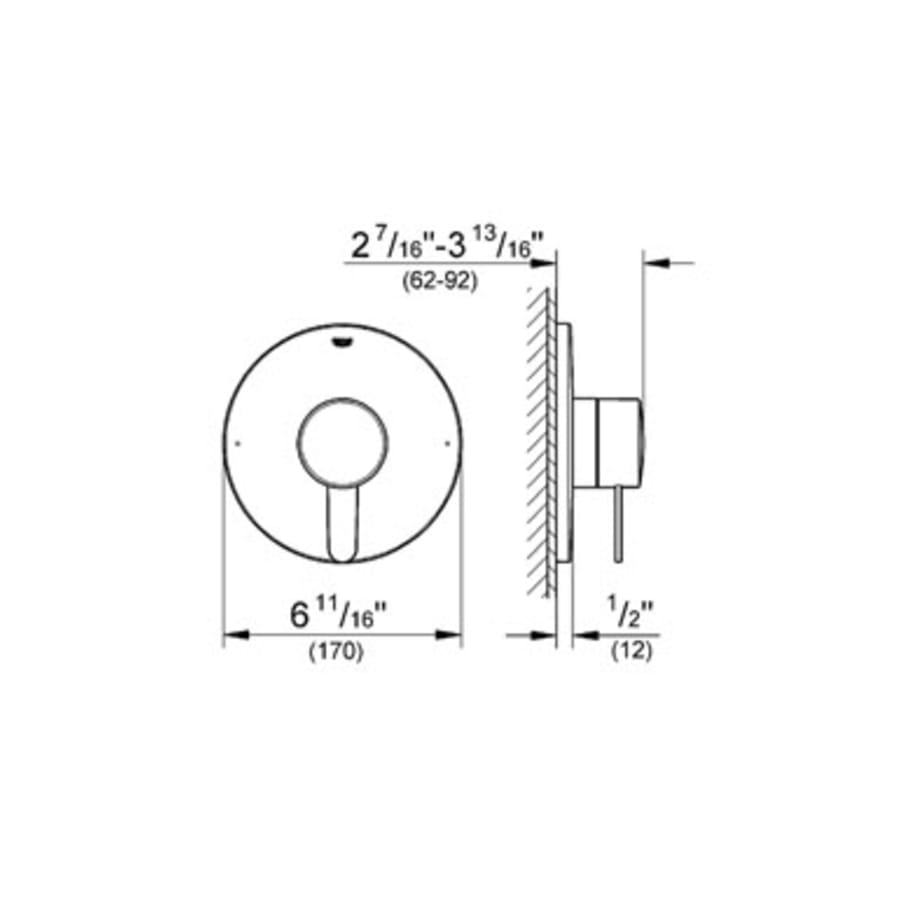

29 331 3 Pressure Balanced Valve Trim:
Single function – dial controls temperature of water
Features Grohe’s SilkMove® cartridge
Trim Diameter: 6-11/16″
Depth: 2-7/16″ – 3-13/16″ (adjustable from wall)
Lever style handle is ADA compliant
Required rough-in valve is included

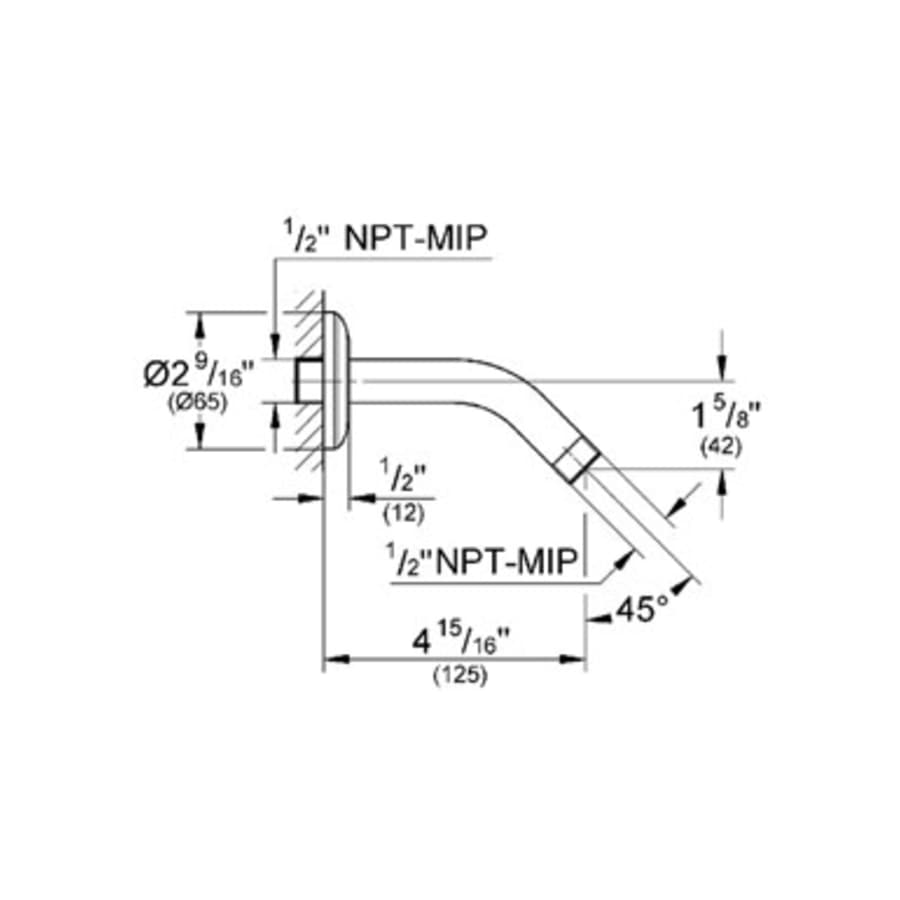

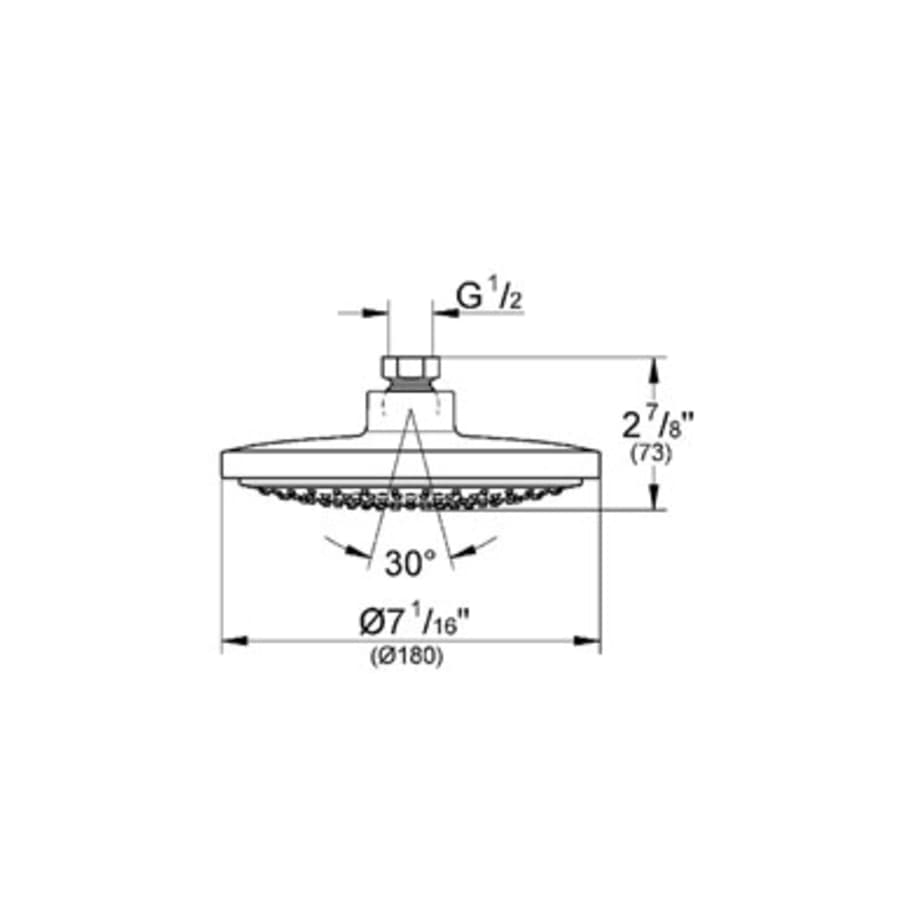

27 492 Rain Shower Head / 27 414 Shower Arm:
Features one spray pattern – Rain
Equipped with Grohe’s SpeedClean and DreamSpray technologies
Rotates 30° in any direction for maximum coverage
Flow Rate: 2.5 GPM (gallons-per-minute)
Shower Head Diameter: 7-1/16″
Shower Head Height: 2-7/8″
Shower Arm Reach: 4-15/16″

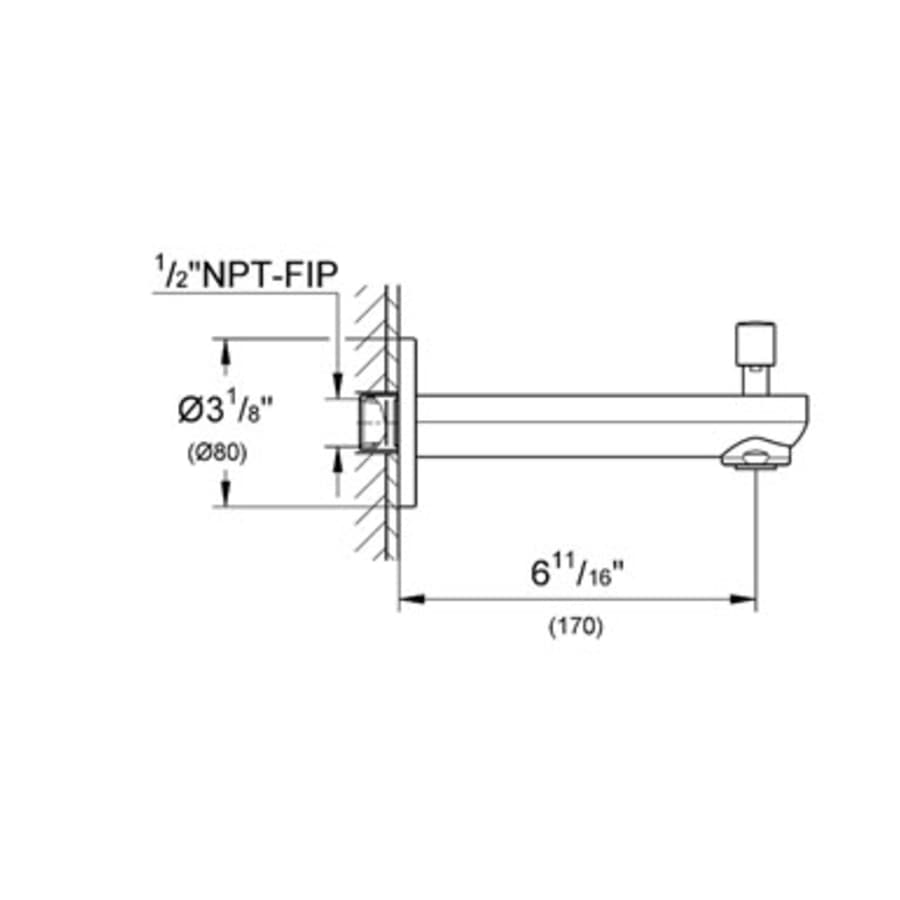

13 273 Diverter Tub Spout:
Classic diverting tub spout
Features flow control
Spout Reach: 6-11/16″
Connection Type: 1/2″ NPT-FIP
Additional Grohe Links
View the Manufacturer Warranty
Browse all Grohe Products
Grohe Europlus / Cosmopolitan Collection
Specifications
| Insulation Type | Wall Mounted |
| Thermostat | Transitional |
| Number Of Handles | 1 |
| Valve Type | Pressure Balanced |
| Handle Style | Lever |
| Faucet Type | Bathtub Faucet, Shower Faucet |
| Diverter Location | Tub Spout |
| Scald Guard | Yes |
| Showerhead | Single Function |
| Showerhead Shape | Round |
| Spray Pattern | Rain |
| Spray Settings | 1 |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | Limited Lifetime |
| ADA | Yes |
| CA Drought Compliant | No |
| Flow Rate (GPM) | 2.5 |
| Spout Reach | 6.6875 in. |
| Shower Arm Reach | 4.9375 in. |
| Showerhead Height | 2.875 in. |
| Showerhead Width | 7.0625 in. |
| Valve Trim Height | 6.6875 in. |
| Valve Trim Width | 6.6875 in. |
| Showerhead Flow Rate (GPM) | 2.5 |
| Valve Included | Yes |
| Diverter Included | Yes |
| Handshower Included | No |
| Shower Head Included | Yes |
| Integrated Diverter | Yes |
| Tub Spout Included | Yes |
| Volume Control | No |
| Color | Starlight Chrome |
| Color Tone | Silver Tones |
