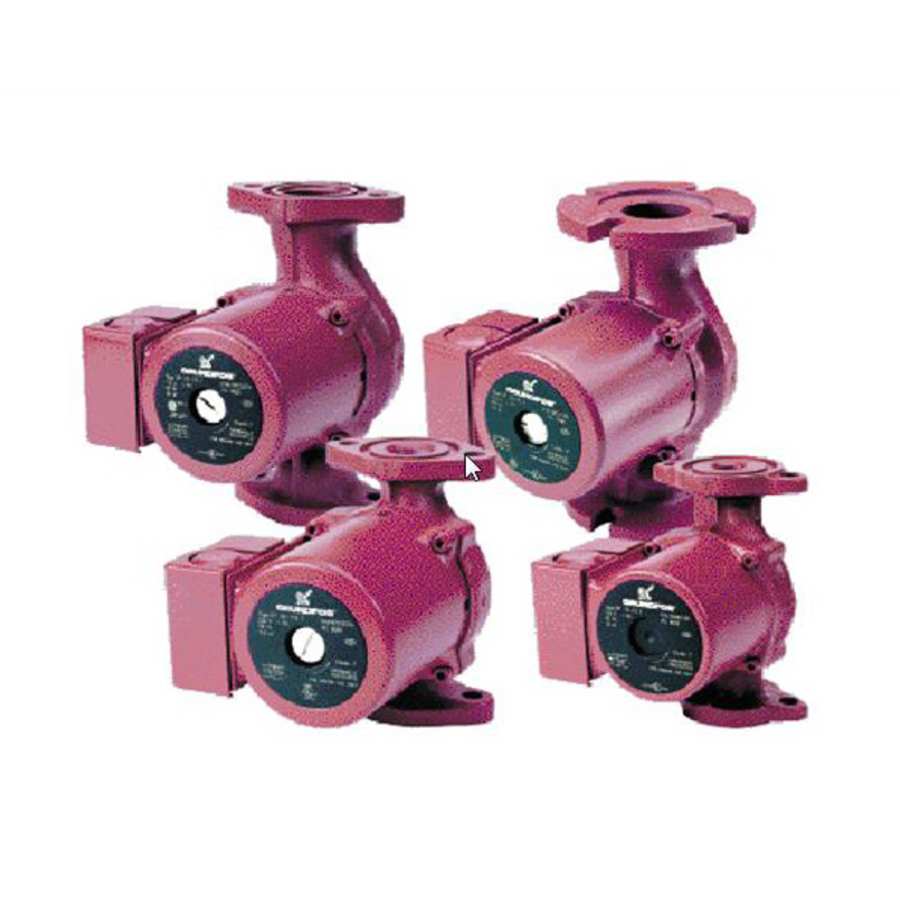

Grundfos Bronze Recirculation Pump with 219.2 Degree Max Temperature Range Single Phase Motor Sweat Valve Connection and a Corrosion-Resistant Impeller
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.
The pump is characterized by:
Ceramic shaft and radial bearings.
Carbon axial Bearing.
Stainless steel rotor can and bearing plate.
Corrosion-resistant impeller, Composite, PES.
Bronze Pump housing.
The motor is a 1-phase motor.
No additional motor protection is required.
Liquid:
Liquid temperature range: 35.6 to 219.2 Degrees F
Technical:
Approvals on nameplate: UL, CSA
Materials:
Pump housing: Bronze
DIN W.-Nr. 2.1176.01
Impeller: Composite, PES
Installation:
Maximum ambient temperature: 104 Degrees F
Ambient max at 176 Degrees F liquid: 176 Degrees F
Maximum operating pressure: 145 PSI
Flange standard: USA Sweat
Type of connection: Bronze Sweat
Pipe connection: .5″ Sweat
Pressure stage: 10
Port-to-port length: 5″
Electrical data:
Number of poles: 2
Max. power input: 25 W
Rated power – P2: 0.04 HP
Main frequency: 60 Hz
Rated voltage: 1 x 115 V
Current in speed 3: 0.22 A
Capacitor size – run: 2° F/400 V
Insulation class (IEC 85): F
Additional Grundfos Links
Browse all Grundfos Products
Specifications
| Height | 5 in. |
| Product Weight | 6 lbs. |
| Length | 5 in. |
| Material | Bronze |
| Frequency | 60 Hertz |
| Voltage | 115 |
| Electrical Phases | 1 |
| Maximum Operating Pressure (PSI) | 145 |
| Certifications | UL, CSA |
| Low Lead Compliant | Yes |
