NOTE: Finish image shows polished brass, not the black epoxy
Features:

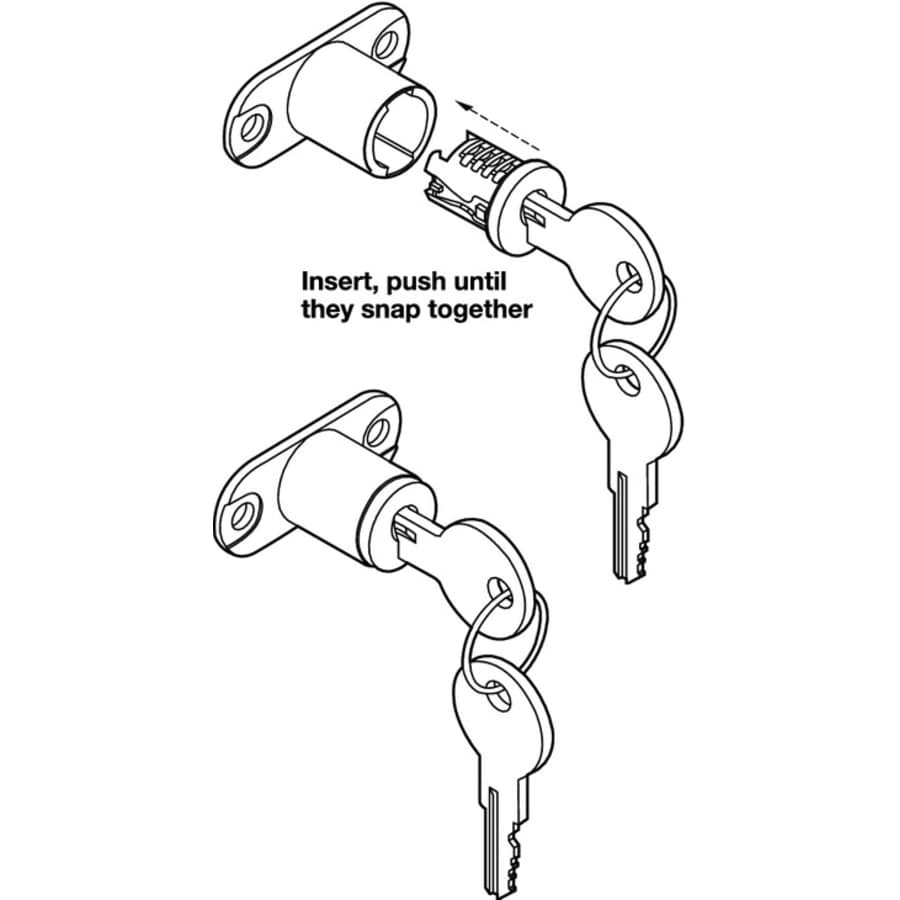

Separates the lock core from the cylinder housing
Includes 5 plate levers which allows for about 500 possible key changes
Simplifies the process for planning and changing or locking systems
Lock cores can be replaced with the use of the removal key
Includes two (2) 100 TA number keys
Specification:

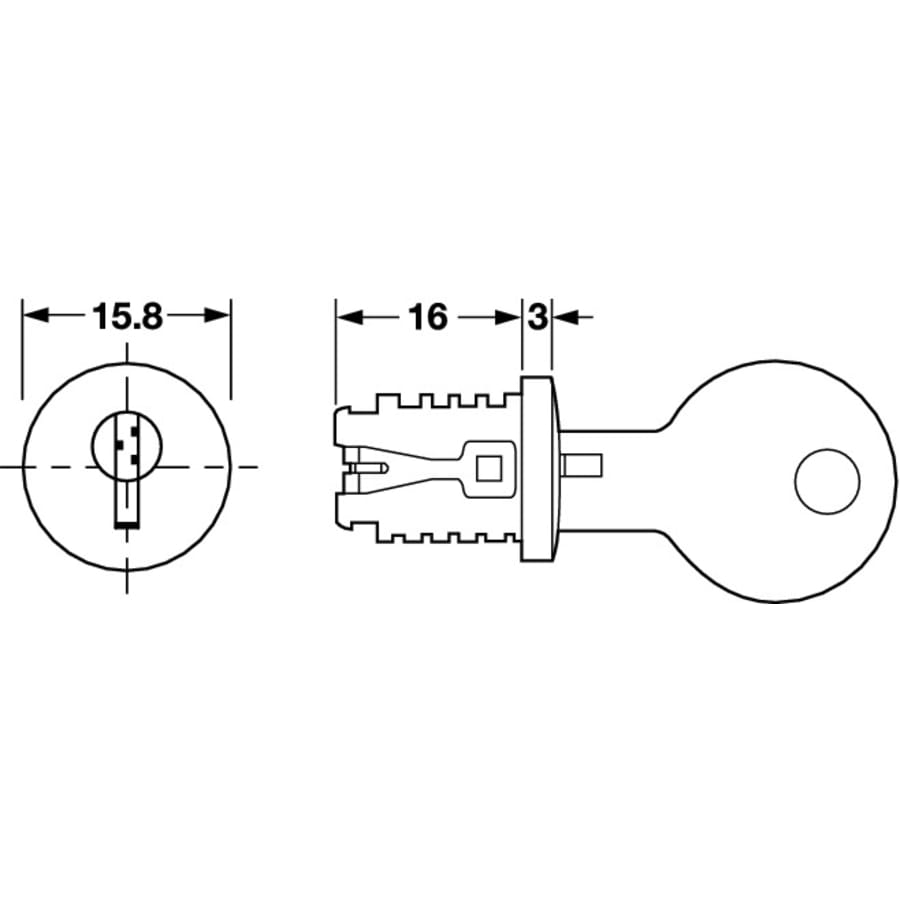

Length: 3/4″ (19 mm)
Diameter: 5/8″ (15.8 mm)
Projection: 1/8″ (3 mm)
Material: Zinc and Brass
Number of Keys: 2
Additional Hafele Links
View the Manufacturer Warranty
Browse all Hafele Products
Hafele Timberline Collection
Specifications
Characteristics and Features
| Material | Brass, Zinc |
| Number of Keys | 2 |
Warranty and Product Information
| Approved for Commercial Use | No |
Dimensions and Measurements
| Length | 0.75 in. |
| Projection | 0.125 in. |
| Diameter | 0.625 in. |
| Length mm | 19 mm |
| Projection mm | 3 mm |
| Diameter mm | 15.8 mm |
| Color | Black Epoxy |
| Color Tone | Blacks |
