Features:
Ideal for 4-sided box construction
Able to be mounted at the top of the drawer front
Adjustable from 7/8″ (22 mm) to  1-3/8″ (35 mm) by turning the mounting flange
Includes one (1) barrel, one (1) straight cam and one (1) offset cam
Lock is needed for complete installation

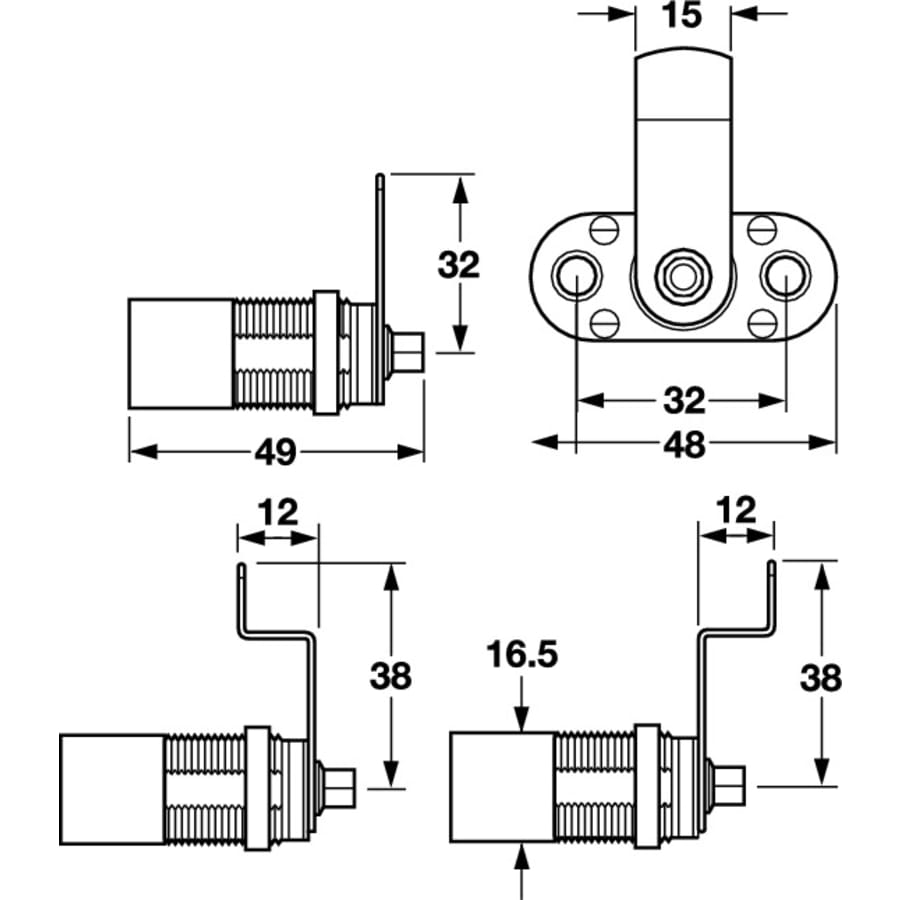

Specifications:
Length: 1-15/16″ (49 mm)
Width: 1-7/8″ (48 mm)
Barrel Material: Zinc
Cam Material: Steel
Key Travel: 90°
Additional Hafele Links
View the Manufacturer Warranty
Browse all Hafele Products
Hafele Timberline Collection
Specifications
Dimensions and Measurements
| Diameter | 0.625 in. |
| Width | 1.875 in. |
| Length | 1.9375 in. |
| Center to Center | 1.25 in. |
| Center to Center mm | 32 mm |
| Diameter mm | 16.5 mm |
| Length mm | 49 mm |
| Width mm | 48 mm |
Characteristics and Features
| Material | Steel, Zinc |
| Cabinet Type | Face Frame |
Warranty and Product Information
| Approved for Commercial Use | No |
| Color | Zinc |
| Color Tone | Greys |
