Master key and cylinder rosettes are ordered separately
Features:
Can be used on metal or wood cabinet doors
90 degree cam rotation
Key is removable in locked and unlocked positions

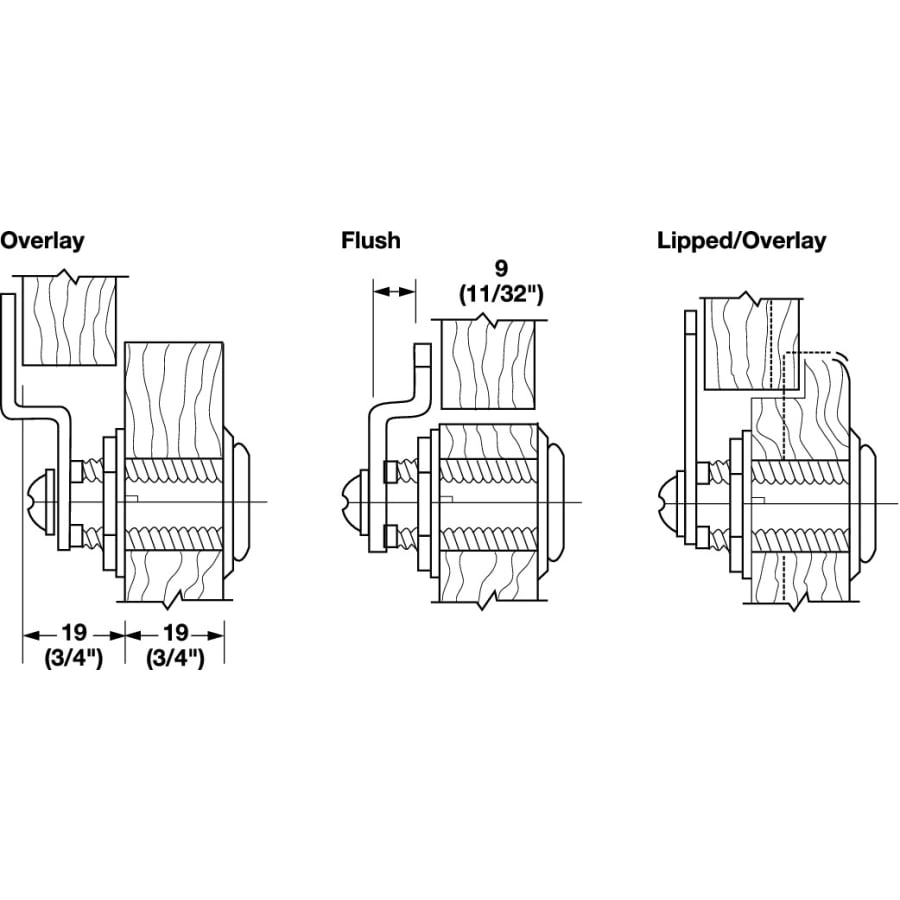

Non-handed design can be used with lipped (straight cam), flush (flush cam), or overlay cabinetry
Comes with two (2) keys, two (2) cams, two (2) stop washer, one (1) trim washer, and one (1) spur washer
Specifications:
Material: Zinc

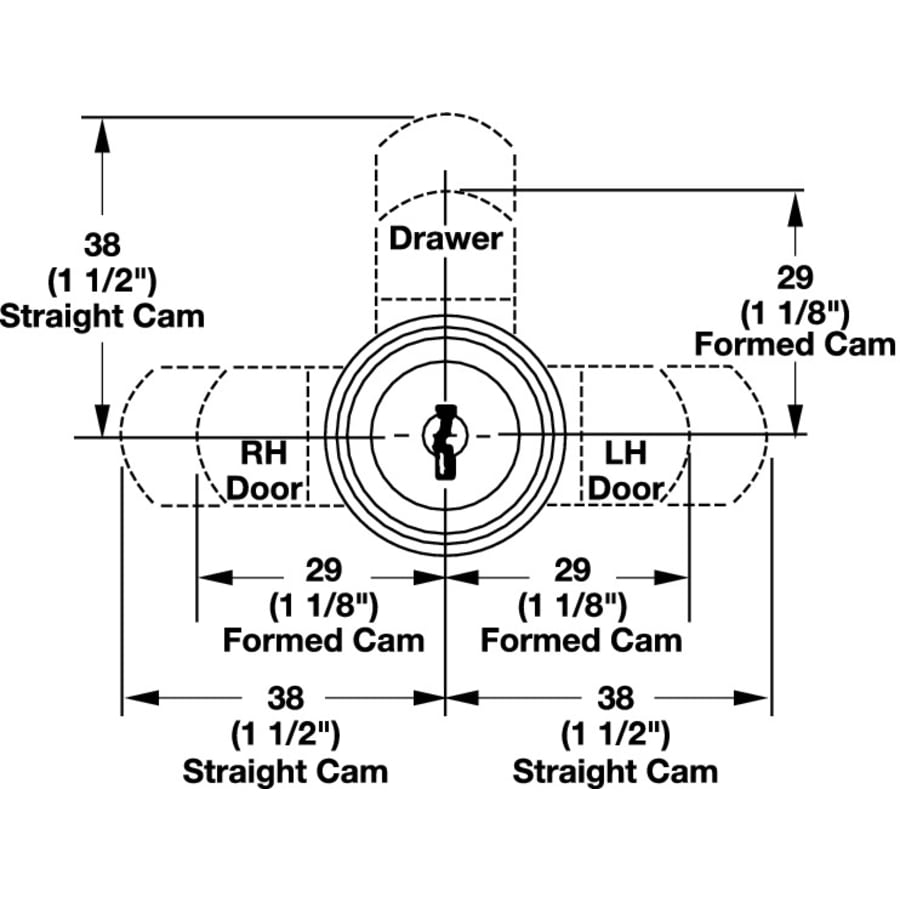

Length: 1-7/16″

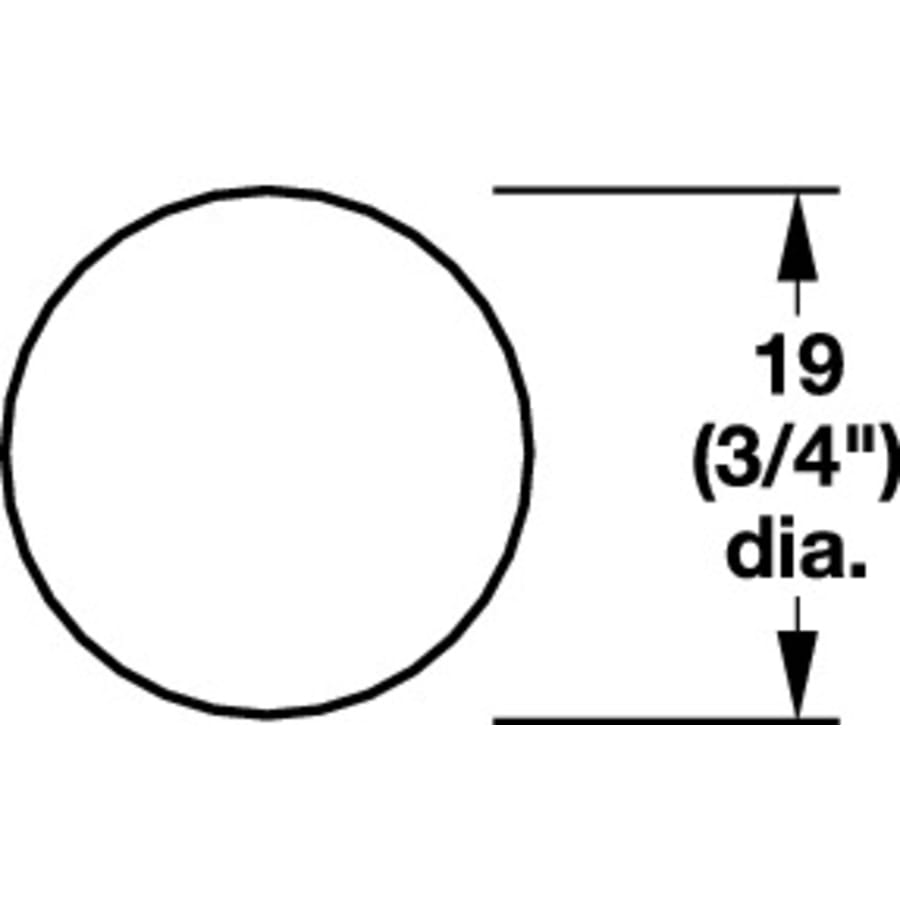

Cutout Diameter: 3/4″
Maximum Thickness: 1-1/8″
Additional Hafele Links
View the Manufacturer Warranty
Browse all Hafele Products
Specifications
Dimensions and Measurements
| Length | 1.434 in. |
| Cutout Width | 0.75 in. |
| Cutout Height | 0.75 in. |
| Maximum Thickness | 1.125 in. |
Characteristics and Features
| Material | Zinc |
| Function | Keyed Entry |
| Number of Keys | 2 |
Warranty and Product Information
| Approved for Commercial Use | No |
| Color | Bright Nickel |
