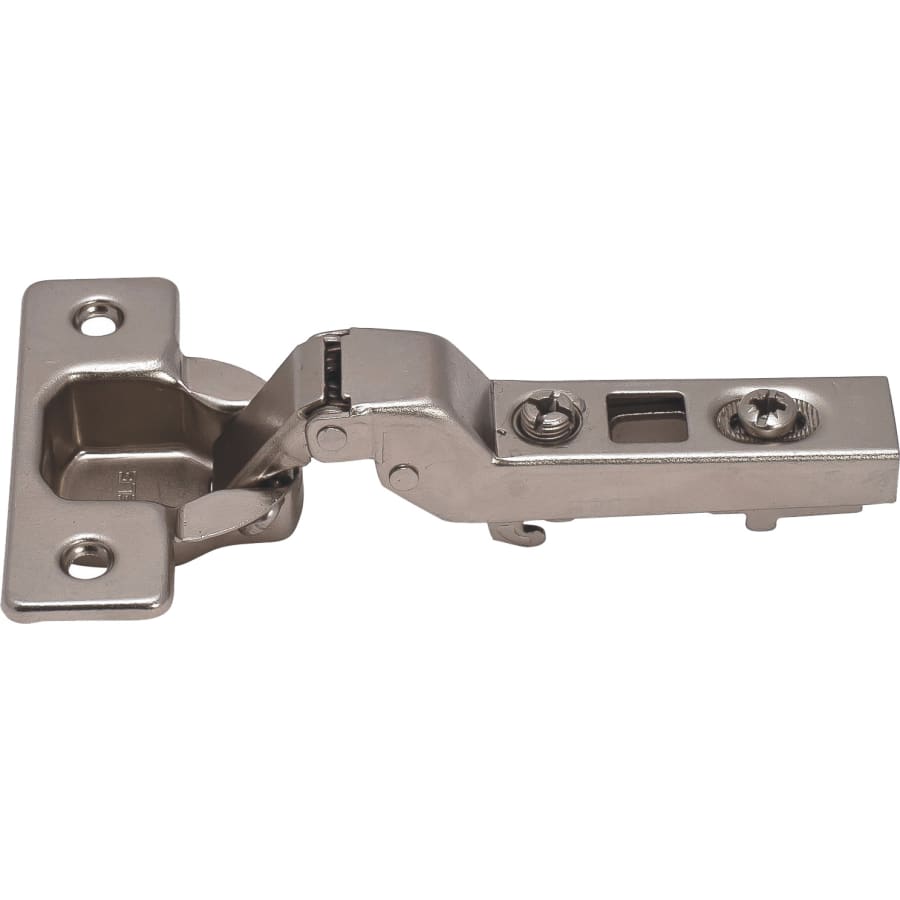

Features:
Includes a single hinge in each order
Each hinge is constructed from durable steel for extended use
Self-closing hinge with a max opening angle of 110 degrees
Includes all necessary installation hardware
Product Technologies:
1/2 Inch Overlay:Â A 1/2″ overlay hinge is needed when the cabinet door you are mounting covers 1/2″ of the cabinet wall. 1/2″ overlay hinges install on the interior edge of the cabinet frame and the interior face of the door, providing full motion with complete concealment of the hardware itself when the cabinet door is closed.
Material – Steel: Steel is cheap, strong, and durable, making it a favorite for hinges of all types, despite it being slightly more prone to rusting than solid brass or stainless steel.
Mounting Type – Screw-On:Â The most common and standard method to secure hinges to your cabinetry. Typically using wood screws to attach the hinges to either your cabinet frame or cabinet door.
Specifications:
Cup Diameter: 35 mmÂ
Bore Distance: 3 mm, 4 mm, 5 mm, 6 mm, 7 mm
Cup Depth: 11.5 mm
Mount Centers: 45 mm
Hinge Mount: 1/2 Inch Overlay
Opening Angle: 110°
Material: Steel
Mount Type: Screw-In
Additional Hafele Links
View the Manufacturer Warranty
Browse all Hafele Products
Specifications
| Insulation Type | Screw |
| Material | Steel |
| Adjustable Height | No |
| Adjustable Depth | No |
| Adjustable Side to Side | No |
| Arm Type | Straight Arm |
| Cabinet Type | Panel (Frameless) |
| Demountable | No |
| Hinge Mount | Partial Overlay |
| Hinge Type | Concealed Euro |
| Self Closing | Yes |
| Approved for Commercial Use | No |
| Quantity | 1 |
| Bottom Diameter | 3, 4, 5, 6, 7 mm |
| Cup Depth mm | 11.5 mm |
| Cup Diameter mm | 35 mm |
| Max Cabinet Door Thickness | 0.8125 in. |
| Max Cabinet Door Thickness mm | 20 mm |
| Mount Centers mm | 45 mm |
| Opening Angle | 110 |
| Installation Hardware Included | Yes |
| Color | Nickel Plated |
