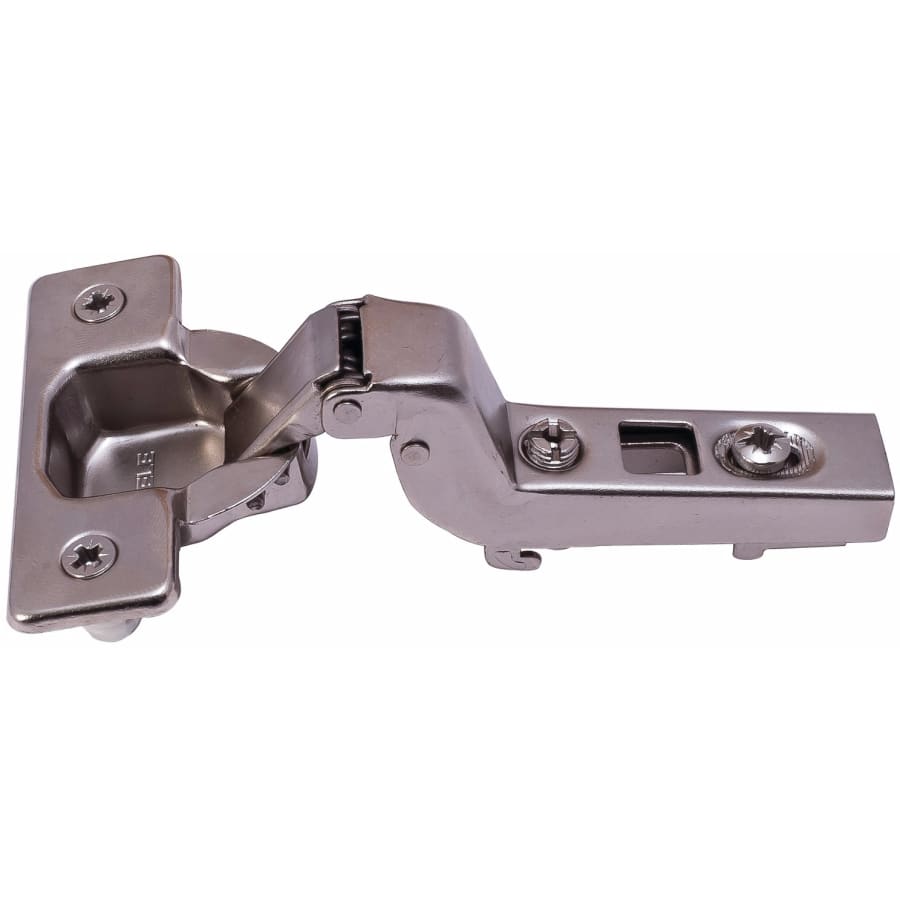

Features
Includes a single hinge in each order
Constructed of steel for durability
Includes special features like a self-closing function and 3-way adjustment when installed with required mounting plate
Product Technologies:
Inset: An inset hinge is needed when the cabinet door sit inside the cabinet frame. Used with eight face-frame or panel cabinets where having a door flush with the frame is ideal
Specifications
Cup Diameter: 35 mm
Mount Centers: 45 mm
Hinge Mount: Inset
Opening Angle: 110°
Cabinet Door Thickness: 14 to 20 mm (9/16″ to 13/16″)
Side Adjustment:Â 16 mm
Material: Steel
Mount Type: Press-In
Additional Hafele Links
View the Manufacturer Warranty
Browse all Hafele Products
Specifications
Characteristics and Features
| Material | Steel |
| Insulation Type | Press-In |
| Adjustable Height | Yes |
| Soft Close | No |
| Cabinet Type | Panel (Frameless) |
| Self Closing | Yes |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Side to Side | Yes |
| Arm Type | Full Cranked |
| Demountable | Yes |
| Hinge Mount | Full Inset |
| Hinge Type | Concealed Euro |
Warranty and Product Information
| Approved for Commercial Use | No |
Dimensions and Measurements
| Quantity | 1 |
| Cup Diameter | 35 in. |
| Max Cabinet Door Thickness | 20 in. |
| Mount Centers | 45 in. |
| Opening Angle | 110 |
| Inset | Full |
| Color | Nickel Plated |
| Color Tone | Nickel Tones |
