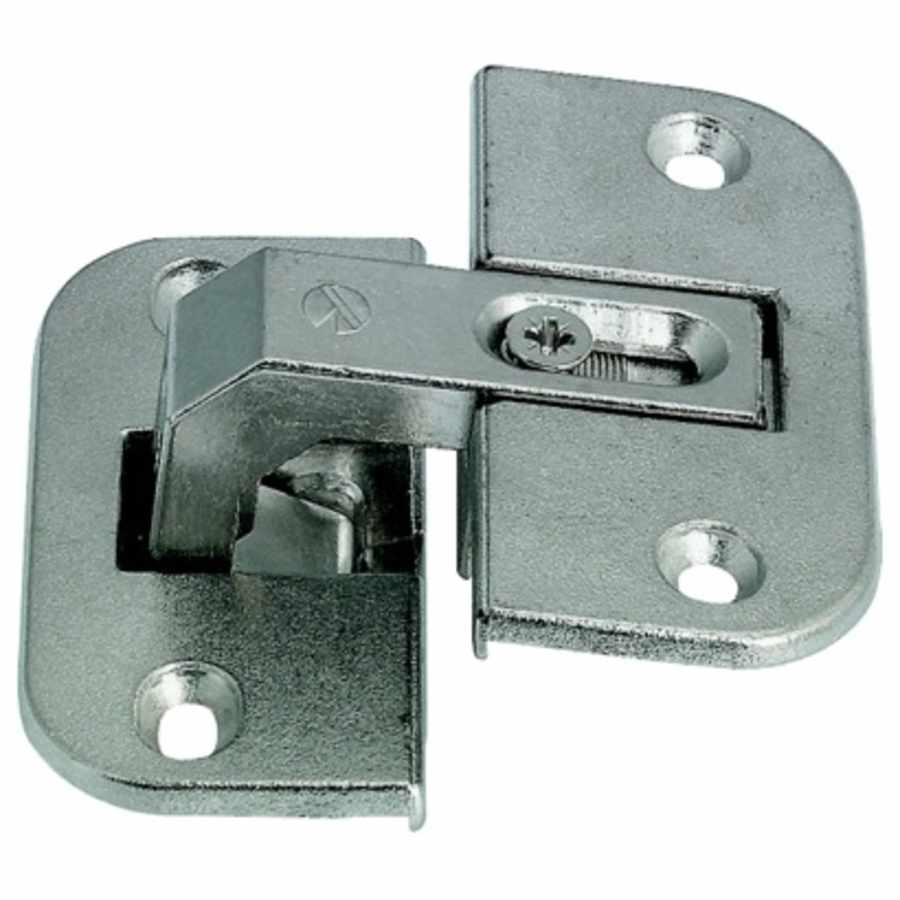

Features:
78-degree opening angle
Concealed pie-cut corner hinge
Screw mounted
Specially designed for kitchen corner cabinets with revolving shelves
Specifications:
Opening Angle: 78°
Material: Zinc
Door Thickness: 3/4″ to 7/8″
Mounting: Screw
Additional Hafele Links
View the Manufacturer Warranty
Browse all Hafele Products
Hafele A-Series Collection
Specifications
Warranty and Product Information
| Approved for Commercial Use | No |
Characteristics and Features
| Insulation Type | Screw |
| Hinge Type | Concealed Euro, Bifold |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Cabinet Type | Panel (Frameless) |
| Demountable | No |
| Self Closing | No |
| Soft Close | No |
Dimensions and Measurements
| Quantity | 1 |
| Opening Angle | 78 |
| Cup Depth mm | 11 mm |
| Cup Diameter mm | 35 mm |
| Max Cabinet Door Thickness mm | 24 mm |
| Mount Centers mm | 48 mm |
| Color | Nickel |
| Color Tone | Nickel Tones |
