Features:

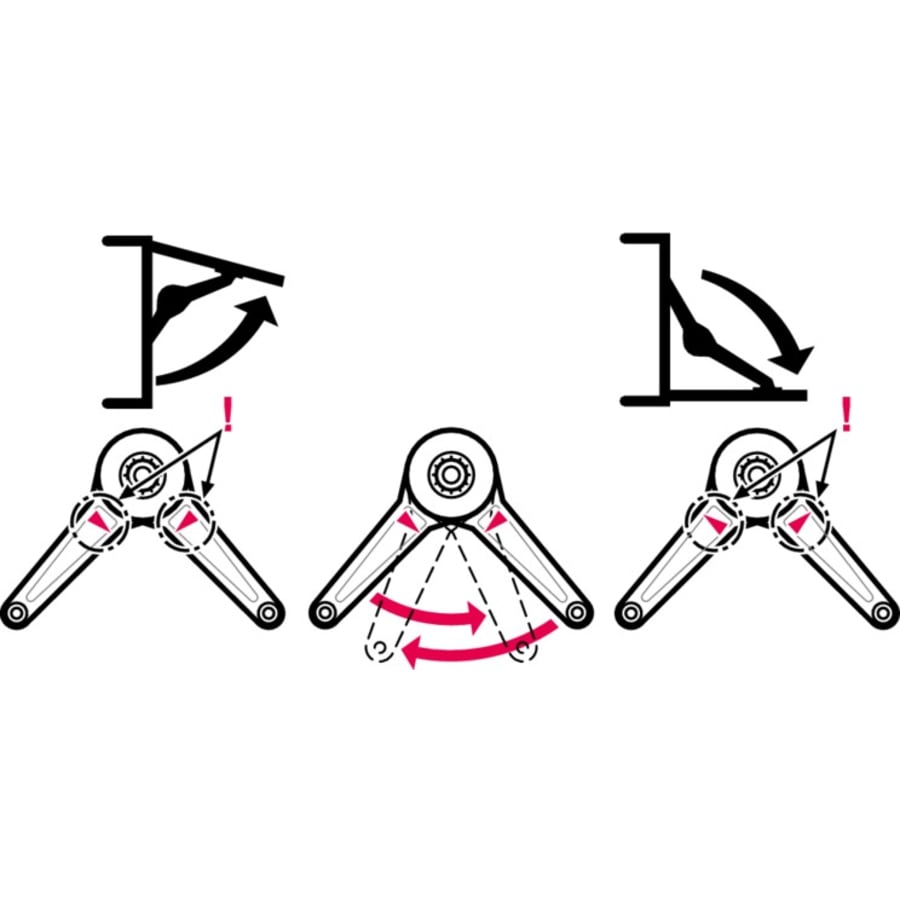

Versatile bracket allows vertical opening cabinet doors to swing up or down
Constructed of die cast zinc for durability and strength
One fitting can hold up to 19.8 lbs at a 75° angle. Use two for up to 33 lbs
Hafele provides a one year limited warranty on this product
Specifications:
Arm Length: 6.77″ (172 mm)
Material: Zinc

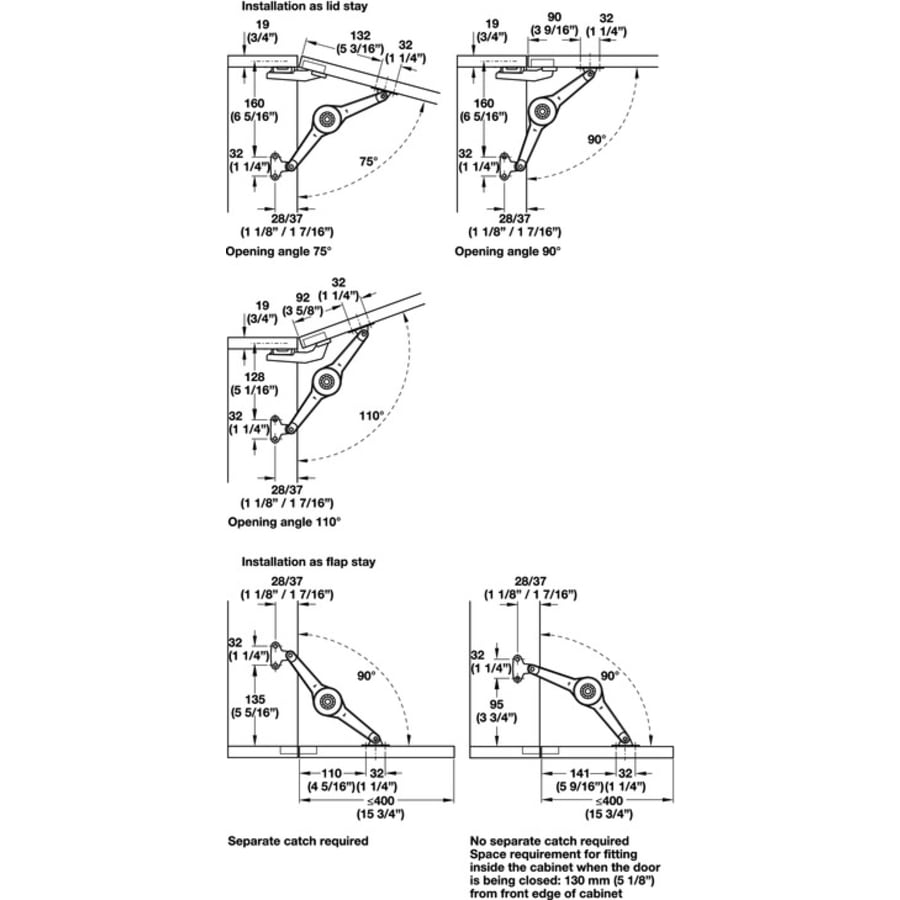

Opening Angle: 70°, 90°, 110°
Door Width: 1-3/4″ (45 mm)
Edge Distance: Â 1.46″ (37 mm)

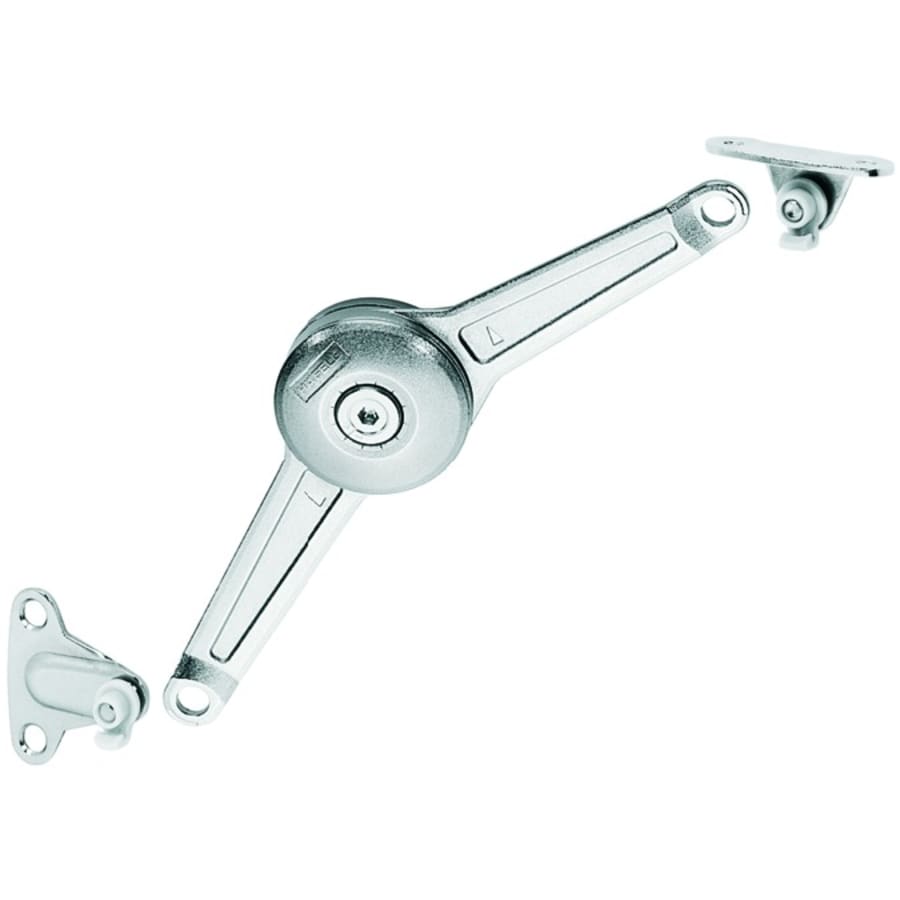

Includes One (1) lid stay, one (1) mounting bracket, and one (1) screw-on bracket
Additional Hafele Links
View the Manufacturer Warranty
Browse all Hafele Products
Hafele Duo Collection
Specifications
Characteristics and Features
| Material | Steel |
Warranty and Product Information
| Approved for Commercial Use | No |
| Collection | Duo |
| Manufacturer Warranty | 1 Year Limited |
Dimensions and Measurements
| Length | 6.7717 in. |
| Length mm | 172 mm |
| Opening Angle | 70, 110, 90 |
| Color | Nickel-Plated |
| Color Tone | Nickel Tones |
